15 кВт PMSM комплект двигателя для

Категория: Двигатель переменного тока >>>
Поставщик: Foshan,Uni,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.40 $*	0.58 $*
Aug-18-2025	0.65 $*	0.64 $*
Jul-18-2025	0.80 $*	0.55 $*
Jun-18-2025	0.39 $*	0.8 $*
May-18-2025	0.33 $*	0.98 $*
Apr-18-2025	0.29 $*	0.32 $*
Mar-18-2025	0.57 $*	0.8 $*
Feb-18-2025	0.58 $*	0.93 $*
Jan-18-2025	0.7 $*	0.64 $*

Характеристики

About Us

We have successful experience in converting gas car to electric.

Our team members:
1. Managers with a comprehensive understanding of the market
2. Experienced engineers who have engaged in electric vehicle industry for more than 10 years with full proficiency in technology
3. Energetic and motivated colleagues
After years of development, the supply & sales chain was adjusted and improved constantly and now became a completed system. We can provide comprehensive service from pre-sales introduction to after-sales technical support.

Our products:
1. AC driving system (3kw-15kw): AC motor, AC motor controller

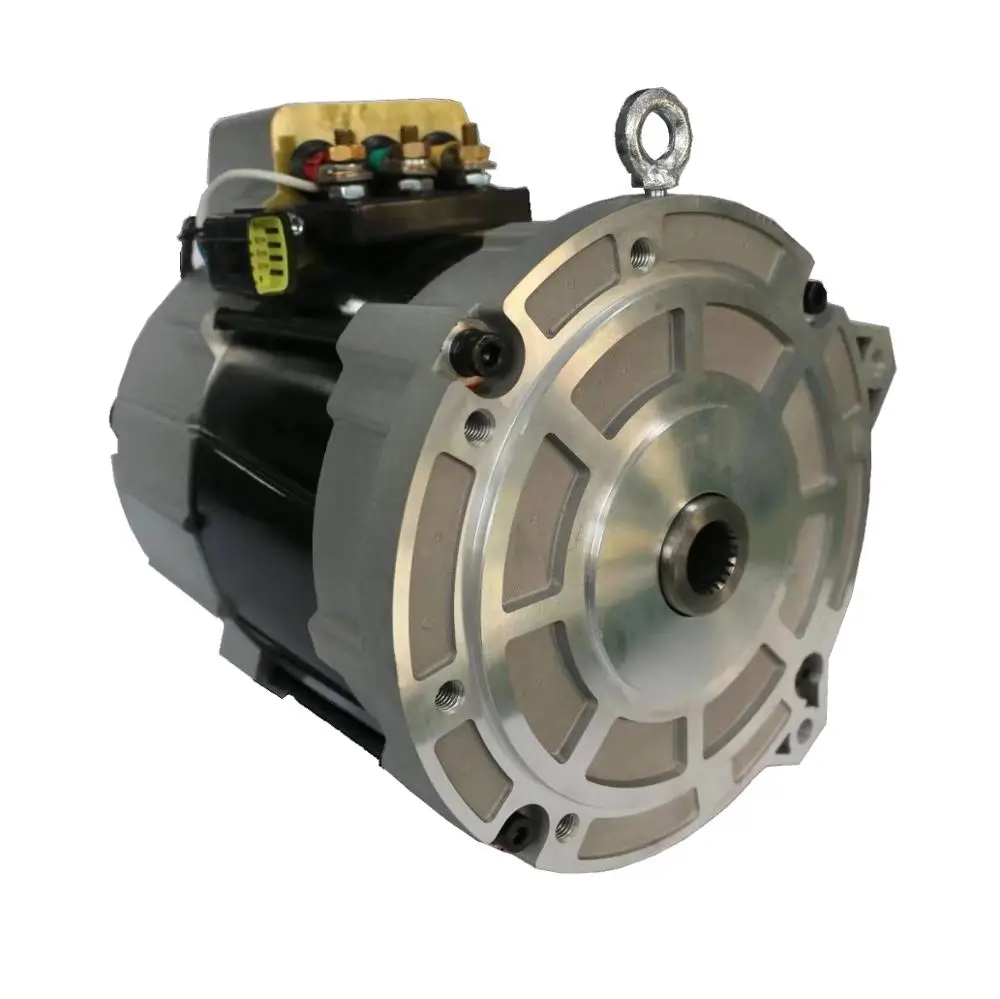

2. PMSM driving system (5kw, 15kw, 20kw, 30kw, 50kw, 70kw): PMSM motor, PMSM motor controller
3. Transmission assembly: rear axle, front live shaft, reducer, rear/front drive assembly

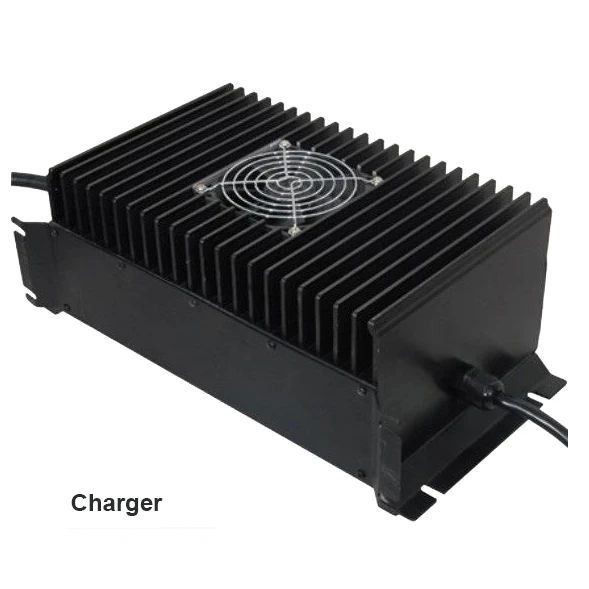

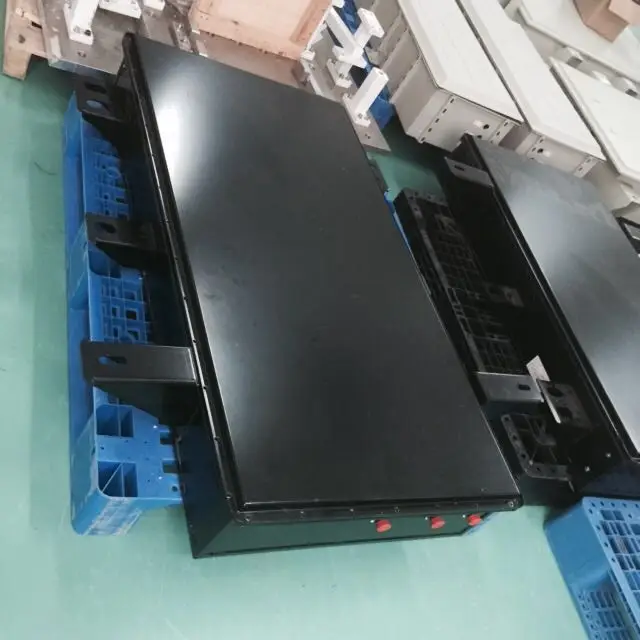

4. Power supply system: battery charger and Lithium battery

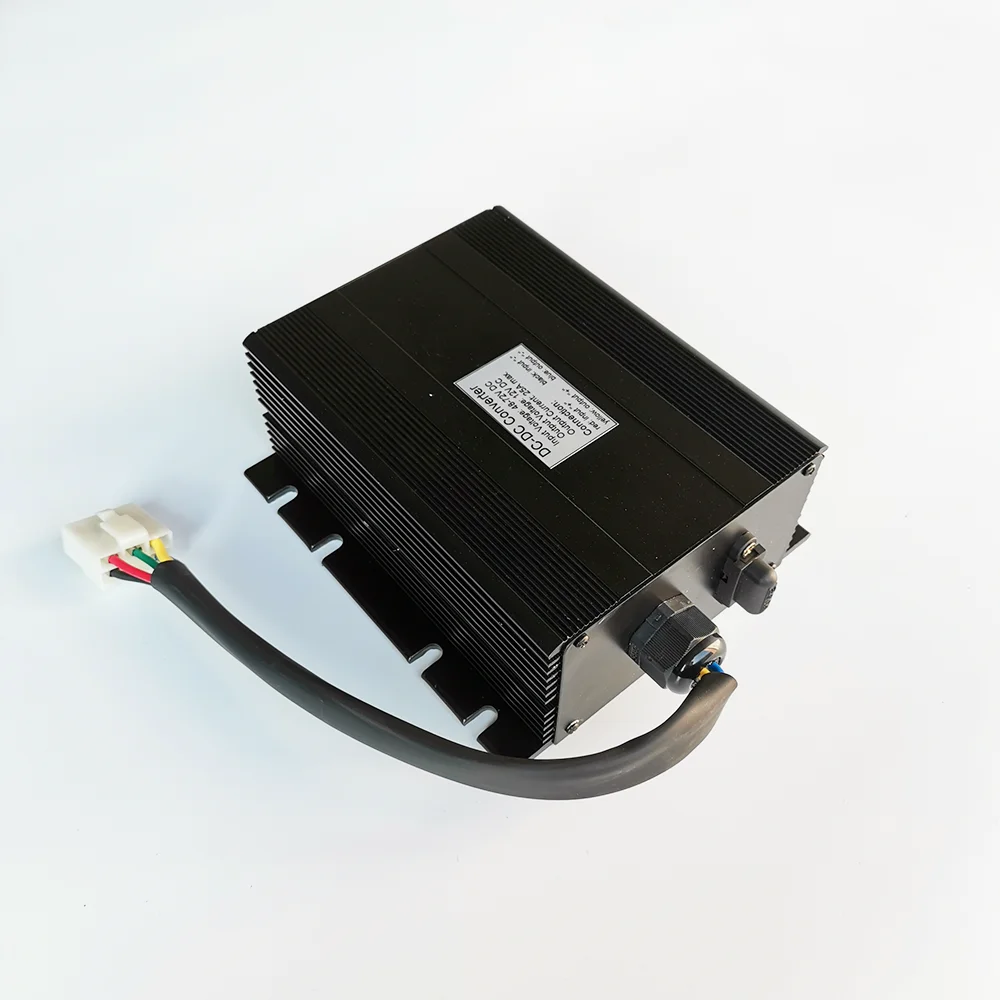

5. Other components: DC-DC converter, dashboard, pedal, encoder and brake

6. Electric motorcycle conversion kit: motor, controller & gearbox

Product Description

Advantages of PMSM motor system

PMSM motor system has the same basic function as AC motor, like regenerative effect. Besides, Through continuous experimentation
and practice, we found that PMSM motor performs much better in effiency, as high as 96%, which means the endurance can be longer
if the battery capacity is the same. Also, the torque is bigger. Though the price is a little bit higher, it is worth it.

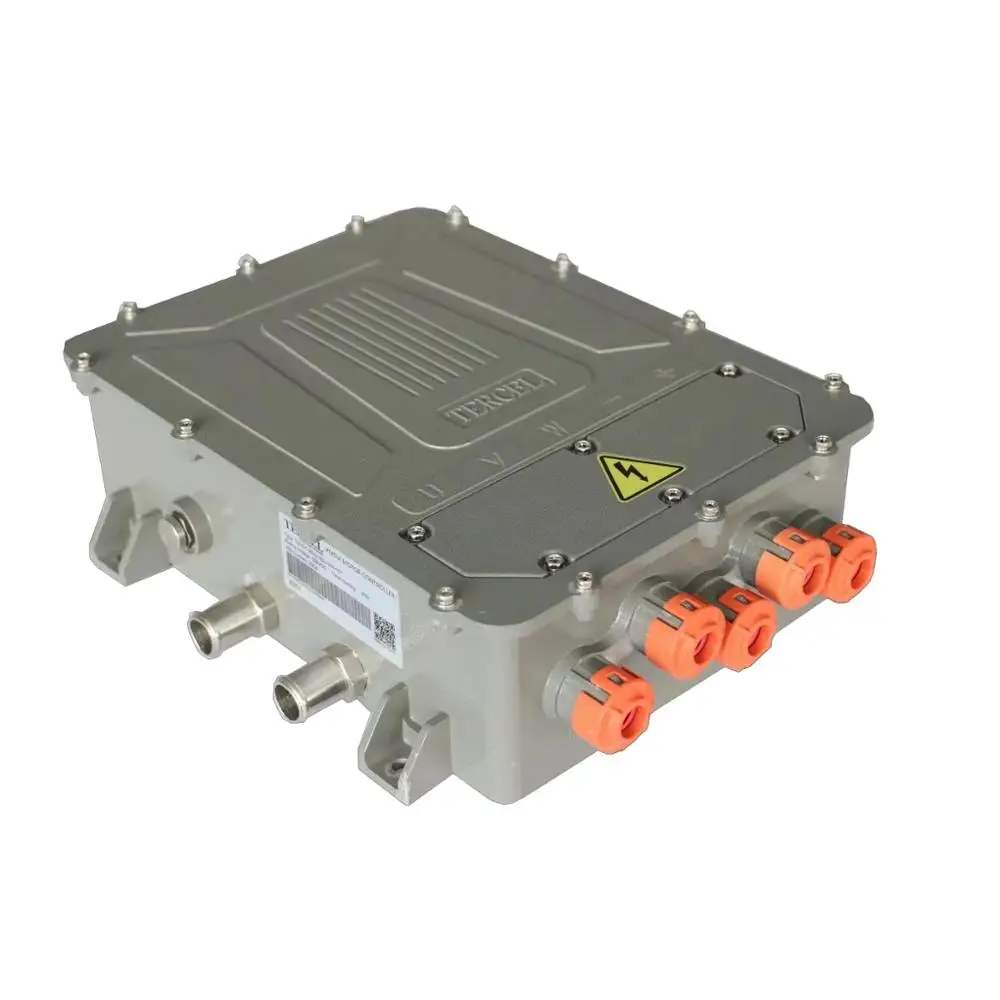

Functions of Controller:
Convert direct current of battery to alternating current.
Recharge the battery during braking (regenerative effect).
Receive driver's commands when accelerating or braking.
Monitor the operation of the driving system in order to ensure safety.
In all, it is the combination of inverter, rectifier, and regulator.

Specification
AC Motor	Rated Power: 3kW-15kW	Rated Voltage: 48V-144V	Max. Torque: 65N.m-120N.m
PMSM Motor	Rated Power: 5kW-70kW	Rated Voltage: 48V-144V	Max. Torque: 65N.m-200N.m
AC Motor Controller	Rated Power: 3kW-15kW	Rated Voltage: 48V-144V	Max. Current: 250-500a
PMSM Motor Controller	Rated Power: 5kW-70kW	Rated Voltage: 48V-144V	Max. Current: 300-500a
Gearbox	Ratio:6:1/8:1/10:1/12:1	Torque Capacity:180N.m	Net Weight:15~30kg

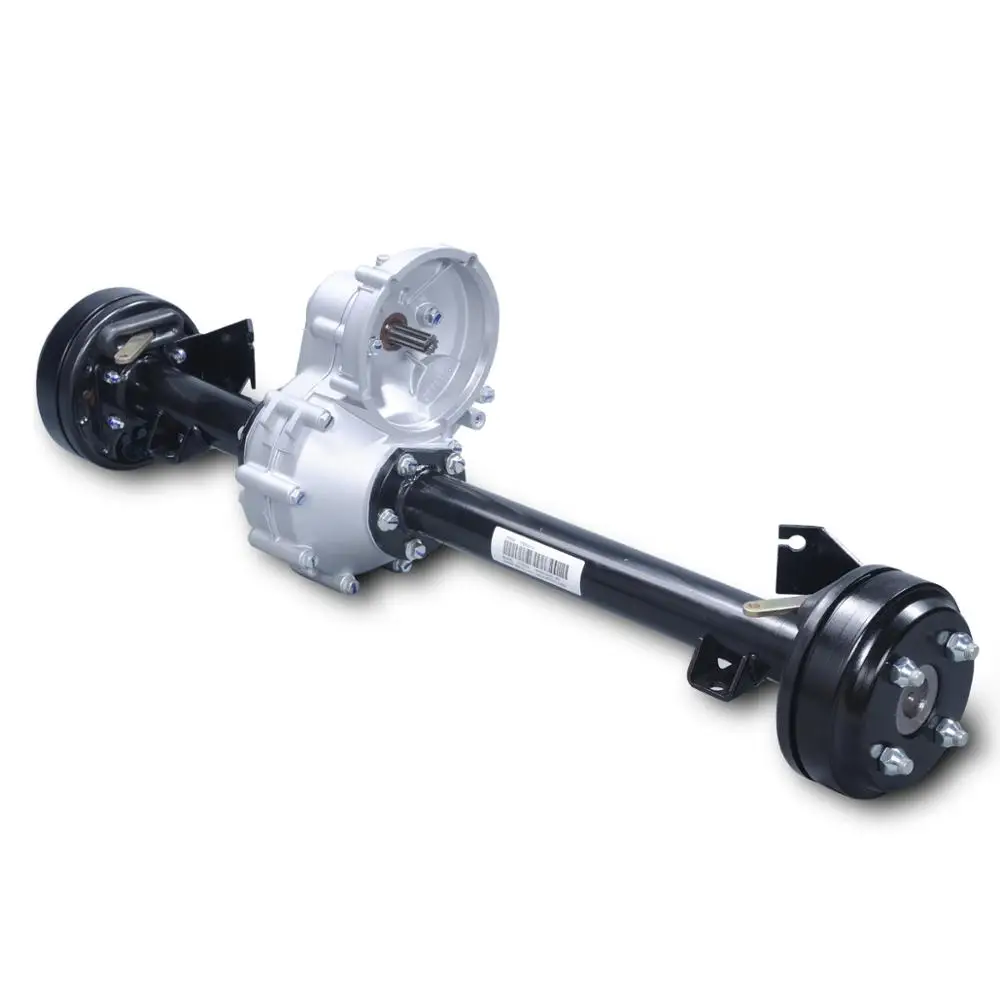

Rear Axle	Ratio:6.5/8.6/10.5/12.31/14.5/18.6/21/25	Torque Capacity:300N.m~500N.m	Net Weight:15~90kg

Electric Vehicle Power System Training Platform

Cases

Convert Fuel Car to Electric Car (18T Scrubber)

After calculation, we use the following driving system.

Motor Power	95/150	Torque (N.m)	900/1800
Speed (rpm)	1000/3000	Rated Voltage (V)	DC540
Max. Efficiency	94%	Working Voltage (V)	DC350-750
Battery Voltage (V)	DC540	Battery Capacity (kwh)	225
Gears	4	Ratio	4.406/2.446/1.481/1

Motor plus four-speed gearbox can drive the 18T sweeping car well.

Production & Service

R&D Department

We have a strong R&D team with many years of experience in areas such as electrical, electronics, software, machinery, automation, etc.

Production Center

A full set of processing equipment can guarantee the accuracy;

Advanced automatic wire embedding system is to ensure the consistency;

Semi-automatic production line will improve the productivity.

Motor Production

Semi-automatic production line: more than 80% automation
60 sets in a single shift; annual production: 15,000; max. annual production: 45,000 sets

Controller Production\t

Semi-automatic controller production line: more than 80% automation
100 units in a single shift

Quality Management

The quality assurance department will supervise the production process and the test equipment can insure the quality.

Certifications

Packing & Delivery

Normal package is wooden box and it will be fumigated. Sometimes cartons will be chosen if by air. If there are any special requirements, please talk to our sales person.
