TFL бренд круглый фланец PF206 прессованная сталь штамповка
- Категория: >>>
- Поставщик: Shandong,Tefule,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.31 $* | 1.49 $* |
| Jul-19-2025 | 1.29 $* | 1.52 $* |
| Jun-19-2025 | 1.23 $* | 1.13 $* |
| May-19-2025 | 1.21 $* | 1.17 $* |
| Apr-19-2025 | 1.6 $* | 1.61 $* |
| Mar-19-2025 | 1.51 $* | 1.48 $* |
| Feb-19-2025 | 1.85 $* | 1.81 $* |
| Jan-19-2025 | 1.91 $* | 1.95 $* |
Характеристики
Product Description

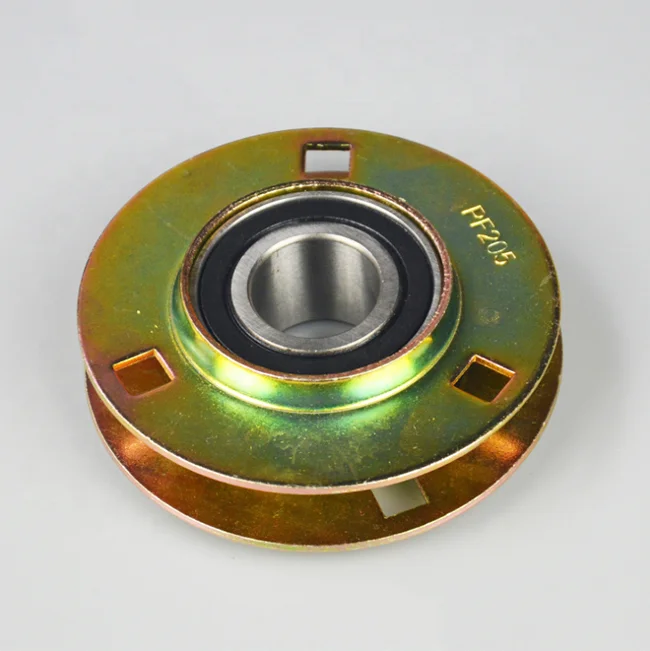

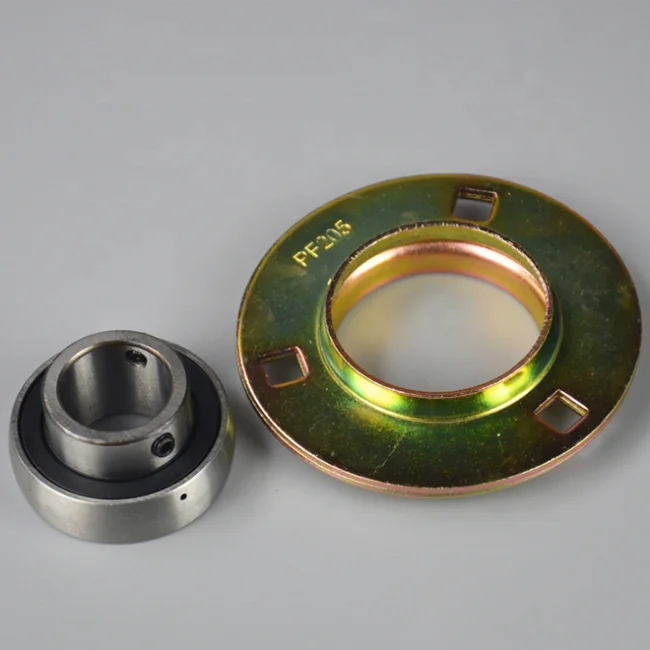

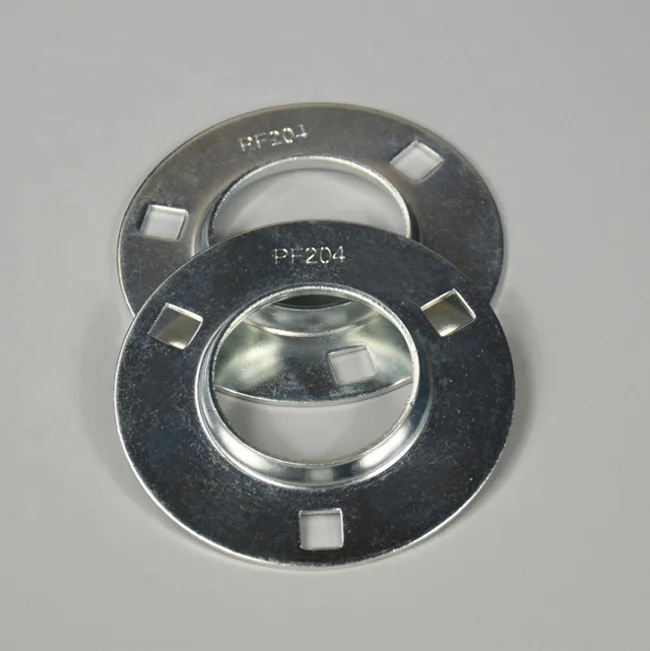

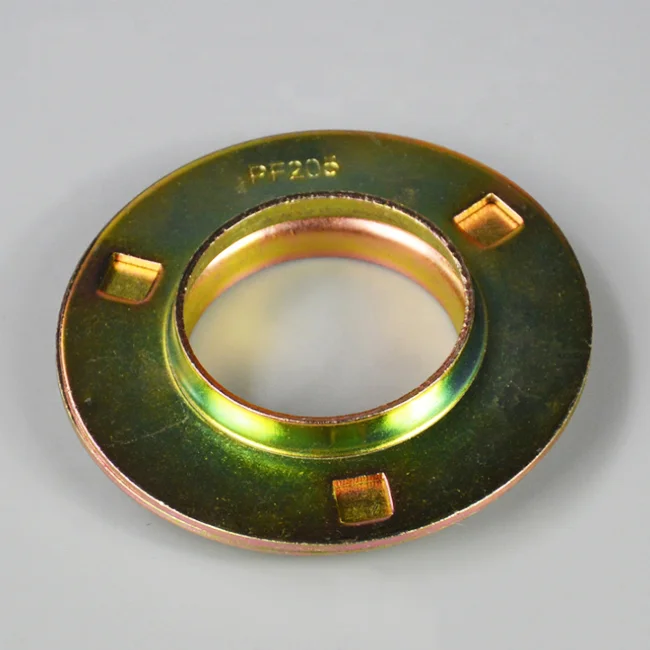

TFL brand Round Flange Pressed Steel Stamping bearings housing PF206

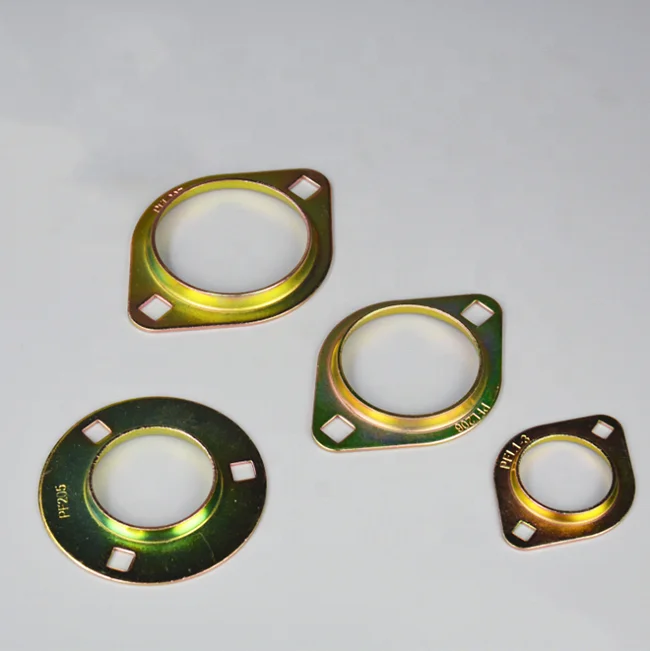

| Housing No. | Da | H max | L max | A max | J 0.4 | A1 max | H1 max | H2 max | N 0.25 | ||
| Round | Triangle | Rhombus | |||||||||
| PF203 | PFT203 | PFL203 | 40 | 82 | 60 | 15 | 63.5 | 4.5 | 29 | 49 | 7.1 |
| PF204 | PFT204 | PFL204 | 47 | 91 | 68 | 17 | 71.5 | 4.5 | 34 | 56 | 9 |
| PF205 | PFT205 | PFL205 | 52 | 96 | 72 | 19 | 76 | 4.5 | 36 | 61 | 9 |
| PF206 | PFT206 | PFL206 | 62 | 114 | 82 | 20 | 90.5 | 5.5 | 41 | 72 | 11 |
| PF207 | PFT207 | PFL207 | 72 | 127 | 95 | 23 | 100 | 5.5 | 45 | 81 | 11 |
| PF208 | 80 | 149 | 23 | 119 | 7 | 91 | 13.5 | ||||
| PF209 | 85 | 150 | 23 | 120.5 | 7 | 98 | 13.5 | ||||
| PF210 | 90 | 157 | 25 | 127 | 8 | 102 | 13.5 | ||||
| PF211 | 100 | 168 | 26 | 138 | 8 | 113 | 13.5 | ||||
| PF212 | 110 | 177 | 28 | 148 | 8 | 122 | 13.5 | ||||
| Unit No. | Dimensions mm in. | Bolt used mm in. | Bearing No. | Housing No. | Weight (kg) | ||||||||
| d | a | e | m6 | s | t | f (min) | B | n | |||||
| SBPF201 | 12 | 81 | 63.5 | 14 | 7.1 | 4 | 49 | 22 | 6 | M8 | SB201 | PF203 | 0.27 |
| SBPF201-8 | 3/4 | 3-3/16 | 2-1/2 | 9/16 | 9/32 | 0.157 | 1-59/64 | 0.8661 | 0.2362 | 1/4 | SB201-8 | ||
| SBPF202 | 15 | SB202 | |||||||||||
| SBPF202-9 | 9/16 | SB202-9 | |||||||||||
| SBPF202-10 | 5/8 | SB202-10 | |||||||||||
| SBPF203 | 17 | SB203 | |||||||||||
| SBPF203-11 | 11/16 | SB203-11 | |||||||||||
| SBPF204 | 20 | 90 | 71.5 | 16 | 9 | 4 | 56 | 25 | 7 | M8 | SB204 | PF204 | 0.33 |
| SBPF204-12 | 3/4 | 3-35/36 | 2-13/16 | 5/8 | 23/64 | 0.157 | 2-13/64 | 0.9843 | 0.2756 | 5/16 | SB204-12 | ||
| SBPF205 | 25 | 95 | 76 | 18 | 9 | 4 | 60 | 27 | 7.5 | M8 | SB205 | PF205 | 0.38 |
| SBPF205-13 | 13/16 | 3-3/4 | 2-63/64 | 23/32 | 23/64 | 0.157 | 2-23/64 | 1.0630 | 0.2953 | 5/16 | SB205-13 | ||
| SBPF205-14 | 7/8 | SB205-14 | |||||||||||
| SBPF205-15 | 15/16 | SB205-15 | |||||||||||
| SBPF205-16 | 1 | SB205-16 | |||||||||||
| SBPF206 | 30 | 113 | 90.5 | 18 | 11 | 5.2 | 71 | 30 | 8 | M10 | SB206 | PF206 | 0.62 |
| SBPF206-17 | 1-1/16 | 4-7/16 | 3-9/16 | 23/32 | 7/16 | 0.205 | 2-51/64 | 1.1811 | 0.3150 | 3/8 | SB206-17 | ||
| SBPF206-18 | 1-1/8 | SB206-18 | |||||||||||
| SBPF206-19 | 1-3/16 | SB206-19 | |||||||||||
| SBPF206-20 | 1-1/4 | SB206-20 | |||||||||||
| SBPF207 | 35 | 122 | 100 | 20 | 11 | 5.2 | 81 | 32 | 8.5 | M10 | SB207 | PF207 | 0.82 |
| SBPF207-20 | 1-1/4 | 4-13/16 | 3-15/16 | 25/32 | 7/16 | 0.205 | 3-3/16 | 1.2598 | 0.3346 | 3/8 | SB207-20 | ||
| SBPF207-21 | 1-5/16 | SB207-21 | |||||||||||
| SBPF207-22 | 1-3/8 | SB207-22 | |||||||||||
| SBPF207-23 | 1-7/16 | SB207-23 | |||||||||||
| SBPF208 | 40 | 122 | 119 | 21 | 13.5 | 6.8 | 91 | 34 | 9 | M12 | SB208 | PF208 | 1.1 |
| SBPF208-24 | 1-1/2 | 4-13/16 | 4-11/16 | 13/16 | 17/32 | 0.268 | 3-37/64 | 1.3386 | 0.3543 | 1/2 | SB208-24 | ||
| SBPF208-25 | 1-9/16 | SB208-25 | |||||||||||
Packaging & Shipping
Shipment
1. By FedEx /DHL /UPS /TNT /EMS door to door services.
2. By Air or by Sea for batch goods; for FCL. You'll have to pick up the goods at the airport or port.
3. Customers specifying freight forwarders or negotiable shipping methods are available.
Payment
1. Payment: 100% T/T, Western Union, PayPal or Alibaba Secure Payment in advance;
Company Information
Shandong Tefule Bearing Co.,Ltd
is a professional bearing manufacturer and dealer in china.We have been engaged in bearing industry for 10 years and made international trade of bearing import and export for more than 8 years.We have our own brand "TFL" and applied ISO9001:2000 certificate for certification authority.We attend international bearing fairs, put in many B2B website and achieve many customers all over the world also bulid up good reputation from our customers.
Our company is specialized in ball bearing,roller bearing,housing units, wheel hub bearing,bearing parts and accessories, cross roller bearing.Also we can customize various large non-standard products such as the most competitive products according to customers' demands.
About Factory
FAQ
Q: Are you trading company or manufacturer?
A: We are factory. Shandong Tefule Bearing Co.,Ltd integrates production, trade, investment and sales.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods out of stock, depends on order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could provide free samples, but freight collect.
Welcome to contact me anytime~
