I,Instruction Manual

Introduction

Thank you for choosing TELIKOU intercom product. MDS-240 two channel digital wireless intercom main station is suitable for television station, communication center, UB truck, live performance and any other environment which requires wireless communication. We recommend you read through this manual to better understand the functions of MDS-240.

MDS-240 running on 2.4G free of license frequency. MDS-240 has two independent wireless channels. Each channel can carry four wireless belt pack.

II,Characteristics

l 2.4G Frequency

l Digital full duplex

l Two independent Channel control

l Digital echo cancellation and Digital Squelch

l frequency hopping

l Supports belt pack group working mode

Note: After finishing Code Matching, Main station and Belt Pack have to be restart.



III,Technical Specification

Working Frequency:

2.4G (433M / 868M / 915MHz are optional)

MAX Transmit Power:

20dBm

Belt Pack Battery:

3 x AA size battery

Belt Pack Working Current:

TX: max 130mA RX: max 50mA

Main Station Power:

AC 95-260V, 50-60Hz, <35VA

DIMENSION:

19” (W) x1.75” (H) x9.48” (D), 482mm x 44.5mm x 241mm

WEIGHT:

2.6kg

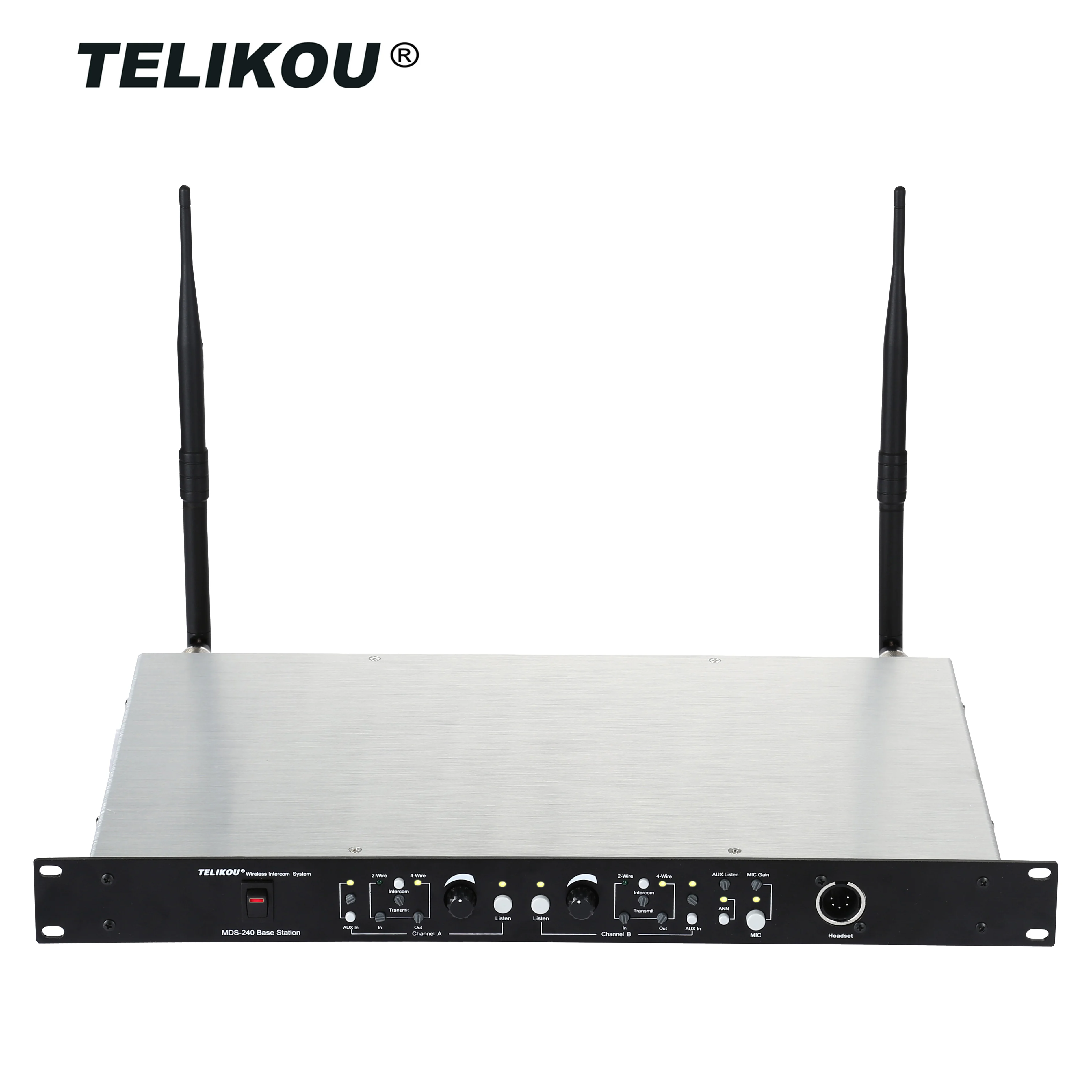

MDS-240 two channel wireless main station is a full duplex system and running on 2.4G. Each MDS-240 can carry eight belt packs.

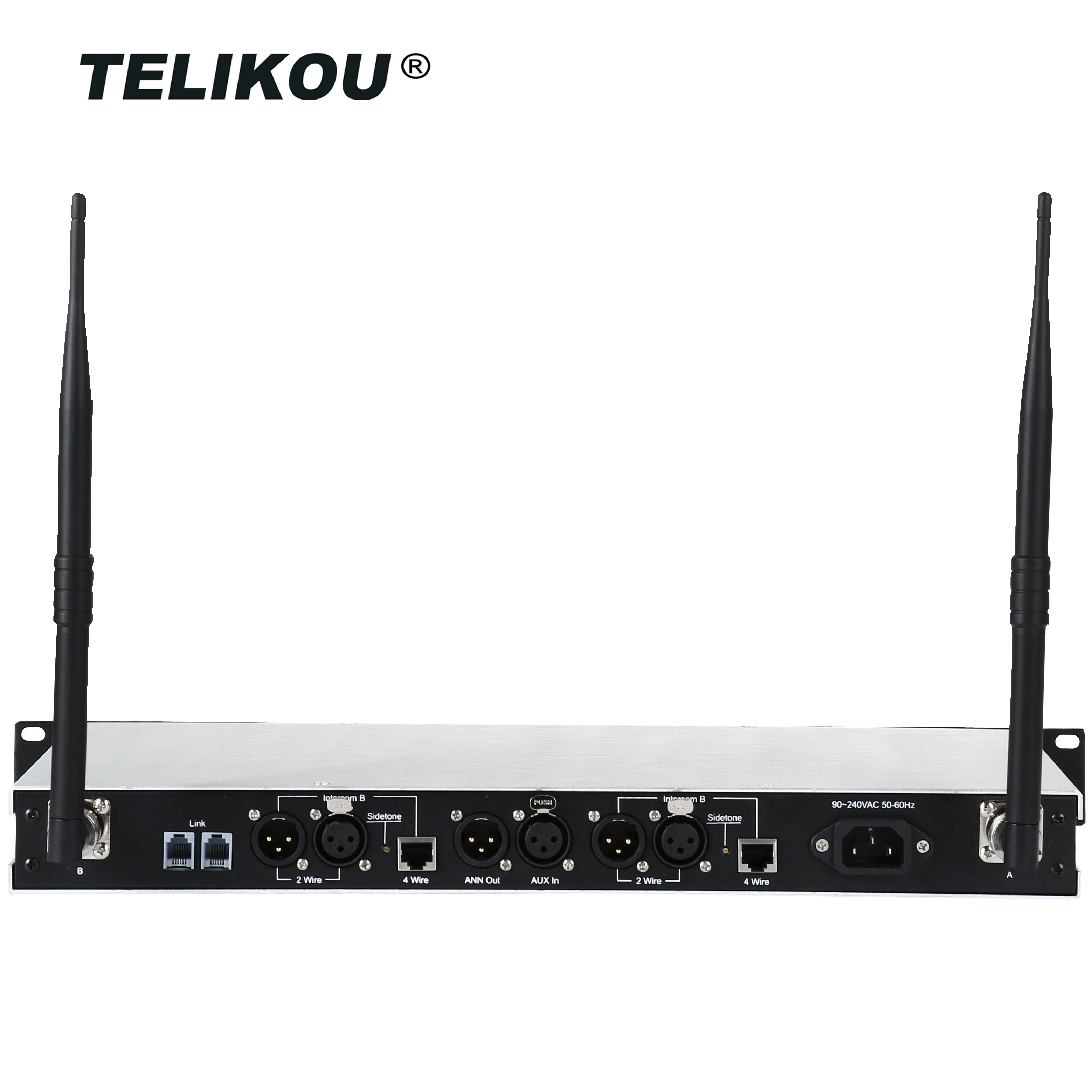

MDS-240 has LINK connector which supports max 4pcs MDS-240 are connected together.



MDS-240 also has 2-wire/4-wire connector, AUX in, ANN out, Gain adjustment and etc functions.

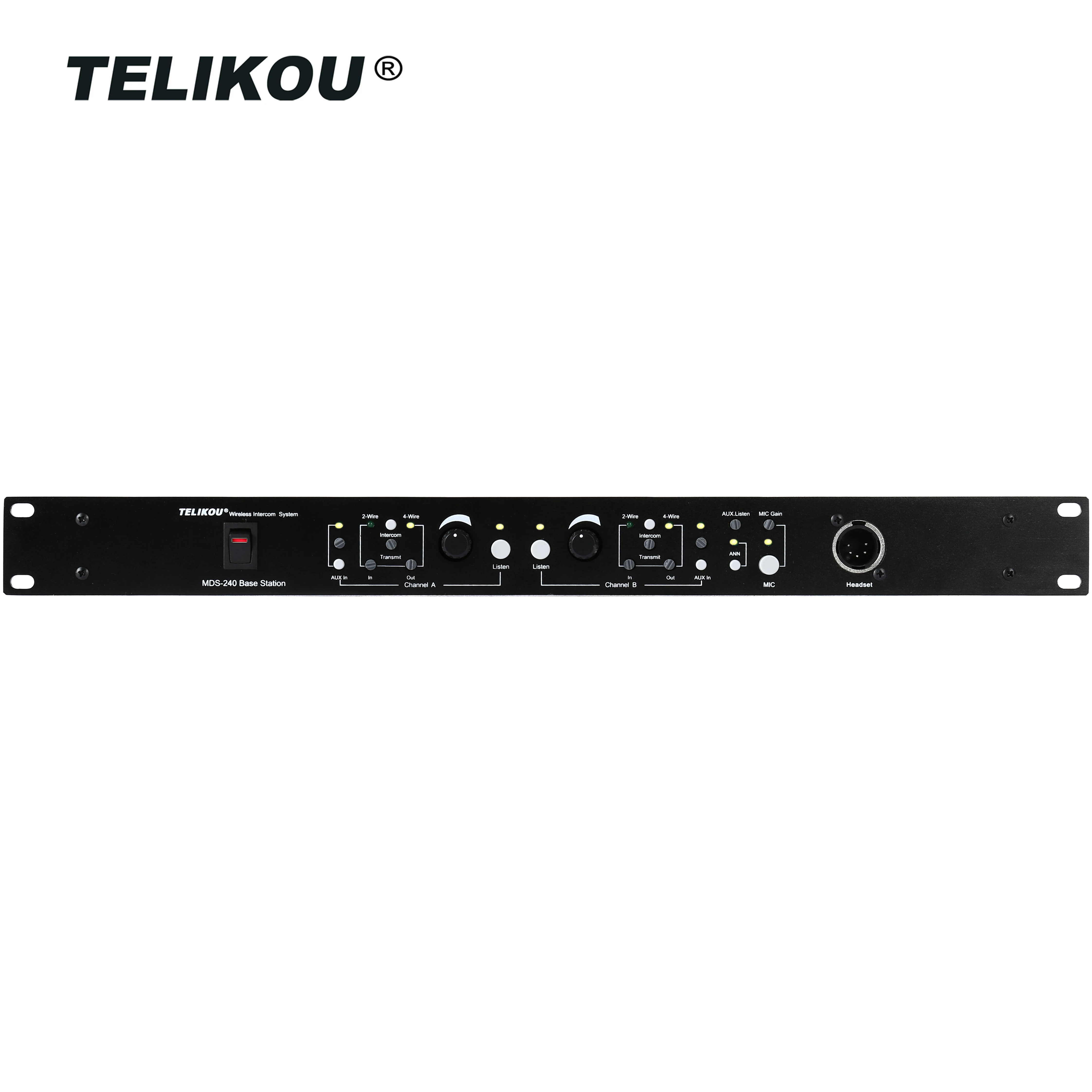

MDS-240 is a standard 1U rack, can be mounted on the rack. total set



contain : MDS-240 wireless master station , one set



BK-1200 wireless belt pack , eight sets



HE-121/122 single or dual ear headsets for wireless , nine pieces

antennas , two pieces

Special belt pack for MDS-240

have to use 3XAA battery

BK-1200 wireless belt pack can work alone , 2 or 3 or 4 or 5 BK-1200 can make a working group

BK-1200 wireless belt pack for MDS-240.
