Heavy Duty Magnetic Drill Press To Drill A Hole Through Steel Introduction

Heavy Duty Magnetic Drill Press To Drill A Hole Through Steel is a kind of electric tool for adhering and drilling on the horizontal level,side face and top face,and widely used in the building,bridge building,and ship building industries and so on.

You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation.

They are convenient and small,and can reducing work force and improve the machining accuracy and effiency.

Heavy Duty Magnetic Drill Press To Drill A Hole Through Steel Parameter

Drilling range:	Φ13mm	Φ16mm	Φ19mm	Φ23mm	Φ60mm
Rated voltage:	110V/220V/240V	110V/220V/240V	110V/220V/240V	110V/220V/240V	380V
Rated frequency:	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Magnetic Adhesion:	8500N	1100N	12000N	13000N	19500N
Raged input power:	880W	1100W	1150W	1250W	2750W
No-load speed:	790/0--790r/min	680/0--680r/min	350/0--350r/min	330/0--330r/min	105/105/205r/min
Drilling range:	Φ28mm	Φ32mm	Φ38mm	Φ49mm	Φ80mm
Rated voltage:	110V/220V/240V	380V	380V	380V	380V
Rated frequency:	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Magnetic Adhesion:	13800N	14500N	15500N	16500N	20000N
Raged input power:	1450W	1700W	1830W	2000W	2850W
No-load speed:	300/0--300r/min	150/135/280r/min	135/135/250r/min	120/120/220r/min	50/50/185r/min

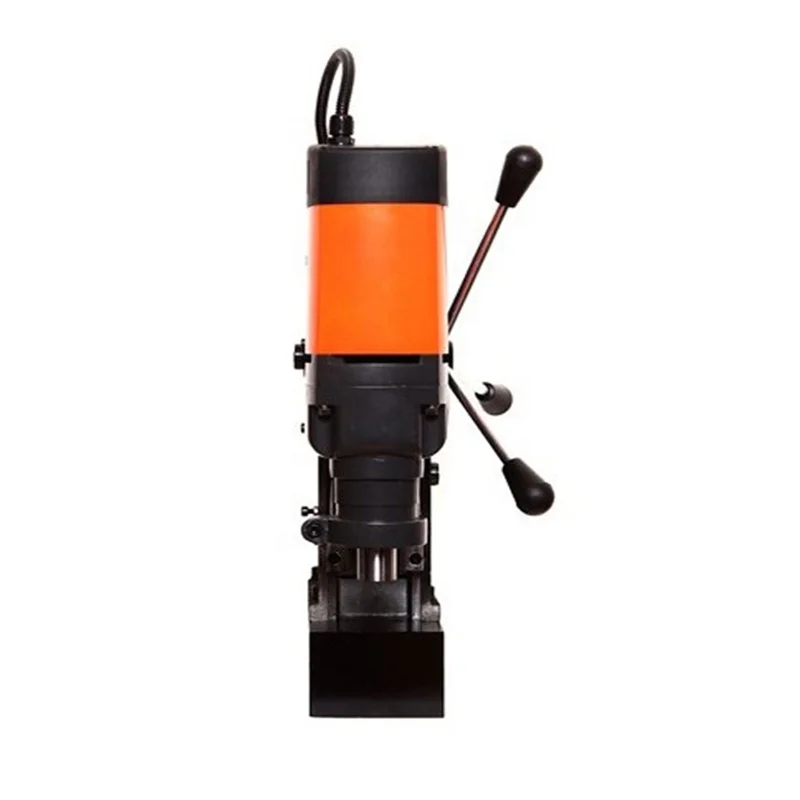

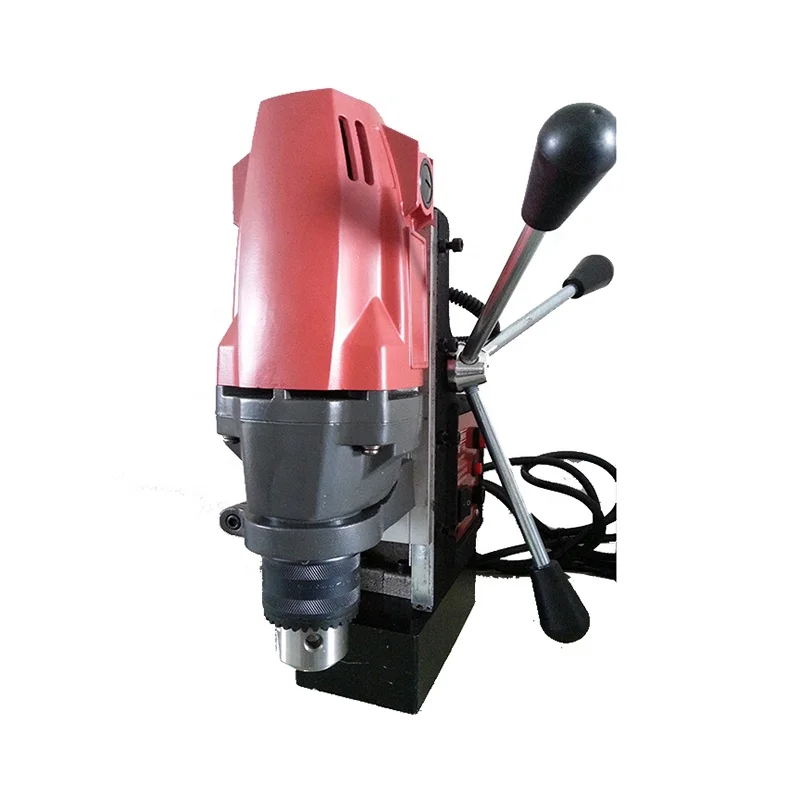

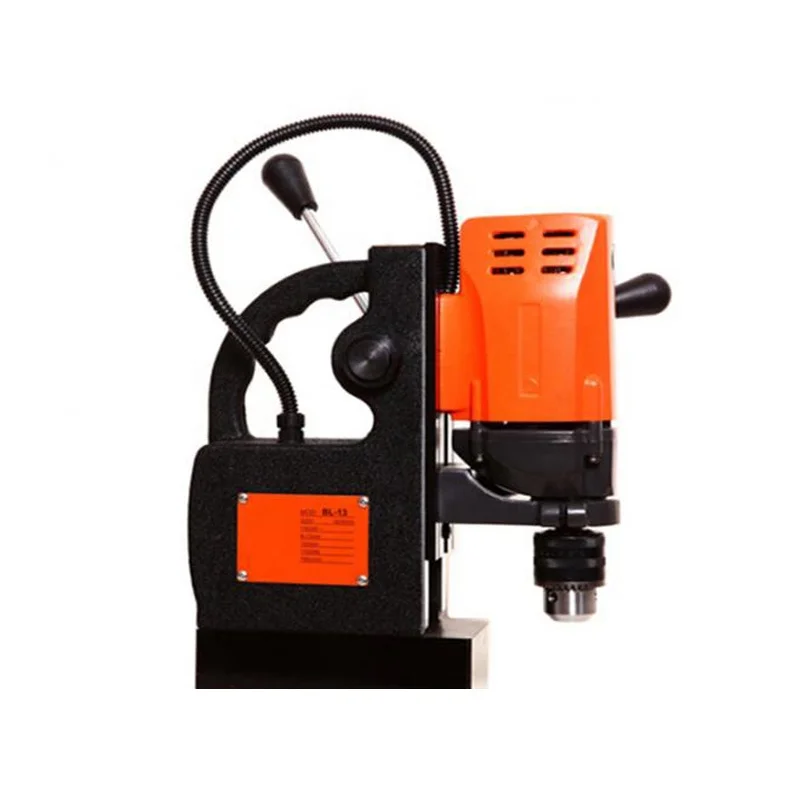

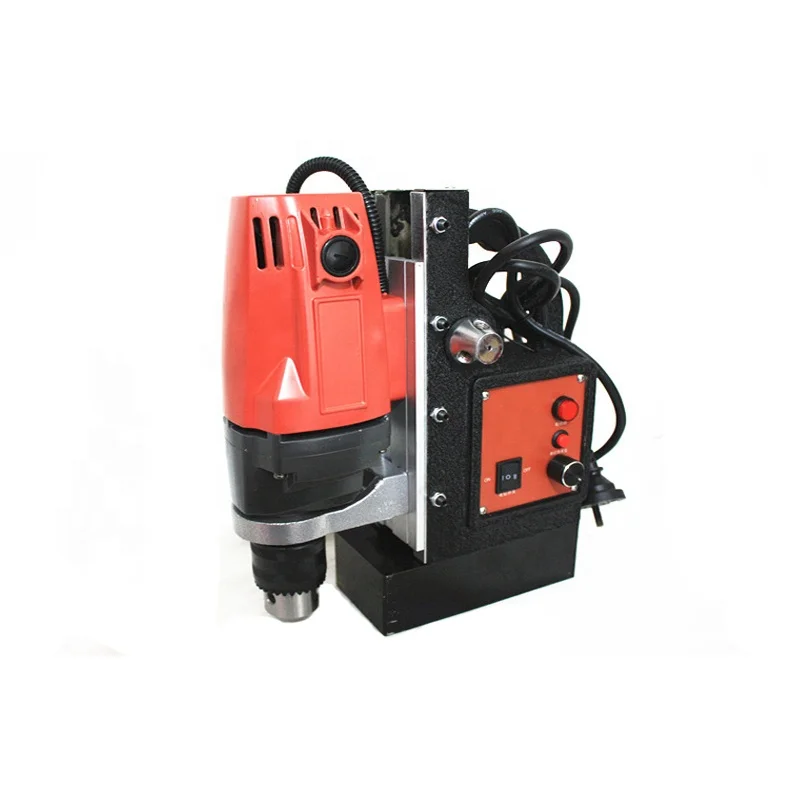

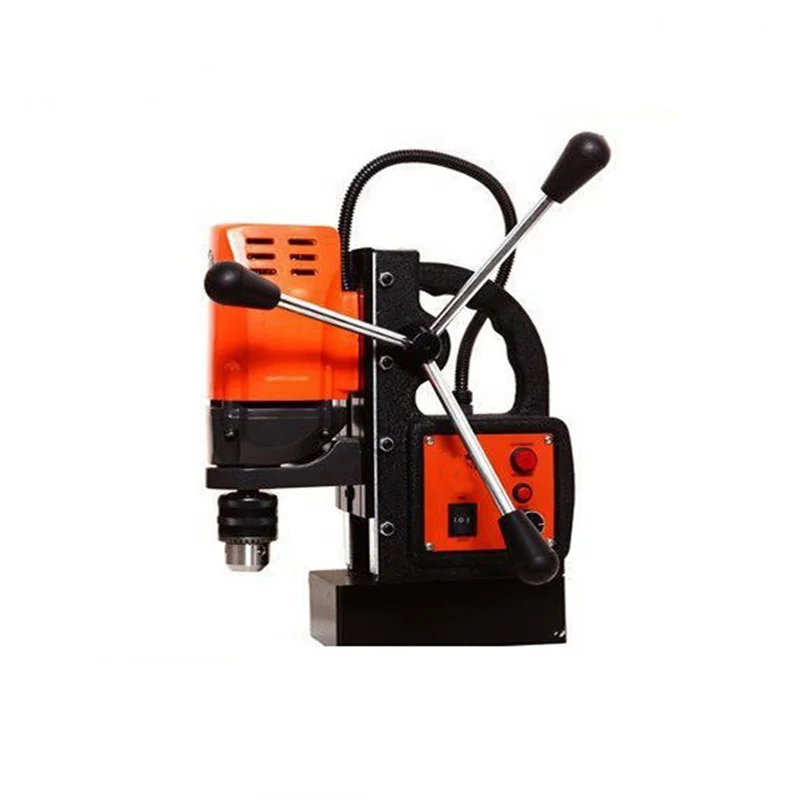

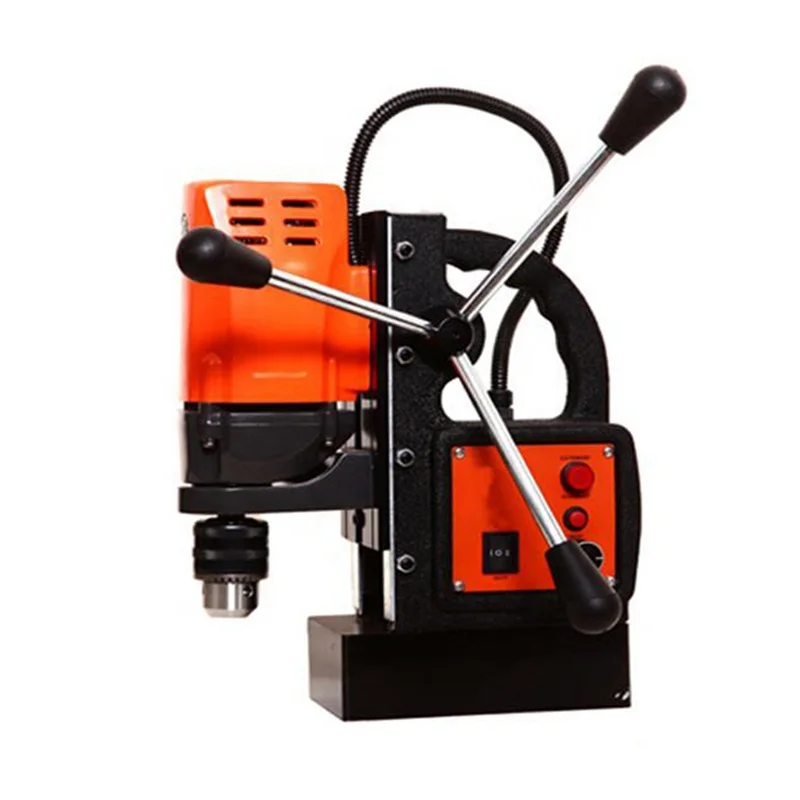

Heavy Duty Magnetic Drill Press To Drill A Hole Through Steel Photos
