Китайский заводской мини-телескопический
- Категория: Погрузчики >>>
- Поставщик: Jining,United,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 485840.64 $* | 495557.53 $* |
| Jul-15-2025 | 394028.80 $* | 401909.54 $* |
| Jun-15-2025 | 478189.20 $* | 487753.90 $* |
| May-15-2025 | 474363.76 $* | 483850.98 $* |
| Apr-15-2025 | 378725.4 $* | 386300.52 $* |
| Mar-15-2025 | 466712.38 $* | 476046.6 $* |
| Feb-15-2025 | 462887.54 $* | 472145.44 $* |
| Jan-15-2025 | 459061.21 $* | 468242.0 $* |
Характеристики

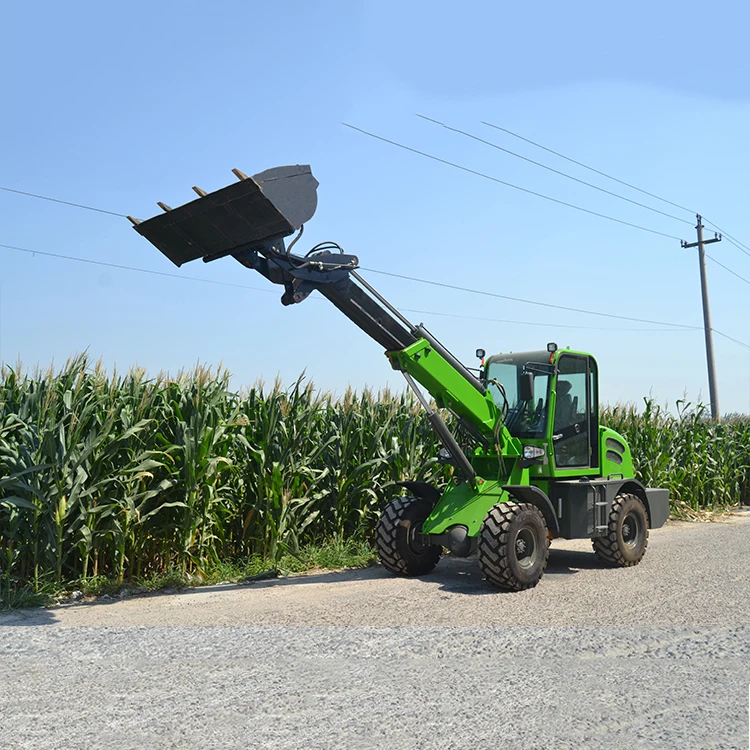

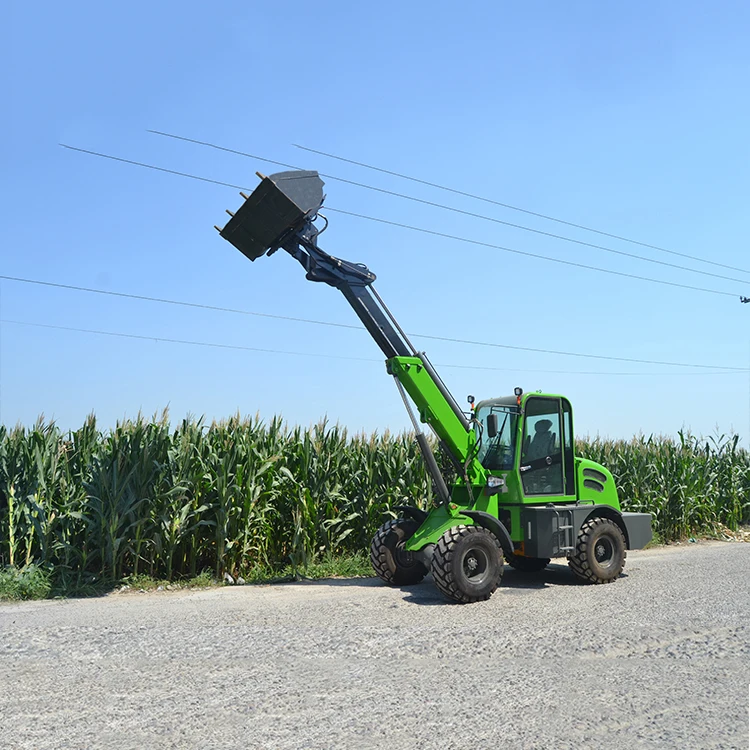

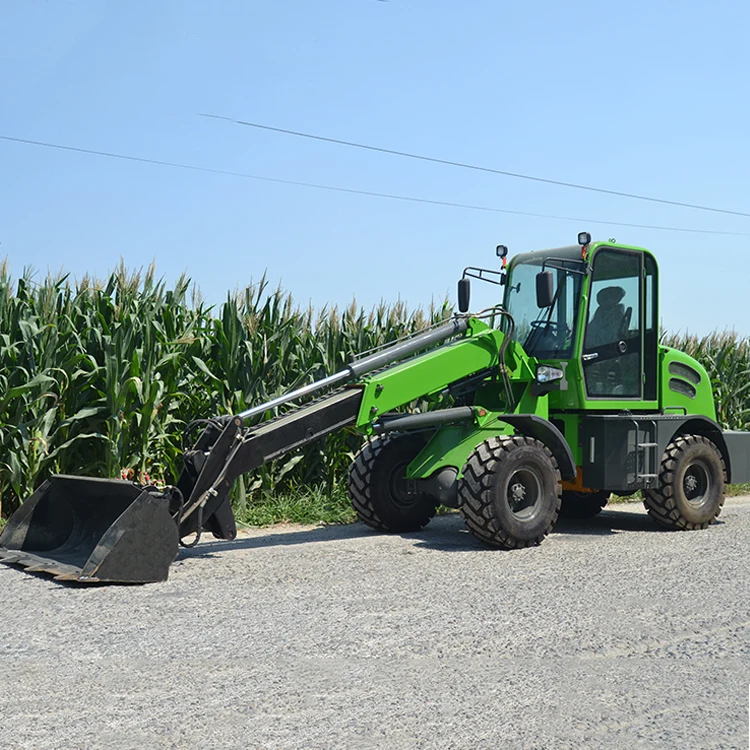

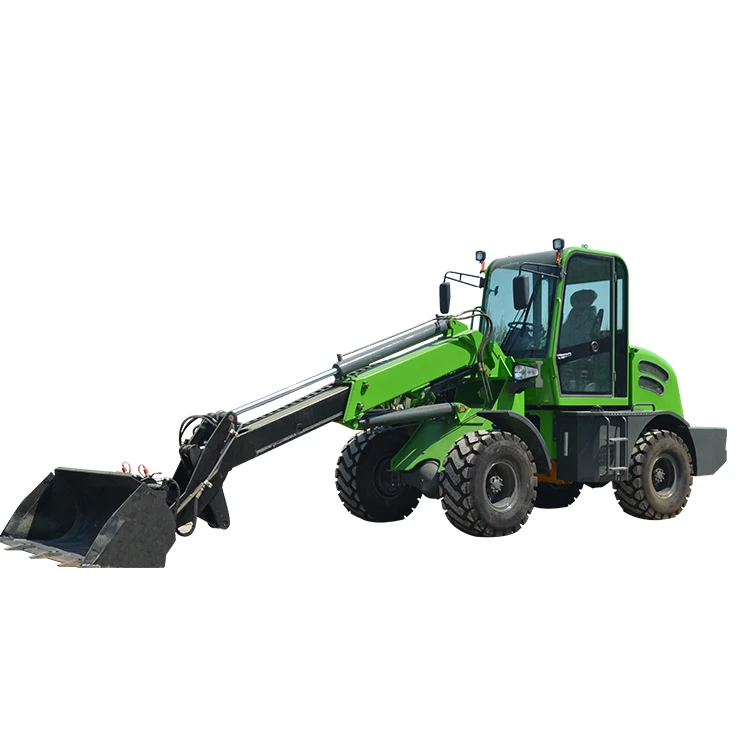

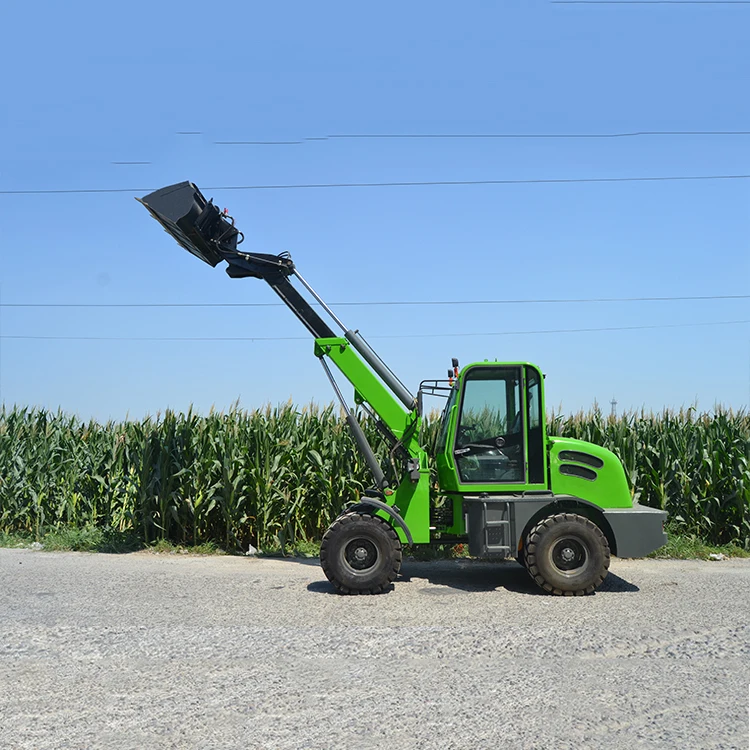

China factory mini telescopic loader
Related Products
Product Description
|
Engine |
Model |
Chinese CHANGCHAI engine, Chinese stage II |
|
Engine type |
In-line arrangement, water-cooled, four-cycle diesel Engine |
|
|
Rated Power |
25KW |
|
|
Transmission System |
Hydraulic converter + drive shaft + 130 axles(drum brake) |
|
|
Bucket |
Bucket Capacity |
0.5 m³ |
|
Rated Load |
1000kg |
|
|
Bucket type |
Heavy-duty bolt on teeth |
|
|
Overall Dimensions |
L*W*H |
4900*1600*2700mm |
|
Max. lifting Height |
3600mm |
|
|
Max. Bucket hinge pin Height |
4000mm |
|
|
Operating Specifications |
Steering System |
Articulated Frame with hydraulic power steering |
|
Driving System |
Hydraulic converter, four wheel drive |
|
|
Mechanical pilot joystick |
||
|
Steady rise. |
||
|
Brake System |
Service Brake |
Four wheel expanding shoe drum brake |
|
Parking Brake |
Hand operated |
|
|
Tyre |
Model: |
20.5-16 |
|
Wheelbase |
2355mm |
|
|
Track |
1415mm |
|
|
System pressure |
16Mpa |
|
|
Hydraulic output |
70L/min |
|
|
Machine weight |
3800KG |
|
Product Details
Packaging & Shipping
Package :Nude or Polish with wax before shipping.
Shipping:Withing 45days after payment
Company Information
Jining United Import & Export Co., Ltd founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below : railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
FAQ
1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.
2,What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3, How do you transport the trucks?
We transport the vehicle in nude or Polish with wax before shipping.
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.
4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
