Мульти химии 12 вольт смарт-8 этапов 12V 10A LiFePO4 литий-железо-фосфатный SLA гель лак для ногтей с клапанным регулированием многократного цикла глубокого заряда-разряда и кальций батареи зарядное
- Категория: Промышленные источники питания >>>
- Поставщик: YESA,COMPANY,(HONG,KONG)YESA,KONG)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4865.66 $* | 5108.59 $* |
| Aug-19-2025 | 4824.98 $* | 5065.20 $* |
| Jul-19-2025 | 4047.78 $* | 4249.29 $* |
| Jun-19-2025 | 4742.71 $* | 4979.64 $* |
| May-19-2025 | 4129.28 $* | 4335.22 $* |
| Apr-19-2025 | 4660.78 $* | 4893.40 $* |
| Mar-19-2025 | 4619.12 $* | 4850.23 $* |
| Feb-19-2025 | 4579.43 $* | 4808.39 $* |
| Jan-19-2025 | 4538.62 $* | 4765.53 $* |
Характеристики
Features

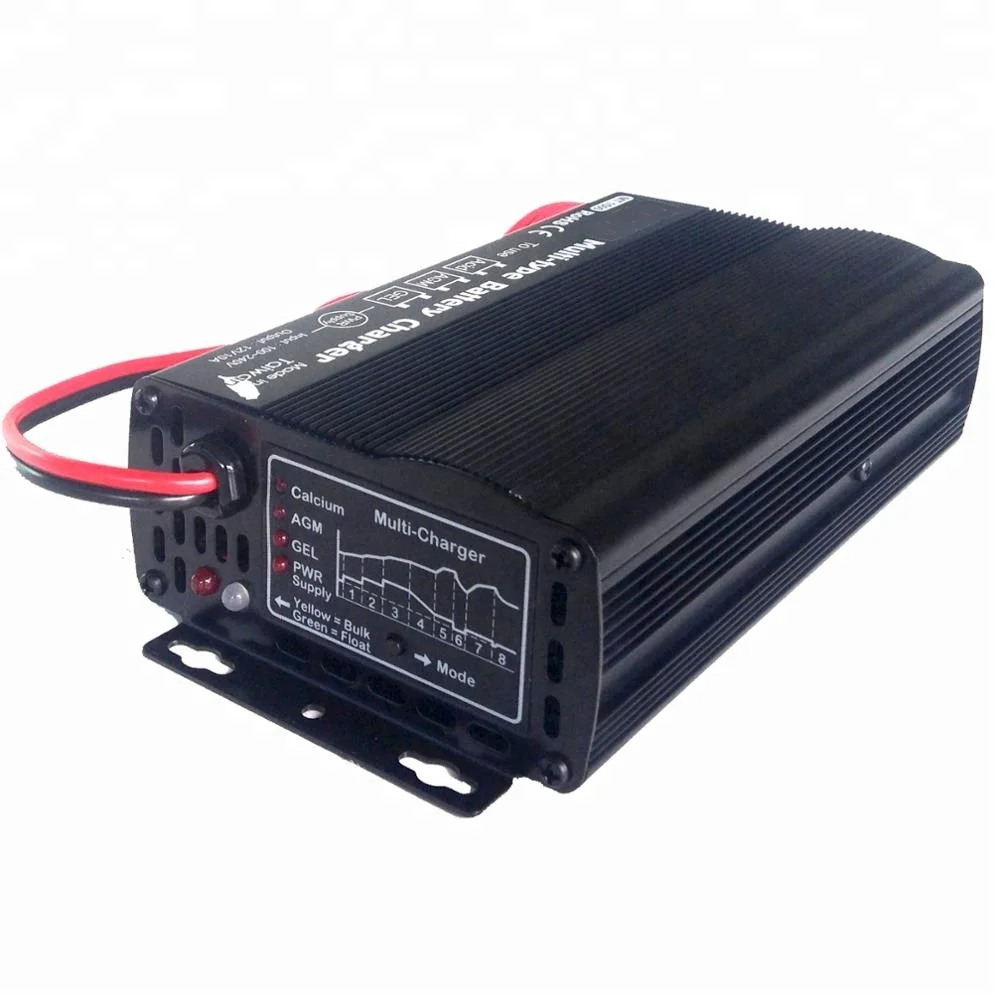

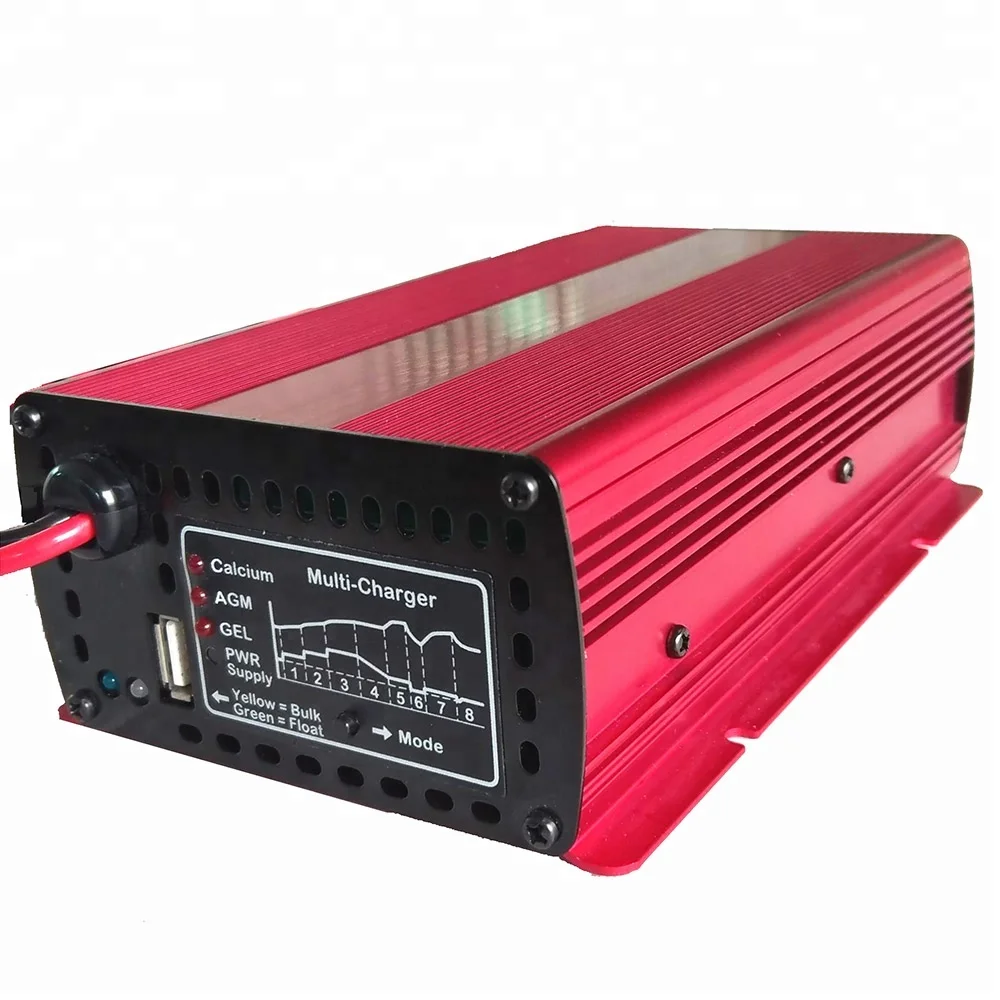

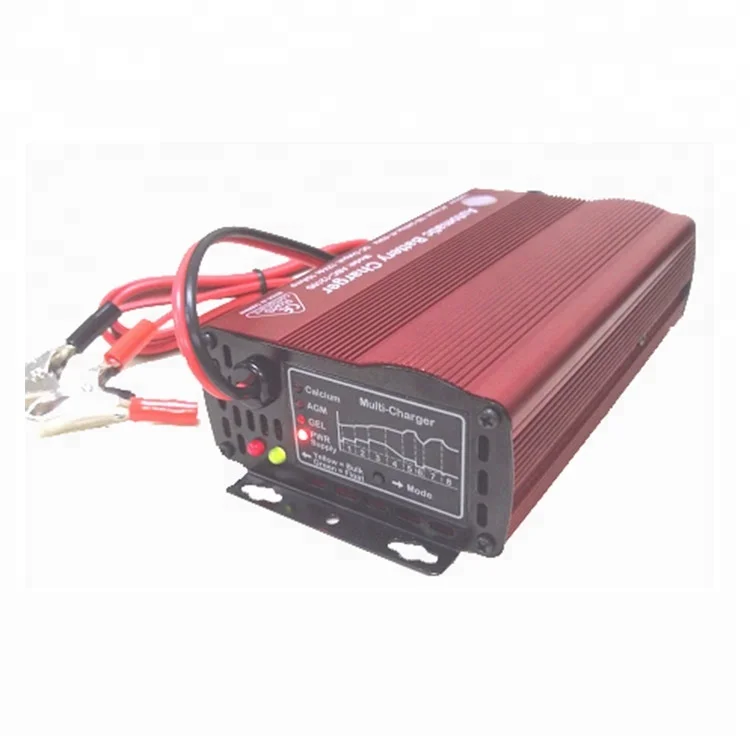

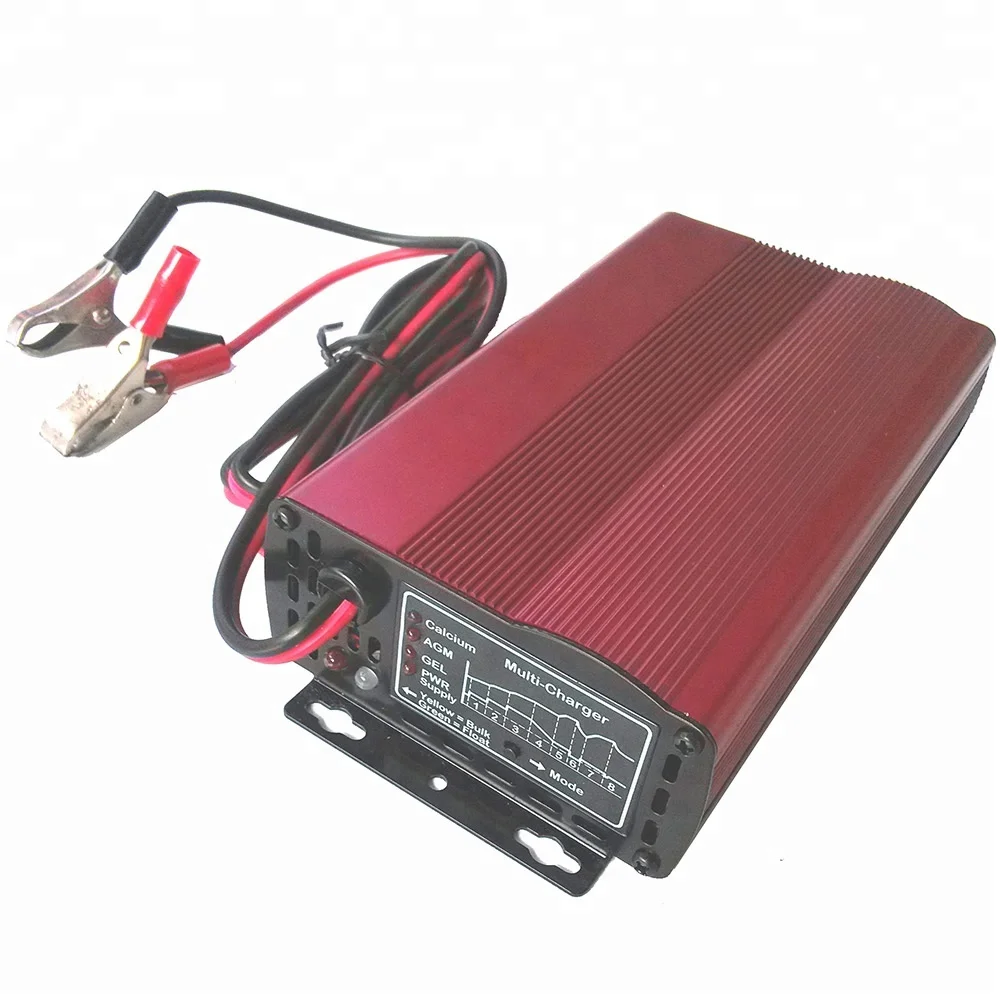

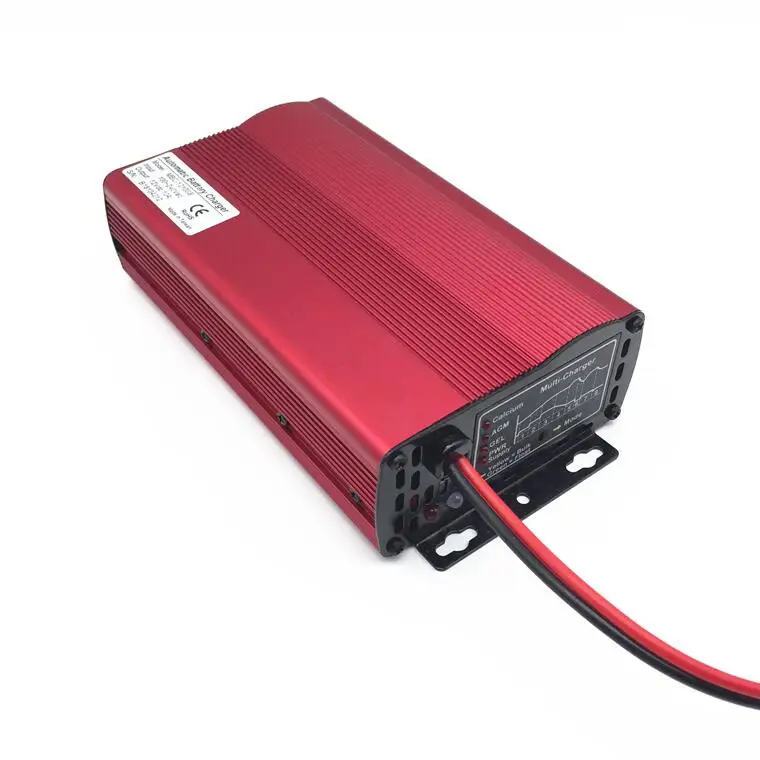

* MFP-Series chargers
It can be programmed different battery types including LFP, GEL, AGM, Deep Cycle, and Calcium batteries. This function will optimize charging conditions and extend battery life.
MFP-Series can be operated as a power supply to run a 12V appliance, ideal for retaining equipment memory when changing a vehicle battery.
* 8 STAGE CHARGING
Intelligent electronics monitor the charging process to deliver an advanced 7 stage charge maximising battery performance and life.
* MULTI CHEMISTRY
Set the charging profile to suit the battery’s chemistry type,extending the battery’s life.
* POWER SUPPLY MODE
Operates as a power supply to run a 12V appliance. Ideal for Retaining memory when changing a vehicle battery.
| MODEL | MFP04S100AL | MFP08S070AL | |
| Input | Voltage | AC100V~240V 47-63HZ | |
| Power | 172W / 312VA | ||
| Output | Voltage | 12V | 24V |
| Current | 10A | 5A | |
Charger Control | Pre-Charge | 2.5A up to 11V | 1.3A up to 22V |
| Soft Start | 5.0A up to 12V | 2.5A up to 24V | |
| Bulk | 10A up to: | 5A up to: | |
| 14.1V(GEL) | 28.2V(GEL) | ||
| 14.4V(AGM) | 28.8V(AGM) | ||
| 14.7V(Calcium) | 29.4V(Calcium) | ||
| Absorption | C.V. Drops to 1.7A | C.V. Drops to 0.9A | |
Equalization (Calcium mode Only) | C.C. 2.5A up to 16V/1.3A | C.C. 1.3A up to 32V/0.6A | |
| Then hold for 1 hour or time out (LED Blinks) | |||
| Analysis | Monitors Battery for 90 Second (Intermittent Flashing LED) | ||
Recondition (LED Blinks) | C.C. 1.5A for 90 Min. | C.C. 0.8A for 90Min. | |
| Limited to: | |||
| 14.1V(GEL) | 28.2V(GEL) | ||
| 14.4V(AGM) | 28.8V(AGM) | ||
| 16.0V(Calcium) | 32.0V(Calcium) | ||
| Float | 13.7V | 27.4V | |
LiFePO4 Charger/ (Power Supply) | Set Voltage | 14.6V(13.7V) | 29.2V(27.4V) |
| Max Current | 10A | 5A | |
Battery Range | Deep Cycle | 70~200Ah | 35~100Ah |
Type of Batteries | Most Types of Lead Acid Battery Including GEL,AGM,and Calcium | ||
Safety CE | LVD | EN60335-1 & EN60335-2-29 | |
| EMI | EN55014-1(EMI)/EN55014-2(EMS) | ||
| LED Instruction | ON/OFF,Equalizer/ Float,GEL,AGM,Calcium,PWR Supply Instruction | ||
| Ventilation | Fan cooling (2 steps speed control) | ||
| Operate Temperature | 0 ~ +40 ℃ , 20 ~ 80% RH | ||
| Storage Temperature | -40 ~+80℃ , 10 ~ 95% RH | ||
| Battery Case | Al alloy Shell | ||
| Dimensions (mm) | 167*103*50mm | ||
| Weight (KGS) | 0.9 | ||
1.Above data was based on 25℃,the O/P current maybe different at different temperature.
2. The charger is designed for charging only for batteries according to the technical specification.
3. Specification is subject to improve without prior notice
Operations:
1. Connect the charger system to a wall receptacle strongly.
2. Turn on the power switch of charger.
3. Press the MODE-button to select charging program.
4. Turn off the power switch of charger
5. Connect the alligator clips to battery terminals (red clip--->positive terminal; black clip--->negative terminal)
6. Switch on the charger system again. The battery is under charging
7. Please confirm if the battery type is correct or not. If not, please press the MODE-button to select charging program again.
Accessories Reference
| DC Output Connecting Wire Index | |||
| No. | Connecting Wire (Black & Red) | Fit Item Code | Standard Accesory |
| 2 | 14AWG | MFP08S070A(24V 5A) MFP04S100A(12V 10A) | Y |
| 4 | 12AWG | MFP08S140A(24V 12A) MFP04S200A(12V 20A) | Y |
Remark:Wire length is 1.2m, AWG12-14 default terminals is Clip.
![connect terminal]()
Remark: Connecting Wire and Terminal are available upon receiving customer's request.![packing.jpg]()
Remark: Connecting Wire and Terminal are available upon receiving customer's request.
