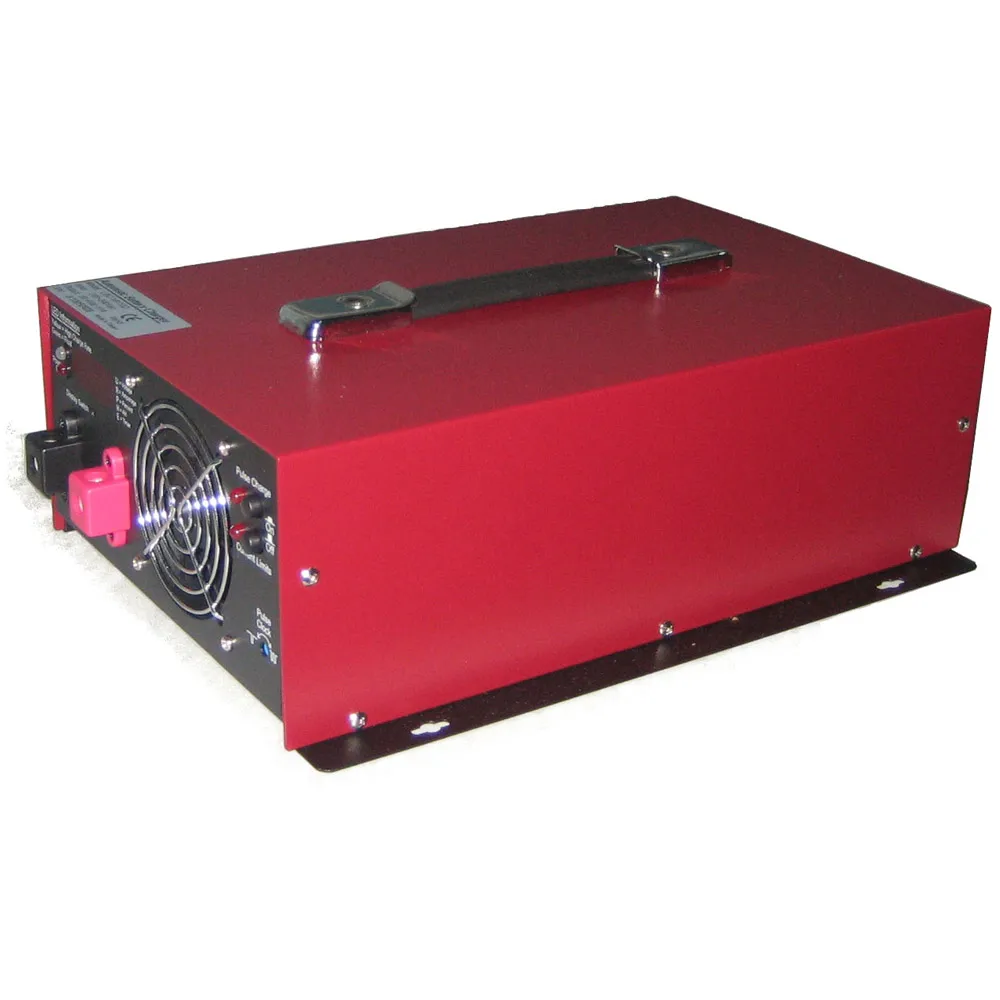

Литиевое зарядное устройство Taiwan Power 8s 7s 24V 33A

Описание и отзывы

Трекер стоимости

Характеристики

Features

1. 3 Stages Charging: 1st-25% of rating current; 2nd-50% of rating current; 3rd-100% of rating current (equalizer).
2. Automatic Re-charging Battery: If the battery voltage <@3.1V/cell after full charged, the charger will automatic re-charging the battery.
3. Short-circuit Protection: Charger O/P cut-off automatically when short circuit.
4. Overload Protection: Charger O/P current-limited automatically when overload.
5. Unique Digitalt Meter Display: Indicating charging voltage, current, battery capacity (percent and AH) and charger status (timer, pre-charge,.....)
3 LED Display: Red(power), green(full charged) & orange(equalizer charge)

MODEL		LFP08S330A
Input	Voltage	AC100V-120V or AC200-240V
	Frequency	47-63HZ
Output	Voltage	DC29.2V +/-0.2V
	Rating Current	33A+/-5%
	Pre-Charge1 (<2.5V/Cell) Timer1	8.3A+/-5%
	Pre-Charge2 (<2.9V/Cell) Timer2	16.5A+/-5%
	<10% of Rating Current Timer3	3.3A+/-5%
	<5% of Rating Current Cut-off	1.7A+/-5%
	Re-Charging(<3.1V/Cell)	24.8V+/-0.2V
	Wattage	970W
	Efficency	>85% (at full load)
Protection	Battery Reverse	Yes,by fuse
	Short-circuit	Yes,Automatic Shutdown
	Overload	Yes,Curent Limited
	Cooling Fan	speed controlled by charging stage
Mechanical	Dimensions (mm)	323*231*106mm
	Weight (KGS)	4.2



Digital Meter Indications:

Operations:
1. Connect the charger system to a wall receptacle strongly. The battery charger must only be plugged into an earthed socket-outlet.
2. Connect your the alligator clips to battery terminals(red clip positive terminal; black clip negative terminal)
3. Turn on the power switch which is located on the rear panel then the red LED lits and bi-color LED will confirm the charger's stage. And the LCD (or digital meter) will confirm the charger's stage & battery level (or O/P voltage)





Picture	12V (4 Cells)	16V (5 Cells)	24V (8 Cells)	36V (12 Cells)	48V (16 Cells)	72V (24 Cells)
	LFP04S060A 6A 88W	LFP05S045A 4.5A 88W	LFP08S030A 3A 88W	LFP12S020A 2A 88W	LFP16S015A 1.5A 88W	LFP24S010A 1A 88W
	LFP04S100A 10A 200W	LFP05S080A 8A 150W	LFP08S070A 7A 200W	LFP12S045A 4.5A 200W	LFP16S035A 3.5A 200W	LFP24S020A 2A 200W
	LFP04S200A 20A 300W	LFP05S150A 15A 270W	LFP08S120A 12A 300W	LFP12S070A 7A 300W	LFP16S050A 5A 300W	LFP24S035A 3.5A 300W
	LFP04S250A 25A 400W	LFP05S200A 20A 370W	LFP08S140A 14A 400W	LFP12S090A 9A 400W	LFP16S070A 7A 400W	LFP24S045A 4.5A 400W
	LFP04S300A 30A 500W	LFP05S250A 25A 460W	LFP08S170A 17A 500W	LFP12S110A 11A 500W	LFP16S085A 8.5A 500W	LFP24S055A 5.5A 500W
	LFP04S450A 45A 650W	LFP05S350A 35A 640W	LFP08S230A 23A 650W	LFP12S150A 15A 650W	LFP16S110A 11A 650W	LFP24S075A 7.5A 650W
	LFP04S500A 50A 800W	LFP05S400A 40A 730W	LFP08S250A 25A 800W	LFP12S170A 17A 800W	LFP16S130A 13A 800W	LFP24S085A 8.5A 800W
	LFP04S660A 66A 970W	LFP05S500A 50A 912W	LFP08S330A 33A 970W	LFP12S220A 22A 970W	LFP16S170A 17A 970W	LFP24S110A 11A 970W
	LFP04S900A 90A 1300W	LFP05S700A 70A 1280W	LFP08S450A 45A1300W	LFP12S300A 30A1300W	LFP16S230A 23A1300W	LFP24S150A 15A1300W
	LFP04S1000A 100A 1470W	LFP05S800A 80A 1460W	LFP08S500A 50A 1470W	LFP12S330A 33A 1470W	LFP16S250A 25A 1470W	LFP24S170A 17A 1470W
	LFP04S1320A 132A 1940W	LFP05S1000A 100A 1825W	LFP08S660A 66A 1940W	LFP12S440A 44A 1940W	LFP16S330A 33A 1940W	LFP24S220A 22A 1940W

 1.3,5,6,7,9,10,11, and other cells is available upon receiving customer's request.
 2. The above specifications issubject to change without prior notice.



Accessories Reference

DC Output Connecting Wire Index
No.	Connecting Wire (Black & Red)	Fit Item Code	Standard Accesory
1	16AWG	LFP04S060A(12V 6A) LFP04S100A(12V 10A) LFP05S045A(16V 4.5A) LFP05S080A(16V 8A) LFP08S030A(24V 3A) LFP08S070A(24V 7A) LFP12S020A(36V 2A) LFP12S045A(36V 4.5A) LFP16S015A(48V 1.5A) LFP16S035A(48V 3.5A) LFP24S010A(72V 1A) LFP24S020A(72V 2A)	Y
2	14AWG	LFP08S120A(24V 12A) LFP08S140A(24V 14A) LFP12S070A(36V 7A) LFP12S090A(36V 9A) LFP12S110A(36V 11A) LFP16S050A(48V 5A) LFP16S070A(48V 7A) LFP16S085A(48V 8.5A) LFP24S035A(72V 3.5A) LFP24S045A(72V 4.5A) LFP24S055A(72V 5.5A)	Y
3	12AWG(option)	LFP05S150A(16V 15A) LFP05S200A(16V 20A) LFP08S170A(24V 17A) LFP12S150A(36V 15A) LFP12S170A(36V 17A) LFP12S220A(36V 22A) LFP16S110A(48V 11A) LFP16S130A(48V 13A) LFP16S170A(48V 17A) LFP24S075A(72V 7.5A) LFP24S085A(72V 8.5A) LFP24S110A(72V 11A)	N
4	12AWG	LFP04S200A(12V 20A) LFP04S250A(12V 25A)	Y
5	10AWG(option)	LFP05S250A(16V 25A) LFP08S230A(24V 23A) LFP08S250A(24V 25A) LFP12S300A(36V 30A) LFP16S230A(48V 23A) LFP24S150A(72V 15A)	N
6	10AWG	LFP04S300A(12V 30A)	Y
7	8AWG(option)	LFP04S450A(12V 45A) LFP04S500A(12V 50A) LFP05S350A(16V 35A) LFP05S400A(16V 40A) LFP05S500A(16V 50A) LFP08S330A(24V 33A) LFP12S330A(36V 33A) LFP16S250A(48V 25A) LFP24S170A(72V 17A)	N
8	6AWG(option)	LFP04S660A(12V 66A) LFP05S700A(16V 70A) LFP08S450A(24V 45A) LFP08S500A(24V 50A) LFP12S440A(36V 44A) LFP16S330A(48V 33A) LFP24S220A(72V 22A)	N
9	4AWG(option)	LFP04S900A(12V 90A) LFP04S1000A(12V 100A) LFP05S800A(16V 80A) LFP05S1000A(16V 100A) LFP08S660A(24V 66A)	N
10	2AWG(option)	LFP04S1320A(12V 132A)	N
