N2 Semi-Automatic Plastering Machine



1. Technical data

Model		N2 semi-automatic
Voltage		380V/220V
Power		4KW
Delivery capacity		3-60L/min
Delivery pressure		30bar
Delivery distance		0-100m
Delivery height		50m
Maximum aggregate diameter		3mm
Hopper capacity		50L
Maximum length of delivery hose		100m
Weight		165kg
CTN’s Dimension		1310×640×1180mm
Accessories	15m delivery hose, 1 high pressure gun, 1 low pressure gun, 16m air hose, 20m manual operation wire, key for control box, instruction book, sponge balls, screw and nuts, etc.





2. Brief introduction



The plastering machines are also called spraying machines, spraying pumps, shotcrete machines, etc. This series of plastering machines are new energy-saving, environmentally friendly construction machinery, researched and improved based on German advanced technology.



Thanks to our perfect design and outstanding techniques, we make out this series of reliable, high adaptable, durable and simple spraying machine sets, which are praised by friends of every walk as well as supported and promoted by regarding leaderships.



Nowadays, there are lots of CS board, SB board, polystyrene board, polyphenylparticle board, etc in sound insulation and heat preservation systems on the market. It is easy to handle the mortar surface of these halftones with this machine, and meantime can reach good rigidity and good adhesion, no hollowing and crack. However, if handle that with manual, it will be difficult and meantime makes a low rigidity and binding strength, often result in hollowing, crack, etc.

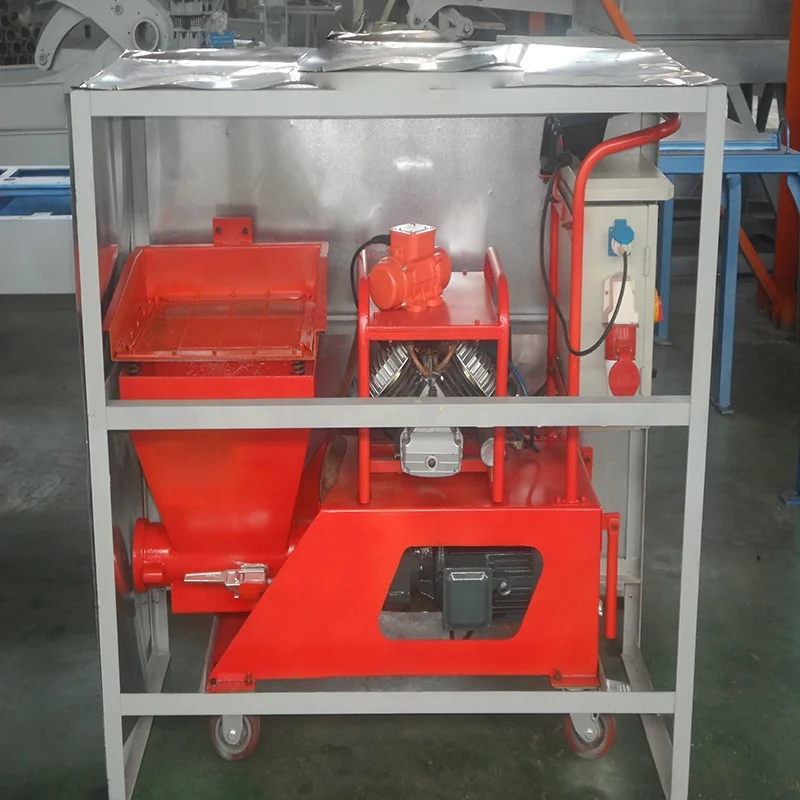

3. Overview



1. Control Box                                 6. Lead Screw

2. Motor and Transmission (4KW)               7. Hose Interface

3. Air Pump                                   8. Machine Frame

4. Material Hopper                             9. Light

5. Pump Core                                 10. Fastener



4. The mixture ratio of raw materials



Due to region diversity, the cement and sand are different. According to the national standard ratio of 1:3 and considering the operation of our machine, the ratio is listed as following:





Remark: the grain diameter should be less than 3mm



The personnel needed in operation: one person fills material, one person operates the gun to spray, another person does some assistant work (for instance: assistant to remove the hose), one person mixes the material.



To avoid the mortar solidifying in the pipe during the working break, this machine is installed with automatic recycling spraying system (e.g. recycling once per 5 minutes, 30 second per time, the break time can be adjusted manually), so that make sure the nozzle-type machine will not be blocked, ensure a normal running. This machine is installed safety operation control system. Whichever process breaks out a fault, the equipment will stop working automatically. In this way, it ensures the safety of not only the operator but also the machine itself, meantime promptly reminding the operator to shoot the trouble, saving as much time as possible.



5. Operation process



Keeping the air pump running for 2-5 minutes after turn on the machine (heating up the grease lubrication to make the air pump work normally), then add the mixture of water and cement into the hopper (to lubricate the hose), then add the normal material to start working.



When finishing the work, the machine should be cleaned. Clean the material in the hopper with water out of the hose, until the clean water flow out. Then dismantle the hose, at last hang the hose vertically, clean the sand in the inner surface of the hose with clean water.



Remark: when you start the machine, turn on the air pump at first, then the  material; but when turn off the machine, you should stop the material first then the air pump, in case that the air hole of the spraying gun is blocked.



6. Applicable materials



Normal mortars, insulation mortars, dry mortars, anti-crack mortar, interface agents, construction glues, bonding agents, anti-fire materials, epoxy coating, etc.



7. Applicable construction projects

Surface agents, normal mortar rendering, halftones spraying, terrace grouting, anti-fire and anti-corrosive coatings, some high-density coatings, etc.



8. Comparison with manual operation



Item		Working time (h)	Person number	Salary (¥/person/day)	Working efficiency (m2)	Unit price (m2/¥)
As interface agents	Semi-auto machine	8.5	5	50	3500—4500	0.071—0.056
	Manual spraying	8.5	5	50	750—1000	0.333—0.250
Surface render	Semi-auto machine	8.5	5	50	700—1000	0.357—0.250
	Manual spraying	8.5	5	50	300—450	0.833—0.556
