Zicar 50 тонн машина холодного прессования для деревянных досок/Гидравлическая


Поделиться:


Цена:3 400,00 $ - 4 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 4046.65 $* 4248.84 $*
Aug-16-2025 4012.47 $* 4213.4 $*
Jul-16-2025 3366.41 $* 3534.2 $*
Jun-16-2025 3944.39 $* 4141.69 $*
May-16-2025 3434.67 $* 3606.26 $*
Apr-16-2025 3876.18 $* 4070.83 $*
Mar-16-2025 3842.87 $* 4034.45 $*
Feb-16-2025 3808.3 $* 3998.95 $*
Jan-16-2025 3774.75 $* 3963.18 $*

Характеристики


Product Description

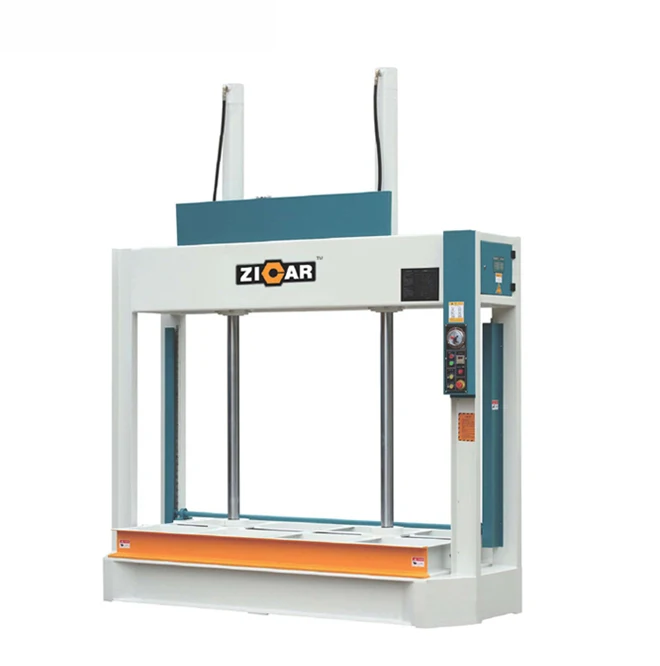

                                      Cold Press Machine for Plywood,Veneer&Door

1.This cold press is mainly used for the pressing and Pre-molding for the glued board, with the features of good quality pressing, high efficiency.


2. Widely applied in the furniture manufacturing industry as well as other board production industry.


\t
Model
\t
 JY3248X50 50TONS Cold Press machine
\t
Press platen dimensions
\t
1250x2500mm
\t
Max.total thrust
\t
50t(1.6kg/cm²)
\t
Pressure of hydraulic system
\t
210kg/cm²
\t
Max.platen opening
\t
1000mm,1300mm
\t
Oil cylinder
\t
125mm x 2pcs     90mm x 2pcs
\t
Hydraulic motor power
\t
3.7kw
\t
Overall dimension(LXWXH)
\t
1250x2900x3000mm
\t
Net weight
\t
2200kg

Hydraulic cold press machine structure

Body: The profile and channel steel are welded together, with compact structure and high strength.


Pressing plate: welded by profile and steel plate, the upper and lower press plates are finished by large-scale milling machine to ensure the beautiful and smooth products.

Oil pressure system: consists of cylinder, fuel tank, motor, pressure gauge and control valve block. The pressure gauge controls the pressure and controls the valve block to prevent system overload, maintain pressure, and smooth pressing.

Electrical system: protects the machine from overload, short circuit, voltage loss and under voltage during use.

Platen balancer: keep the working platen balanced during the lifting process

Features:

1. The pressing quality is good, the flatness is high, and the tonnage can be adjusted according to the production process.

2. The lifting speed of the platen is 1.0m/min, the speed is fast, the production efficiency is high, and it is widely used in the furniture manufacturing industry and other plate production industries.

3. It has an emergency stop switch and an automatic stop protection switch for the platen stroke over limit, which is convenient and safe.

4. The timing control can set the pressing time according to the production process, when the buzzer reminds and the pressure plate automatically rises.
Detailed Images
Packing & Delivery
Packing material:

1.wraping film

2.plywood box


Packing size:


3.06*1.307*2.3m


Weight:2600kg

FAQ

1,can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.

we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3, What's your warranty? can you do more service for us? we wish woud be protected after purchasing mach
ine


We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .

4, What's your production time? we want faster shipping time also.

mostly machine we have in stock, some machine we produce need about 2-3 weeks. make fast shipment always. shipping time depends on shipping company.
