Характеристики
Product Overview
Anyang Power Hammer for Blacksmith
Anyang blacksmith power hammer from 150kg to 2000kg are widely used in the industrial open die forging. The frames are cast irons,and the internal parts are forged steel and precision machined. The design is based on the time proved designs of the old European pneumaitc hammers many which are still in use today.
The features and advantages:
1. Anyang pneumatic forging hammer do not need out-side air compressor. It will compress air inside with motor driven flywheel.
2. The cast Iron Frame will never flex or warp. Compare the weights of different hammers available and you will find that the Anyang is amongst the heaviest. Cast iron is much more expensive to manufacture but allows the designer to put the mass and strength where it is required.
3. Lifetime frame warranty , one year on wearing parts against defects, one year on electrical components against defects.
6. Low maintenance. Anyang power hammer Automatic and fully adjustable oil system. The two grease zerks are easy to reach. Large tapered roller bearings in crank case for long trouble free life.
4. External drive belts. Design keeps the belts dry and away from oil. This eliminates belt slippage and extends belt life. Replacing the belts is quick and easy.
5. The air ports are cast into the hammer. This eliminates internal rubber hoses and fittings. 8. Very controllable, making the use of tooling easy. The operator can change tooling or material thicknesses without adjusting the ram or stroke.
7. Simplistic design. Only 3 basic sections (crank case, compressor piston, ram). Hammers can be disassembled, and if needed rebuilt in a day or less.
9. Easy to install- once the hammer is uncrated installation takes about 30-45 minutes. 12. All anyang power hammers have got CE. The design is safty.
10. Blacksmith power hammer ( C41-9, C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) one piece which makes for easy installation.11. Anyang power hammer good for making work handling tools for forging operation, forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.
PRODUCT SPECIFICATIONS
Main Technical Parameters | ||||||||||||||||
Model | C41-9 | C41-15L | C41-25L | C41-40L | C41-55L | C41-75L | C41-110L | |||||||||
Weight of falling parts(kg) | 9 | 15 | 25 | 40 | 55 | 75 | 110 | |||||||||
Hitting energy(kj) | 0.09 | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 | |||||||||
Hitting frequency(min-1) | 245 | 300 | 250 | 245 | 230 | 210 | 180 | |||||||||
Height of working area(mm) | 135 | 160 | 240 | 245 | 270 | 300 | 355 | |||||||||
D - Depth of throat(mm) | 120 | 170 | 235 | 270 | 300 | 330 | 400 | |||||||||
Working | Square | 25×25 | 30×30 | 40×40 | 52×52 | 60×60 | 65×65 | 110×110 | ||||||||
Piece | Round (mm) | Φ30 | Φ35 | Φ48 | Φ68 | Φ75 | Φ85 | Φ120 | ||||||||
Power | (kw) | 1.5 | 2.2 | 3 | 4 | 7.5 | 7.5 | 15 | ||||||||
Weight | Include Base | 450 | 490 | 1080 | 1263 | 1750 | 2700 | 3300 | ||||||||
L1 (mm) | 1080 | 1180 | 1470 | 1650 | 1860 | 1620 | 1910 | |||||||||
L2 (mm) | 420 | 650 | 740 | 800 | 880 | 930 | 1070 | |||||||||
H1 (mm) | 850 | 1025 | 1330 | 1500 | 1750 | 2220 | 2382 | |||||||||
H2 (mm) | 1450 | 1575 | 1835 | 1920 | 2100 | |||||||||||
H3 (mm) | 920 | 920 | 925 | 920 | 965 | 915 | 917 | |||||||||

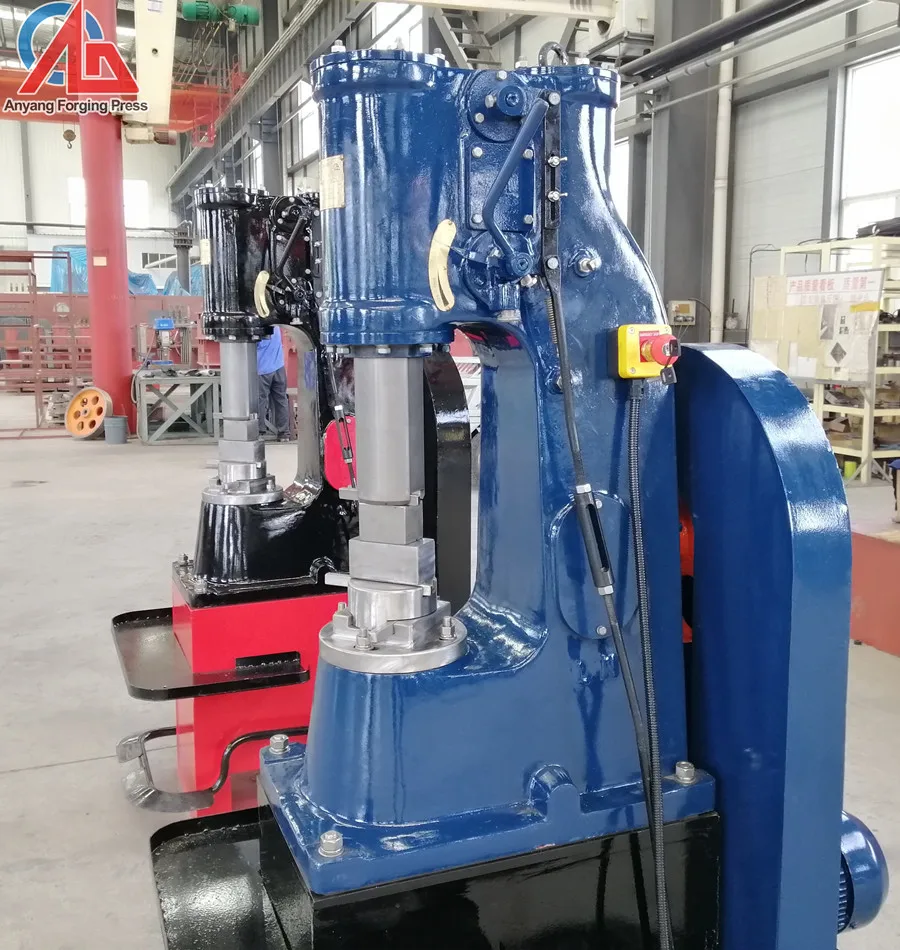

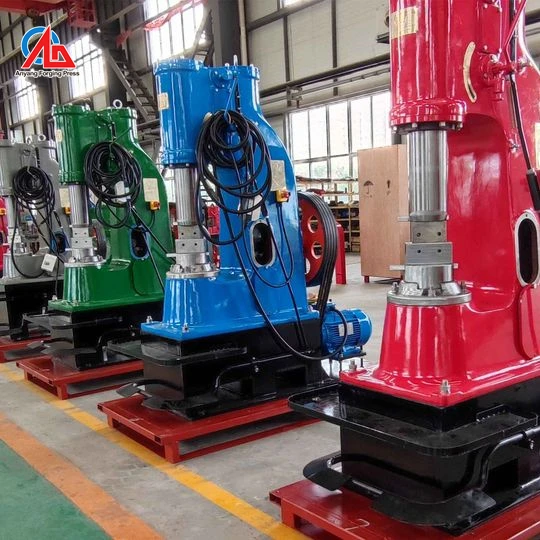

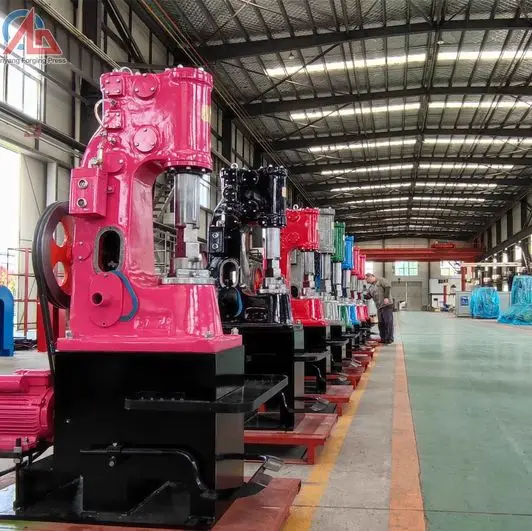

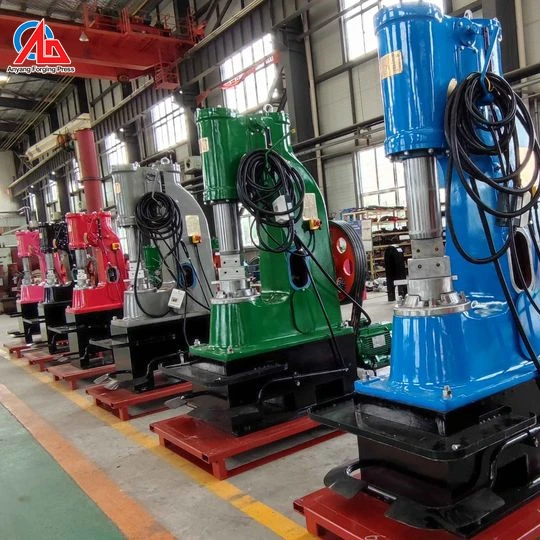

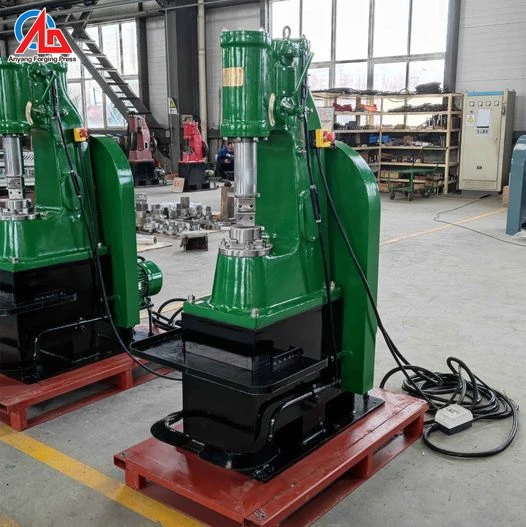

DETAILED IMAGES
Company Information
certificate
All of our Products are CE certificated, and our company owns a number of patents in the field related with mechanical engineering, initiator of the standards of forging equipment in China.
Our Services
Our Team Offers excellent oversea service.
Over 20 International sales team, 7*24 service.
Over 30 engineer team to supply oversea installation and after service.
PACKAGING & DELIVERY
Exhibition and Customer Visit
Anyang Forging Press attends North America Forge Fair, European International Forging Congress, India International Forging Technical Exhibition, Asian International Forging Congress, etc. 10+ exhibition about forgings in different countries.
