Программируемый источник питания переменного тока APS5001A 1KVA однофазный с цифровым дисплеем и переменной
- Категория: Switching Power Supply >>>
- Поставщик: Shenzhen,Kuaiqu,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 474.53 $* | 483.14 $* |
| Jul-16-2025 | 384.1 $* | 392.41 $* |
| Jun-16-2025 | 466.1 $* | 475.65 $* |
| May-16-2025 | 463.73 $* | 472.92 $* |
| Apr-16-2025 | 369.90 $* | 376.37 $* |
| Mar-16-2025 | 455.57 $* | 464.2 $* |
| Feb-16-2025 | 451.97 $* | 460.77 $* |
| Jan-16-2025 | 448.91 $* | 457.45 $* |
Характеристики

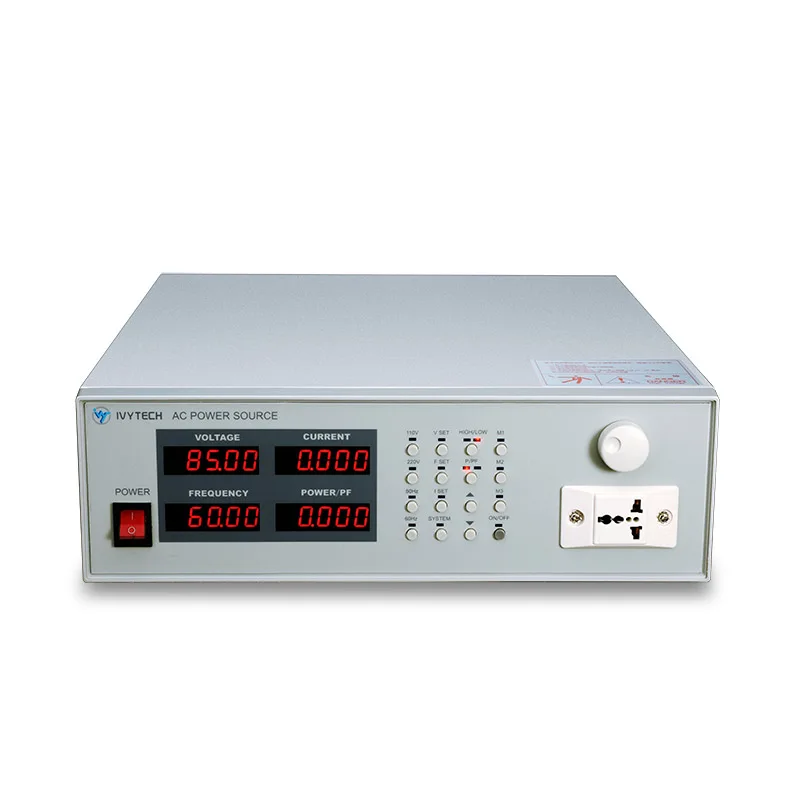

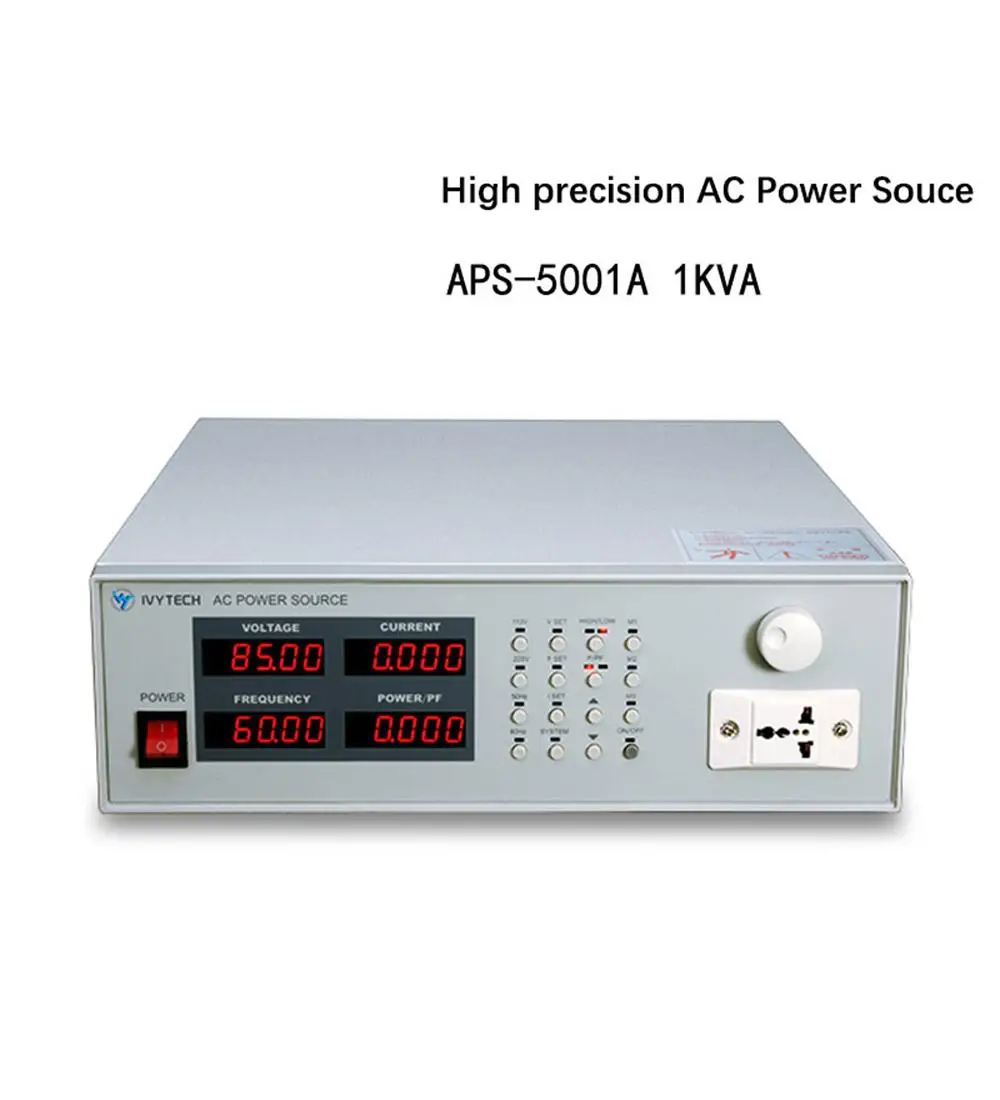

APS5001A 1KVA Programmable AC Power Source Digital Display Single Phase Variable Frequency Power Supply
333
product description
Adopt advanced direct digital frequency synthesizer (DDS) waveform production technology High frequency stability, good continuity and accurate measurement

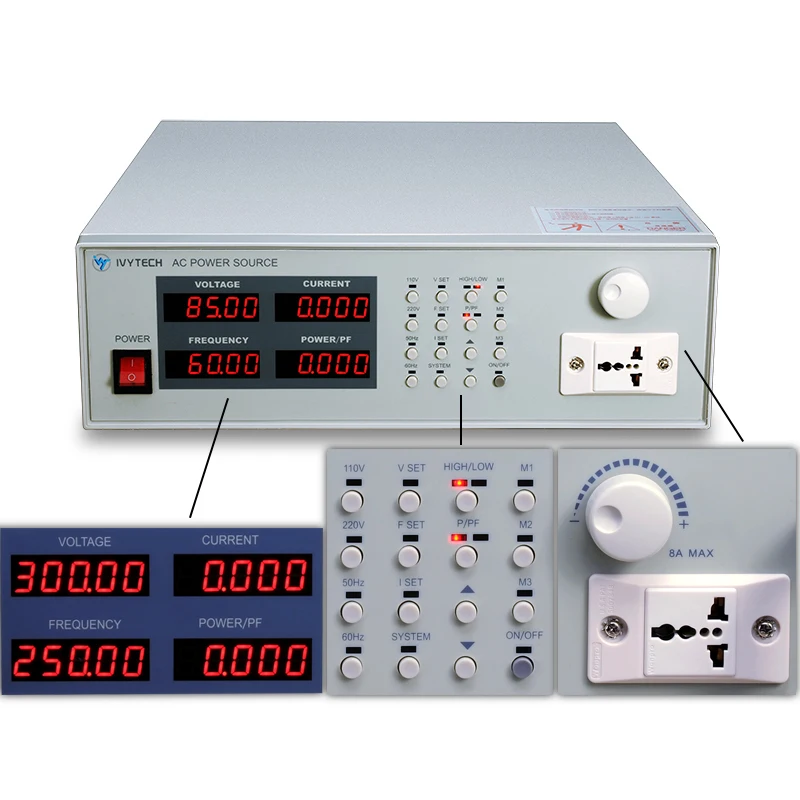

Shortcut keys: 110V, 220V, 50Hz, 60Hz, shortcut key self-combination
With key lock LOCK function to prevent accidental touch
With M1, M2, M3 and three groups of memories, the commonly used voltage V and frequency F can be stored, which is convenient for one-click access
Promise shuttle knob function: click voltage adjustment, double-click frequency adjustment, step distance can be changed according to rotation speed
Five-digit display window, voltage V, frequency F, current I, power \\ power factor P \\ PF display is more accurate
Measurement function: voltage, current, frequency, power, power factor
Strong overload capacity, 300% overload 2S
Intelligent analysis function: Automatically determine the cause and fault status when the alarm occurs, and display the code, etc.
With 100% loading and unloading, stabilized response time within 20ms
Output voltage 0-150.0V, 0-300.0V, (0-600.0V optional)
Output frequency 45.00-200.0Hz
RS485, RS232, Ethernetrt communication interface or analog control mode (optional)
Made with input-output isolation
With soft-start function, to avoid damage to the power supply due to the impact current when the load (such as motor, motor) is started
Adopt advanced direct digital frequency synthesizer (DDS) waveform production technology High frequency stability, good continuity and accurate measurement
Shortcut keys: 110V, 220V, 50Hz, 60Hz, shortcut key self-combination
With key lock LOCK function to prevent accidental touch
With M1, M2, M3 and three groups of memories, the commonly used voltage V and frequency F can be stored, which is convenient for one-click access
Promise shuttle knob function: click voltage adjustment, double-click frequency adjustment, step distance can be changed according to rotation speed
Five-digit display window, voltage V, frequency F, current I, power \\ power factor P \\ PF display is more accurate
Measurement function: voltage, current, frequency, power, power factor
Strong overload capacity, 300% overload 2S
Intelligent analysis function: Automatically determine the cause and fault status when the alarm occurs, and display the code, etc.
With 100% loading and unloading, stabilized response time within 20ms
Output voltage 0-150.0V, 0-300.0V, (0-600.0V optional)
Output frequency 45.00-200.0Hz
RS485, RS232, Ethernetrt communication interface or analog control mode (optional)
Made with input-output isolation
With soft-start function, to avoid damage to the power supply due to the impact current when the load (such as motor, motor) is started
Model | APS5000A | APS5001A | APS5002A | APS5003A | APS5005A | |||||||
Power | 500VA | 1KVA | 2KVA | 3KVA | 5KVA | |||||||
Production method | Sinusoidal Pulse width Modulation | |||||||||||
INPUT | ||||||||||||
Phase | 1φ2W | |||||||||||
Voltage | 220V±10% | |||||||||||
Frequency | 47Hz - 63Hz | |||||||||||
OUTPUT | ||||||||||||
Phase | 1φ2W | |||||||||||
Voltage | 0-150VAC / 0-300VAC AUTO | |||||||||||
Frequency | 45-500Hz(0.1Step) | |||||||||||
Maximum Current | L=120V | 4.2A | 8.4A | 25A | 42A | 84A | ||||||
H=240V | 2.1A | 4.2A | 12.5A | 21A | 42A | |||||||
Load Regulation | 1% | |||||||||||
Waveform distortion | 2%(low 120V, high 240V, with resistance load) | |||||||||||
FreRegulation | 0.01% | |||||||||||
FreRegulation | Vrms、Arms、Fre、attage、PF | |||||||||||
Voltage Resolution | 0.01V | |||||||||||
Fre Resolution | 0.01Hz | |||||||||||
Current Resolution | 0.0001A | 0.001A | ||||||||||
Memory | M1 (V_F_A）﹑M2 (V_F_A）﹑M3 (V_F_A) | |||||||||||

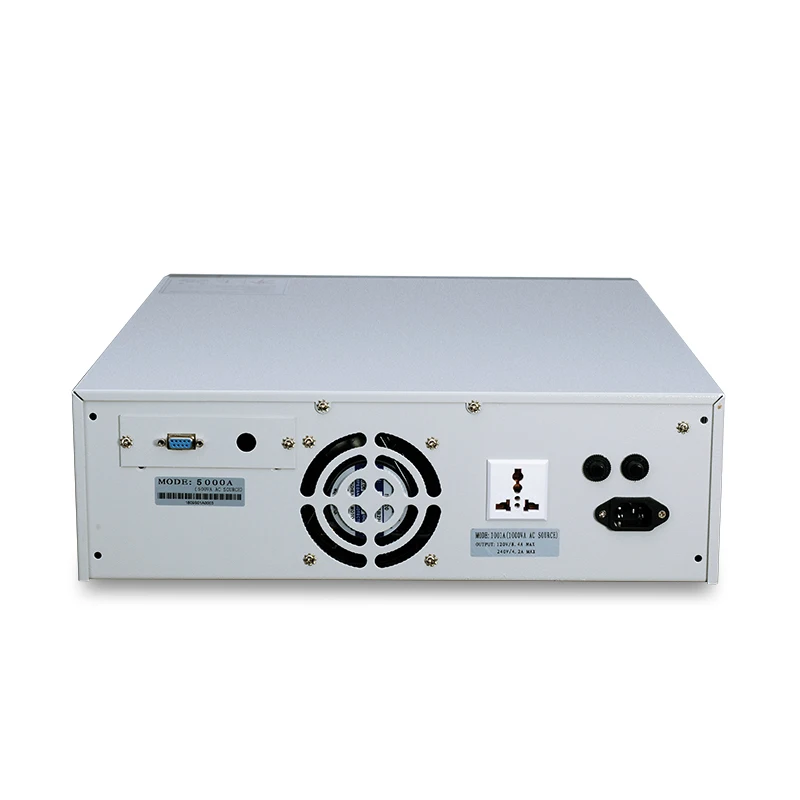

Interface | RS232C | |||||||||||
I-LIM Set | O-Max Current(maximum current: maximum capacity /240V, i.e. P/240) | |||||||||||
Oupt Protection | Over Current, Over Temp, Over Load, Short Circuit | |||||||||||
Weight(kg) | 15 | 20 | 30 | 50 | 80 | |||||||

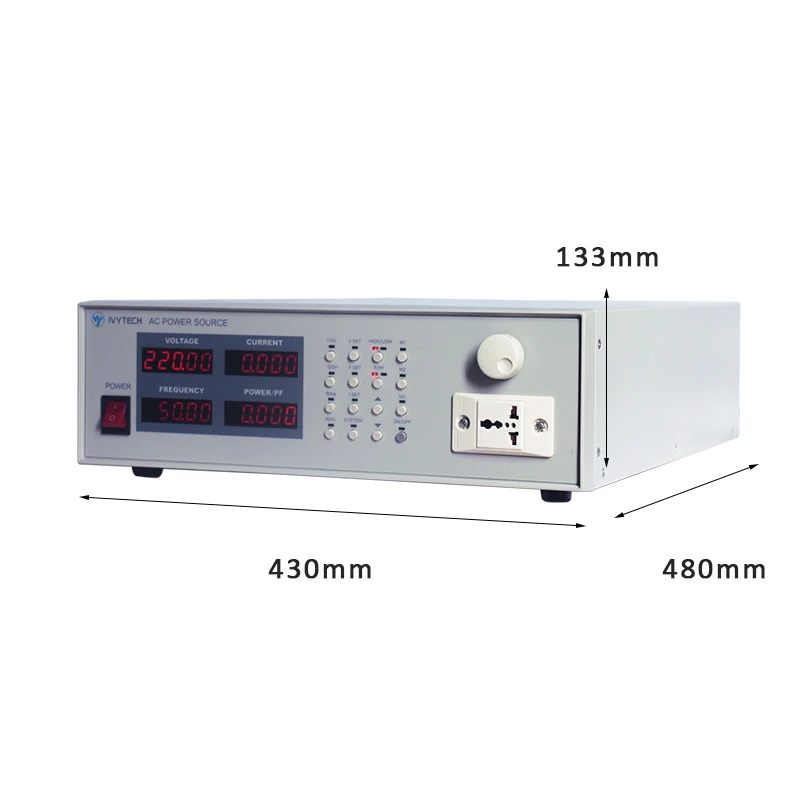

Size(mm) | 430×133×480 | 430×222×480 | ||||||||||
Storage Environment | 0-40℃ 20-80%RH | |||||||||||
