Китайский поставщик линейная разливочная машина на 5 литров линия разлива масла автомобильная для упаковки

Китайский поставщик линейная разливочная машина на 5 литров линия разлива масла автомобильная для упаковки

Категория: Pharmaceutical Filling Machine >>>
Поставщик: Brightwin,packaging,machinery,Co.,Ltd

Цена:8 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	9520.65 $*	9996.73 $*
Aug-16-2025	9440.10 $*	9912.53 $*
Jul-16-2025	7920.68 $*	8316.94 $*
Jun-16-2025	9280.44 $*	9744.40 $*
May-16-2025	8080.85 $*	8484.90 $*
Apr-16-2025	9120.43 $*	9576.5 $*
Mar-16-2025	9040.45 $*	9492.69 $*
Feb-16-2025	8960.92 $*	9408.84 $*
Jan-16-2025	8880.7 $*	9324.90 $*

Характеристики

Details

Model No: 5 litre linear filling machine oil filling line car engine oil packaging line

(Alibaba trade assurance and TOP gold supplier )

All of our machine can be Customized according to your request

Product parameters

Name	Automatic 5 litre linear filling machine oil filling line car engine oil packaging line
Filling head	1,2, 4, 6, 8, 10, 12, 16 etc(optional according to speed)
Filling volume	10-20000ml etc(customized)
Filling speed	360-8000bph(customized) For example 2 nozzles filling machine can fill about 720-960bottles for 500ml bottles/jars
Filling precision	≤±1%
Power supply	380V/220V etc(customized) 50/60HZ
Power supply	≤1.5kw
Air pressure	0.6-0.8MPa
Quick wearing parts	sealing ring

Elements brands list


Name	Brand and materials
Photoelectric sensor	transparent bottle sensor from Leuze Germany
PLC	Mitsubishi
Touch screen	WEINVIEW
Piston cylinder	Genuine SUS316 stainless steel CNC grinding machine, thickness5MM
Three-way components	SUS316L stainless steel material
Filling three-way steering valve	Fast loading Designed by Germany
Filling head assembly	SUS316L stainless steel anti-drip quick-load design
Cylinder	Taiwan genuine Airtac
Filling pipe	fast loading pipe from Italy
Sealing ring	Dupont's PTFE filling material (food grade) is no need replaced for three years
Low-voltage electrical parts	Schneider
Rack	SUS304 stainless steel
bearings	Japan NSK, original imported
Level control	With

Product display

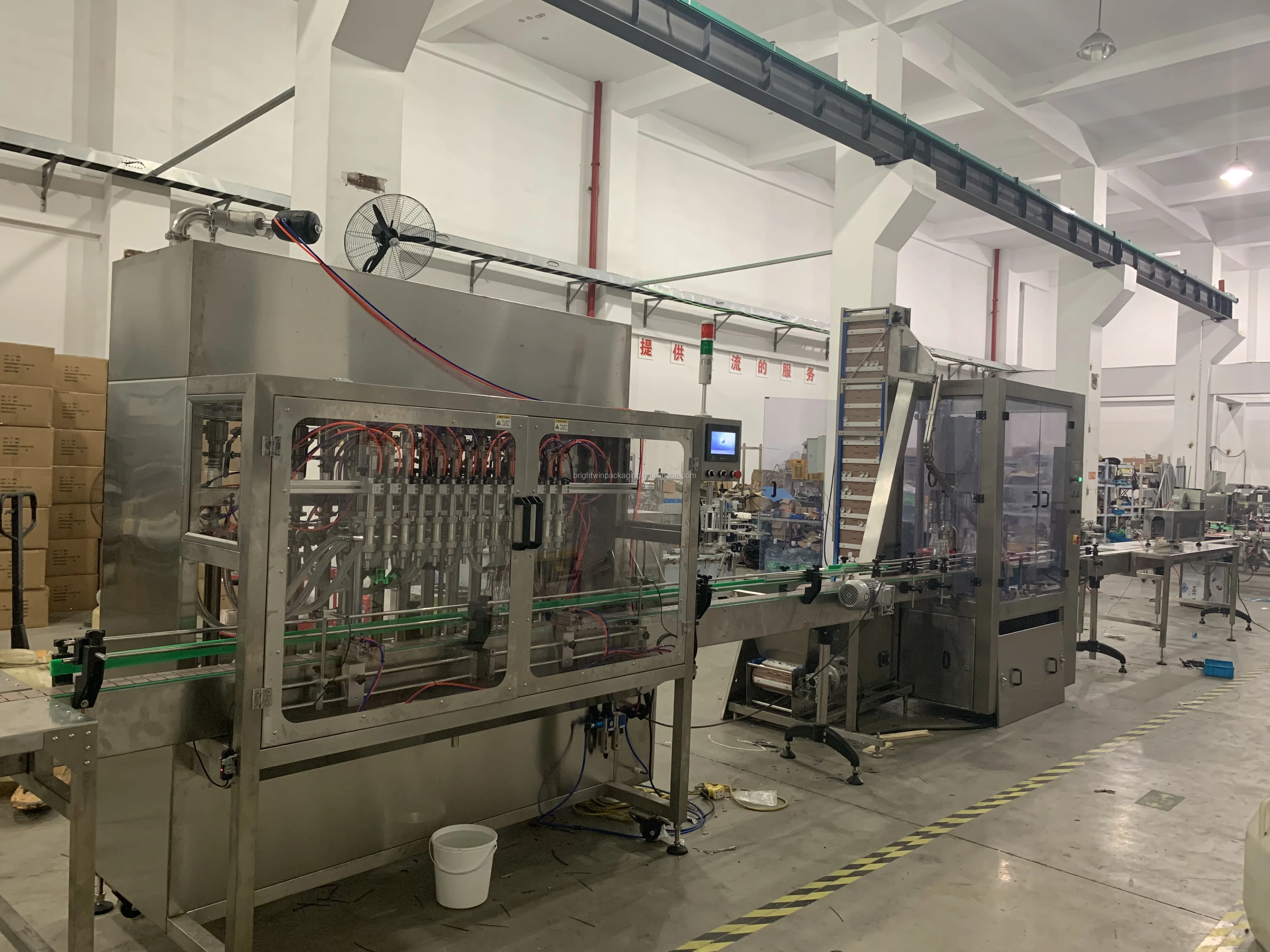

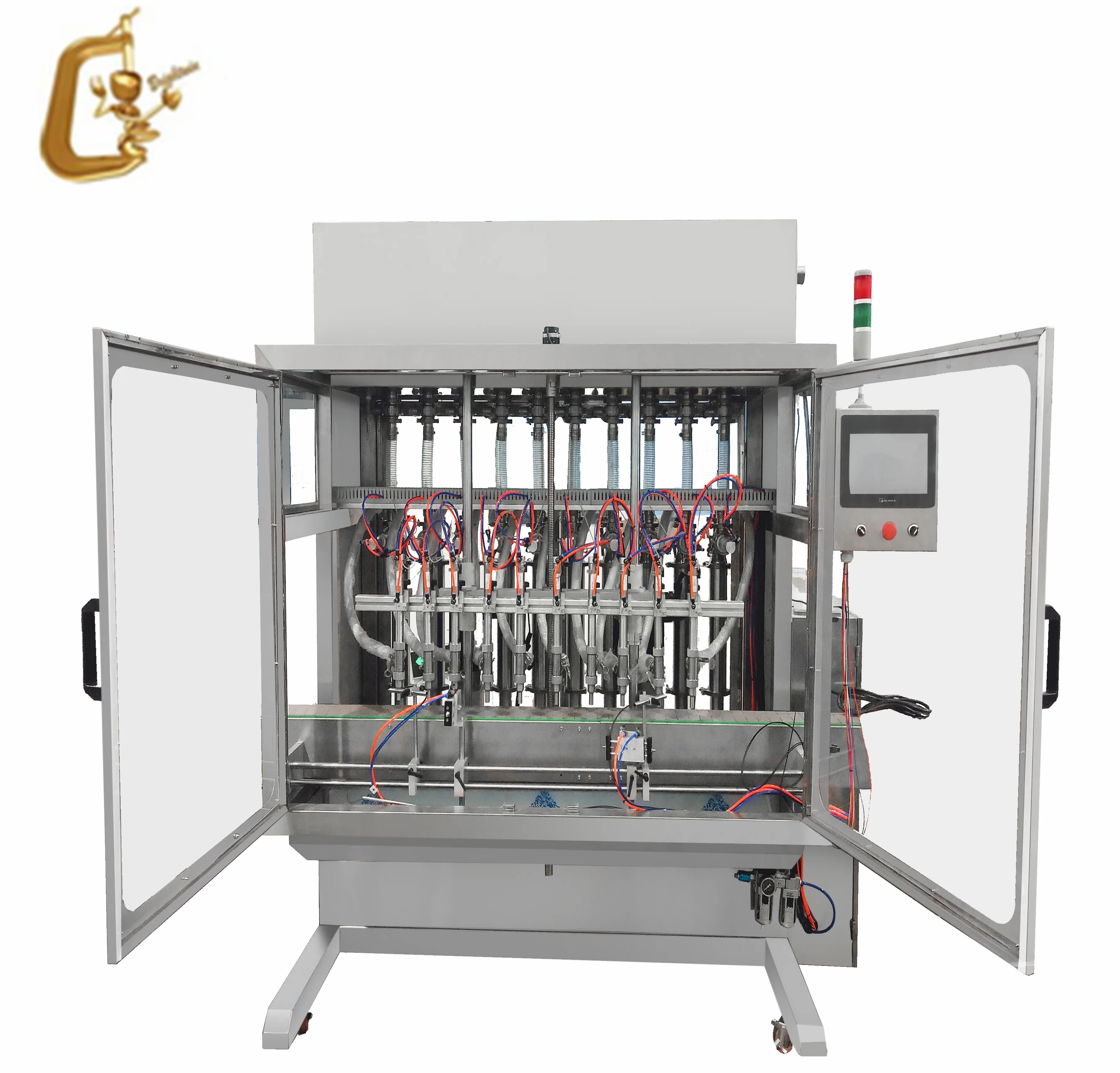

1.Automatic filling machine

The volume is adjustable,just input the volume you want on the touch screen.

IMG_0613_

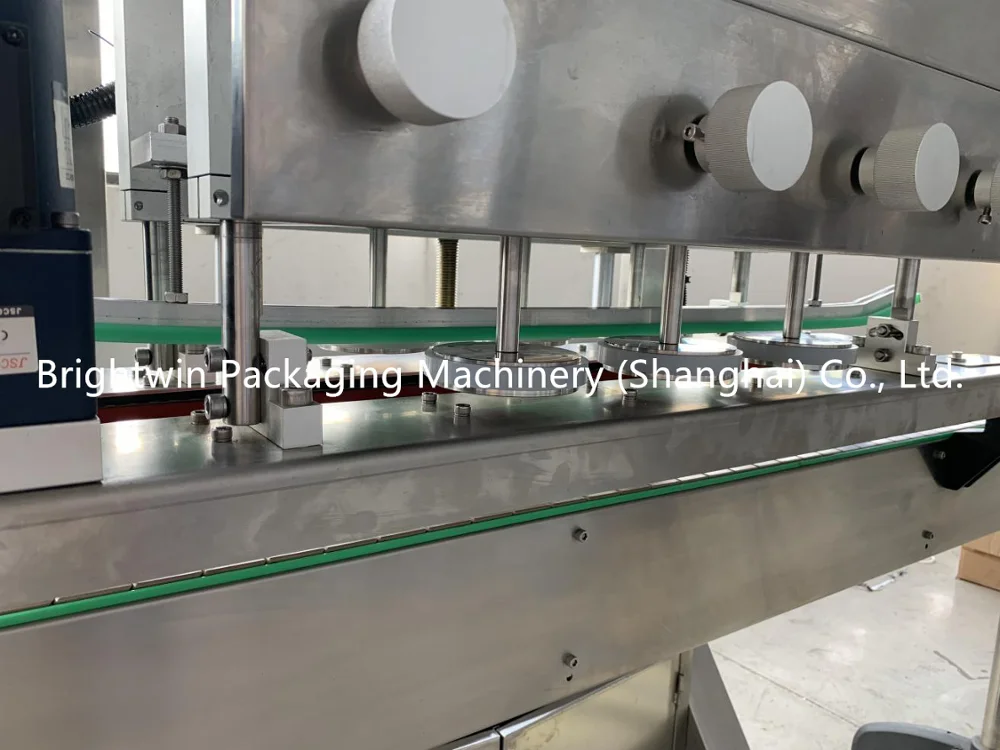

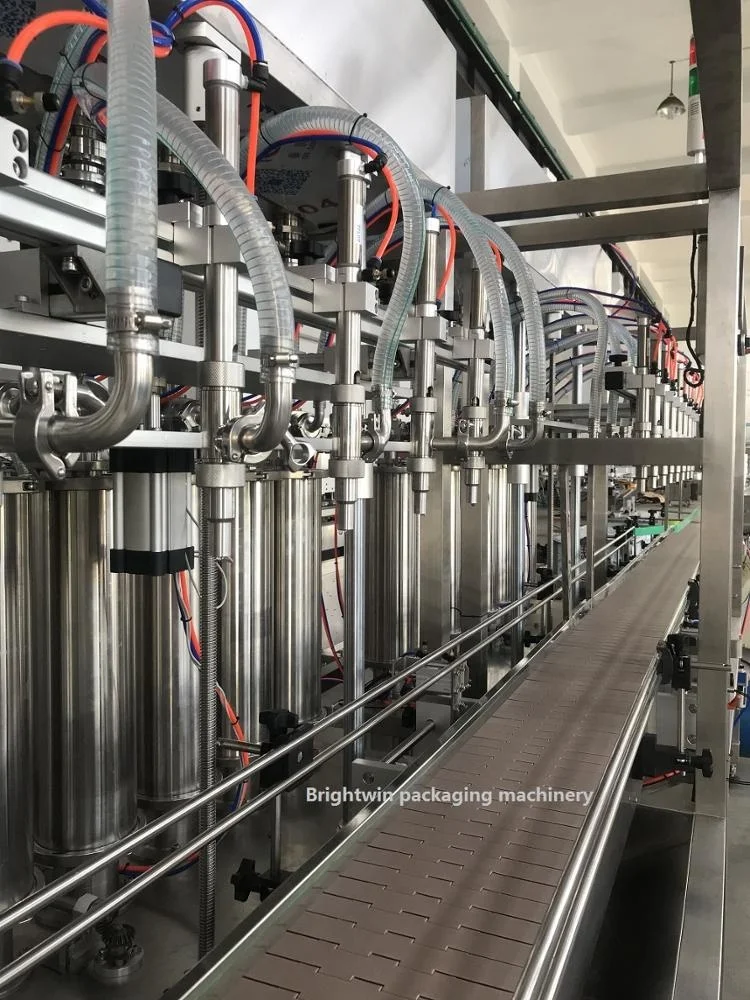

Detailed parts of the filling machine

1.Long and thick filling nozzle:Equipped with SUS316L long special designed no
drip filing nozzles, which can protect the cylinder on the top being damaged by material,

2.sealing ring:Specially designed thick sealing ring (Teflon material from Dupont USA), which is no need to replace within 3 years.

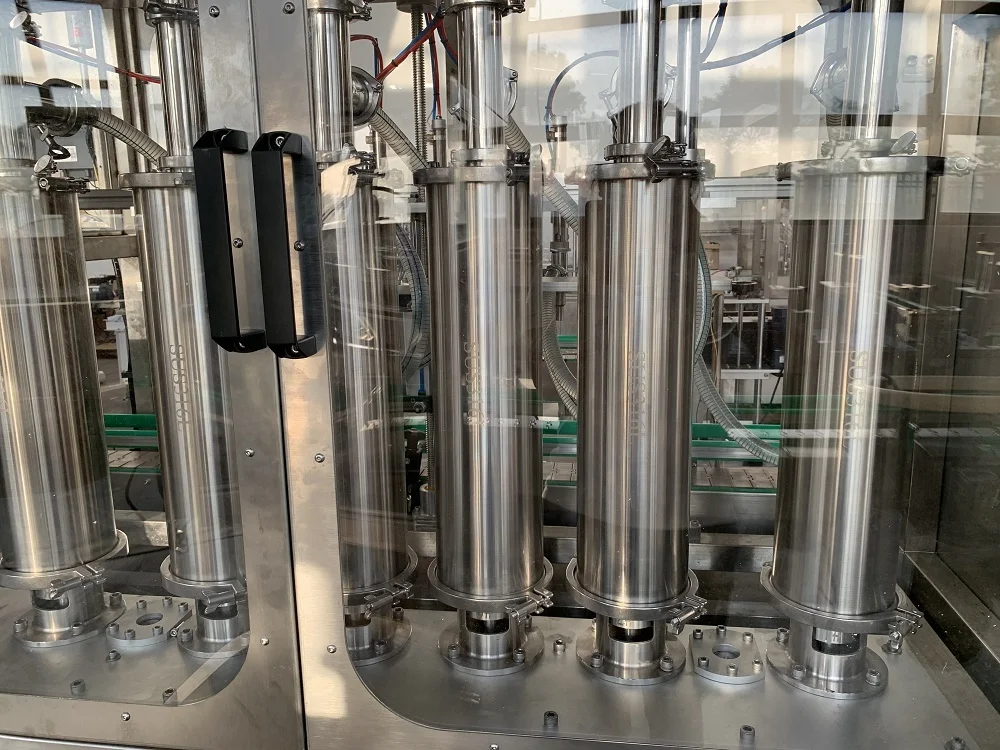

3. Piston pump:304 frame, 5mm thick SUS316L piston pump, manufactured by Taiwan producer

4. Rotary valve:With sensor in each SUS316L rotary valve and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, its easy to be found.
