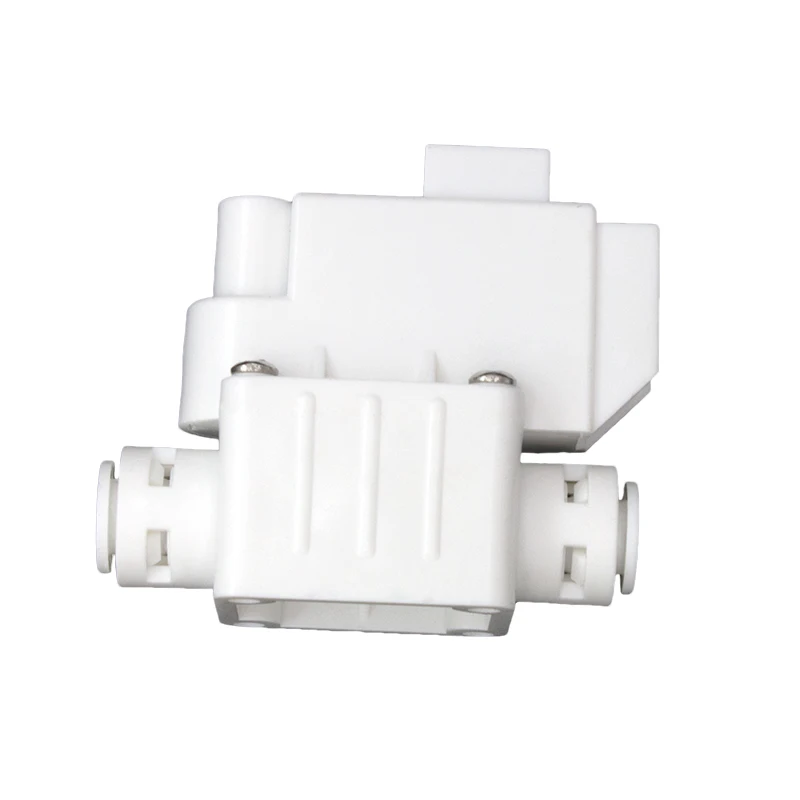

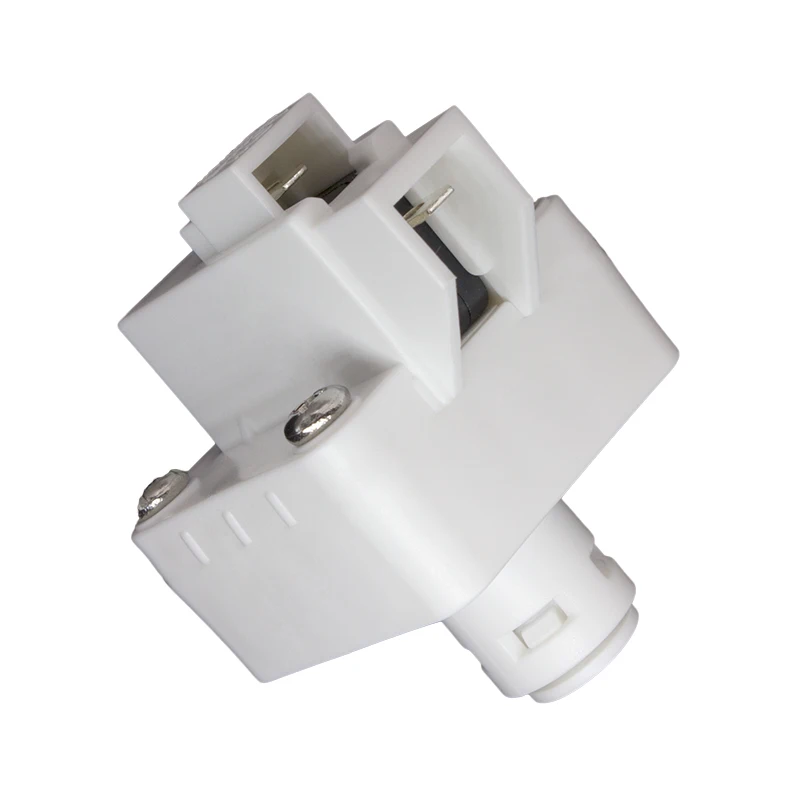

Water purifier pressure switch
WSF-PS series pressure switches which we named as WSF-PS01 high pressure switch and WSF-PS02 low pressure switch are mainly designed for protection of water purifier.WSF-PS01 is a high pressure switch which will cut off the circuit when the pressure in the water tank reach to switch setting point in order to stop the RO pump working.On the other hand,the WSF-PS02 is a low pressure switch which will cut off the circuit when the pressure in the water inlet tube lower to switch setting point in order to stop the RO pump.By stopping the RO pump,the pressure switch offer a protection to the water purifier.After the pressure back to switch setting point,the switch will cut in and let the RO pump back to work.

2 Parameter

Model	WSF-PS01(High pressure)	WS-PS02(Low pressure)
Medium	Water	Water
Pressure Range	Cut off pressure:0.25MPa±0.05MPa Cut in pressure:0.15MPa±0.05MPa	Cut off pressure:0.025MPa±0.005MPa Cut in pressure:0.025MPa±0.005MPa
Proof Pressure	2.5Mpa	2.5Mpa
Life Circles	>100,000 times	>100,000 times
Work Temp	5~45℃	5~45℃
Switch Design	Micro switch normally close	Micro switch normally open
Electrical Parameter	Voltage 250VAC Current 16A	Voltage 250VAC Current 16A
Terminal	Blade 4.8*0.8mm	Blade 4.8*0.8mm
Fittings	1/4" Quick connector	1/4"Quick connector
