Улучшенный большой размер 3d металлические слова алюминиевая Нержавеющая Сталь yag канал лазерная сварочная
- Категория: Laser Welders >>>
- Поставщик: Wuhan,BST,LASER,Machinery,Co.,LtdWuhan,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.49 $* | 0.37 $* |
| Aug-18-2025 | 0.18 $* | 0.55 $* |
| Jul-18-2025 | 0.79 $* | 0.3 $* |
| Jun-18-2025 | 0.39 $* | 0.30 $* |
| May-18-2025 | 0.23 $* | 0.95 $* |
| Apr-18-2025 | 0.81 $* | 0.45 $* |
| Mar-18-2025 | 0.77 $* | 0.24 $* |
| Feb-18-2025 | 0.92 $* | 0.35 $* |
| Jan-18-2025 | 0.97 $* | 0.0 $* |
Характеристики
Single Path 300w 500w Channel Letter Welding Machine
Dual Path Advertising Laser Welding Machine with 5m fiber cable
Large Size Industrial Laser Welding Machine for Signage
Handheld YAG Fiber Transmission Laser Welding Machine
Desktop Mini Jewelery Laser Welding Machine
Hand Held Pure Continuous Fiber Laser Welding Machine
Product Description
advance big size 3d metal words aluminum stainless steel yag channel laser welding machine
Model No.:BE-W300G/BE-W500G
With the booming development of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadeness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. Best Laser self developed channel letter welding machine BE-WG serious are specially designed for the clients who wants to make bigger 3d metal letters with height above 2m.
Dual Path Letter YAG Laser Welding Machine Main Features
1.Thicken bigger working table size 1.2*2.4m (width by length),high rigidity and larger working
size,which suitable for making big letters above 2m.
2.We use LCD screen control and CCD camera. Operators can observe the welding details
clearly.
3. This machine use touch screen panel, with which you can adjust the welding details, such as frequency, speed, laser output etc.4. Professional controlling card and cabinet, where the integreted circuit are setted up inside.
5. The water chiller comes with refrigrant(Advanced water chiller) with better cooling effect.
6. CCD camera is available
7. Foot pedal, which you can control the laser output.
8.No need for consumables, no surface treatment, no need to hire high-paying professionals,
general training will be ready, the operating environment is comfortable, easy to weld difficult to weld fonts.
9. The UK imported laser device, life expectancy of 8-10 years, stable performance, high power, xenon lamp light times more than 8 million times. It can be operated continuously for 24 hours.10.Cost-effective, professional training, fast maintenance.
Detailed Images

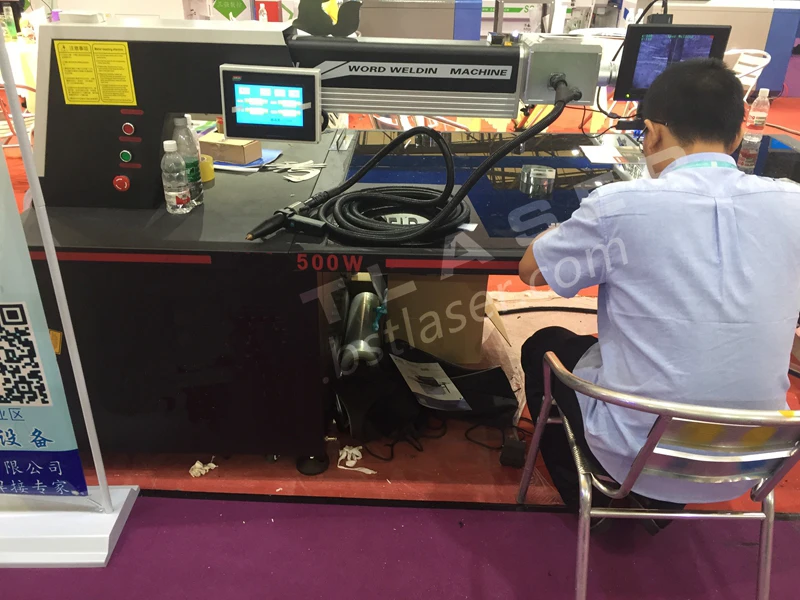

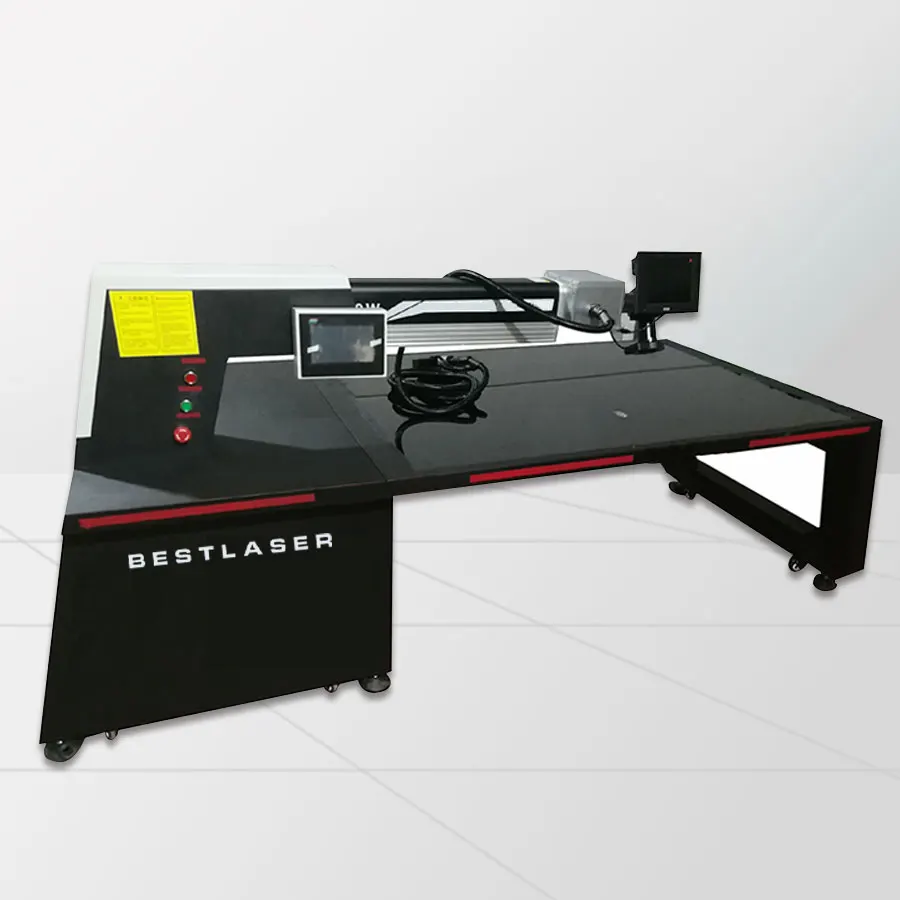

Bigger Thicken Working Table
Thicken bigger working table size 1.2*2.4m
(width by length),high rigidity and larger
workingsize,which suitable for making big
and small letters

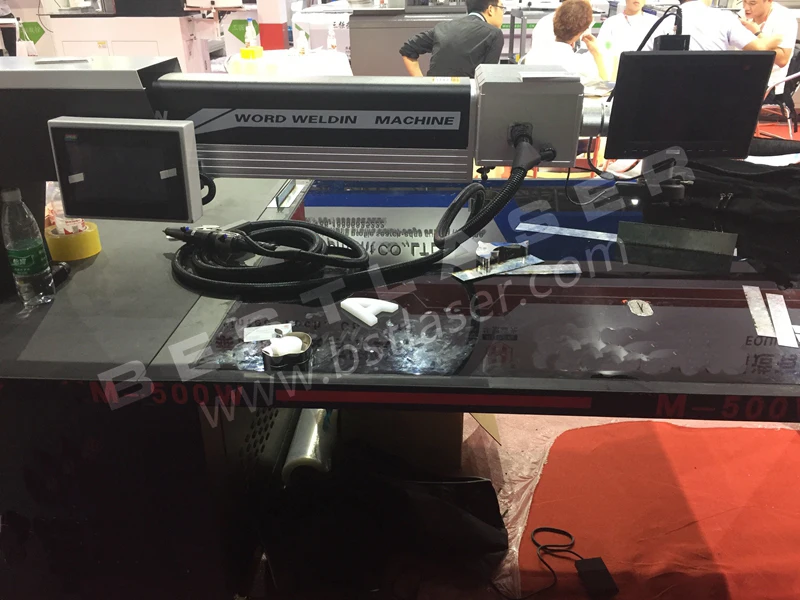

5m fiber laser cable and handy
pen
More freely, more flexible
Operators can hold the laser pen and weld
work pieces what they want.
One-button Switch between Fiber and Standard Mode
Easily to change different welding way based on your welding demand

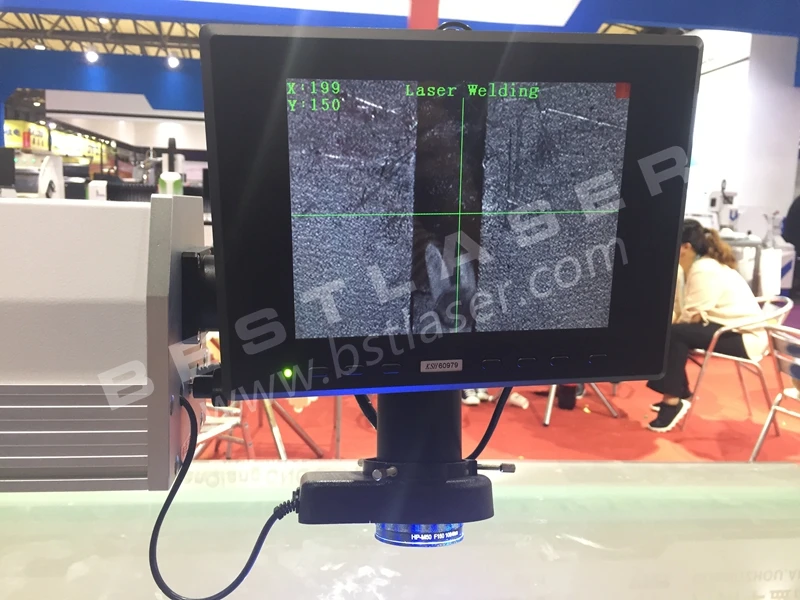

CCD Observation System
Easy to adjust the spot size and solder
joint position.
Laser Welding Head
Adopts China famous brand CCD camera, LCD screen and red pointer
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.
The welding effect is more clear and intuitive.
CCD camera can photo-shot the welding details and transmit the signal to LCD screen.
The welding effect is more clear and intuitive.
Controlling system

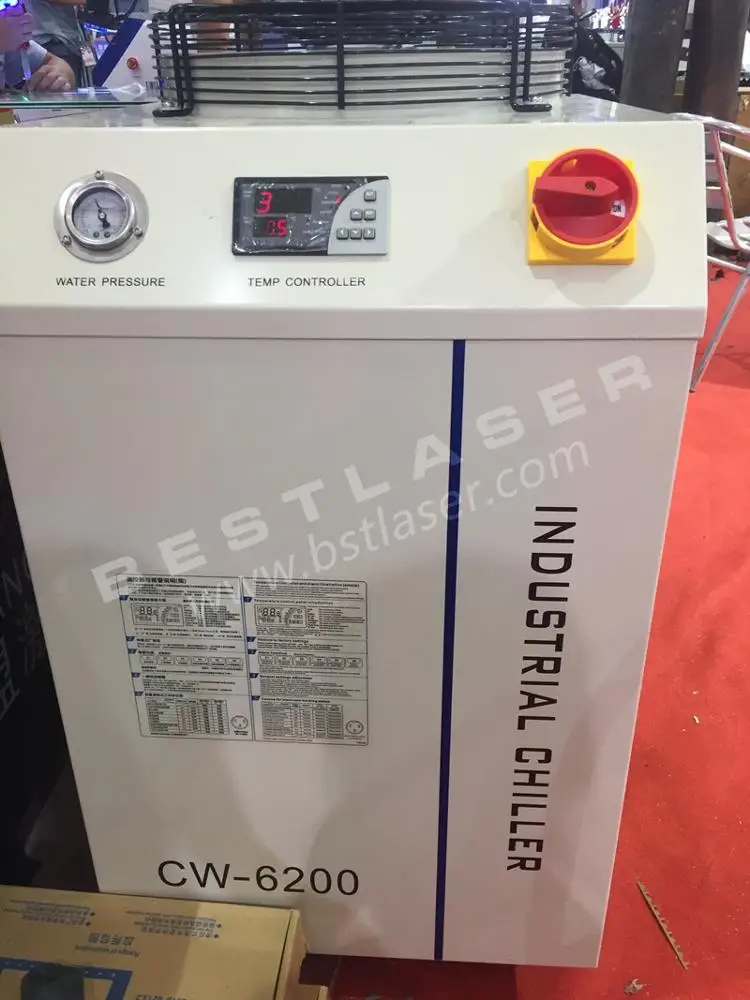

Industrial water chiller can cool the machine and make the machine work in good condition.
Operators can adjust the temperature parameters on the chiller panel.The water chiller comes with air-conditioner system.
(300w-1p,400w-2p)
LCD Touch Screen Controller
Easy parameters adjustment ,you can keep
parameter and search directly when need
Red pointer
It is easy to for red light to find the welding point fast, and position faster
Electrical Controlling System
Controlling board and cable connection are
integrated to avoid confusion..
Working Table
Thicken Marble or Tempered Glass,
Ensure that the glossy sheet is not scratched
Technical Data
Model | BE-W300G | BE-W500G | |||
Name | 300W Laser welding machine | 500W Laser welding machine | |||
Machinery Part | Laser cavity length of 1100 mm, the laser head can rotate 360 degrees. | ||||
Working Area | 750*1000MM | ||||
Load Bearing | ≤200KG | ||||
Machine Power Supply | 220V±10%/50/60Hz | 380V±10%/50/60Hz | |||
Position system: | <7KW | ≤12KW | |||
Single Pulse Energy | 90J | 120J | |||
Impulse Rate | ≤50Hz | ≤100Hz | |||
Cooling Capacity | 2700W | 5000W | |||
Cooling Mode | Circulation Water Cooling and Protection System | ||||
Operation | Detailed Video to teach customer how to operate the machine | ||||
Application for Dual Path Laser Welding Machine
The channel letter welding machine is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs,metal letters, LED illuminated letters, customized metal signage, and exterior billboards and other fast welding.
Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.
Welding Materials:
0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum (500w laser welder).The channel letter welding machine also called handheld laser welding machine,portable laser welding machine,advertising letter welding machine,laser welder for sale.
Packing & Delivery
Packaging | ||
Size | 1580*830*1340mm | |
Weight | 450kg | |
Packaging Details | We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
FAQ&Contact
FAQ for Best Laser Auto Laser Welding Machine
1. What are the main functions of the laser welding machine?
Mainly for the welding of metal advertising words to replace the traditional argon arc and soldering.
2. What are the advantages of laser welding?
Laser welding has no requirements for technicians, it is quick to get started, there is no heat deformation after welding, and it can be used without polishing and grinding.
3. How many models are there for your laser welding machine?
At present, the welding machine is divided into three types according to the power:
300W and 500w .
There are two types of ordinary type and double optical path according to the function. The common type is mainly made of small characters. The double optical path is a 5m conductive fiber added to the ordinary type. Use a common optical path when welding small characters, and use a fiber laser welding head when welding large characters or ordinary types cannot achieved.
4. What are the consumables for laser welding machines?
The main consumables of the laser welding machine are laser xenon lamps, which have a service life of 8 million times. The calculation is about 5 hours per day, about 6-12 months. If you use less, replace it once every 1-2 years. We use the Xenon lamp of the best Anguang in China. Below 300W is a xenon lamp, and 400W or more is two xenon lamps.
5. Does the laser welding machine need a computer, and the requirements for the user are not high?
The laser welding machine does not need a computer when it is used. There is a control screen. On the top, three parameters are set. One is CUR current which is equivalent to laser power, the second is the Wid" pulse width" which is the time the laser stays on the material, and the third is the Fre "welding frequency", which is the welding speed. There is no high demand for personnel, and it can be used after simple training.
6. What are the materials that the laser welding machine can weld?
The laser welding machine is mainly designed for the advertising industry. The materials that can be welded mainly include stainless steel, iron sheet, galvanized sheet, copper plate, aluminum alloy plate and other metal materials. For customers who use more aluminum and copper materials, 400W and above lasers are recommended. Welding machine model.
Please contact Best Laser for more information. Your kind reply of following questions will help us to recommend the most suitable machine.
1.What's the welding materials (stainless steel,galvanized sheet,aluminum...)
2.To recommend suitable power,may we know max welding depth you demand ?
3. What's the application ? (advertisement, signage,mould,jewelery...)
