TK103 VS VT900 ROHS Китай Реле RFID в реальном времени дистанционное отключение WCDMA 3G Автомобильный GPS трекер с

3G & 2G / GPS+ Beidou

3G 2G GPS+Beidou positioning

Support RFID/MSR

Privacy Protection by identification

Support Temperature Sensor

Keep fresh transportation of the cold chain

Support OBD/CANBUS

Easy installation for reading vehicle fuel value

Support Alcohol Sensor

Drunk driving alarm to improve driver safety

Support Fuel Sensor

Capacitive and ultrasonic fuel sensor optional

Support iButton

Low cost for identification solution

Support 37+ Alarms

For driving behavior monitoring and vehicle safety protection

Items

Specifications

Product

Thai DLT RFID Reader Vehicle 3G GPS Tracker,4G Car GPS Tracker Anti Jammer with Fuel Senser and Engine shut off

Power Supply

9V - 36V / 1.5A

Backup Battery

500mAh

Normal power consumption

55mA/h

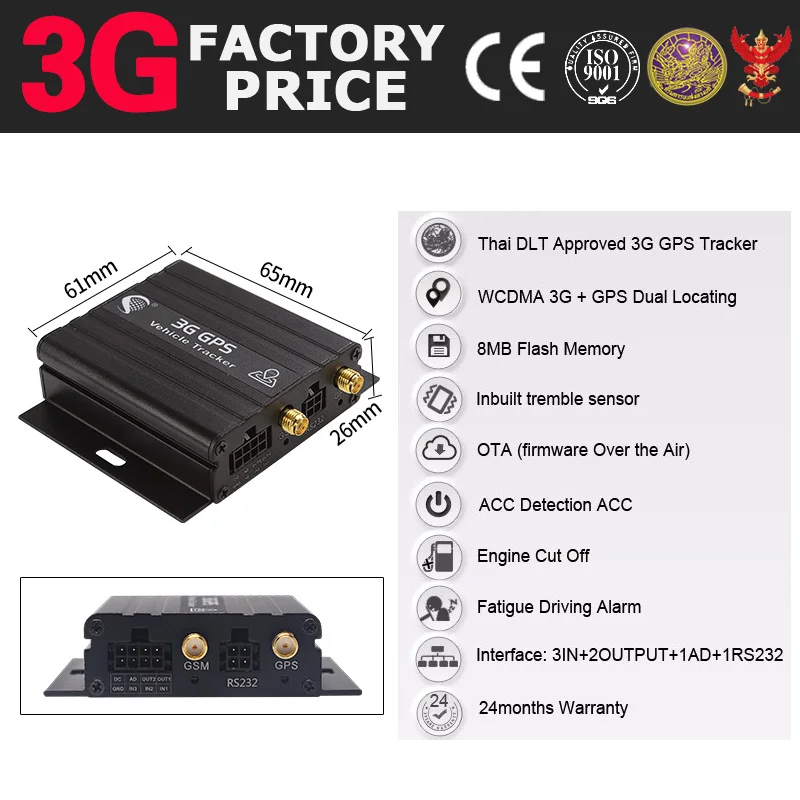

Dimension

65mm x 61mm x 26mm

Weight

90g

Work time

30 hours in power-saving mode and 7.5 hours in normal mode

Operating temperature

-20° to 65° C

Humidity

5% to 95% Non-condensing

Frequency

VT900-G (3G)
UMTS/HSDPA: 850/900/1900/2100MHz
GSM/GPRS: 850/900/1800/1900MHz

GPS Module

LYNQ N

GPS Sensitivity

-159Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

2.5 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max

Velocity Limit

515 meters/second (1000 knots) max

LED

2 LED lights to show GPS/GSM status

Flash Memory

8MB

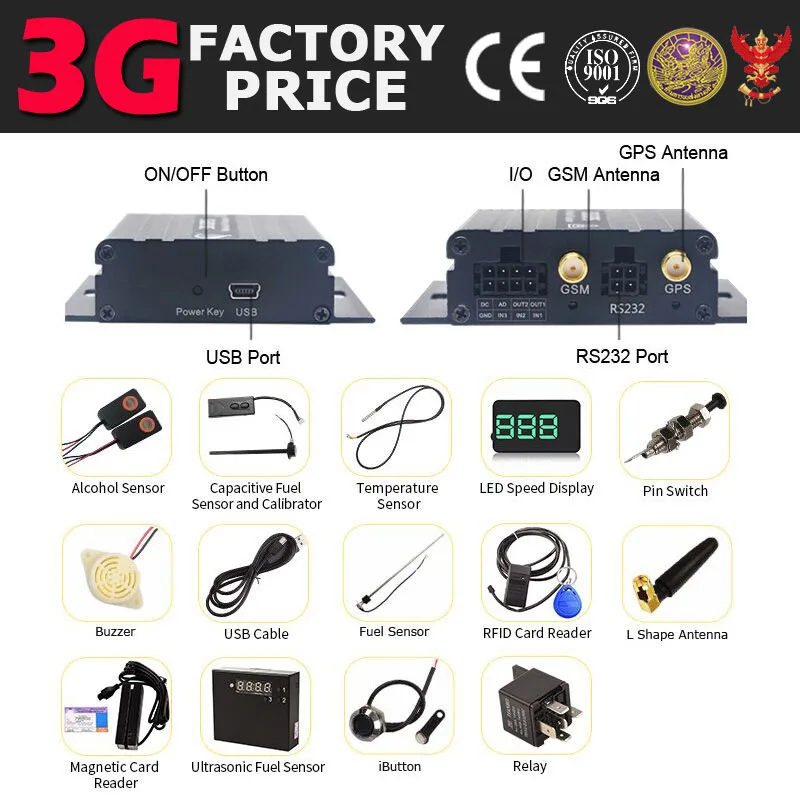

Interface

3 digital inputs (1 negative, 1 positive triggering and 1 input changeable)

1 analog input

2 output

1 RS232

Features

Descriptions

Time Zone & Local Language

More than 10 languages and timezone settings

Multiple Account Support

Allow you to set up an account for company user to management many vehicles

Group Management

The user can manage the vehicle by setup difference groups

Reporting and Export

The overview report, Speeding report, Mileage report, Stop Report

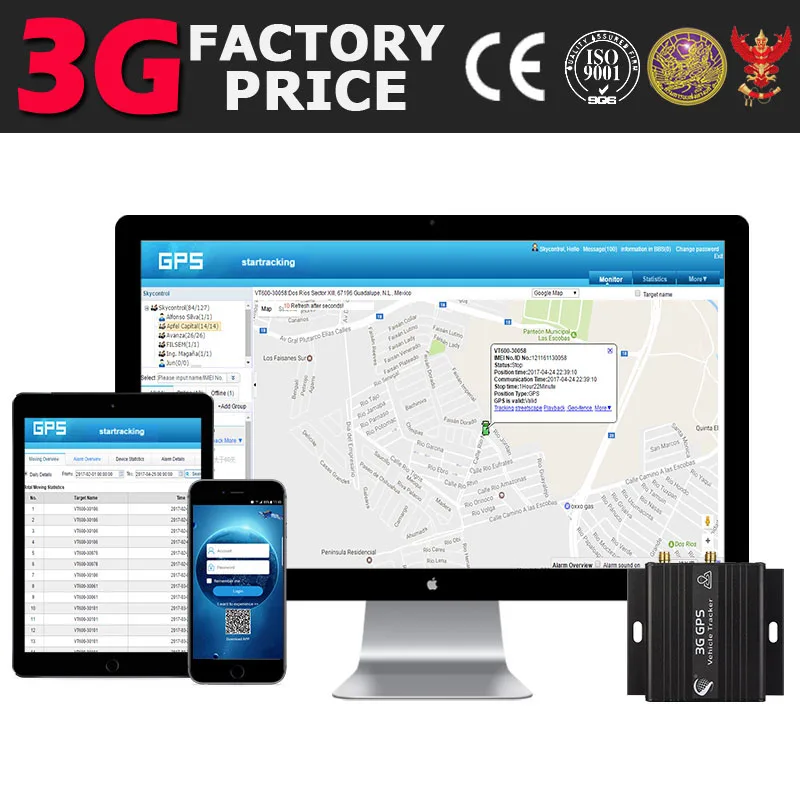

Real-Time Tracking

Track the vehicle by real-time

Location History

Replay the location history

SOS Alarm

SOS Alert

Communication Failure Monitoring

Monitor the vehicle when it is not reporting

Over Speed Monitoring

Monitor the vehicle when it is over a speed

Online Vehicle Engine Control

Turn on or turn off the engine

Geo-fence Notification

Set up a zone to monitor the vehicle to enter or exit this zone.

Landmark

Mark the new point in the map by yourself
