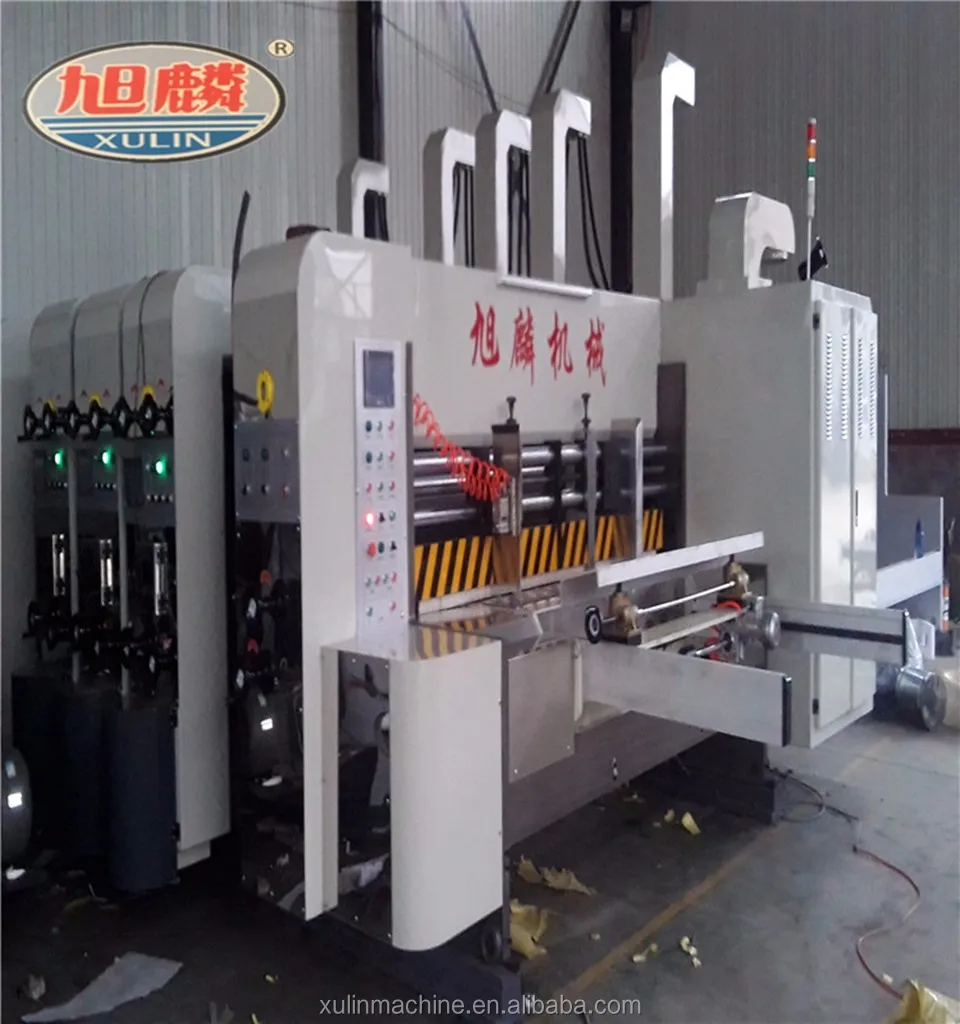

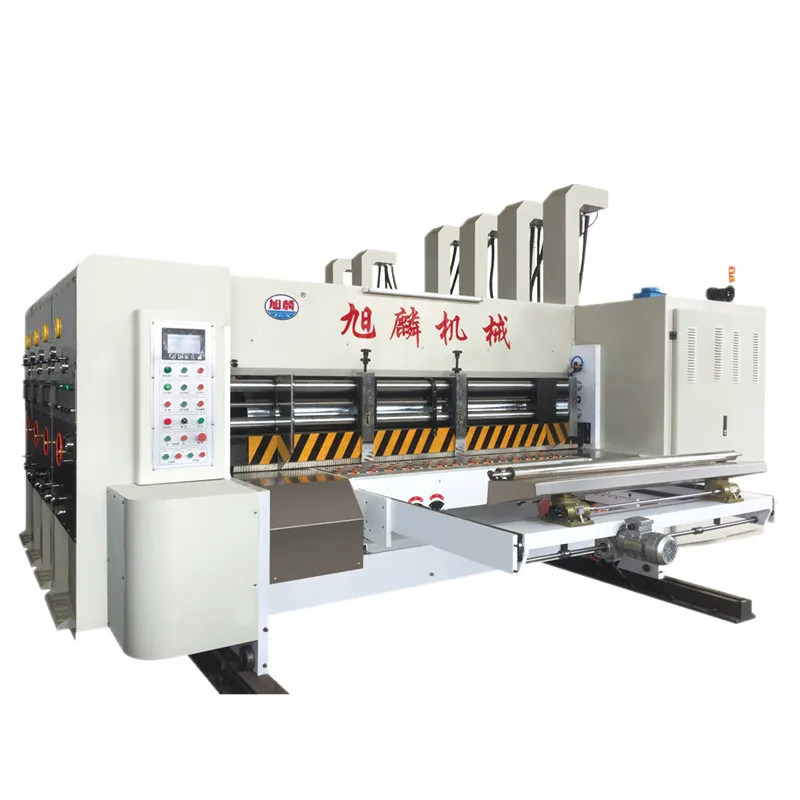

Картонная машина Высокоскоростная Печатная
- Категория: >>>
- Поставщик: Cangzhou,Xulin,Carton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.57 $* |
| Aug-16-2025 | 0.44 $* | 0.48 $* |
| Jul-16-2025 | 0.85 $* | 0.17 $* |
| Jun-16-2025 | 0.52 $* | 0.29 $* |
| May-16-2025 | 0.29 $* | 0.51 $* |
| Apr-16-2025 | 0.34 $* | 0.61 $* |
| Mar-16-2025 | 0.16 $* | 0.31 $* |
| Feb-16-2025 | 0.95 $* | 0.42 $* |
| Jan-16-2025 | 0.77 $* | 0.9 $* |
Характеристики
Product Description
Product Application
Features
l The electric appliances of the machine adopt the excellent domestic products.
l Adopt cross slider transmission.
l Adopt spouting style cycle lubricate.
l All rollers are chrome plated.
l Phase adjustment adopts planet gear structure.
l Phase adjustment adopts digital input, and it has zero returning function.
l It is module designed. Multicolor printing sets can combine freely.
l The slotting part can adjust the slotting height synchronously.
l It is equipped with pneumatically uplifting plate, pneumatic lock, electric even ink, pneumatically supply ink, electric machine sets separate and reunite, clutch pneumatic brake, photoelectricity accounting function, etc.
l Equipped with high grade rubber roller flexo roller, it can print elegant pattern.
l Rotary Die cutting unit. (Option)
Structure:
(1) Feeding unit:
l Semi-automatic chain paper feed,and side check plate positioning to ensure accurate paper feed.
l There are four gear chain bars, and each file has three cross-stack cardboard
l Abrasion resistance materials as the support of the bottom of chains, fast running, low noise and low chain abrasion resistance.
l Main motor placed under the working table.
l Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
l Feeding error±1.5mm
(2) Printing unit
l Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.
i Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly
l and accurately.
l Motorized shift and pneumatic locking up of printing units.
l Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
l Inking roller equipped idling running device to prevent ink from being dried when machine stop.
l Pneumatic lifting and down the anilox roller, auto ink distributing.
l With Pneumatic diaphragm pump to supply ink.
l Main transmission gears are made by 45#steel after high frequency quenching.
l Drive part adopts spray lubricating system, improve the precision and serve life of machine.
l Main gear adopts free-key connection, can long-time keep the printing accuracy.
l Transmission part adopts automatic spray lubraction system, improve machine use time and precision.
l Manual adjustment of the printing roll axial position 15mm.
l Anilox and rubber roll drive motor: 0.75 kw*
l Auto count device properly controls production volume.
(3) Slotting unit
l The slotting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
l The slitting knives pedestal can be worm-type adjustment according to the thickness of card board. ( Three & Five layer only).
l The back slotting knife (Height of the box) Four knives adjustment synchronous, easy working.
l The main gear adopts free key connection can maintain the long time slotting accuracy.
l Motorized shift and pneumatic locking.
l Electric adjustment Printing phase and slotting position.
l 7mm alloy steel slotting knives with indent heat treatment to enable grinding teeth sharp edge.
l Slotting adjustment motor 0.4kw*1set.
(4) Die-cutting Unit
l Rubber roller Automatic compensation of line speed can ensure die-cutting size same and right.
l Axial position autoamtic left-right move 40mm.
l With automatic repairing function of upper roll, prolong rubber use life.
l Adopts good-quality super durable polyurethane rubber from Taiwan.
l Rubber roller automatic left-right movement 40mm.
l The upper and low roller made of cast steel and chrome plated, the thickness is 30mm.
l With an optical sensor, when feeding board, upper roller will down and press, without board will
l separate automatically.
Electric adjustment of the die cutting position
| \t | |||
| \t | \t | \t | \t |
| \t | \t | \t | |
| \t | \t | \t | |
| \t | \t | \t | \t |
| \t | \t | \t | |
| \t | \t | \t | |
| \t | \t | \t | \t |
| \t | \t | \t | |
| \t | \t | \t | |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

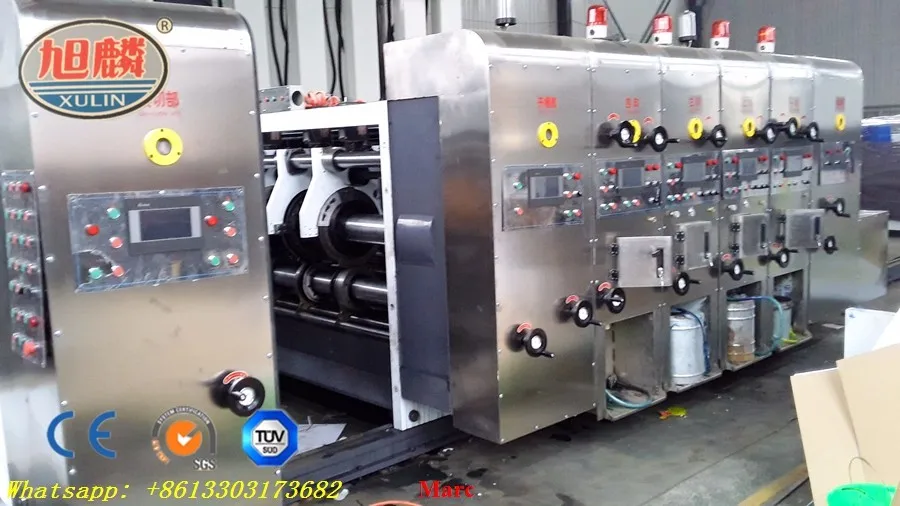

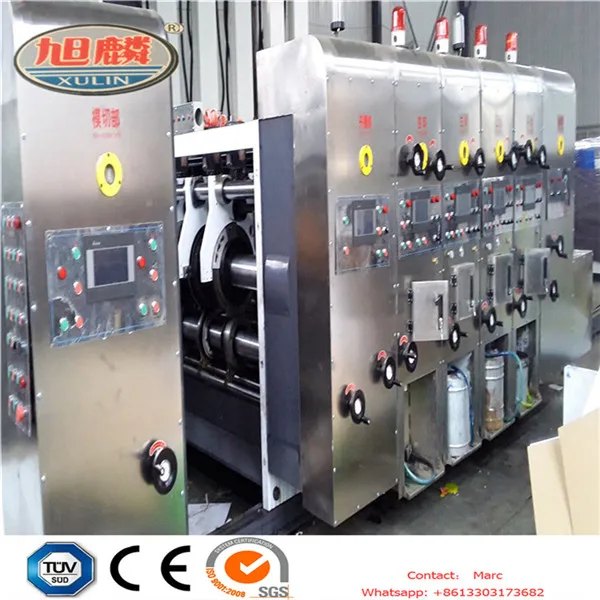

Detailed Images

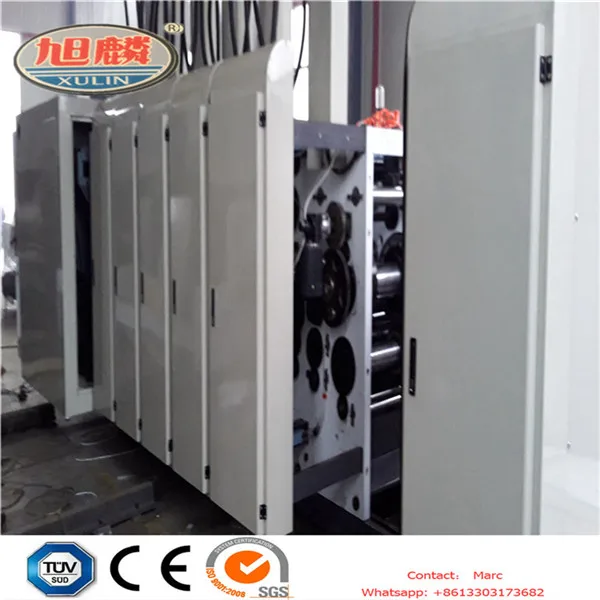

Machine Parts
Name: flexo carton printing machine
Brand: xulin machine
Original: china
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Brand: xulin machine
Original: china
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: flexo carton printing machine
Brand: xulin machine
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Machine Parts
Name: flexo carton printing machine
Brand: xulin machine
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Main Features
Name: flexo carton printing machine
Brand: xulin machine
Original: china
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Certifications
Packing & Delivery
| \t | |
| \t | \t |
| \t | \t |
| \t | \t |
Our company
Enterprise introduction
Cangzhou Xulin Packaging Machinery Co .,Ltd is professionally manufacture corrugated machinery. Superior position, located in famous"China Packaging County" "China Carton Machinery Industry Base". Mainly producing Online Bottom Folding HIgh Speed Gluing Machine with Auot Flexo Printing Die cutting and Auto Bunding Machine , High Speed Printing Slotting Die cutting Machine , Slotting Machine , Die cutting Machine , Automatic Gluing Machine and other related series equipment.
Our products is imported to Russia , India , Middei Esat , Southeast Asia , good quality and entreprise reputation have favoured by most of our clients.
Adhering to the management idea of "Pofession Creats Brand , Interity Achieves Future ", to be committed to creat the highly trust degree and high-quality benchmark products.
During constantly developing , we are in the pursuit of creative products , outstanding quality , superior performence based on the reasonable suggestions of our customers . With responsibility and quality to fuifill our promise , build our brank , Xulin company are willing to sincerely cooperate with all walks of life for the better future !
