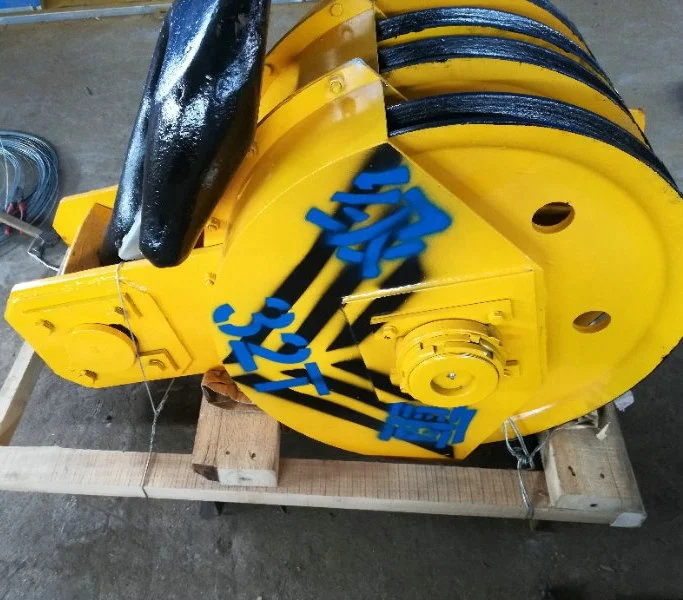

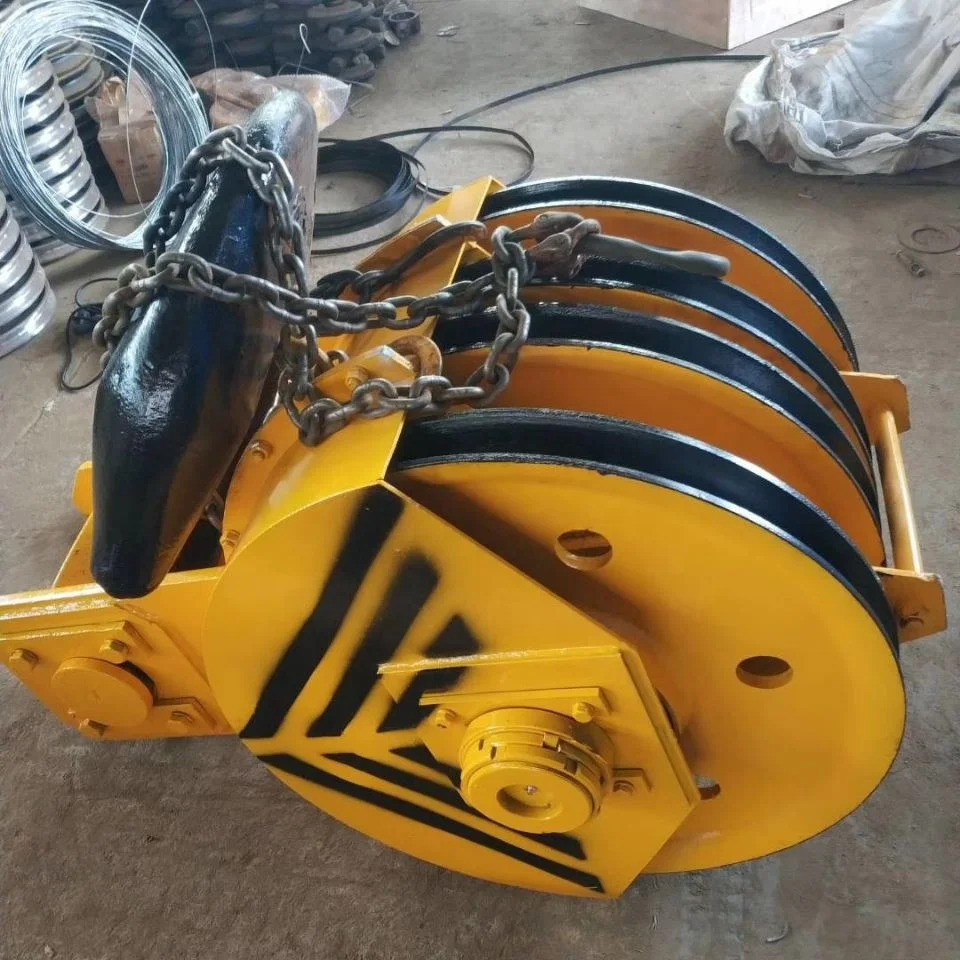

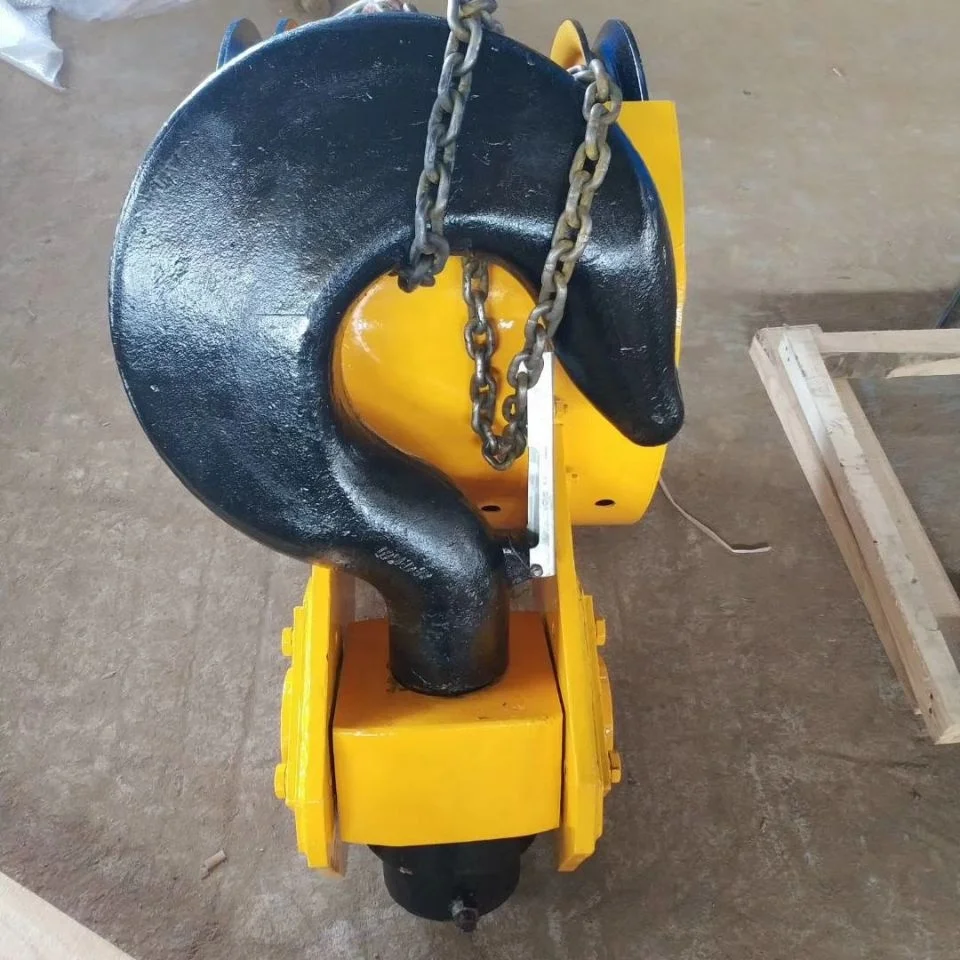

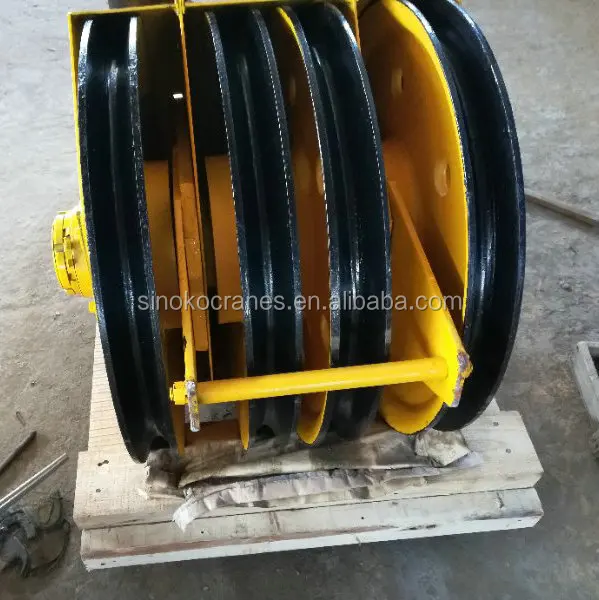

Запасные части для крана кованый подъемный крюк 32 тонны Группа крючков на
- Категория: Hooks >>>
- Поставщик: Henan,Sinoko,Cranes,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2380.30 $* | 2499.32 $* |
| Aug-16-2025 | 2360.98 $* | 2478.83 $* |
| Jul-16-2025 | 1980.31 $* | 2079.35 $* |
| Jun-16-2025 | 2320.24 $* | 2436.70 $* |
| May-16-2025 | 2020.52 $* | 2121.71 $* |
| Apr-16-2025 | 2280.29 $* | 2394.93 $* |
| Mar-16-2025 | 2260.25 $* | 2373.67 $* |
| Feb-16-2025 | 2240.80 $* | 2352.18 $* |
| Jan-16-2025 | 2220.30 $* | 2331.6 $* |
Характеристики
Product Description

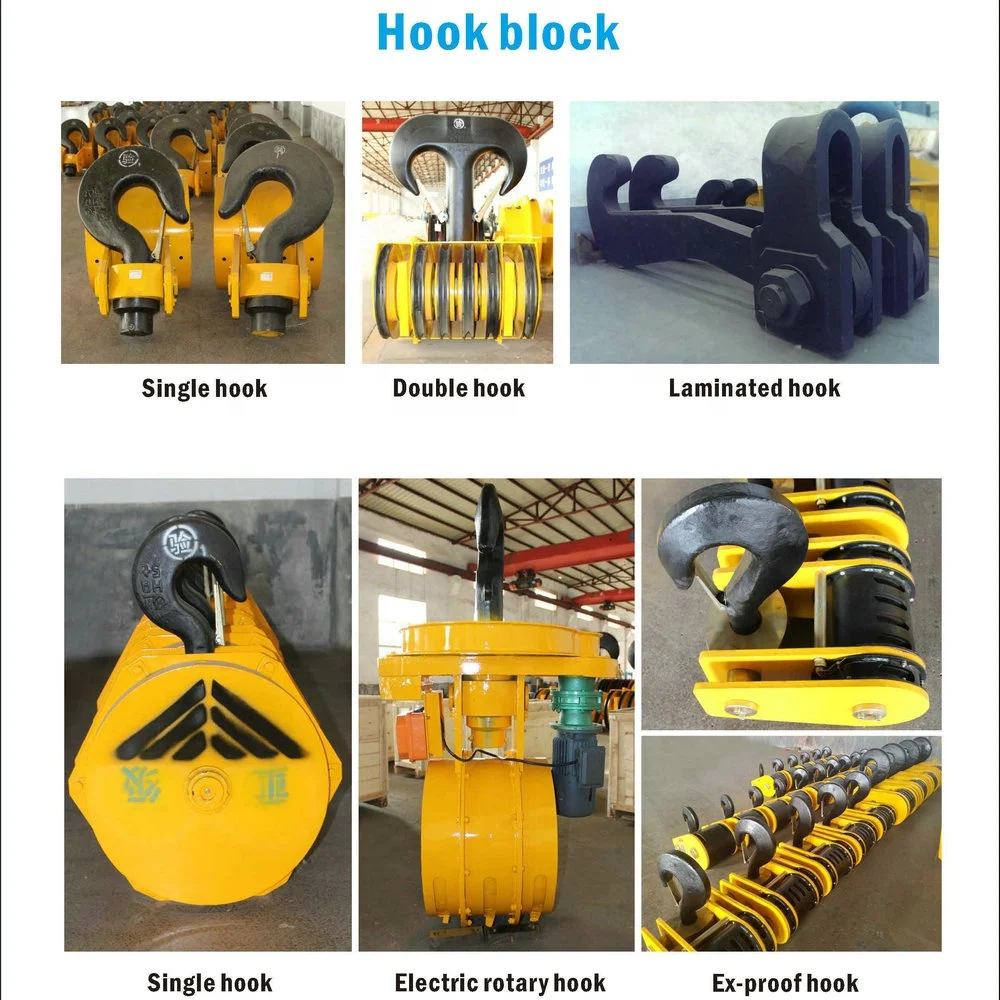

Heavy Crane Hook & Crane Hook Block & Crane Hook is one of the most suitable slings in hoisting. It is connected with pulleys to hang on the wire rope of lifting mechanism. And the hook is the most widely usage when lifting cargo. It is made easily and operated practically. Hooks can be classified into single hook and double hooks according to the appearance; forged hooks and strapped hooks according to production method.
Single hook is easy to produce and use, but its load carrying is not good, so most of time, it is only used at the low capacity working site(less than 80T).
When the capacity is large,double hook with symmetrical load carrying will be used.
Strapped hook is riveting by several cutting forming steel plate, respective steel plate has its safety feature is better, But its self-weight is large, mostly be used in large capacity or lifted molten steel cranes.
Single hook is easy to produce and use, but its load carrying is not good, so most of time, it is only used at the low capacity working site(less than 80T).
When the capacity is large,double hook with symmetrical load carrying will be used.
Strapped hook is riveting by several cutting forming steel plate, respective steel plate has its safety feature is better, But its self-weight is large, mostly be used in large capacity or lifted molten steel cranes.
Specification
ITEM NO.mm | WEIGHT/KG | WLL/T | B.L/T | Φmm | E(mm) | H(mm) | K(mm) | L(mm) |
6 | 0.28 | 1.12 | 4.48 | 19 | 22 | 19 | 80 | 110 |
7/8 | 0.65 | 2 | 8 | 28 | 25 | 25 | 103 | 140.5 |
10 | 0.94 | 3.15 | 12.6 | 31 | 27.5 | 28 | 118 | 162 |
13 | 1.95 | 5.3 | 21.2 | 39 | 33 | 35 | 145 | 201 |
16 | 3.77 | 8 | 32 | 51 | 40 | 45 | 180 | 256 |
20 | 6.8 | 12.5 | 50 | 62 | 51 | 57 | 230 | 317 |
22 | 9.8 | 15 | 60 | 73 | 57 | 70 | 260 | 360 |
26 | 16.25 | 21.2 | 84.8 | 89 | 75 | 76 | 318 | 434 |
