Haida 400 450 тонн высокоскоростной тонкий пластиковый одноразовый пищевой контейнер машина для литья под
Haida 400 450 тонн высокоскоростной тонкий пластиковый одноразовый пищевой контейнер машина для литья под
Haida 400 450 тонн высокоскоростной тонкий пластиковый одноразовый пищевой контейнер машина для литья под
Haida 400 450 тонн высокоскоростной тонкий пластиковый одноразовый пищевой контейнер машина для литья под

Haida 400 450 тонн высокоскоростной тонкий пластиковый одноразовый пищевой контейнер машина для литья под


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.65 $* 0.66 $*
Aug-17-2025 0.26 $* 0.78 $*
Jul-17-2025 0.85 $* 0.68 $*
Jun-17-2025 0.13 $* 0.51 $*
May-17-2025 0.73 $* 0.20 $*
Apr-17-2025 0.23 $* 0.82 $*
Mar-17-2025 0.91 $* 0.89 $*
Feb-17-2025 0.76 $* 0.6 $*
Jan-17-2025 0.70 $* 0.75 $*

Характеристики


Product Categories
Product Description
\t

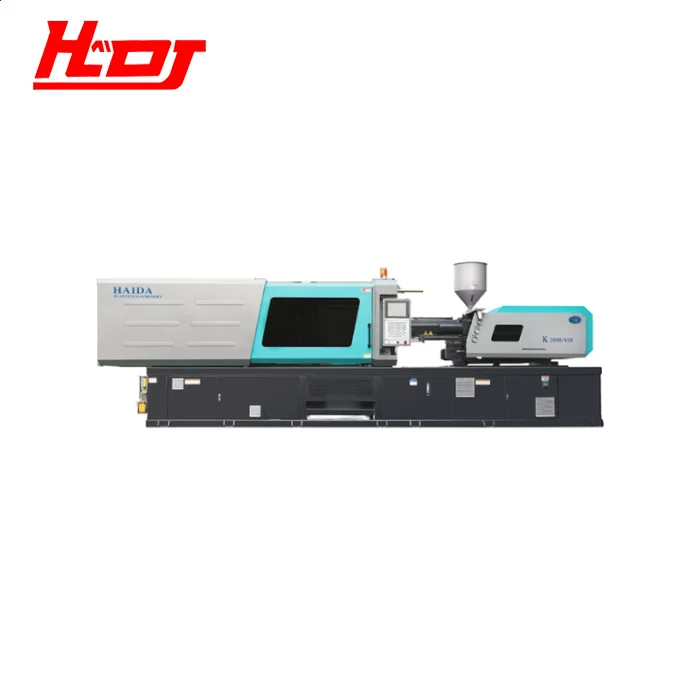

HD420K High-performance High speed Thin-wall Injection Machine
\t
Number Item
\t
HD420K
\t
Category
\t
HDK Series
\t
OEM
\t
Available
\t
Warranty
\t
1 Year
\t
Factory
\t
Yes

Application >>

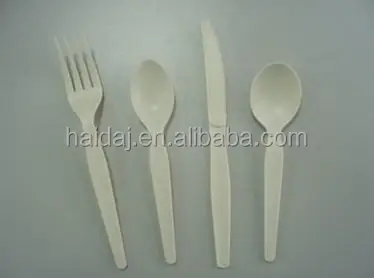

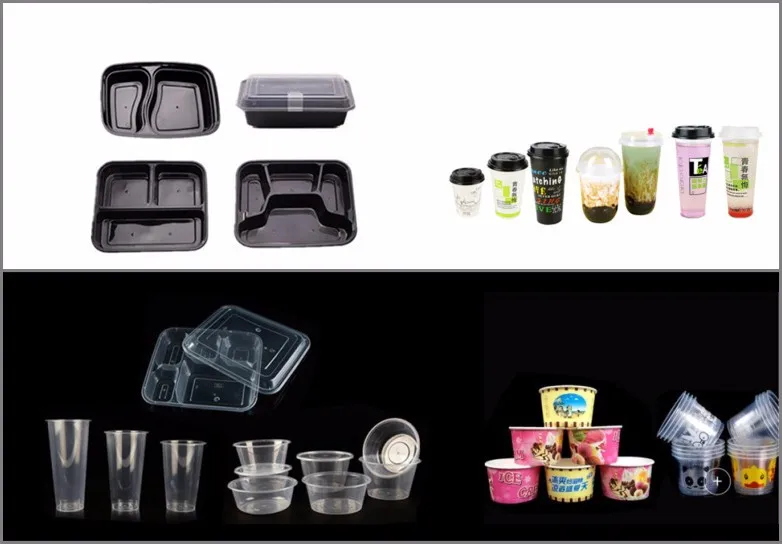

HAIDA K Series High-performance High speed Thin-wall Injection Machine is specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market.


Technical Parameters >>

\t
MODEL
\t
HD420K
\t
ITEM
\t
UNIT
\t
DATA
\t



INJECTION UNIT
\t
Screw Diameter
\t
mm
\t
55
\t
60
\t

\t
Screw L/D Ratio
\t
L/D
\t
25
\t
25
\t

\t
Injection Volume
\t
cm3
\t
618
\t
735
\t

\t
Shot Weight
\t
g
\t
562
\t
669
\t

\t
Injection Rate
\t
g/s
\t
745
\t
887
\t

\t
Injection speed(max)
\t
mm/s
\t
352
\t
Injection Pressure
\t
Mpa
\t
177
\t
149
\t
\t
Screw Speed
\t
RPM
\t
320
\t



CLAMPING UNIT
\t
Clamping Force
\t
KN
\t
4200
\t
Opening Stroke
\t
mm
\t
730
\t
Space Between Tie-Bars
\t
mm
\t
755X755
\t
Mould Thickness(Min-Max)
\t
mm
\t
300-820
\t
Ejector Force
\t
KN
\t
126
\t
Ejector Stroke
\t
mm
\t
180
\t





GENERAL
\t
Pump Pressure
\t
MPa
\t
14
\t
Motor Power
\t
KW
\t
45X2
\t
Heater
\t
KW
\t
27
\t
Machine Dimension
\t
m
\t
7.9X2.1X2.7
\t
Machine Weight
\t
t
\t
20
\t
Mould Orientation Ring Diameter
\t
mm
\t
Φ160
\t
Nozzle Radius
\t
mm
\t
SR15




Characteristics >>


HAIDA K Series High-performance High speed Thin-wall Injection Machine.

Specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market. The model is created in accordant with latest national design concept, combining decades of experience in design and manufacture of the company.


Higher work efficiency. According to features of injection, optimize and integrate injection, clamping, hydraulic and control units, which has greatly shortened the production cycle.


Stricter safety standards.Comply with national mandatory safety standard to guarantee operators' safety.


More perfect organization.Frame-type rack design; improve rigidity and strength on the basis of finite element analysis, which has greatly improved rack precision, reduced rack deformation and realized a more stable and smooth operation.


Detailed Images

Similar Products >>



About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
