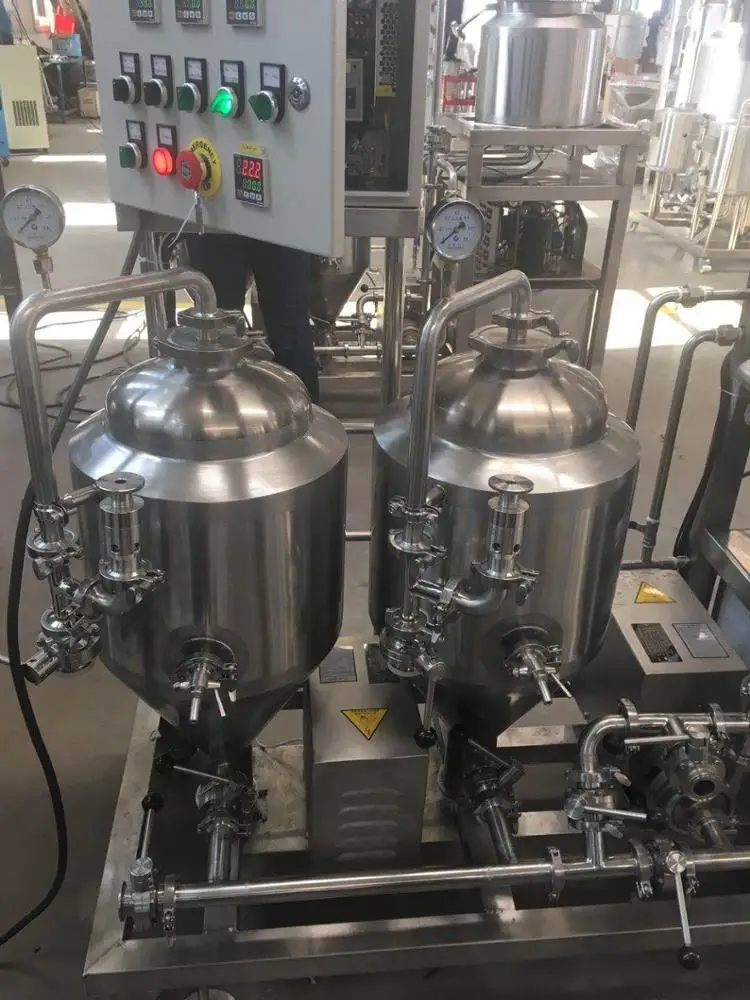

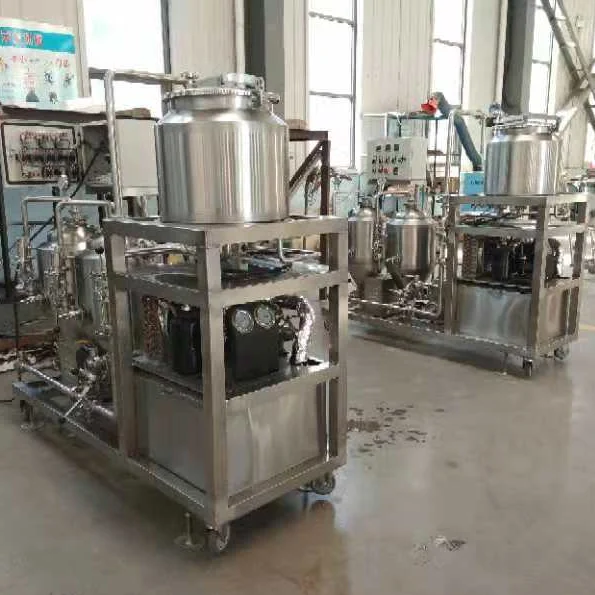

20 л домашнее оборудование немецкая пивная машина для малого

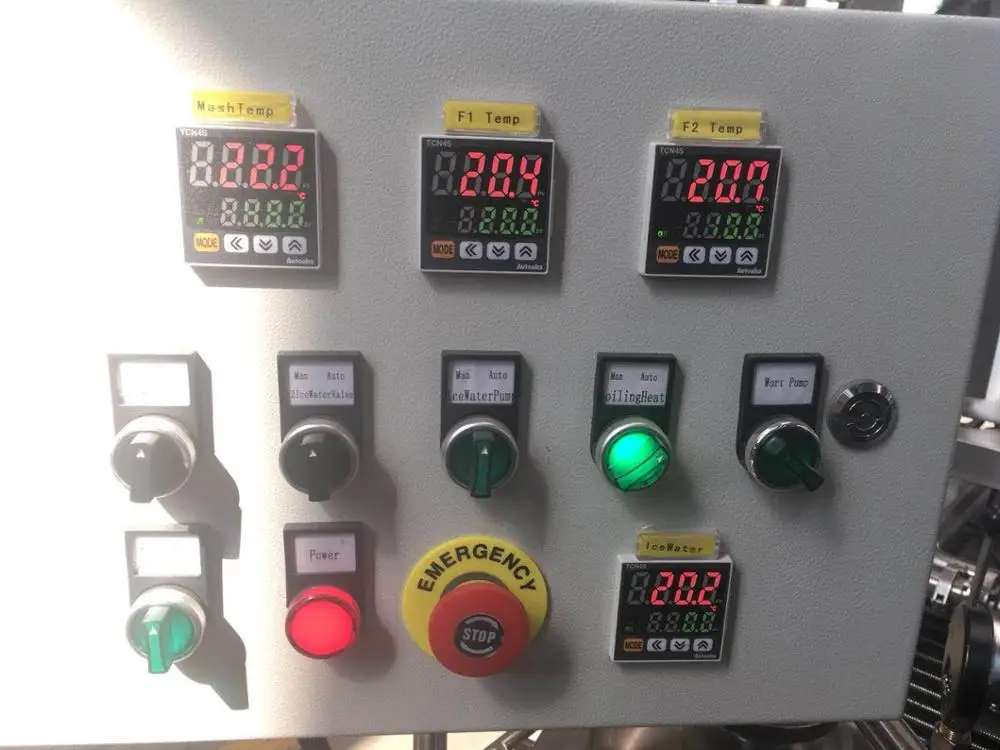

Our brewhouse system separated to 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 20000L, use electric or steam heat. Semi-automatic control and easy to operate.

PRODUCT FEATURES:
1)Desiging tanks and heating system according to craft, mash tank warming≥10℃/min
2)Energy saving stir structure : large cross-section impeller, 15r/min speed
3)Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4)Plow knife of filter tank separated to one foot, feet and bow plow knife
5)Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6)Material includes stainless steel 304, 316 and red copper

1)Our Fermentation tanks/tun available from 100L to 20000L (1 gallon to 20 gallon) and average 25% Head Space.
2) All tanks have a Dish top,
3)Cylinder body & 60/70° Cone Bottom.
4)Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
5) Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
6)All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.
7) We can customize fabricate any tank to meet your brewery’s space and height restrictions.

CIP cleaning system include lye tank ,hydrogen perxide tanks and as line valves,if the tank volume is small,the tank can be fixed on trolleys,so it's easy to clean brewing system.Alkaline cleaning can remove the fat and protein by saponification,to improve product safety,After the CIP traetment,clean bright surface ,no water ,no savor no dirt.And the device is easy to opearte,strong security.

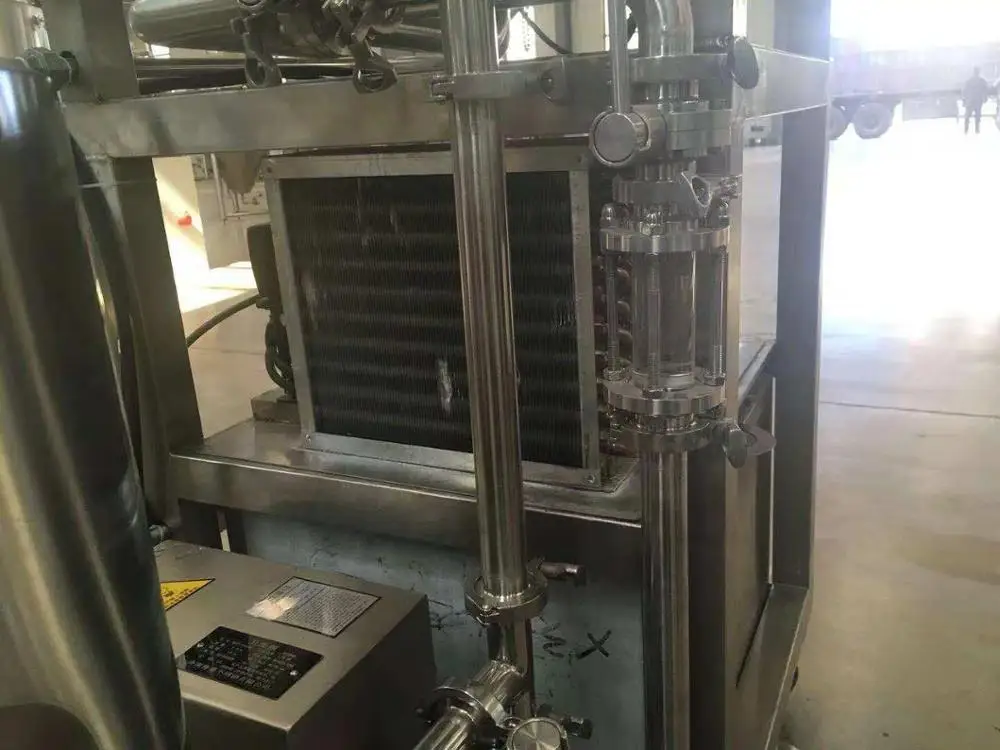

The cooling system includes Chilled water Tank,refrigeration machine and other line valves equipment,Beer refrigeration system is mainly used for cooling the saccharifying wort and fermentation,it plays and important role in the whole process of brewin beer.Our factory refrigerating machine is home famous brand with stable performance,excellent refrigerating effect,low accident rate.Optimum allocation of the beer brewed.

a.) Free consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Free debugging instruction of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;

e.) Training of equipment maintenance and operating personally;

f.) New production techniques;

g.) Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are attached with the machinery for free;
