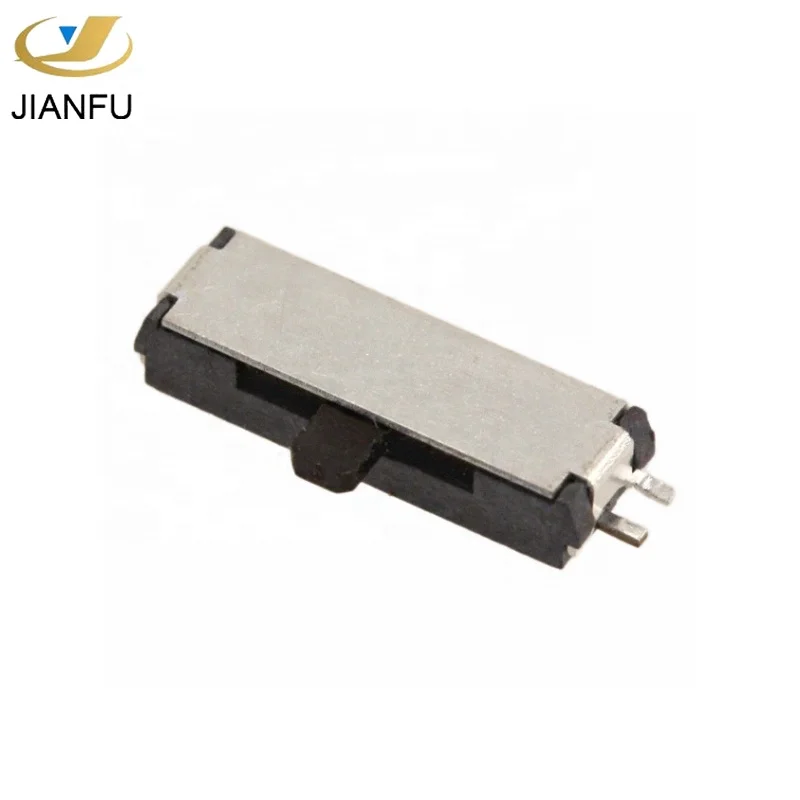

Sp3t smd 8 pin-код мгновенный на плоской подошве; Сезон весна; Ползунковый

Описание и отзывы

Трекер стоимости

Характеристики

Dimensions



PCB layout



Circuit diagram



Specifications
CONTACT RATING:		4 VDC @ 0.3A
ELECTRICAL LIFE:		10,000 make-and-break cycles at full load.
CONTACT RESISTANCE:		70 mΩ max
INSULATION RESISTANCE:		100 MΩ min. @ 500V.
DIELECTRIC STRENGTH:		500 VAC min. @ sea level.
OPERATING TEMPERATURE:		-10ºC to +85ºC
STORAGE TEMPERATURE:		-30ºC to +85ºC
Features/Benefits		Typical Applications
Positive detent		Telecommunication products
Low profile		Computer peripherals
IR reflow to 260º solder profile		Thermostat select switch
Surface and thru hole mounting		Instrumentations
SPDT,  DP3T models
RoHS compliant
Maintained and momentary functions

Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.

Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .

Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.

Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
