YSBV-100S низкая цена новинка медицинский обогреватель для

Main functions:

Brief introduction
1.Microprocessor based servo controlled temperature system.
2.The microprocessor-controlled unit allows for three settings: pre-warm, manual or automatic.
3.Alarm functions for safety includes:
  Power failure, temperature deviation,
  Temperature sensor failure , over temperature.
4.APGAR timer to record therapy time

5.Convenient X-ray cassette under infant bed

6.Heater head can be adjusted  + 90º horizontally

7.Tilt angle of infant bed is adjustable

8.Halogen Observe light angle is adjustable

9.Transparent protector folded

10.Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source,the heating is

quick and life-span  is long

11.Alarms are audible and visual

12.A second thermal cut-out function for more safety

13.Skin temperature sensor failure protect function avoid over temperature

14.Temperature deviation can be amended in front panel directly

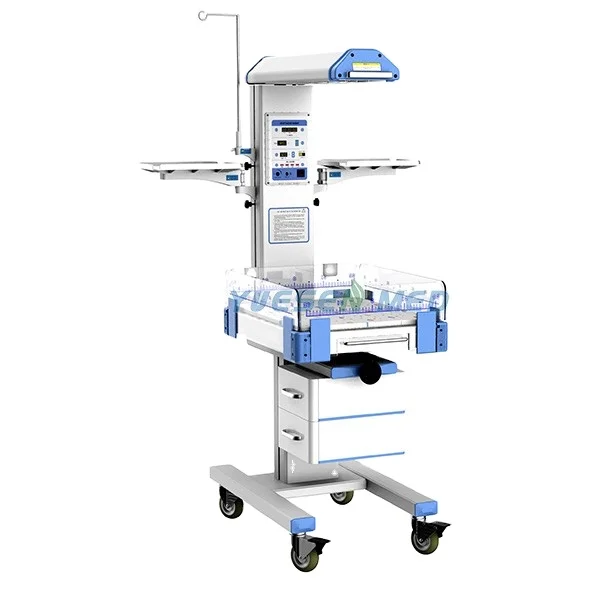

 YSBV-100S Low Price of Infant Radiant New Medical Warmer Infant Radiant Warmer

Standard configuration

Main body (including the radiant source, control system, infant bed, bracket), X-ray cassette , Observe light , I.V.pole, skin

temperature sensor, tray, mattress, transparent protector, castors.

Optional parts: Drawer, RS-232(485) connector

Technical data

1.Power supply : 110/220V   60/50Hz

2.  Power input: ≤1200VA

3. Operating condition

   An ambient Temperature:18°C-30°C

An ambient Relative Humidity: 30%--75%RH

Atmospheric Pressure: 700~1060 hPa

An ambient Air Velocity <0.3m/s

4. Temperature control: 32°C~38°C

5.Temperature control accuracy: ≤0.5°C

6.Mattress temperature uniformity : <2°C

7.Skin temperature sensor accuracy: + 0.3°C

8.Warm-up time: ≤30min

9. Infant bed tilt angle:+ 10°

10.APGAR timer range: ≤24h

11.Heater head horizontal: ±90°

12.Mattress size: 67CM X 54CM

13.Distance from heater to mattress:90CM

 YSBV-100S Low Price of Infant Radiant New Medical Warmer Infant Radiant Warmer

Transport and storage

Environment Temperature:-40°C~ +55°C

Environment Relative Humidity: ≤95%

Atmospheric Pressure: 500~1060hPa

Package

YSBV-100S Low Price of Infant Radiant New Medical Warmer Infant Radiant Warmer
