Lateral Move Irrigation Machine / Linear Irrigation Machine

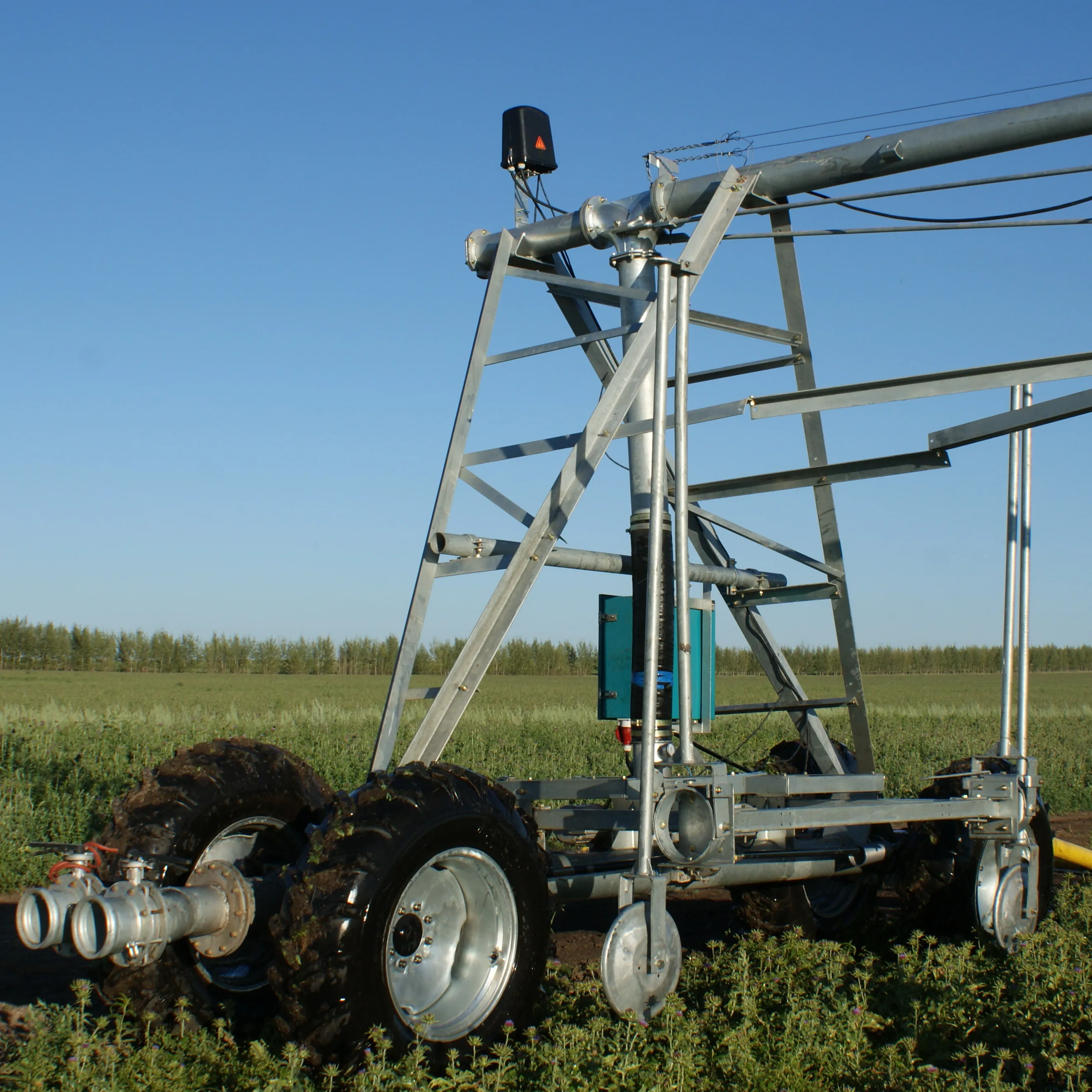

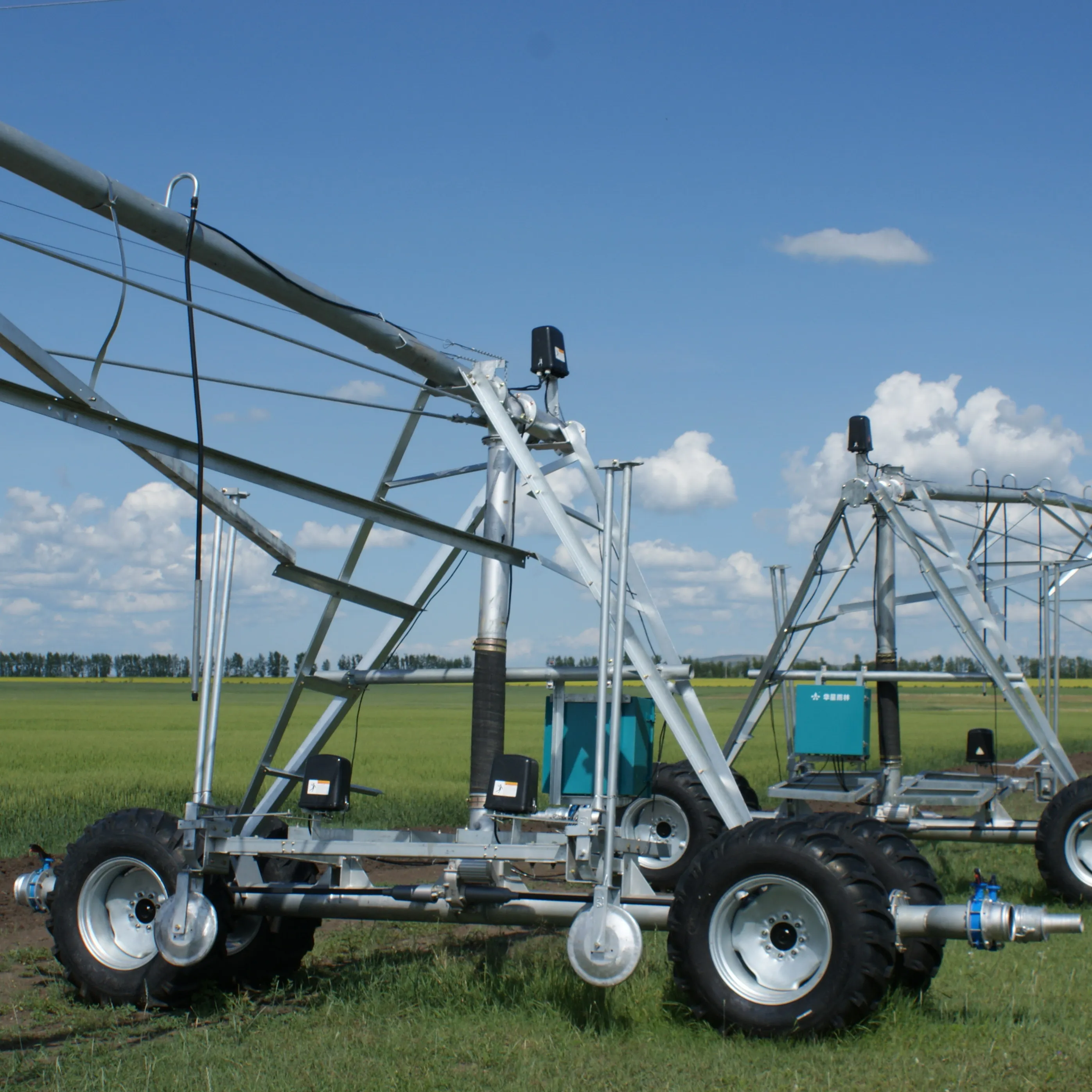

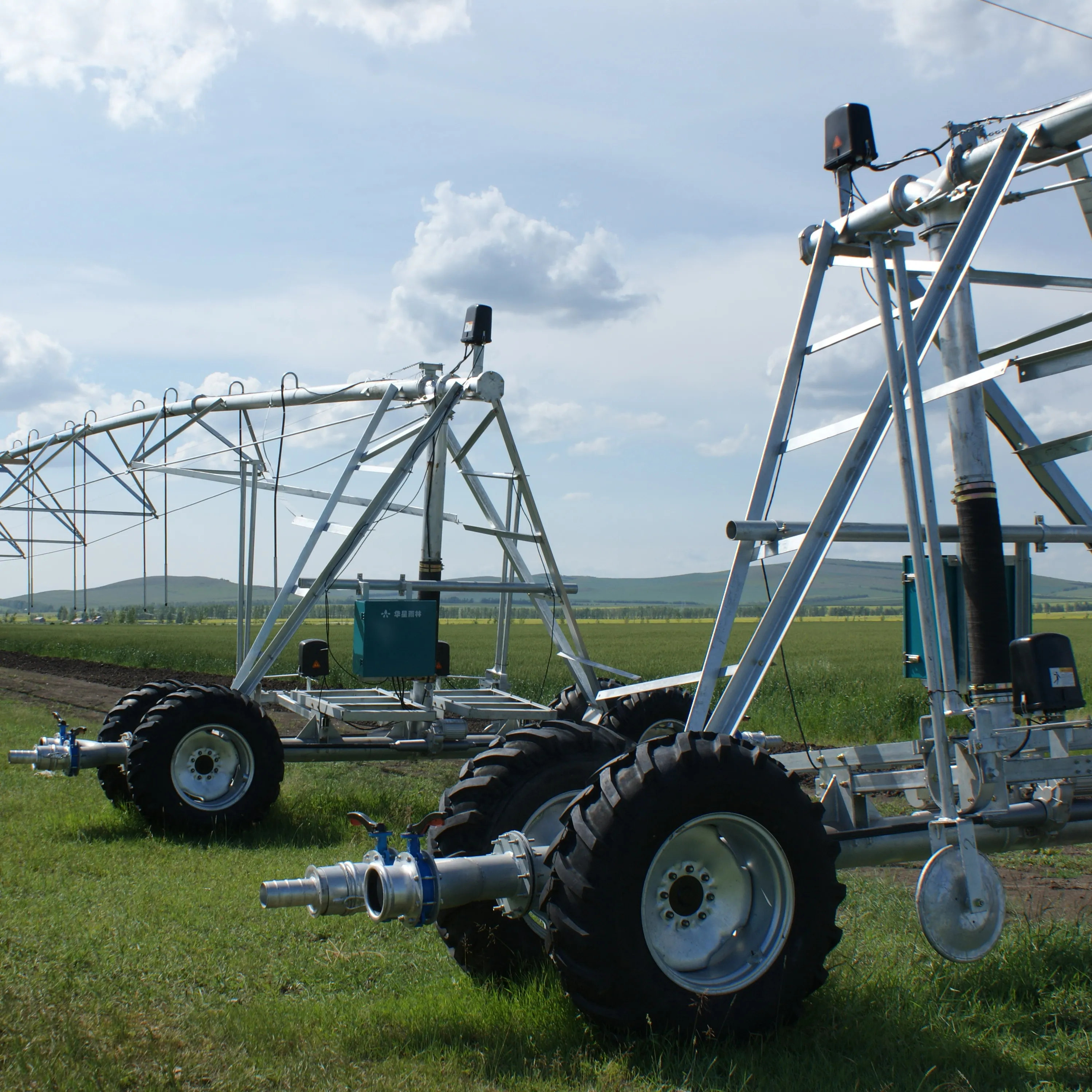

FOUR WHEEL LINEAR IRRIGATION "Back and forth" irrigation via a linear of 10 spans maximum. Water supply via a flexible pipe or a PEHD pipes connected to an articulated elbow. Tower on a chassis with 4 motorized wheels. 2 jointed axles for a better adaption to the terrain. Can accommodate an electricity at each end of the spans. Furrow guidance systems or steel cable.
TWO WHEEL LINEAR IRRIGATION This machine allows a "back and forth" irrigation via a linear of five spans maximum. This type is an idea for small to medium sized rectangular land. Tower with axle and two motorized wheels. Water supply via a flexible pipe or a PEHD pipes connected to a rotative elbow. Can accommodate an electricity generator. Possibility to add a cantilever scythe in order to increase the irrigated surface area. Furrow guidance system or steel cable. Movable version available.
Product Paramenters
Main pipe diameter
6-5/8” (168mm×3.2mm, high frequency welded steel pipe)
Standard span
6-5/8" (168mm)×54.5m (8 pipes)
King-sized span
6-5/8" (168mm)×61.3m (9 pipes)
Overhang
5-9/16" (141mm)
King-sized overhang
4" (101mm)
Pipe length
22 feet/one (6.7m)
Main pipe Flange thickness
10mm, Flange and pipe adopt double welded technology
Working voltage
460--380V/50--60HZ
Power supply mode
diesel generator and the local power company provide
Tire type
14.9x24 irrigation tire
Motor speed reducer
50:1
Motor power
0.75~1.5 hp
Span body tower structure
adopt “V” model tower
All the equipment with
the pressure of regulator: 15 PSI (20 PSI)
Main cable
4*4mm²+6*1.5mm² (resisting ultra violet and aging)
The end has
LED working status instruction light
Irrigation intake
1 water inlet in center point, quick pipe joint connected structure
Irrigation intake caliber
8 inches, the spot water supply pipe is more than 6 inches
Irrigation intake pressure
0.20—0.35mpa
Sprayer spacing
2.2-4m (the quantity: 2-3 sprayer/water pipes)
Service
We provide the best service for our clients all over the world
Water Supply Program 1. Pump station 2. Water pipe network 3. Submersible sewage pump 4. Generator set 5. Farmland plan
Irrigation Program 1. Irrigation machine program 2. Shipment for order 3. Overseas installation and technical support 4. Training for usage of irrigation machine 5. OEM for professional irrigation companies
Project
Potato Planting Base for Pepsi
Potato Planting Base for Simplot
Gella in New Zealand
Project for the biggest Chinese dairy company
Company Information
Yulin Irrigation Equipment Co., Ltd is a leading manufacturer of agriculture irrigation system equipment in China. We supply all kinds of agricultural irrigation systems from 2000 till now, such as pivot irrigation, lateral move irrigation, and towable irrigation system which can meet different land conditions. As an OEM manufacturer, we have supplied more than 1,000 large scale irrigation projects from 2000 to 2008 to the American irrigation company. We are the only one Chinese manufacturer to achieve their certification on technology, manufacturing process, quality assurance and management standards.
We supply advanced irrigation equipment, professional installation teams, high efficiency irrigation programs and timely after sales service for customers all over the would.
China Yulin Irrigation Equipment Co., Ltd is dedicated to the developoment of agriculture irrigation areas. We maintain lasting relationships with both our Chinese and internation business partners to constantly improve the farmers' use of their limited resource - water.
Recommend Products
FAQ
1. How many meters machine can be loaded into 1x40HC? - about 500m 2.What is your average production lead time? - about 40 days after received your prepayment. 3. What's the payment terms? -T/T
