Характеристики
Heat Shrinkabe Tube 2:1 Ratio Multi Color Pack of 100 Meter Per Roll
Product Description
Heat shrink tubing is a shrinkable plastic tubu used to insulate wires,providing abrasion resistant and environmental protection for standed and solid wire conductors,connections,joints and terminals in electrical work.
Main Details:
1)Material:PE
2)Shrink ratio:2:1
3)Rated voltage:600V
4)Tensile strenth:10.4 Mpa
5)Operating temperature: -30°C to 125°C.
6)Shrink temperature:100°C to 1110°C.
7)Color:Black/White/Red/Blue/Green/Yellow and other colors are available as request.

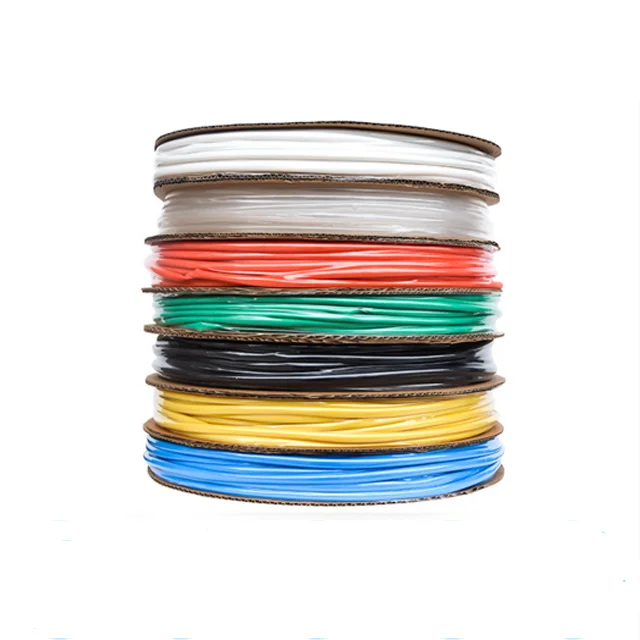

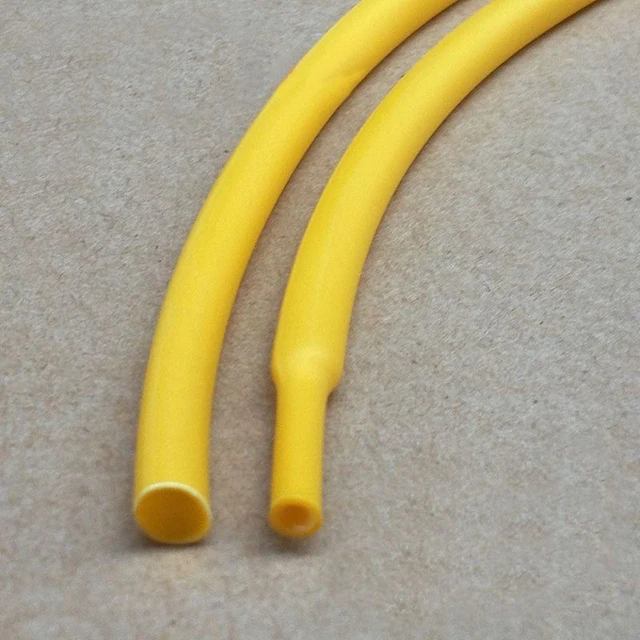

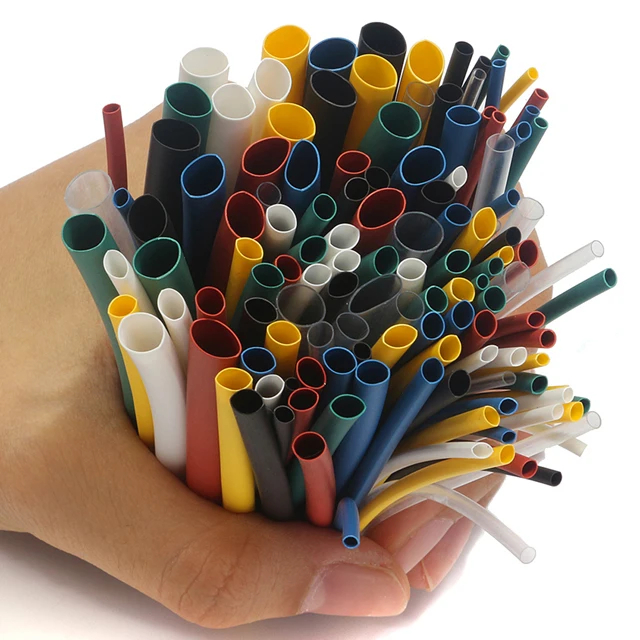

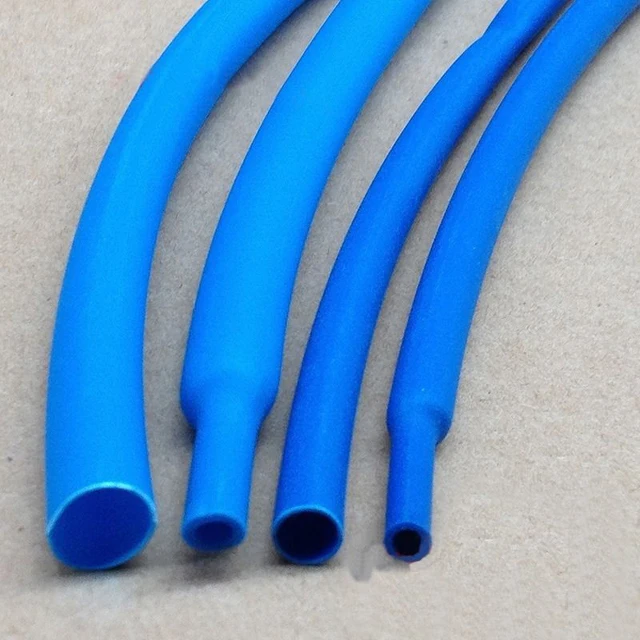

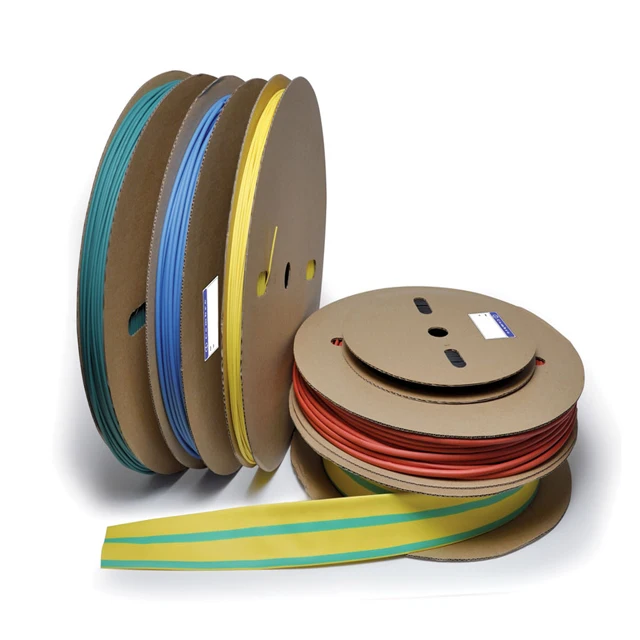

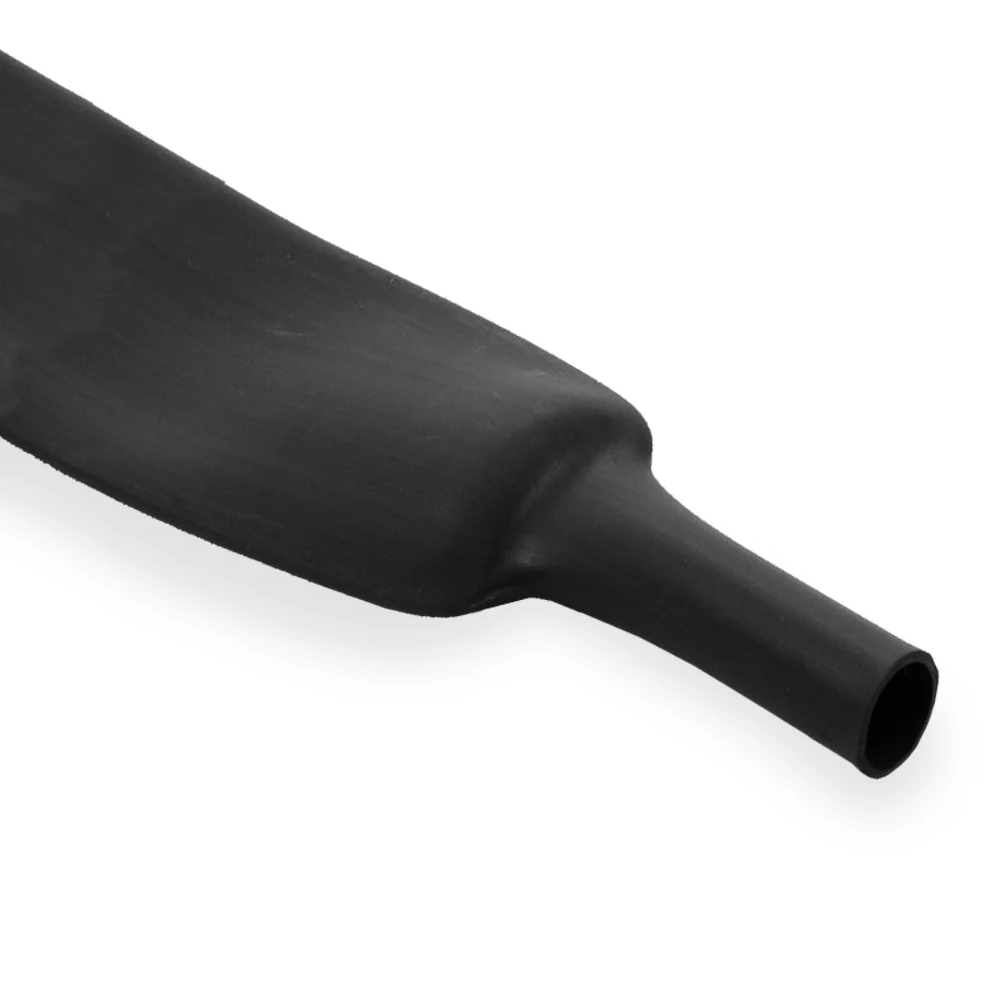

Product Image:
Specifications:
| Size(mm) | Actural Size(mm) | Wall Thickness before shrink(mm) | Wall Thickness after shrink(mm) | Package(Meter/Roll) | Weight(Kg/Roll) |
| Ø1 | 1.5±0.2 | 0.185±0.03 | 0.37±0.05 | 200 | 0.5 |
| Ø2 | 2.5±0.2 | 0.19±0.03 | 0.38±0.05 | 200 | 0.7 |
| Ø2.5 | 3.0±0.2 | 0.2±0.03 | 0.40±0.05 | 200 | 0.85 |
| Ø3 | 3.5±0.2 | 0.2±0.03 | 0.40±0.05 | 200 | 0.9 |
| Ø3.5 | 4.0±0.3 | 0.2±0.03 | 0.40±0.05 | 200 | 1.05 |
| Ø4 | 4.5±0.3 | 0.21±0.03 | 0.42±0.05 | 200 | 1.2 |
| Ø5 | 5.5±0.4 | 0.21±0.03 | 0.42±0.05 | 200 | 1.2 |
| Ø6 | 6.5±0.4 | 0.21±0.03 | 0.42±0.05 | 200 | 2 |
| Ø8 | 8.5±0.5 | 0.21±0.03 | 0.42±0.05 | 100 | 0.9 |
| Ø10 | 10.5±0.5 | 0.24±0.03 | 0.48±0.05 | 100 | 1.1 |
| Ø12 | 12.5±0.5 | 0.25±0.03 | 0.50±0.05 | 100 | 1.2 |
| Ø14 | 14.5±0.5 | 0.26±0.04 | 0.52±0.07 | 100 | 1.5 |
| Ø16 | 16.5±0.5 | 0.29±0.04 | 0.58±0.07 | 100 | 1.9 |
| Ø18 | 19±0.5 | 0.29±0.04 | 0.60±0.07 | 100 | 2 |
| Ø20 | 21±0.5 | 0.31±0.04 | 0.62±0.07 | 100 | 2.4 |
| Ø22 | 23±0.5 | 0.32±0.04 | 0.65±0.07 | 100 | 2.5 |
| Ø25 | 26±0.5 | 0.35±0.04 | 0.70±0.07 | 25 | 0.9 |
| Ø30 | 31.5±0.5 | 0.39±0.04 | 0.78±0.07 | 25 | 1.06 |
| Ø35 | 36.5±0.5 | 0.39±0.05 | 0.78±0.07 | 25 | 1.2 |
| Ø40 | 41.5±0.5 | 0.39±0.05 | 0.78±0.07 | 25 | 1.5 |
| Ø50 | ≥50 | 0.41±0.05 | 0.80±0.1 | 25 | 1.85 |
| Ø60 | ≥60 | 0.42±0.05 | 0.86±0.1 | 25 | 2.15 |
| Ø70 | ≥70 | 0.43±0.05 | 0.88±0.1 | 25 | 2.9 |
| Ø80 | ≥80 | 0.45±0.05 | 0.90±0.1 | 25 | 3.8 |
| Ø90 | ≥90 | 0.50±0.05 | 1±0.1 | 25 | 4.5 |
| Ø100 | ≥100 | 0.55±0.05 | 1±0.1 | 25 | 5.2 |
| Ø120 | ≥120 | 0.57±0.05 | 1.2±0.1 | 25 | 6 |
| Ø150 | ≥150 | 0.60±0.05 | 1.5±0.1 | 25 | 7.55 |
Usage:
Packaging:
1)100 or 200 Meter/Roll+Label+Carton (customer's logo put on label is available)
2)Customer appointed special pack requirement all available
FAQ:
1.Are you factory or trading company?
Yes,we are manufacturing in Zhejiang ,China. We can give you the competitive price & after sale service.
2.Could I print my own logo on the bag?
Yes,your logo can be printed as your demand, we offer OEM service.
4.What terms of payment & price condition &do you accept & use?
Payment terms:T/T,LC,Paypal,Western union,etc.
Price conditions:FOB(Shanghai & Ningbo),EXW,C&F etc.
5.What money do you accept for wire transfer?
USD,CNY/RMB,EURO etc.
6. How many days will it take to delivery the goods?
It denpends on your order quantity,small quantity will delivery the goods in 7-10days,if your order is big enough ,it make take 10~15 days.
