Product Description

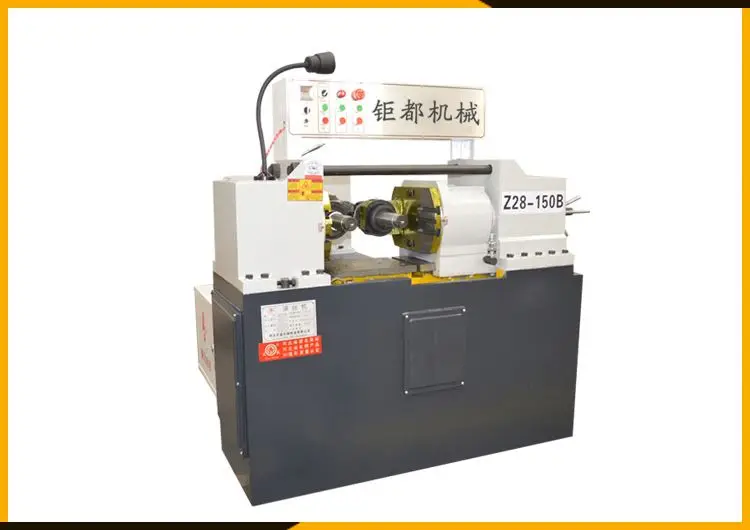

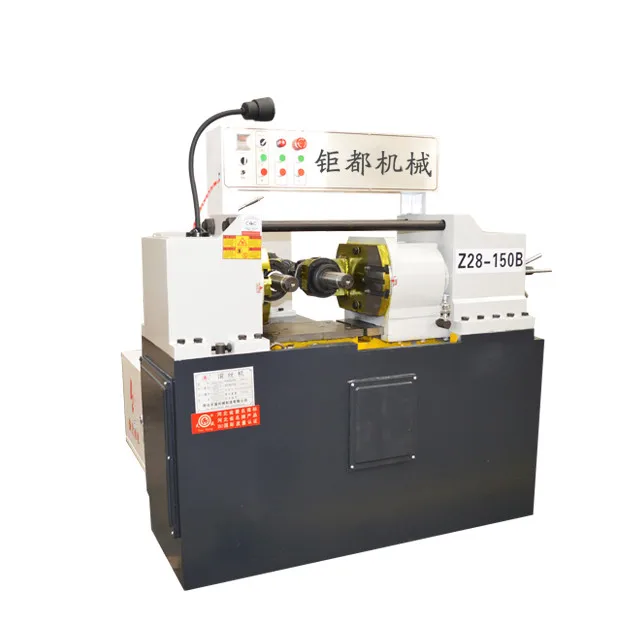

Fully automatic anchor bolt threading machine iron rod thread rolling machine
Main Features

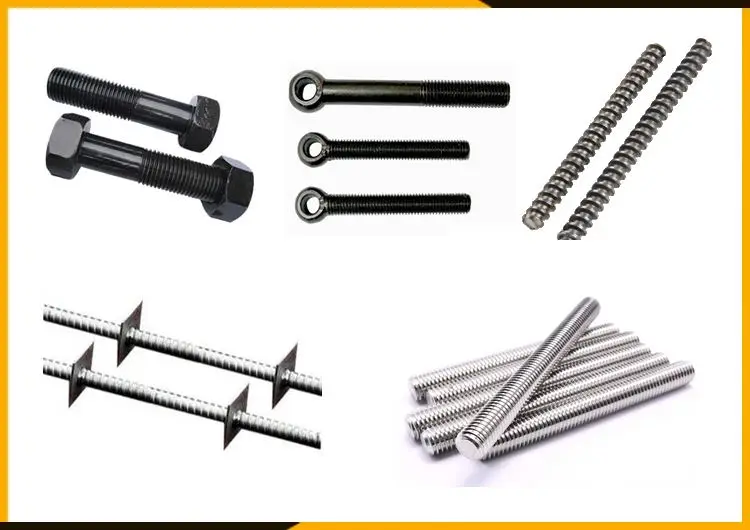

The Z28-150 iron rod thread rolling machine is mainly used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm²
1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
Technical Parameter
Model | Z28-150 iron rod thread rolling machine | Distance from spindle center | 150-300mm |
The rolling press | 200KN | Active force | 11kw |
Thread rolling wheel diameter | 220mm | Roller diameter | 12-100mm |
Thread rolling wheel width | 160mm | Thread rolling round aperture | 75mm |
Spindle speed | 20,25,31,41,51,64r/min | Length of thread | unlimited |
Size | 1790*1730*1430mm | The cooling power | 0.12kw |
Hydraulic power | 5.5kw | Weight | 1800kg |
Certifications

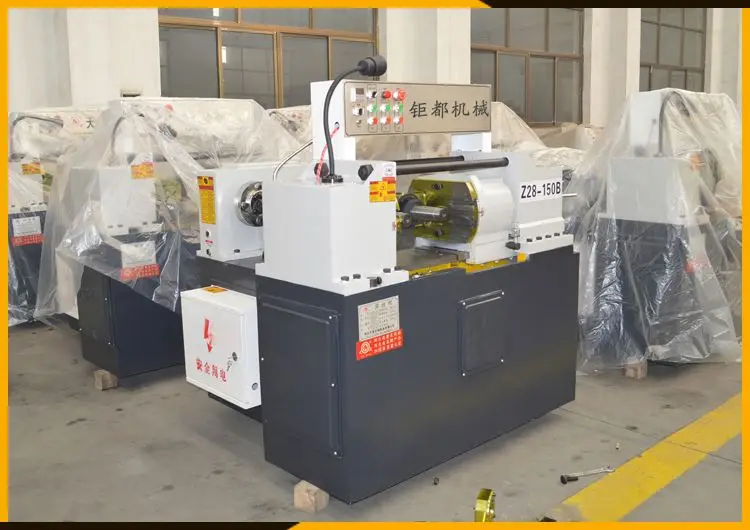

Detailed Images
Our Service
1. Do you have any warranty?
Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our iron rod thread rolling machine have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. How about the shipment?
The machine will be shipped within 2-3 days after the receipt of your payment.
6. Can visit your factory?
Welcome to our factory. We would like to make invitation letter for you. Hope we can cooperate with you for a long term.
Packing & Delivery
Packaging | ||
Size | 179(L) * 173 (W) * 143 (D) | |
Weight | 1.28T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
