QOTOM Core i5 Mini PC 4 Gigabit NIC для построения усовершенствованного маршрутизатора
- Категория: Мини-ПК >>>
- Поставщик: Shenzhen,Qotom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 298.50 $* | 313.20 $* |
| Aug-20-2025 | 295.64 $* | 310.79 $* |
| Jul-20-2025 | 248.42 $* | 260.12 $* |
| Jun-20-2025 | 290.25 $* | 305.54 $* |
| May-20-2025 | 253.45 $* | 266.46 $* |
| Apr-20-2025 | 285.70 $* | 299.27 $* |
| Mar-20-2025 | 283.72 $* | 297.51 $* |
| Feb-20-2025 | 280.24 $* | 294.62 $* |
| Jan-20-2025 | 278.84 $* | 292.69 $* |
Характеристики
Products Description
Qotom Mini PC Q350G4
* CPU onboard: Intel Core i5-4200U
* Small and compact: 187*111*50 mm
* Fan-less design, quite working
* Running 24/7
* Aluminum alloy case
* DDR3L RAM & mSATA SSD
* Extension: SATA connector inside
* Support SIM card and 3G/ 4G Module
* Support multiple Operating System
* Customized service
* One year warranty
* Small and compact: 187*111*50 mm
* Fan-less design, quite working
* Running 24/7
* Aluminum alloy case
* DDR3L RAM & mSATA SSD
* Extension: SATA connector inside
* Support SIM card and 3G/ 4G Module
* Support multiple Operating System
* Customized service
* One year warranty
CPU onboard: Intel Core i5-4200U
Intel Core i5-4200U Processor, 3M Cache, dual core 1.6 GHz, up to 2.6 GHz
Processor Graphics: Intel HD Graphics 4400
Support AES-NI
Processor Graphics: Intel HD Graphics 4400
Support AES-NI
• Your New Computer
Work as a common desktop computer. With powerful 4th generation Intel Core I5 Proceossr (Dual core) onboard and HDMI port, connecting monitor, keyboard & mouse, it's a new computer.
• To Build a Router Firewall
With 4x Intel Gigabit LAN ports, Qotom Mini PC can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.
(The order excludes monitor, keyboard & mouse and HDMI cable.)
Work as a common desktop computer. With powerful 4th generation Intel Core I5 Proceossr (Dual core) onboard and HDMI port, connecting monitor, keyboard & mouse, it's a new computer.
• To Build a Router Firewall
With 4x Intel Gigabit LAN ports, Qotom Mini PC can be configured as a firewall, LAN or WAN router, VPN appliance, gateway device, DHCP Server, DNS Server, etc.
(The order excludes monitor, keyboard & mouse and HDMI cable.)
Operating System
* We preinstall inactive Windows 10 for test, please re-install OS if necessary.
* It supports Windows 7/8/10, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
* F11 key boot from USB Drive. Delete key enter BIOS.
* It supports Windows 7/8/10, Linux, pfSense, Sophos, VyOS, Linux iptables, CentOS, Untangle, etc.
* F11 key boot from USB Drive. Delete key enter BIOS.

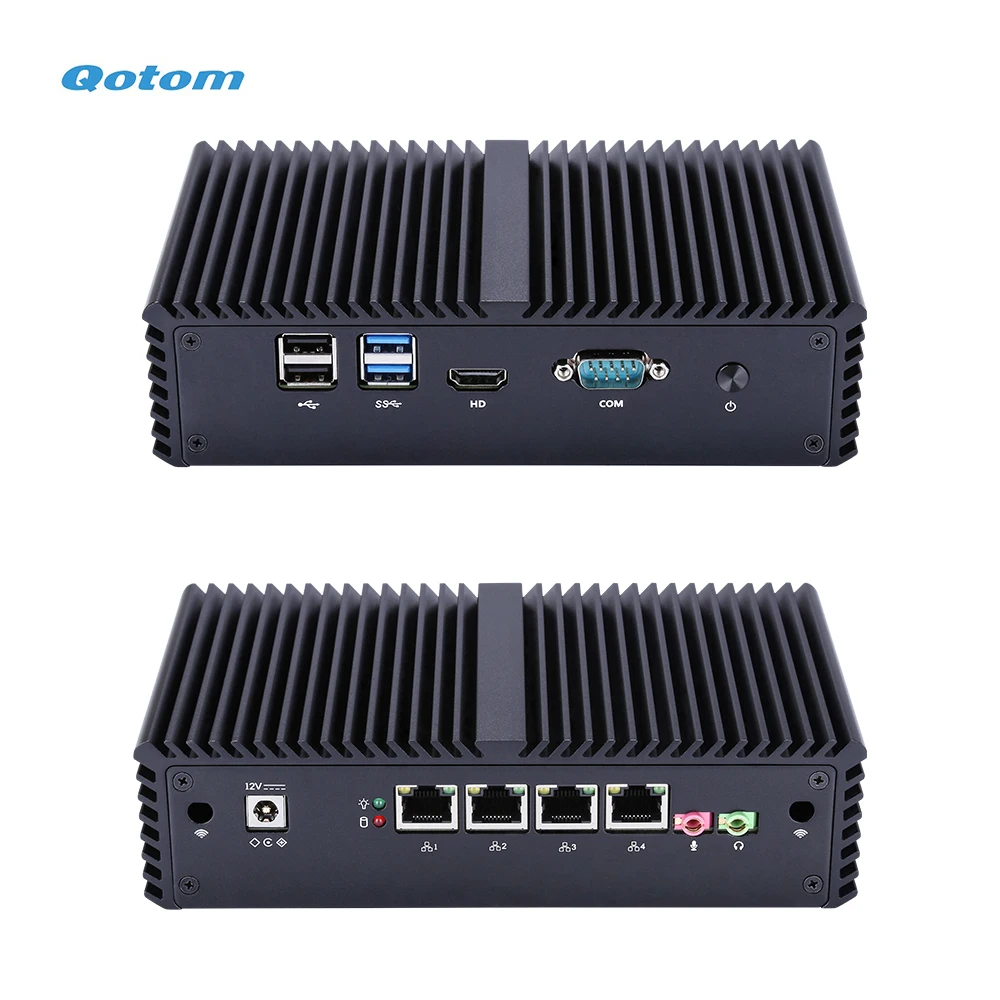

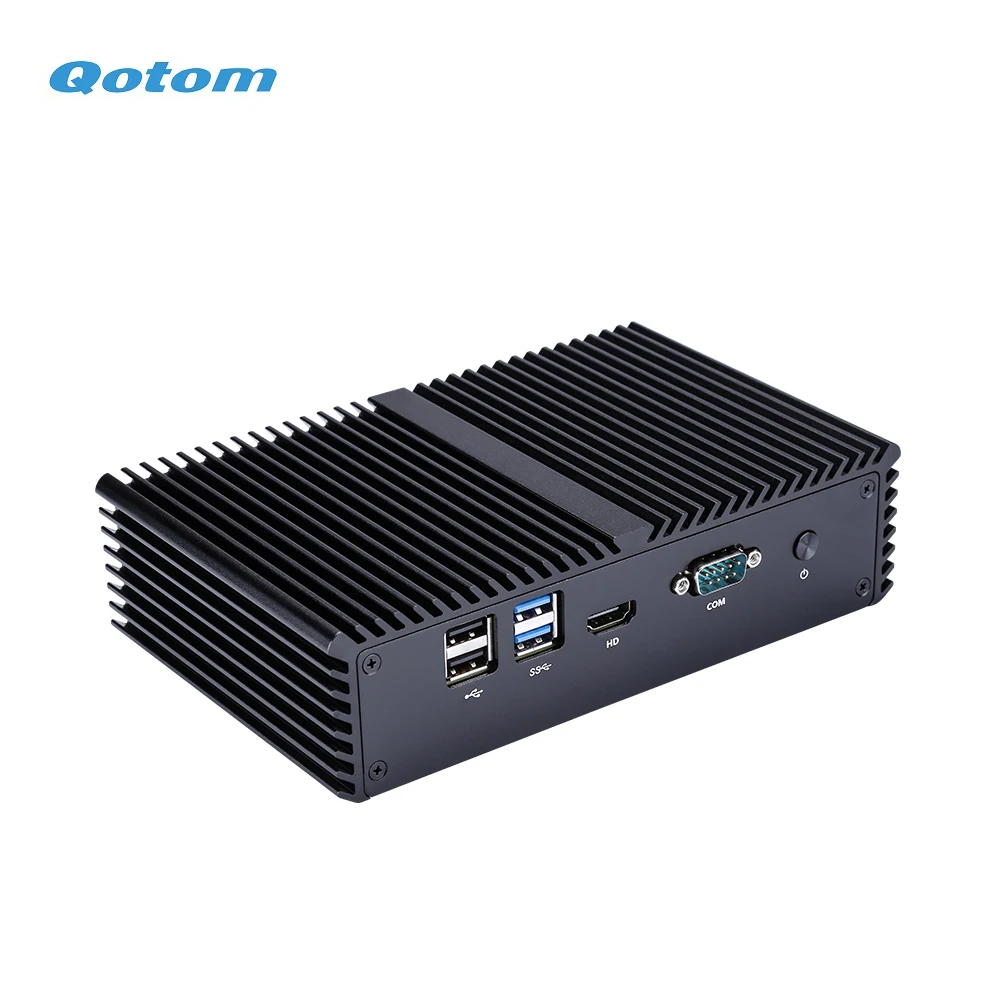

Front-Panel Connectors
• Power on/off button
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HD Video Connector
• 1 x Serial port
• 2 x USB 2.0 Ports
• 1 x HD Video Connector
• 1 x Serial port

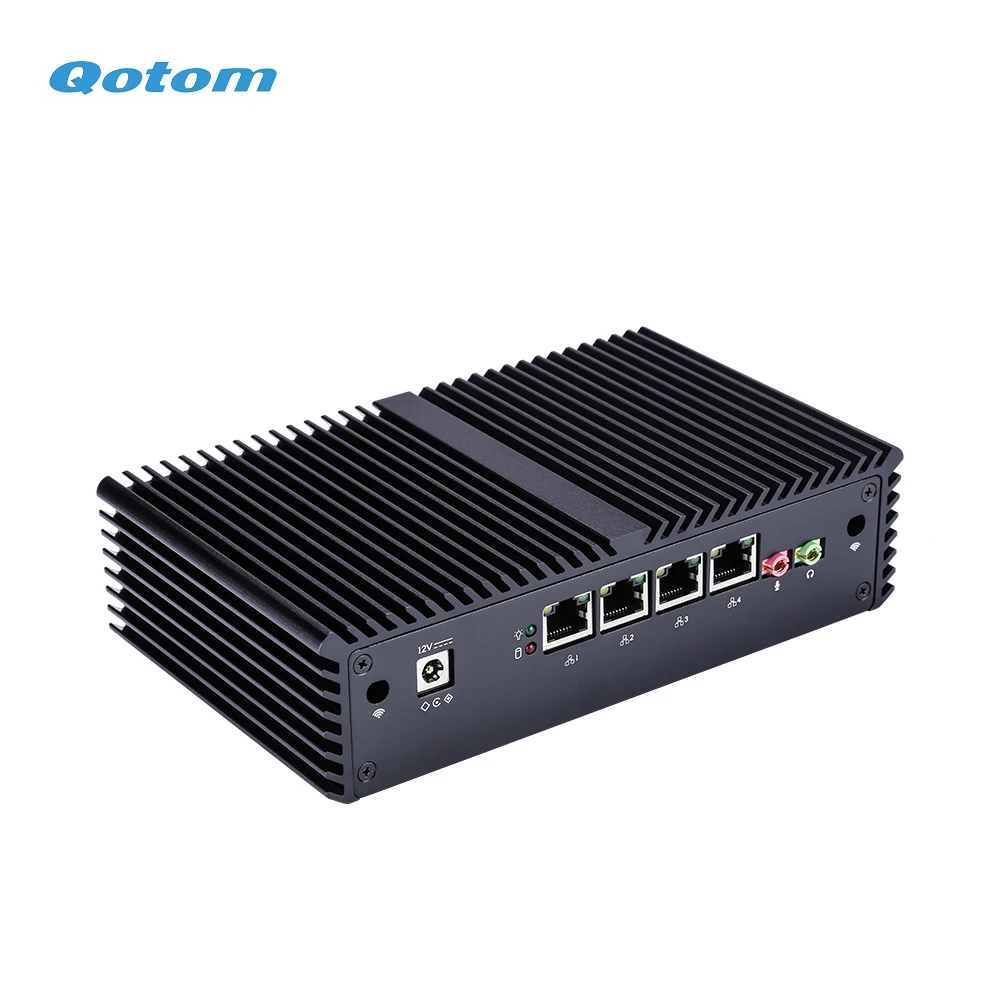

Back-Panel Connectors
• 1 x DV 12V DC input
• HDD LED, Power LEDs
• 4 x Intel I211-AT- 10/100/1000 Controller
• 4 x Intel I211-AT- 10/100/1000 Controller
• 1 x Speak Out & Mic In Connector
• Wi-Fi
• Wi-Fi
Wi-Fi (optional)
* This link exclude Wi-Fi. If you need it, please contact us in advance.

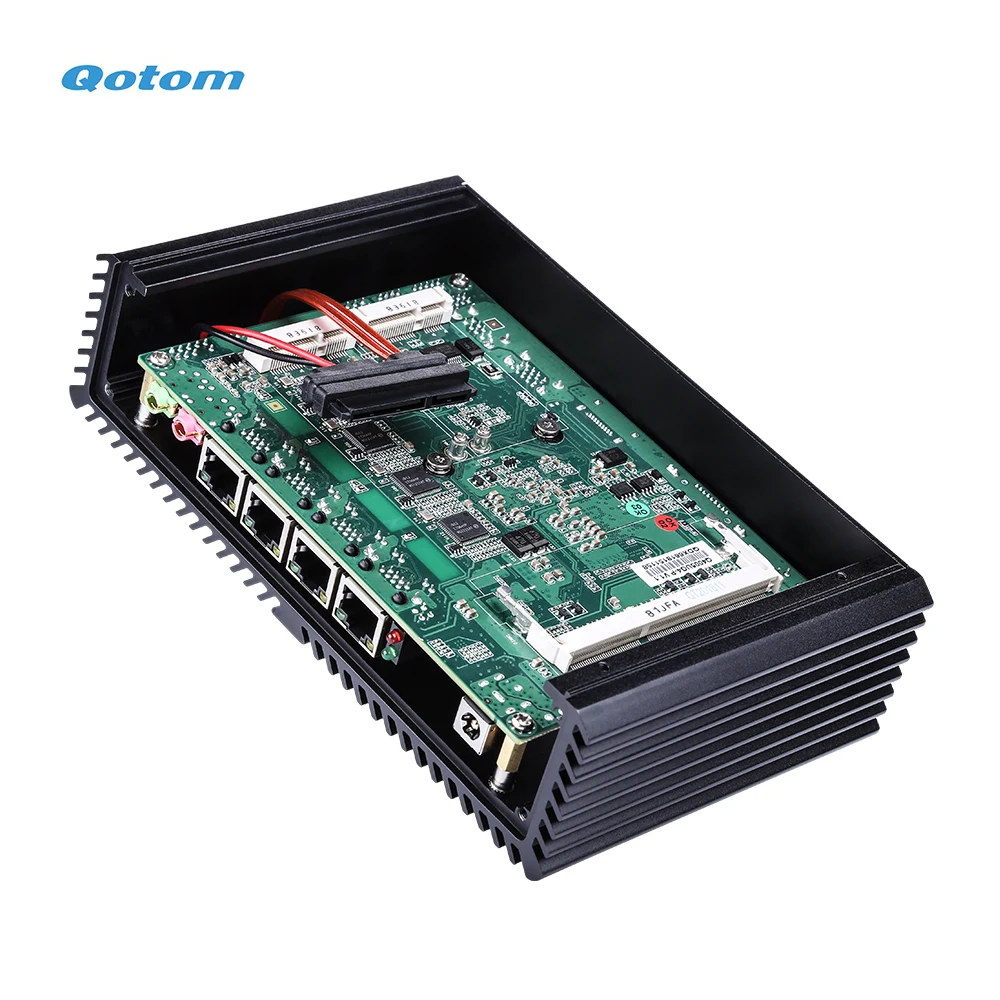

Fan-less Design

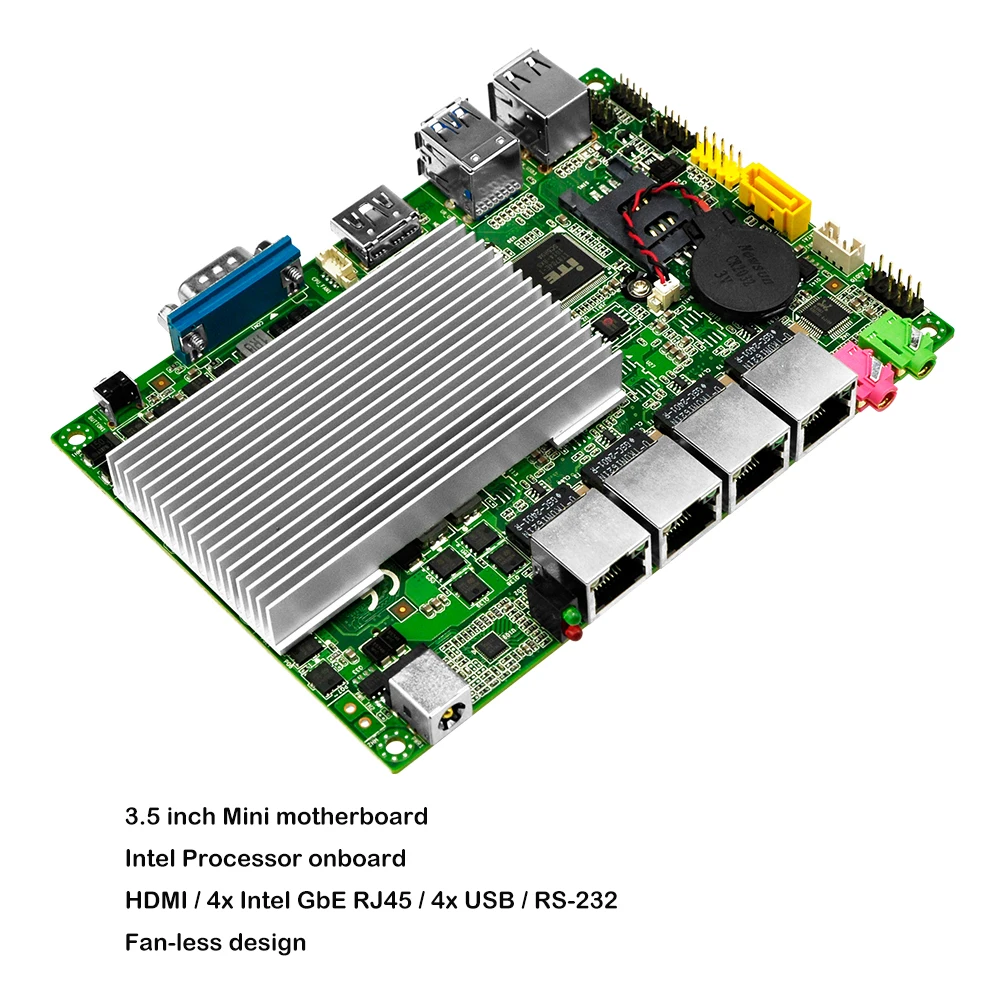

3.5 inch Mini Motherboard Fan-less design. No noise.
There is a SIM card slot on motherboard, but the half mini pcie slot support Wi-Fi by default, if you wanna install 3G/ 4G module,
please contact us, we will move a screw to make a full mini pcie slot to support 3G/ 4G module.
There is a SIM card slot on motherboard, but the half mini pcie slot support Wi-Fi by default, if you wanna install 3G/ 4G module,
please contact us, we will move a screw to make a full mini pcie slot to support 3G/ 4G module.
Internal Connectors
• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x SATA connector
• 1 x Half Mini pcie slot (for WIFI/BT card)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA connector
• 1 x Half Mini pcie slot (for WIFI/BT card)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SIM card slot
• 1 x Automatically boot jumper
• 1 x Automatically boot jumper
If you only wanna buy motherboard, please contact us.
Our Advantages
Custom service
1. Laser printing LOGO for free.
* MOQ: 5 units
* For free
* Only white
* Buyer provide LOGO in PDF format
2. Label
* MOQ: 5 units
* For free
* Buyer list label contents
* Only white background and black text
3. Change Startup Picture
* MOQ: 5 units
* For free
* Buyer provide new picture
4. Pre-set BIOS
* For free
5. Customize packing box based on Qotom packing box
* MOQ: 100 units
* Buyer will be charged extra fees
* Buyer should provide available new design.
6. Remove or add some ports
* This service is based on quantity and models.
Please contact us to list your requirements.
Product packaging
Packing
1 x Mini PC
1 x Power supply (adapter and cord)
1 x VESA bracket & screws
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
Shipment
All customs duties, taxes, to be collected on the territory of the Buyer, are to be paid by the Buyer.
Standard export packing
All Qotom products are well packed by standard export packing box.
* No shipping mark by default.
Ship by International express
Most of goods are shipped by international express like DHL/ Fedex/ TNT/ UPS, especially for small orders. Buyer can receive goods very soon.
* All goods will be transferred in Hong Kong.
Air logistics & transport by sea
For bulk order, air logistics charge lower freight.
* Buyer have to pick up the goods at airport.
If prefer to transport by sea, please contact seller.
If Buyer has forwarder/ agent in China
Seller can deliver goods in China.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
Contact us for free if you have any questions about the shipment.
