Качественный Промышленный мини-робот Arduino с поворотным
- Категория: Manipulator >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 3808.39 $* | 3998.31 $* |
| Aug-20-2025 | 3776.15 $* | 3965.20 $* |
| Jul-20-2025 | 3168.17 $* | 3326.96 $* |
| Jun-20-2025 | 3712.35 $* | 3898.70 $* |
| May-20-2025 | 3232.30 $* | 3394.0 $* |
| Apr-20-2025 | 3648.74 $* | 3830.99 $* |
| Mar-20-2025 | 3616.84 $* | 3797.25 $* |
| Feb-20-2025 | 3584.11 $* | 3763.40 $* |
| Jan-20-2025 | 3552.4 $* | 3730.44 $* |
Характеристики
Products Description

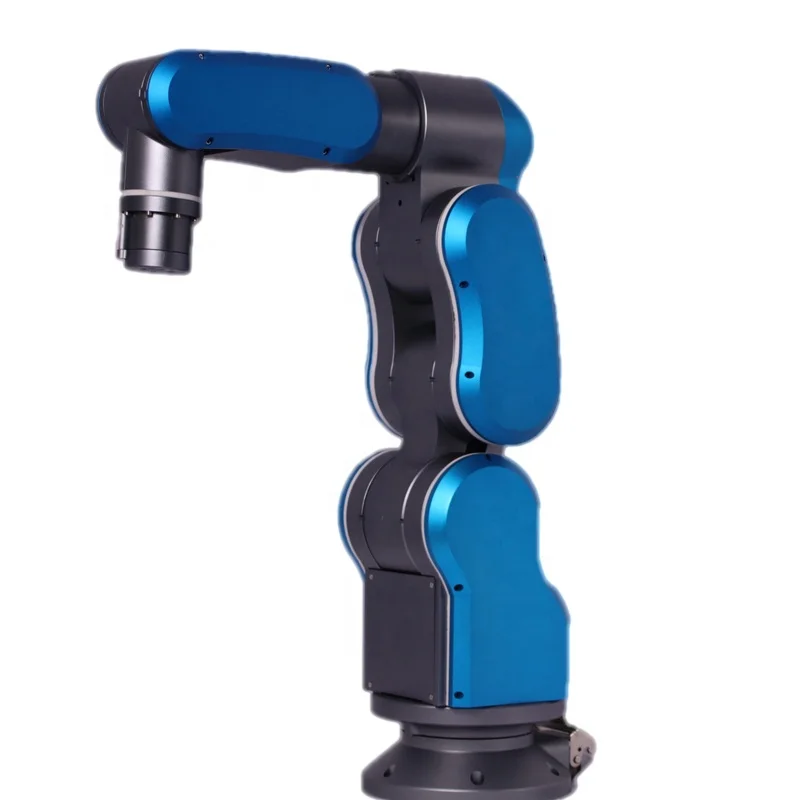

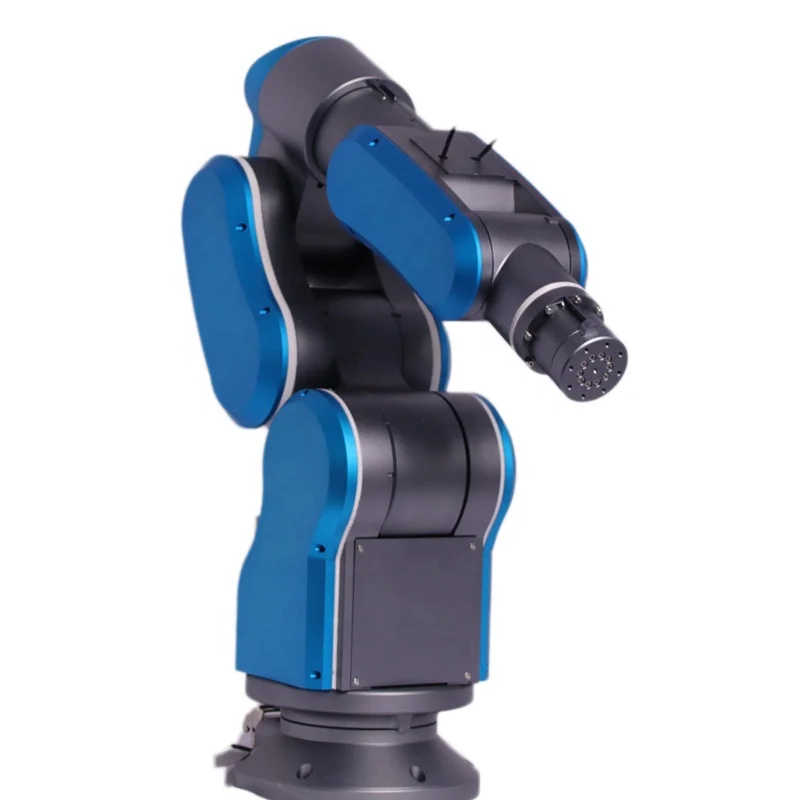

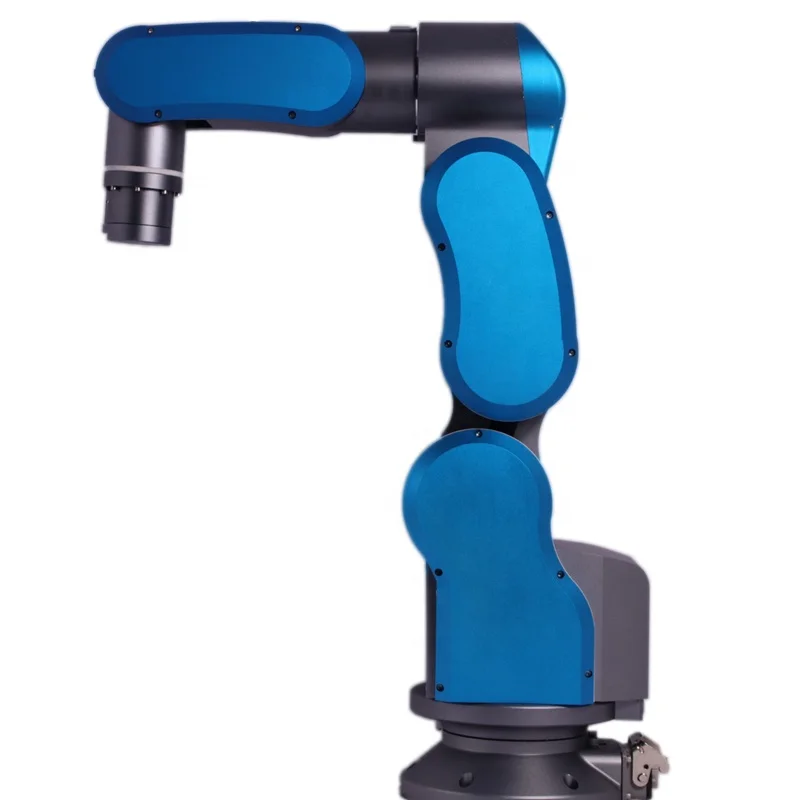

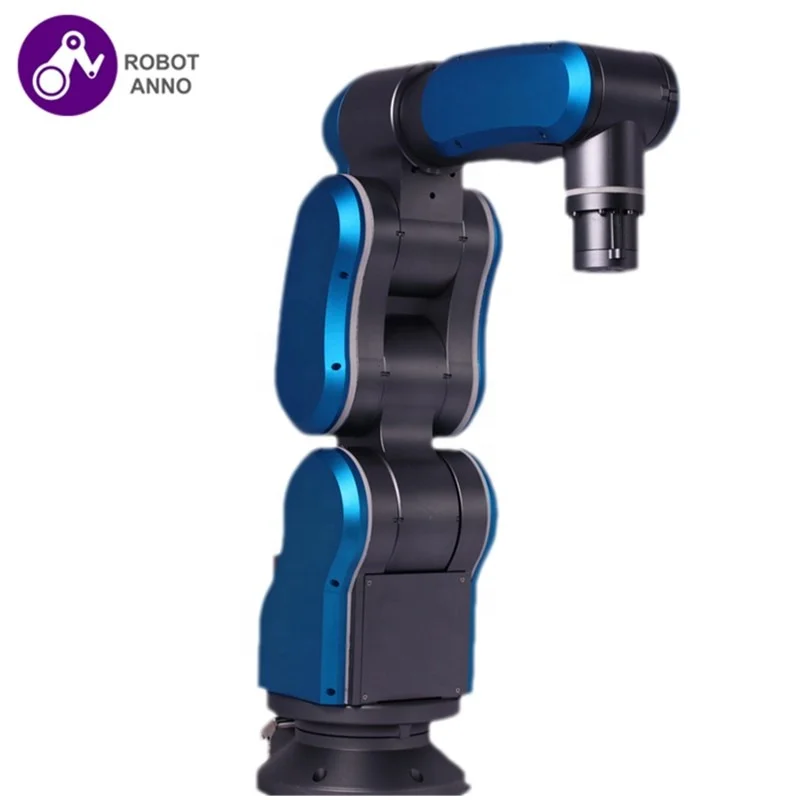

Light weight robot, small in shape and light in weight makes it suitable for assembling, small unit robots which can complete all kinds of work such as loading/unloading/sorting/assembly at high speed and high precision. At the same time, all the robot cables are built in and can be operated flexibly in a small space. The installation mode can be installed on the ground, mounted or inverted.
Features: Wrist rated load: 3Kg. Maximum working radius: 690mm.
Features: Wrist rated load: 3Kg. Maximum working radius: 690mm.
Features
Light weight
Fast running speed
Beautiful
High precision of repeated positioning
Built-in cable
Fast running speed
Beautiful
High precision of repeated positioning
Built-in cable
Application
Educational research
1. Full understand of robotic arm technology and application
2. In-depth study to understand the structure and control system of the robotic arm
3. Providedll interface, supports secondary development, realize multi-functional integrated demonstration
Commercial application:

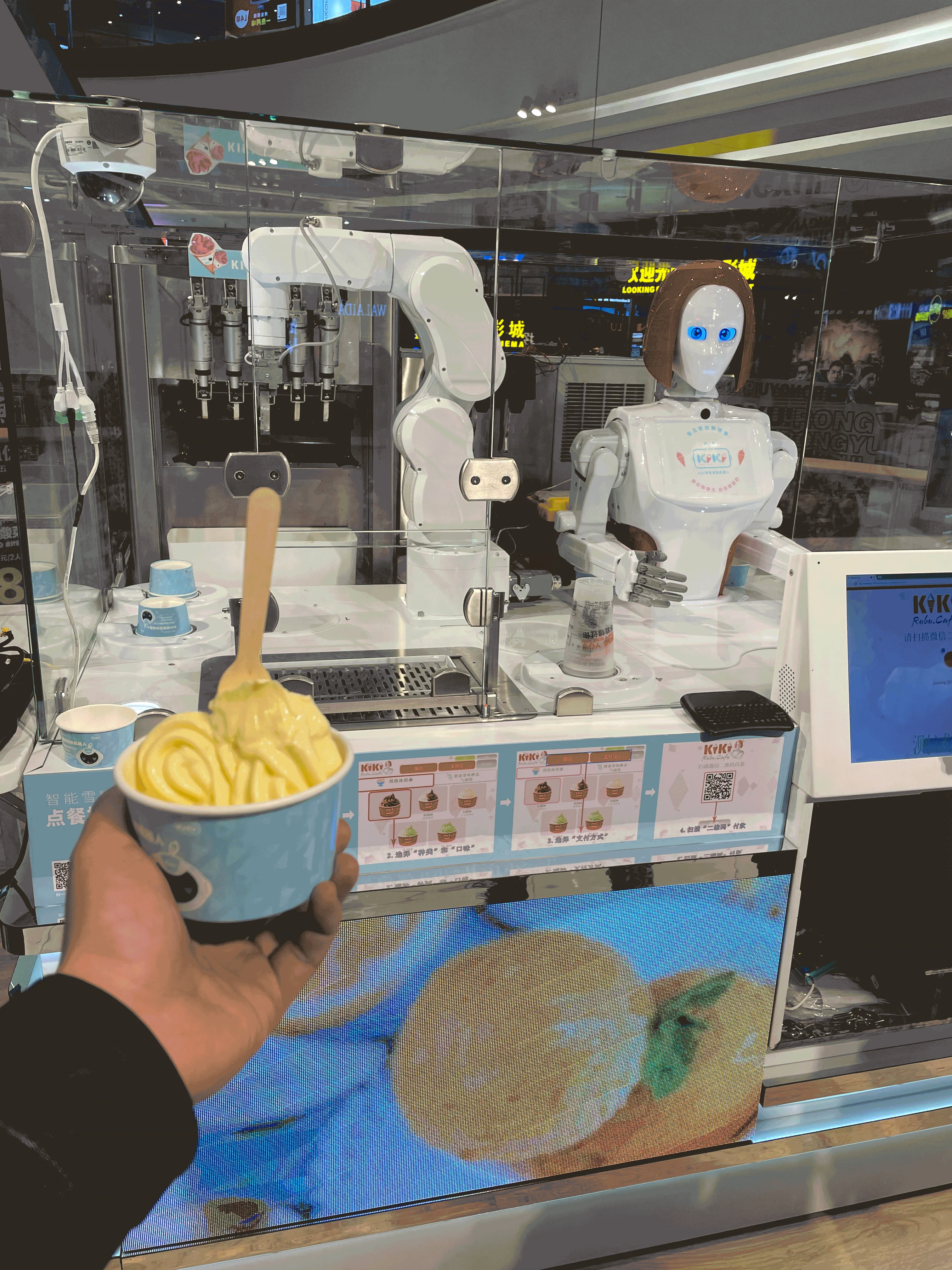

1. AUTO Robot Milk-tea/Coffee/Juice/Bartendingvending machine integration
2. Integration of medical equipment such as oral cavity and massage
3. Photography integration

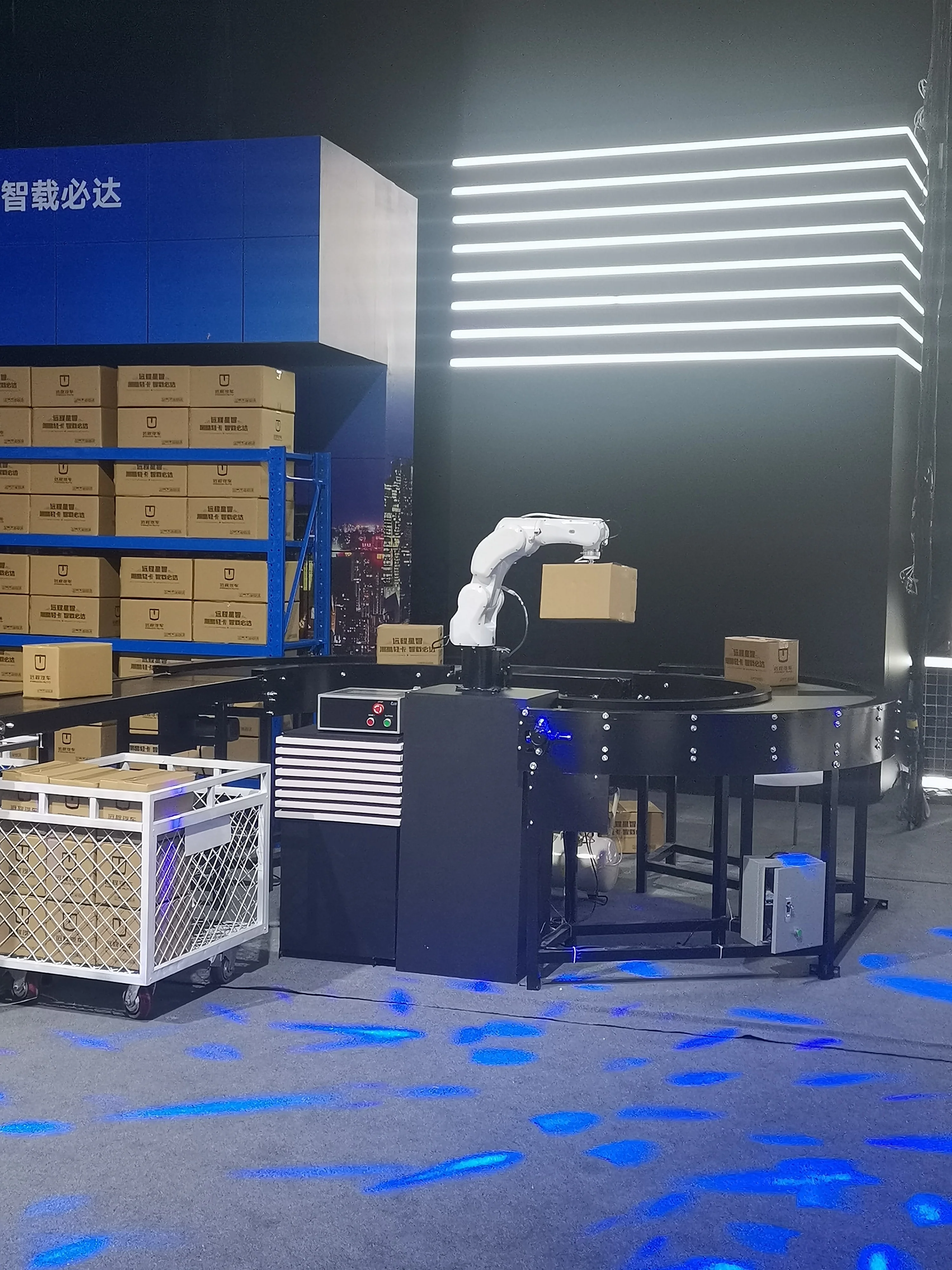

Light weight industrial application:
1. Material handling
2. Production line assembly
1. Full understand of robotic arm technology and application
2. In-depth study to understand the structure and control system of the robotic arm
3. Providedll interface, supports secondary development, realize multi-functional integrated demonstration
Commercial application:
1. AUTO Robot Milk-tea/Coffee/Juice/Bartendingvending machine integration
2. Integration of medical equipment such as oral cavity and massage
3. Photography integration
Light weight industrial application:
1. Material handling
2. Production line assembly
Poduct Parameters:
Payload | 3KG | ||
Voltage | 110V/220V | ||
Power | 360W | ||
Max Working Radius | 690mm | ||
Repeat Positioning Accuracy | ±0.01mm | ||
Application | Educational training, commercial demonstration | ||
Working Range | Axis 1 | +170°-155° | |
Axis 2 | +90°-120° | ||
Axis 3 | +125°-85° | ||
Axis 4 | +160-190° | ||
Axis 5 | +30-200° | ||
Axis 6 | ±180° | ||
Max Speed | Axis 1 | 145°/s | |
Axis 2 | 133/s | ||
Axis 3 | 140°/s | ||
Axis 4 | 172°/s | ||
Axis 5 | 172°/s | ||
Axis 6 | 210°/s | ||
Structure Type | Series Connection | ||
No. of aixs | 6 Axis | ||
Controller | Singel Chip | ||
Body Shell Material | Aluminum | ||
Install To | Desktop | ||
Speed Reducer | Harmomic reducer | ||
Motor | Servo Motor | ||
Working Range：
Detailed Images
The Step Motor
Step Motor Driver
Power
Controller Board
The input and output ports each have 15 sets of signal ports.
I00-i15: indicates that the input port 0-15 receives the signal input port, the default state of the input port is high, and if the state is to be changed, a low-level signal input is required;
O00-O15: indicates that the output port 0-15, that is, the signal transmission port, the signal transmission port defaults to a low level, and if it is to change its output high level, only the code is required to change its output state. It is also noted that the signal receiving terminal needs to co-operate with the control box at the same time, otherwise the signal cannot be identified.
I00-i15: indicates that the input port 0-15 receives the signal input port, the default state of the input port is high, and if the state is to be changed, a low-level signal input is required;
O00-O15: indicates that the output port 0-15, that is, the signal transmission port, the signal transmission port defaults to a low level, and if it is to change its output high level, only the code is required to change its output state. It is also noted that the signal receiving terminal needs to co-operate with the control box at the same time, otherwise the signal cannot be identified.
Product packaging
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Company Information
RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.
Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service.Welcome to contact us!
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-10 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-10 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
