Абсорбирующая башня для дрифта из

Категория: Cooling Tower >>>
Поставщик: Hebei,Sinta,Trading,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.50 $*	0.36 $*
Aug-19-2025	0.82 $*	0.86 $*
Jul-19-2025	0.39 $*	0.43 $*
Jun-19-2025	0.80 $*	0.45 $*
May-19-2025	0.19 $*	0.8 $*
Apr-19-2025	0.73 $*	0.91 $*
Mar-19-2025	0.93 $*	0.60 $*
Feb-19-2025	0.1 $*	0.42 $*
Jan-19-2025	0.22 $*	0.67 $*

Характеристики

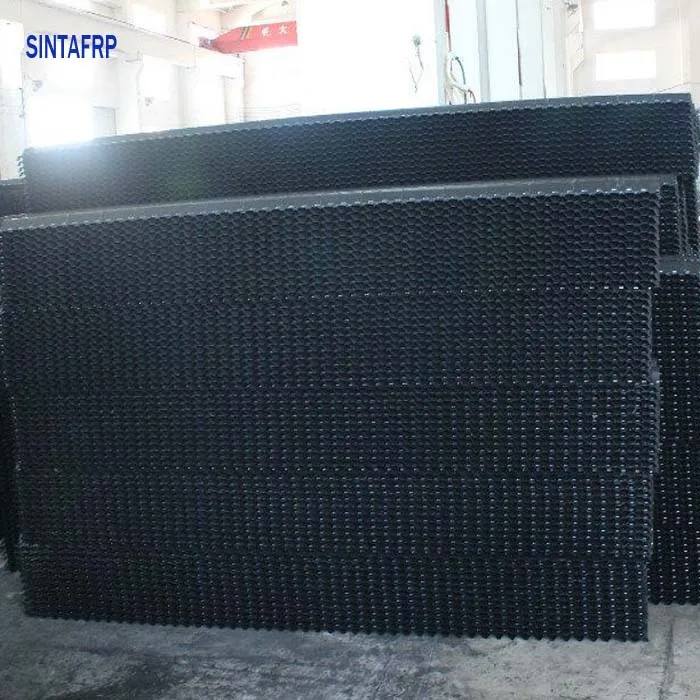

Opti-Wave Cooling tower pvc drift eliminator

drift eliminators SINTAFRP.jpg

Product Description

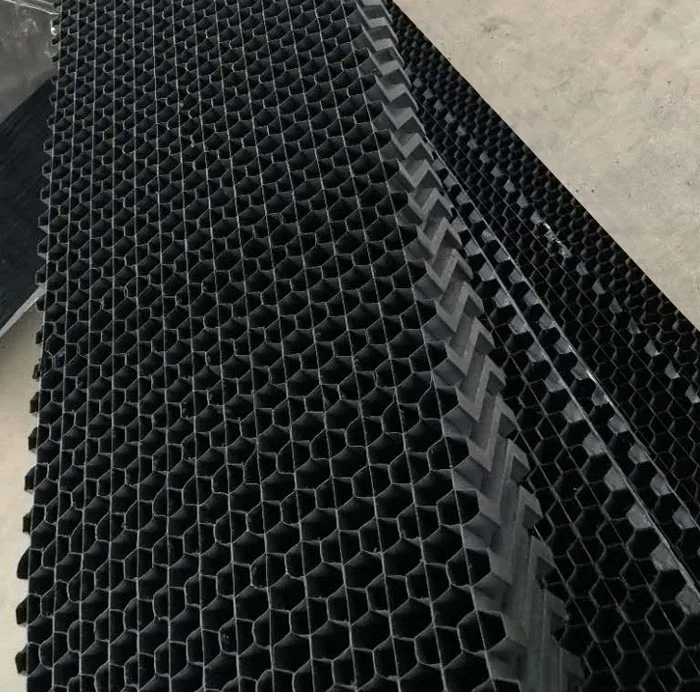

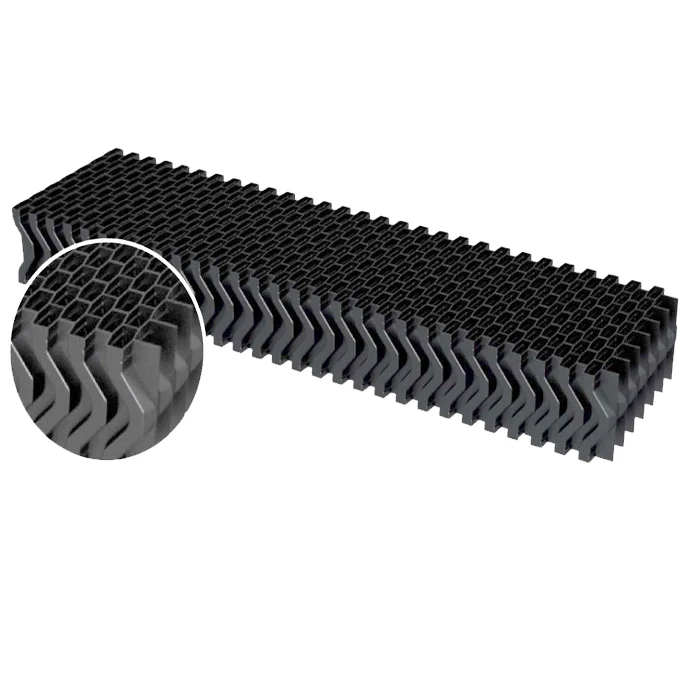

Cellular Cooling Tower drift eliminator overview

Cellualr Drift Eliminator.jpg

Drift Eliminators, made from rigid PVC, are designed to remove entrained particles from air steam efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator.

Water droplets are separated from the air drift at the three direction change points on the drift eliminator.

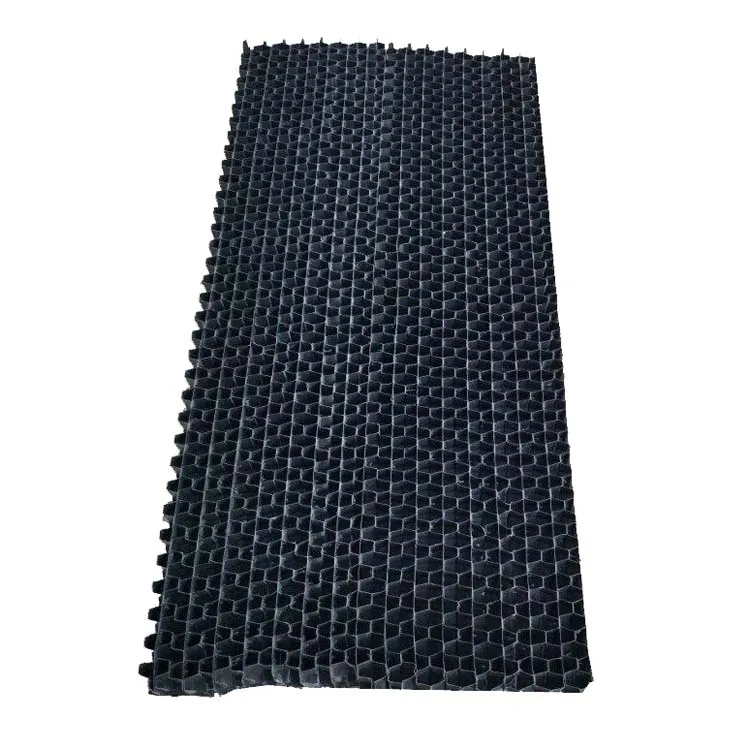

125mm drift eliminator

Air Inlet Louvers(Drift eliminators) improve air flow into the cooling tower, keep out debris, eliminate water splash-out (which can cause icing, near-site water damage, and costly water and water treatment chemical loss), restrict the amount of sunlight into the cooling tower (to impede algae growth), reduce noise from the tower, and improve the tower's appearance.

Material : Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkalis, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. We also have PP and CPVC material which can meet the water high temperature requirement.

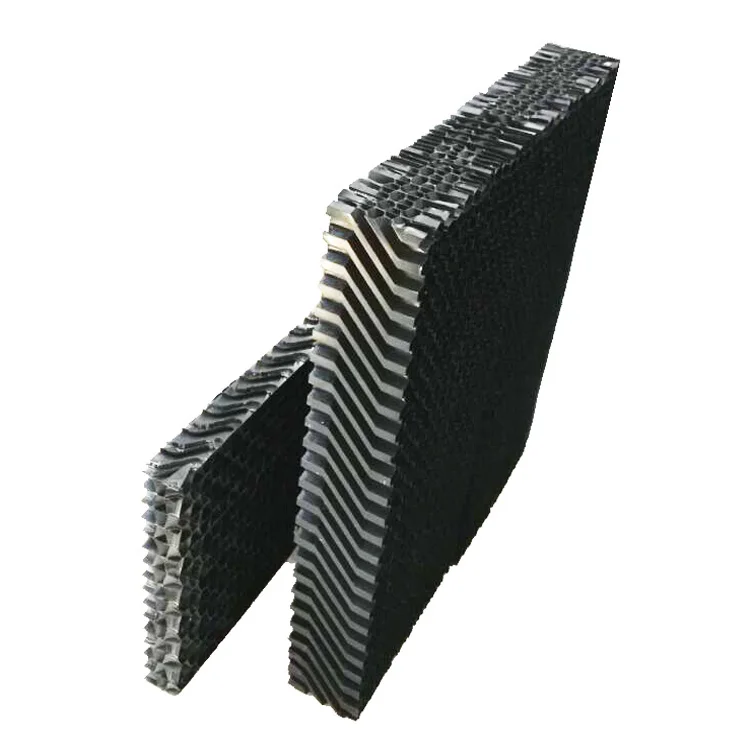

The drift eliminator thickness can be 65mm,125mm,130mm,etc. The loose sheet is cut from the whole pvc thermoformed sheet.

ST drift elimiantor (6).jpg

Cooling Tower drift eliminator Features

• Significantly block sunlight (70:1 light reduction) to reduce algae growth on interior surfaces of the cooling tower system, thus reducing the cost of algae-removal chemicals and labor.

• Reduces noise leaving the tower through the louver modules by approximately three decibels.

• Achieves very low pressure drop results.

• Pre-assembled modules available in a variety of lengths.

• Optional Assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance (mounting flanges available on 1, 2, or all 4 sides).

• Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136.

Cooling Tower drift eliminator Specification

Sheet Thickness	Sheet Spacing	Dry Weight	Module Dimensions
			Length	Width	Height
0.3mm-0.6mm	25.4mm	4.6 kg/m2 mm	Any length	63.5 mm or other size	150mm or 75mm or 65mm

Cooling Tower drift eliminator Application:

Inlet louvers are used in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.

Cooling Tower drift eliminator more photos

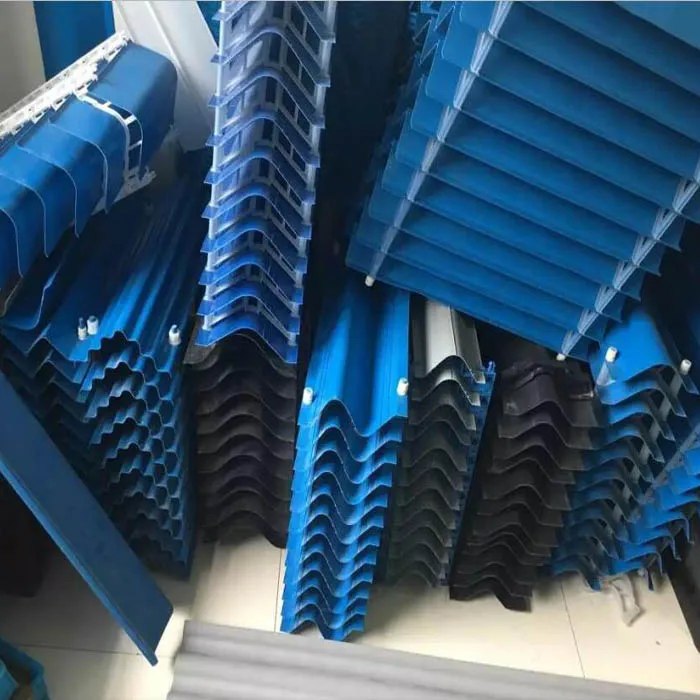

Cooling tower louvers with frame

Cooling tower louvers without frame

pvc air inlet louvers2

Packaging & Shipping

Drift eliminator packaging&shipping
Packaging	be packed in carton or plastic film and pallet
Delivery Time	within 20 days since receiving the deposit
Transport	by sea, by air, by express delivery

Drift Eliminator.jpg

Cooling Tower Drift Eliminator.jpg

Cellualr Drift Eliminator.jpg

Our Services

We Hebei Sinta FRP Product Co., Ltd is a professional cooling tower accessory manufacture ans exporter, owing more than 10 years' cooling tower fill producing experience. We have built stable and long term cooperation relationships with many middle east countries.
