Высокое качество DWJ-63 16 мм-76 мм электрический водонагреватель с 17 трубка умирает многофункциональная круглая труба квадратная трубогиб гибочная машина трубогибочный

Описание и отзывы

Трекер стоимости

Характеристики

Buyers can purchase the machine directly through online payment.

NOTE: The price only includes the sea freight from Shanghai port to the Buyer's  local port. It doesn't include the local customs clearance costs!

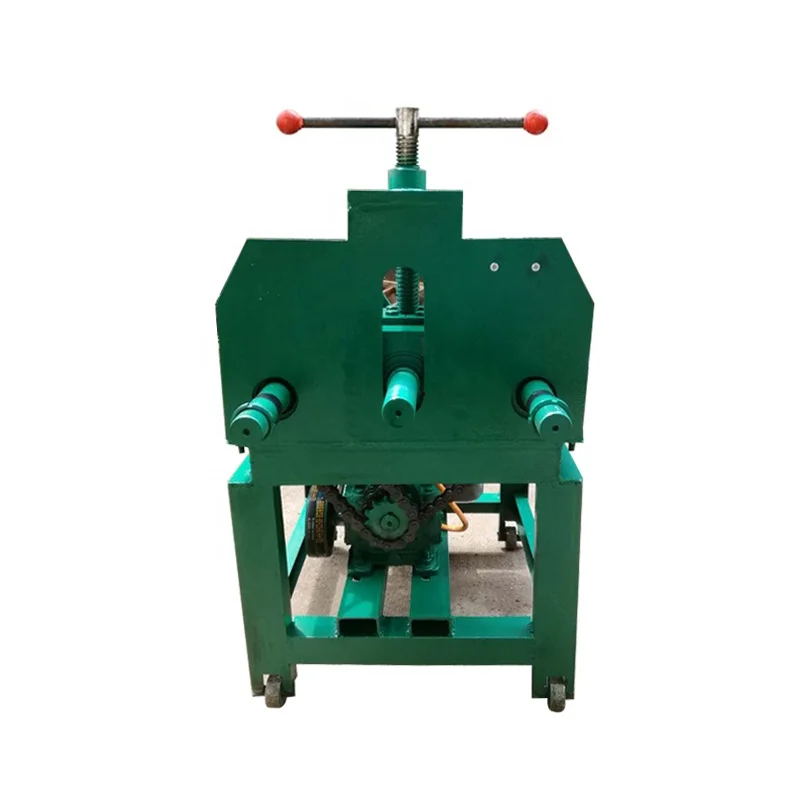

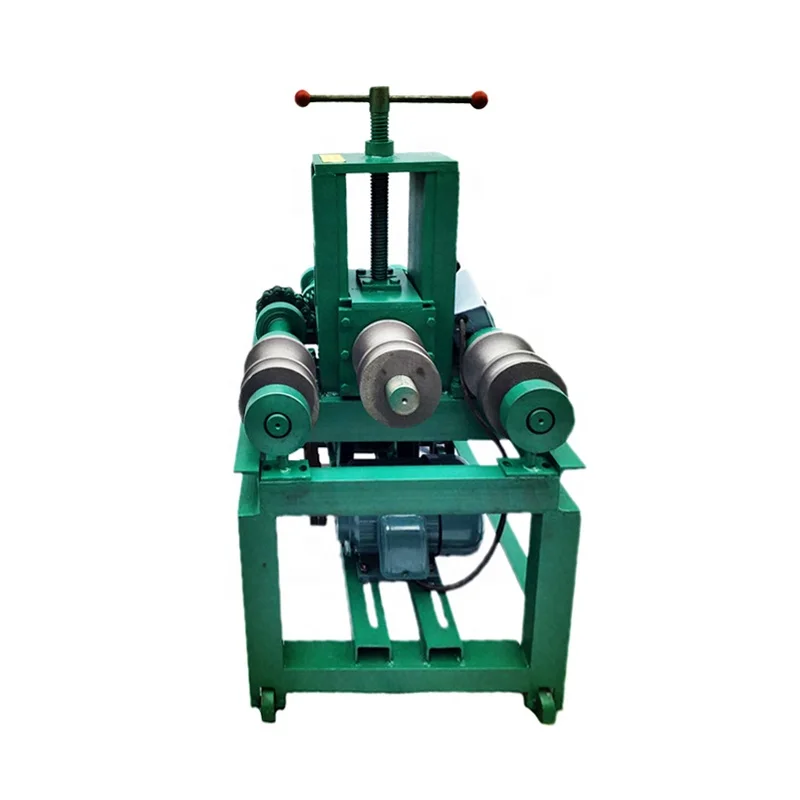

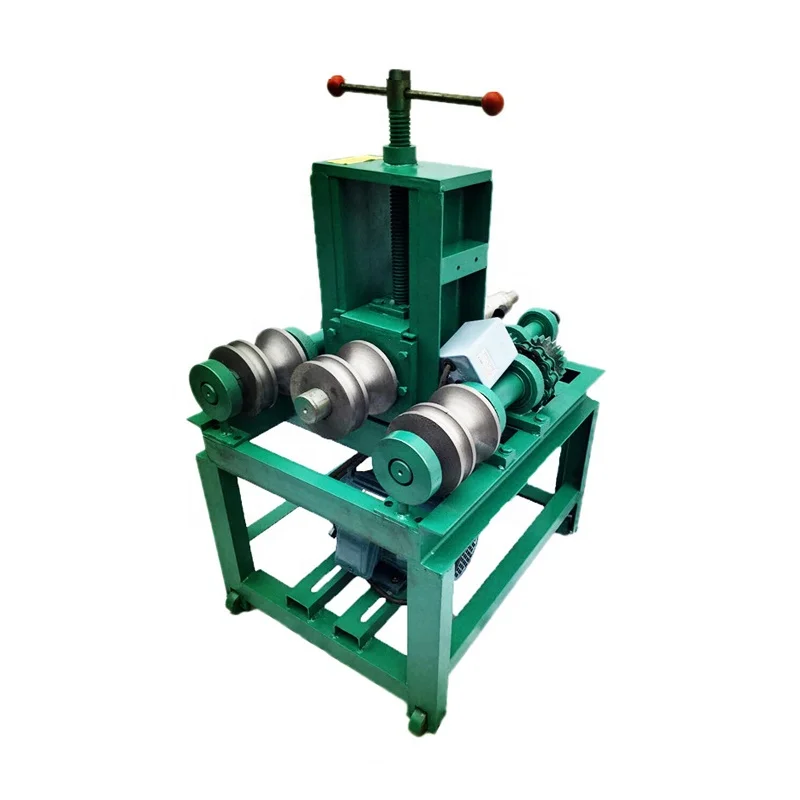

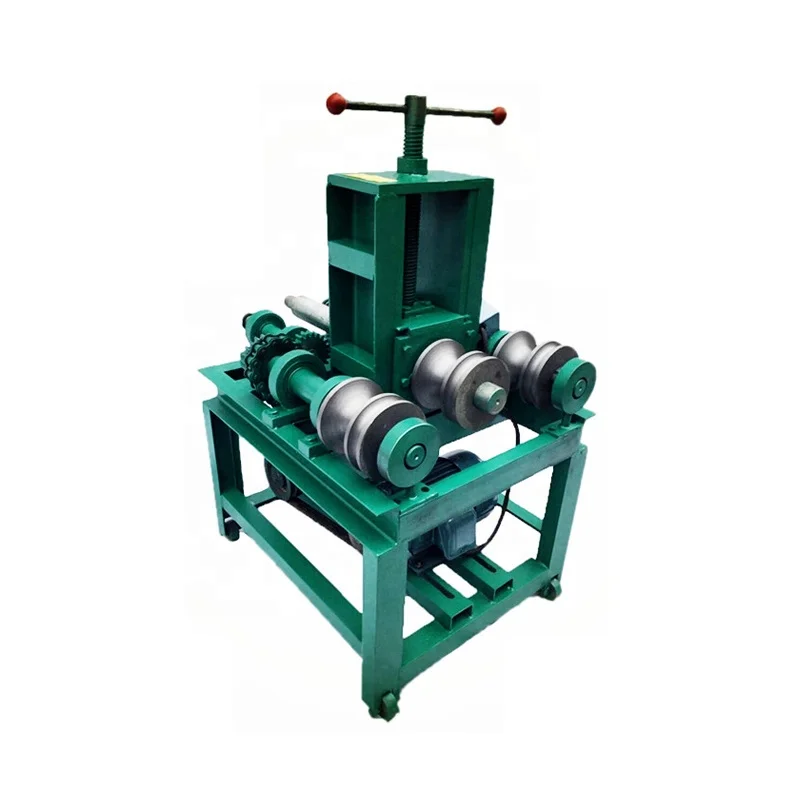

High quality DWJ-63 16mm-76mm Electric with 17 tube dies Multi-function Round pipe Square tube bending machine

The design of the machine is simple, compact, stable in performance, easy to change the mold, and smart and compact. The DWJ-63 multi-function rolling tube bending machine is flexible and convenient to operate, with long service life and many molds. Has a multi-purpose function. It can bend a 6M long stainless steel tube with a diameter of 25.4 inches or less into a circular circle, and gradually shrink the circle into a special function of a spring-shaped small circle. When using the elbow of the machine, no heating or sand filling process is required, and cold bending can be formed according to different needs. The curved product has the characteristics of smooth arc, clear and small deformation.

*including 9 round pipe/tube dies: 16mm, 19mm, 22mm, 25mm, 32mm, 38mm, 51mm, 63mm, 76mm.

Dies for round tubing included	16	19	22	25	32	38	51	63	mm
Round stainless steel tubing wall thickness	0.5	0.8	1	1	1.2	1.2	1.5	1.6	mm
Round mild steel tubing wall thickness	0.8	1	1.2	1.2	1.5	1.5	1.8	1.8	mm

*also including 8 square pipe/tube dies: 16mm, 19mm, 22mm, 25mm, 30mm, 38mm, 40mm, 50mm

Dies for square tubing included	16	19	22	25	30	38	40	50	mm
Square stainless steel tubing wall thickness	0.5	0.8	1	1	1.2	1.2	1.5	1.5	mm
Square mild steel tubing wall thickness	0.8	1	1.2	1.2	1.5	1.5	1.8	1.8	mm

*Bending pipe wall thickness range: 0.5mm-2mm

Product Description

1. For making quick work of large radius bends and doing complete circles.
2. Especially applicable to the production of steel greenhouse frame.
3. Capable of rolling bending thin-walled mild steel, stainless steel round & square tubes.
4. Manual adjustment of top roll .
5. Two driving rollers and one driven roller .
6. Is capable of rolling smaller tubes.
7. Toolings made of grey cast iron allows long service life.

Application

Mainly used in the construction and decoration industry, with curved stainless steel and other non-ferrous metal book wall tubes, square tubes, rectangular tubes. Bend it to any arc as needed.

Technical parameter

Name	DWJ-63 pipe bending machine
spindle diameter of axle	38mm*3
Loading power	1.5kw
Bending tube thickness	0.5-2mm
Bending Angle	180 degree
Electric power	220V/380V
Round molds	16, 19, 22,25, 32, 38, 51, 63 mm
Square molds	16, 19, 22, 25, 30,38, 40, 50 mm
Size	630*540*960mm



Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
