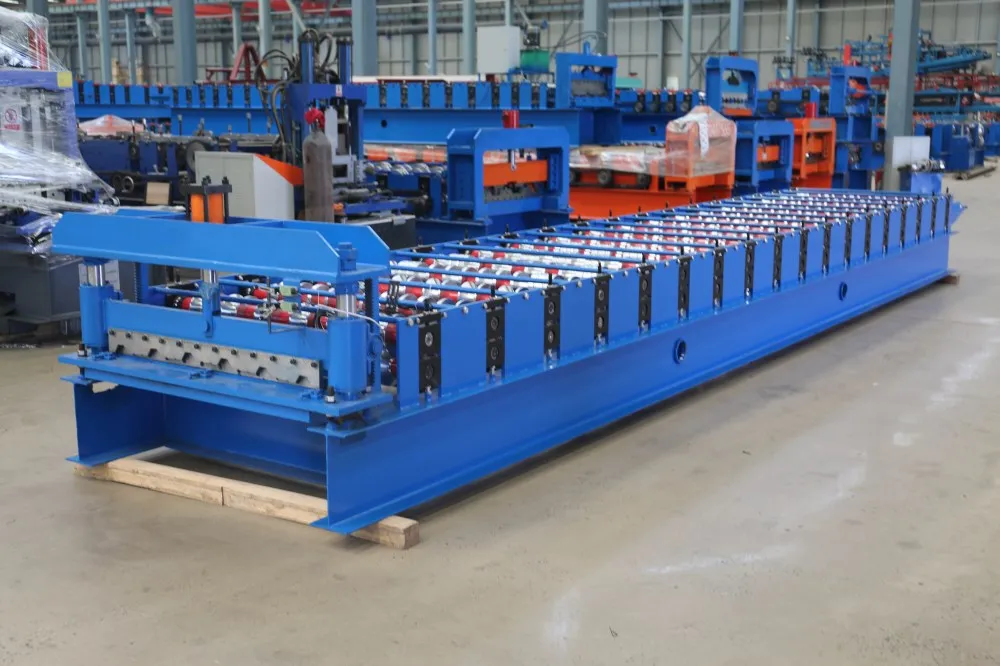

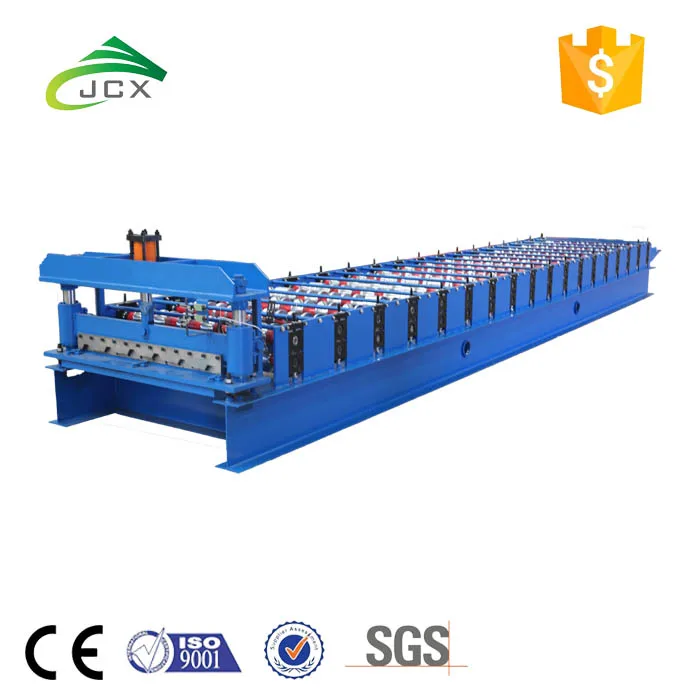

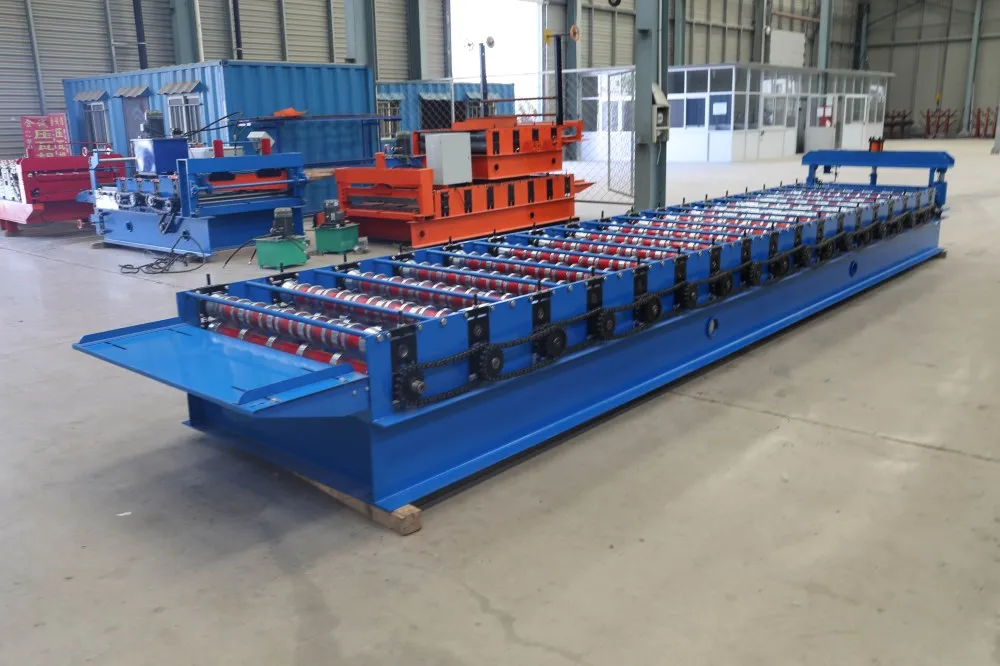

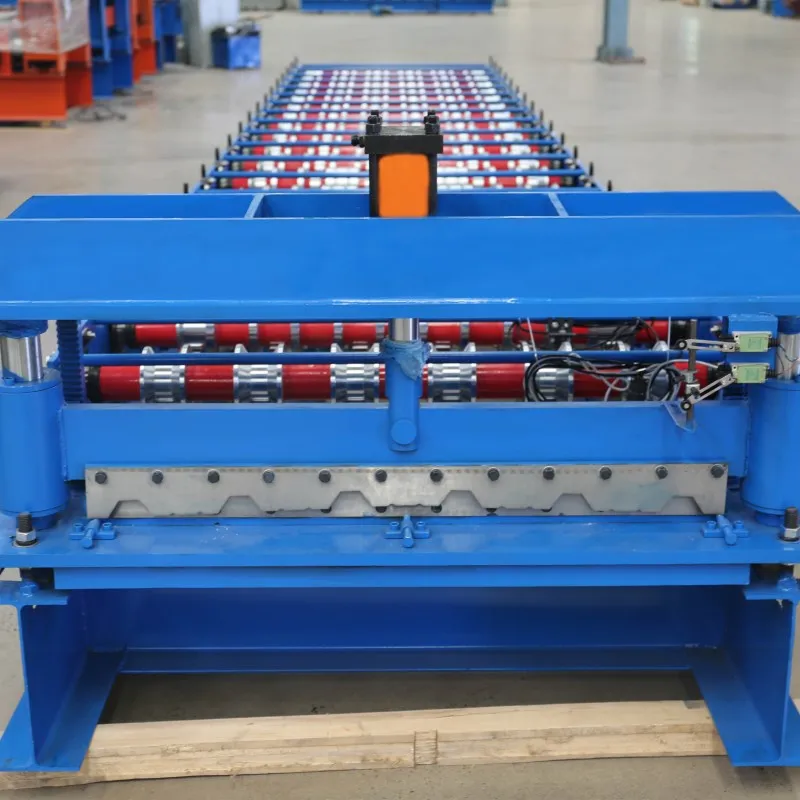

wall panel roof forming machine Weatherboard Sheet Cladding Forming Machine Manufacturers

We (botou golden Integrity roll forming machine factory ) ensure High precise and higher quality, solid material with best reasonable price !

1. Working Flow and Layout:

2.Technical parameters

1	Configurations	Decoiler,Guiding Platform,Main Machine of Roll Forming,Cutting Device, Output table, Electric Motor, Hydraulic Station,PLC Control System
2	Processing Material	Aluminium,PPGI, GI Sheet/Coil (Q235&Q550MPA)
3	Material Thickness	0.25---0.8mm
4	Feeding Width	1200mm
5	Effective Width	780mm
6	Number of Roller Station	16
7	Roller Material	45# steel with surface chrome 0.03-0.05mm, Hard chrome mirror polishing, heat treatment to 58-62℃,tooled by grinding machine for two times to ensure the precision of final product.
8	Shaft diameter	70mm, solid
9	Shaft Material	45# carbosn wrought steel, forged,tooled by grinding machine for two times to ensure the precision of final product.
10	Wall Panel	Thickness: 16mm
11	Main Motor Power	5.5kw+3Kw
12	Production Speed	12--15m/min
13	Control System	PLC computer control PLC brand: Panasonic from Japan
14	Cutter Material	Cr12mov with quenched treatment
15	Voltage	380V, 50Hz, 3 phrases or as required
