Ассоциацией по техническому надзору (TUV) Pv1-F 2Pgf 1169 фотогальванический кабель из меди 18Awg солнечных батарей Pv используется в номинальное напряжение постоянного
- Категория: >>>
- Поставщик: Shanghai,Jiukai,Wire,&,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.27 $* | 0.85 $* |
| Aug-18-2025 | 0.30 $* | 0.11 $* |
| Jul-18-2025 | 0.77 $* | 0.55 $* |
| Jun-18-2025 | 0.78 $* | 0.17 $* |
| May-18-2025 | 0.24 $* | 0.31 $* |
| Apr-18-2025 | 0.2 $* | 0.69 $* |
| Mar-18-2025 | 0.19 $* | 0.36 $* |
| Feb-18-2025 | 0.12 $* | 0.18 $* |
| Jan-18-2025 | 0.85 $* | 0.32 $* |
Характеристики
Specification

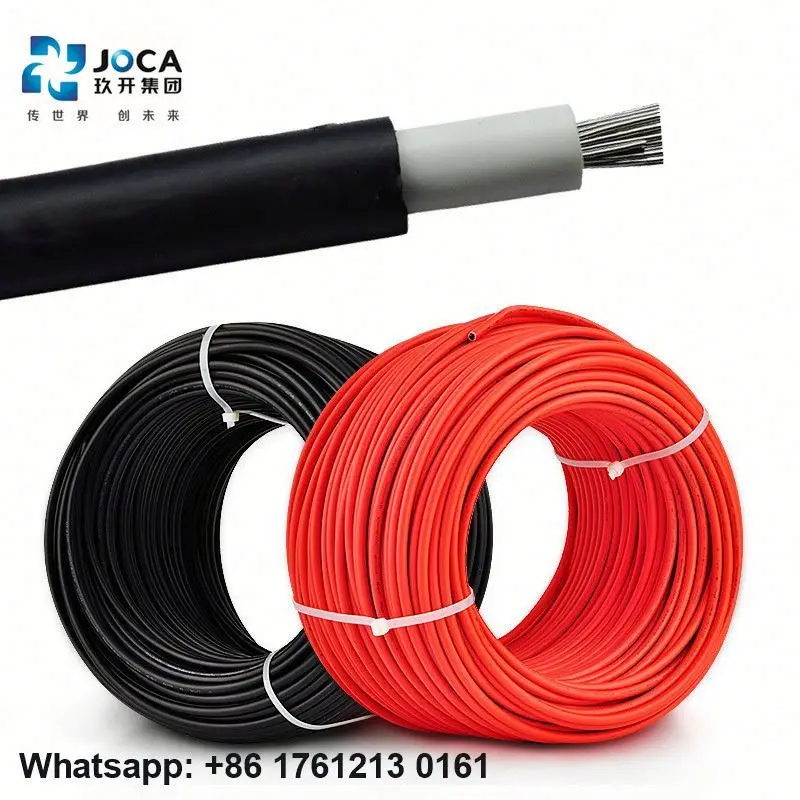

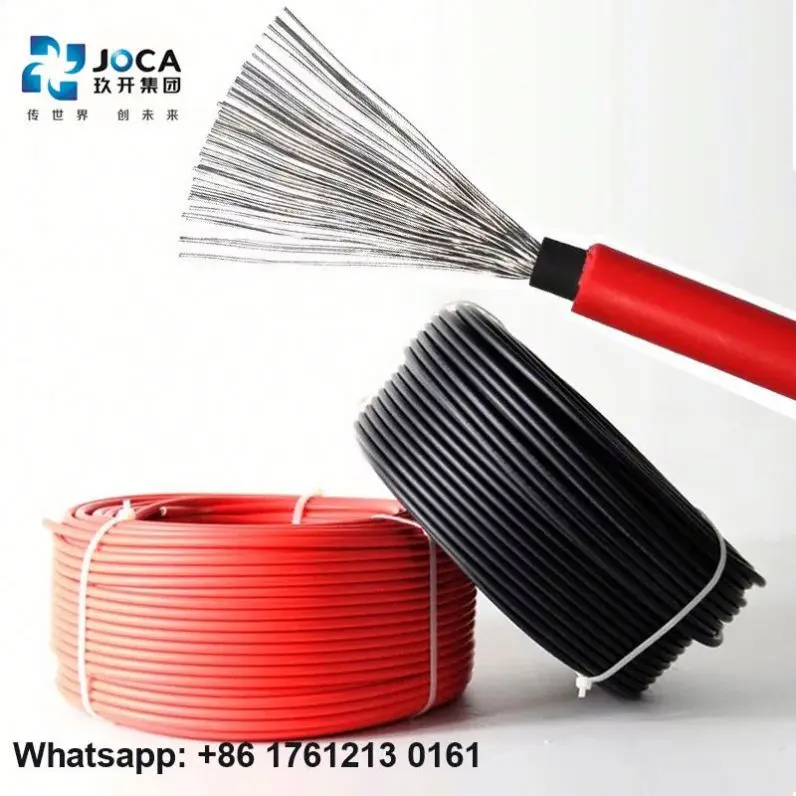

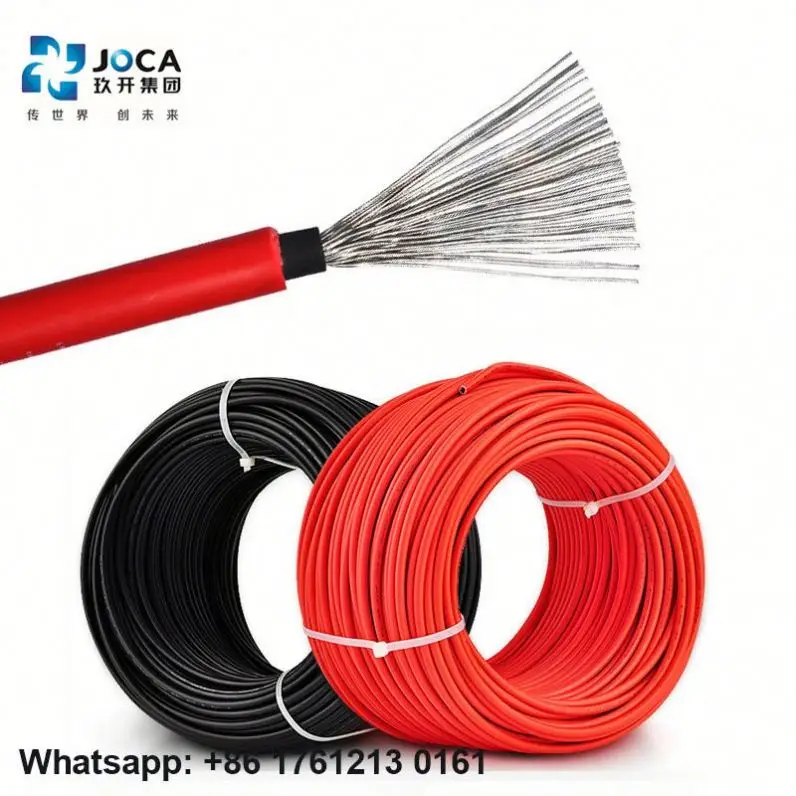

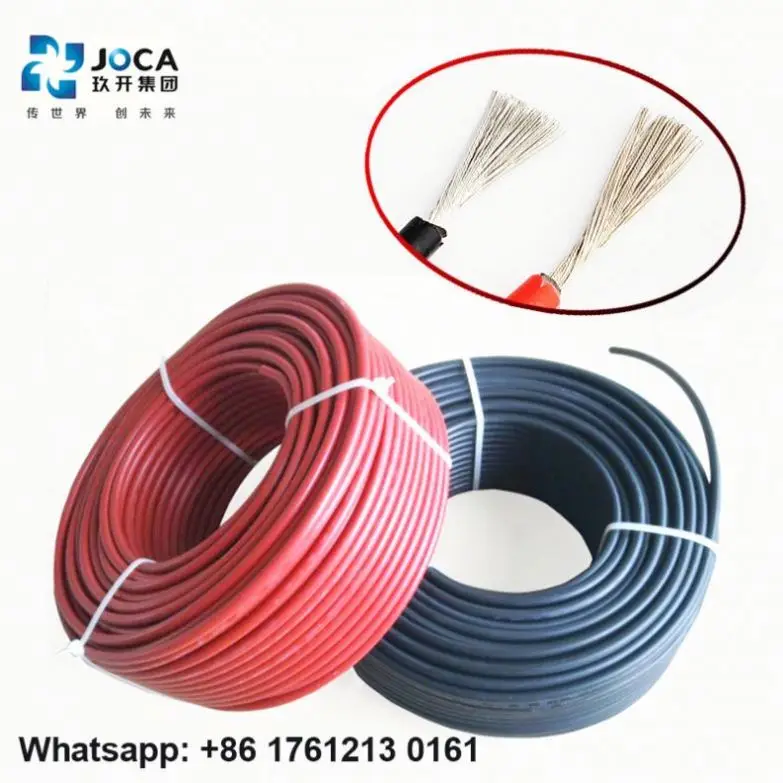

PRODUCT NAME: | TUV Pv1-F 2Pgf 1169 Photovoltaic Cable Copper 18Awg Pv Solar Cable Used In DC Rated Voltage | ||||
Features of Jiukai Solar Cable:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions.
Structure
CU/XLPO/XLPO
2.5mm/4mm/6mm/10mm
Color: Red/ Black
Packing in rolls
100m/roll
Company Information
About Jiukai Solar Cable:
1) History > Shanghai Jiukai Wire & Cable Co.,Ltd is a professional Manufacturer in producing Wires & Cables since 2005.
2) Company Strength > JOCA Holding Group consist of Jiukai Cable, Wuxi Qunxin Cable & Jiukai Communication 3 Companys.
Anual Turnover 3 Billions/ Year.
JOCA Cable Group (3 Factories)
3) Technical Strength > Full set of certificates of national or international professional testing organizations, such as CCC, TUV, ISO9001:2000, ROHS, CE.
25 Years Warranty.
4)Short Delivery Time > less than 15days and Mature Solar cable Production.
Related Hot items in our Company:
MC4 connector
Cable Assembly
Green/Yellow Earth Wie
Product Description
Product Description
1) Nominal voltage:U0/U=600/1000V AC,1000/1800V DC
2) Test voltage:6500V,50HZ,5min
3) Max. conductor temperature:-40℃ up to +125℃
4) Ambient temperature:-40℃up to +90℃
5) Max. Short circuit temperature:280℃
6) Bending radius: fixed installation>4×Φ Occasionally moved>5×Φ

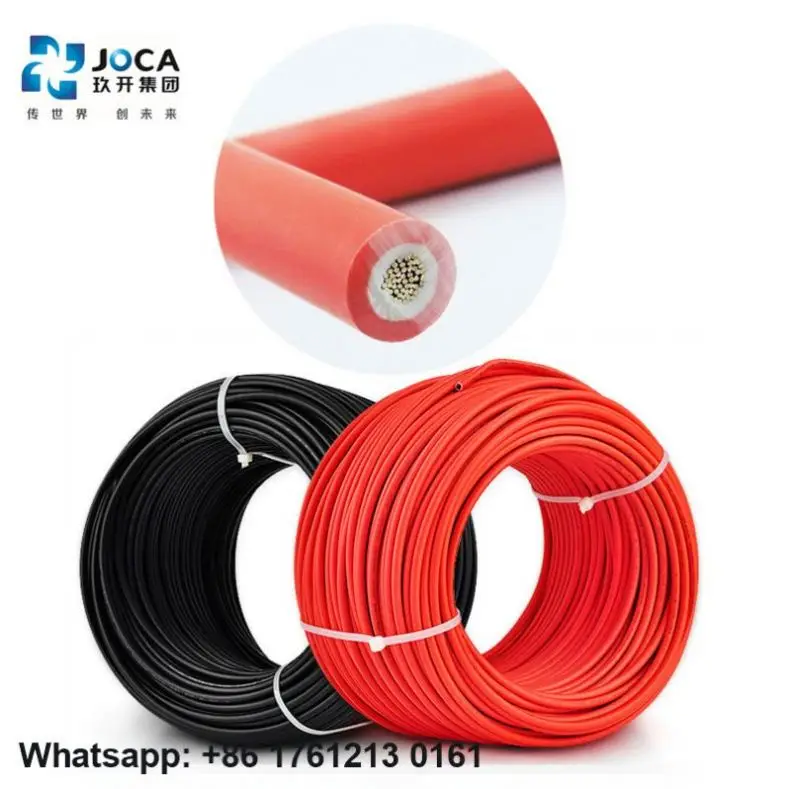

Product Structure

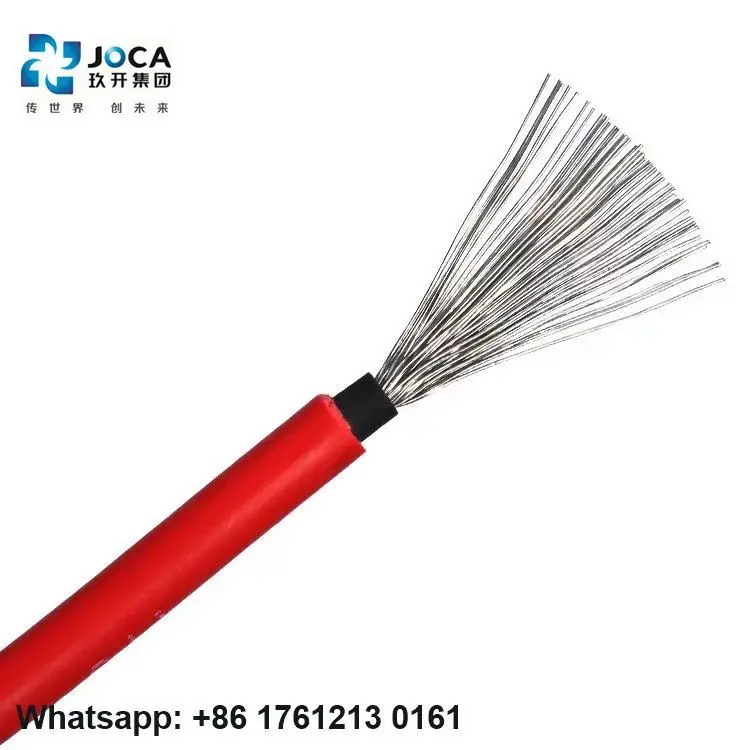

1. Conductor: Tinned copper.
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4. SQMM: 1.5mm2/ 2.5mm2/ 4mm2/ 6mm2/ 10mm2/ 16mm2/ 25mm2/ 35mm2/ 70mm2
Technical parameters
Nominal voltage:U0/U=600/1000V AC,1000/1800V DC
Passed TUV/ EN/ PSE Certificates
Packing Details
100meters or 200meters per roll.
100m/Plastic drum.
Wooden case outer packages. As customer's requirements.
Our Team
Certifications
Certificate
ISO 9001 Certificate
ROHS
TUV certificate
certificate
Business License
FAQ
Q1. Are you a factory or trading company?
A: We are a 13 years factory with more than 50 engineers.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 3-7 Days for order quantity more than 3KM.
Q3. Do you have any MOQ limit for led light order?
A: Better than 3KM.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Kindly let us know your requirements or application firstly then we can confirm orders by emails.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How does your factory do regarding quality control?
A: "Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained VDE, CE, RoHS, CCC,ISO,KEMA,TUV authentication.Похожие товары
