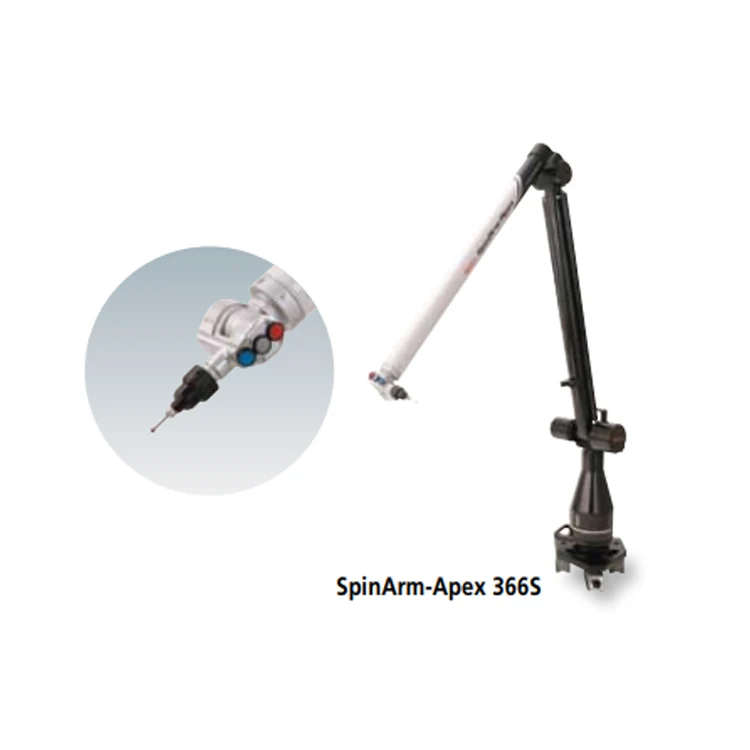

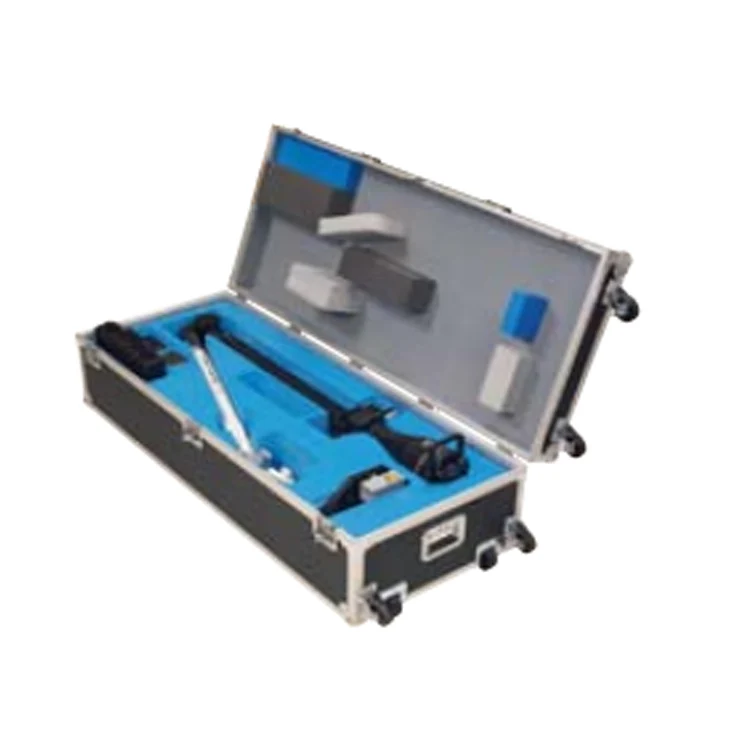

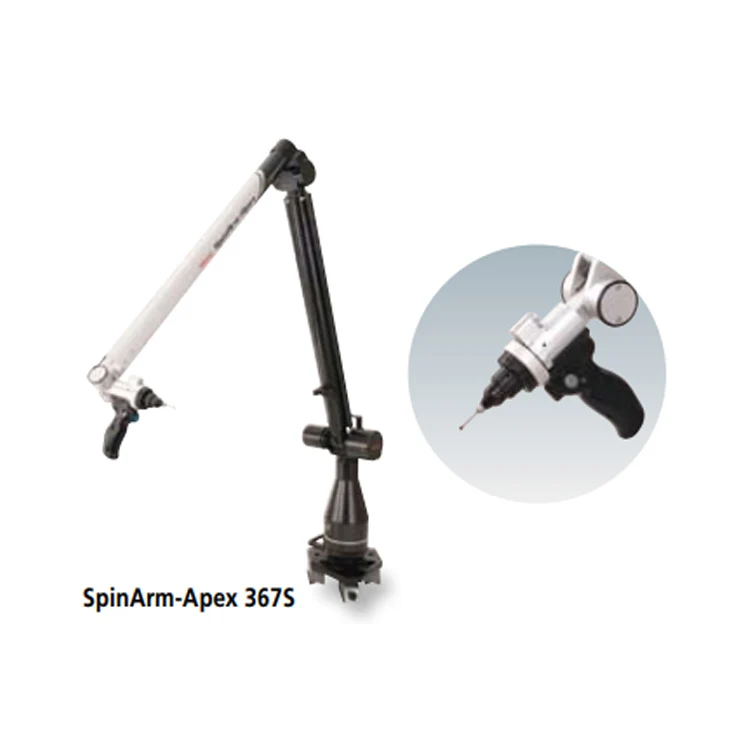

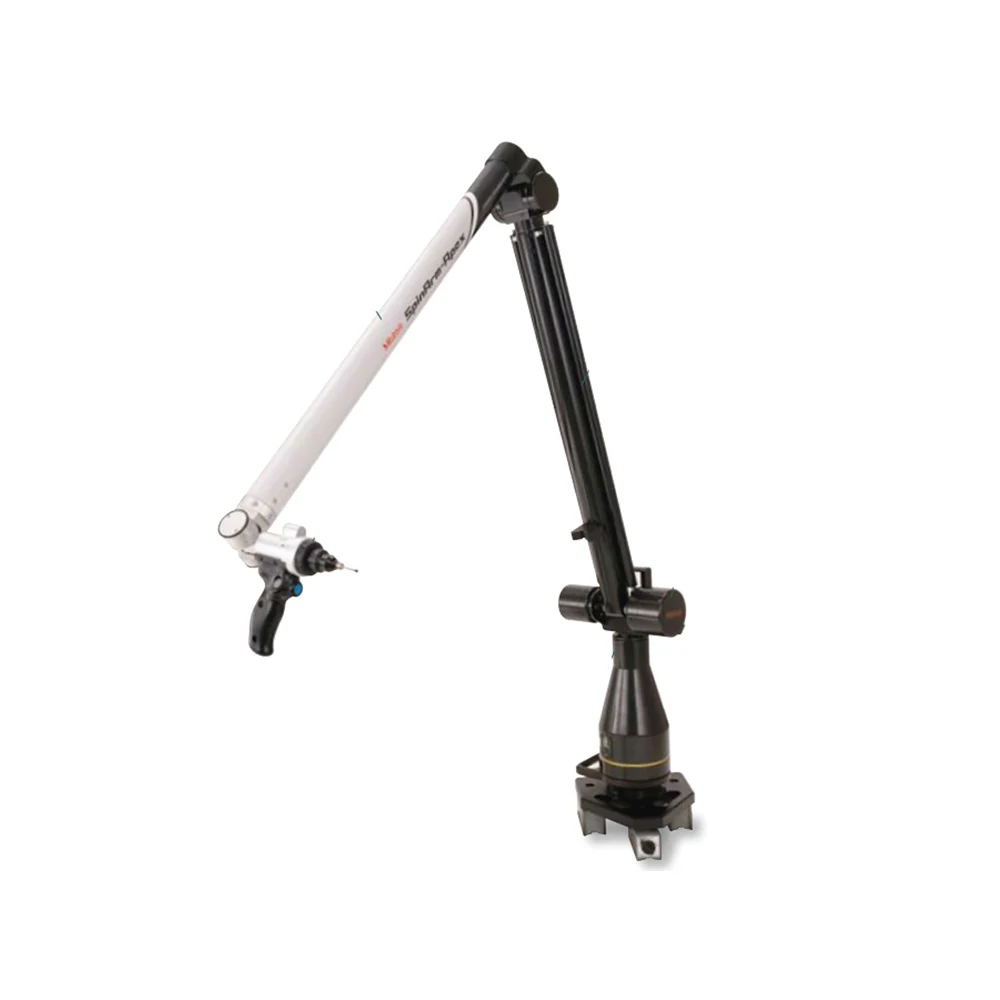

Advanced portable CMM Multi-axis Portable Coordinate Measuring System SpinArm-Apex Series CMM that has a large measuring space with a multiarticular structure Excellent in portability and can be carried up to the workpiece position For detailed information‚ leaflet is available on request
Advantage

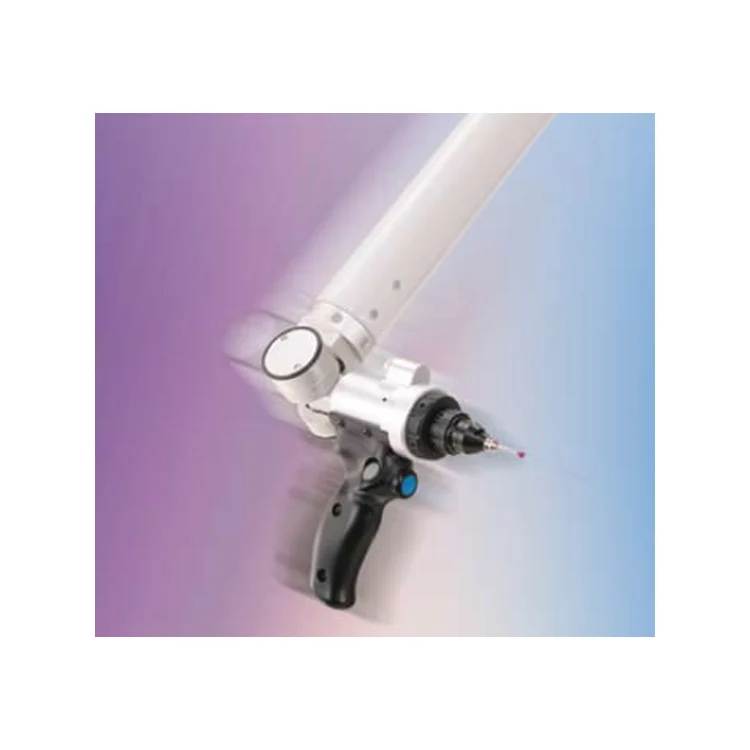

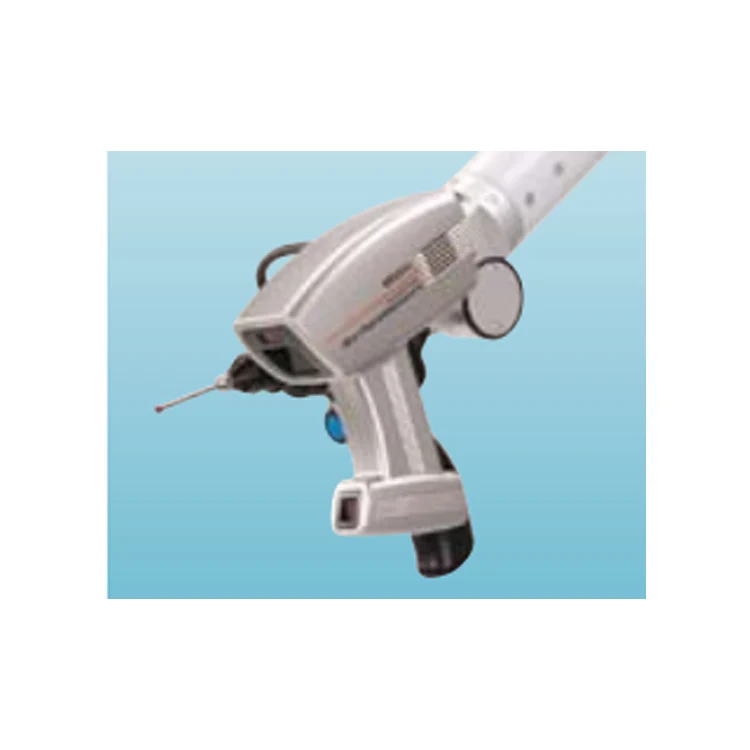

High Environmental Resistance Carbon fiber tube with optimized length-ratios design, allows for wide operating temperature range. The system can be used in any environment due to the temperature compensation function. Automatic Probe Recognition This function prevents a measurement error due to users selecting the wrong probe. The system automatically knows the type and parameters of each probe once connected. Counterbalancing System Nimble operation is achieved with symmetrical balance springs.Screw MountingMounting plate design enables quick setup thereby minimizing downtime. Optional Functions Many options such as wireless (WiFi) communication of measurement data and main unit batteries are provided for improvement in user-friendliness.
Features
About Jimk Nikko Kizai Original Carbide End Mill
A joint development by NIKKOKIZAI and Hitachi Tool!
Jimk Panacea is a heat-resistant coating that has excellent ability to stick to various materials. It is extremely hard (3000HV) and therefore is abrasion resistant. This all-purpose tool is effective with a wide range of materials, from carbon steel (soft steel) to hardened steel (under 52HRC).
Jimk ATH is newly developed coating maintains the current wear and tear resistant qualities while providing improved lubricity through the use of nano-crystalline grains. This can be used on a wide range of materials, from prehardened steel (harder than 40HRC) to hardened steel. For use with copper, aluminum, and resin machining.
SD(DLC) coating ball end mill that shines in seven colors.
SD(DLC) long neck ball end mill that shines in seven colors.
Jimk NK Carbide End Mill is Low-cost, high performance, from mold cutting to parts cutting Material: nonferrous, resin, aluminum, copper, steel up to HRC 50
Jimk Nikko original endmill are certified that these are extremely precise in the domestic market.
About Cutting Tools
Our main itmes, cutting tools, we supply Japanese famous brands like Mitsubishi Hitachi Tool, OSG and many manny Japanese brands.. We have particular blades and coatings that are suitable for metal patterns, mild steel, hardened metals, copper, and aluminum. We provide a lineup of two bladed, four bladed, ball, and ribbed ball cutters, various sizes and items available. High precision and high quality with good price cutting tools here. Carbide End Mill, HSS End Mill, Drill, Tap, Reamer, Insert and other cutting tools available.
About Toolings
We have some Japanese famous maker's toolings, hydraulic chuk, shrink chuk, collet chuk and other tool holders. High accuracy and low cost, speedy measuring operation, suitable for your machining processes.
Hydraulic Chuck It is suitable for machining processes that require high runout accuracy, for burnishing drills/reamers, ball end mills, diamond reamers and grinding tools.
Shrink Chuck Slim design avoids interference with the side wall and draft of the mold.
Collet Chuck High precision collet, nut and body that outperforms standard ER systems. Reliable and stable runout accuracy will also tremendously contribute to improving machining capability and cost reduction. The ERC collet with the best runout accuracy in the world.
About Measuring Equipments
We have many Japanese famous maker's measring instruments. High accuracy and low cost, speedy measuring operation, suitable for your machining processes.
Three-dimensional measuring instruments High accuracy and low cost
Digital venire calipers Further smooth slider surface, waterprof, solar powered, various types here
Micrometer For variable measuring force, speedy measuring operation
Height gauges Universal type, universal type to square column, standard type
About High Precision Machine
We have some Japanese famous maker's high precision machine, Full Digital Control Die-sinking EDM - Aitronix AX1601 Broken Tap Remover EDM - JIGTEC TAPTOR D and High precision Digital Microscope - HiROX and other working machines. High accuracy and low cost, speedy operation, suitable for your machining processes. Easy operation and High efficiency available.
About other products
We have particular parts and other products that are suitable for mold and mold parts. Many kinds of consumption goods available like chemical products, Polishing and deburring items also available.
Our Suppliers
Company Introduction
NIKKOKIZAI INC. was established in 1974. Since then, NIKKOKIZAI has been dedicatedly selling cutting tools and parts, polishing tools, jigs, and measuring instruments in compliance with the needs of die manufacturers.
In response the recent needs of low-price dies, NIKKOKIZAI has been making efforts toward the development of tools improving the efficiency of production and offering them at reasonable prices.
It is NIKKOKIZAI's motto to work with mold manufacturers continuously.
Our Motto "Together with Mold Maker"
To increase accuracy
To reduct costs
Work efficiency
The act of prolonging rool's life
The shortening of work hours
To make people enrich through our brand power with tradition and innovation A Pride creating together.
We realize 960 companies full of wealth and reflect them together!
