Walk-behind Power Trowel/power float/helicopter/trowel machine

Product instruction

Application:WaWalk behind Power Trowel

The concrete power trowel is easily operated and ideally suited for floating and finishing the concrete surfaces of large areas. These units help produce high-tolerance concrete floors.

This power trowel can be widely used to warehouses, parking lots, squares, airports and buildings of concrete frame surface, smooth, trowel.  It’s the best choice for concrete construction.Walk Features:

1). HONDA engine, excellent performance, easy to start-up.

2). Max module transmission, aluminum alloy box, long serving life.
3). Blade arm support, and strictly heat-treated structural steel, which is sturdy and durable.
4). Centrifugal clutch driving mechanism, which has the advantages of large transmission torsion torque and long serving life, no maintenance.

 Technology Parameter

SPECIFICATIONS FOR POWER TROWEL MACHINE
Engine	LH60	LH90	LH100
ENGINE BRAND	HONDA GX160,LONCIN GF20,ECT
PATED POWER	5.5-6.5HP	5.5-6.5HP	5.5-6.5hp
PAN DIAMETER	580mm	880mm	980mm
PAN THICKNESS	2.3mm	2.5mm	3.0mm
WORKING WIDTH	600mm	900mm	1000mm
BLADE QUANTITY	4PCS	4PCS	4PCS
BLADE SIZE	350*150mm	350*150mm	350*150mm
BLADE THICKNESS	1.5mm	1.6mm	1.8mm
GROSS WEIGHT	80KGS	90KGS	110KGS
PACKAGE SIZE	67*67*35mm	100*100*35mm	102*102*35mm

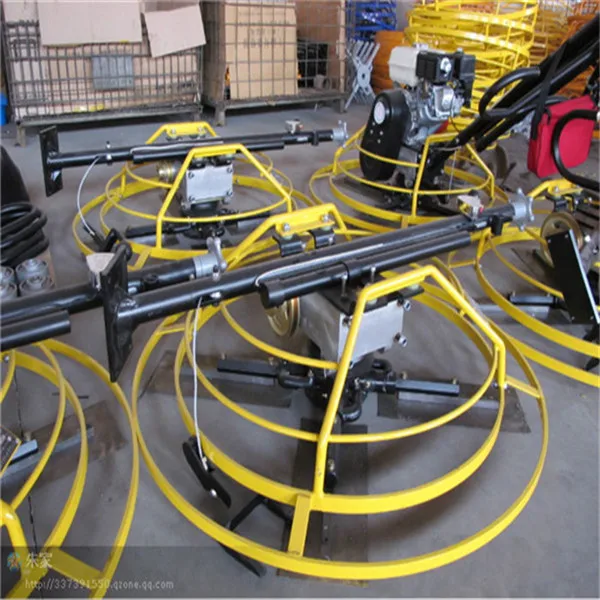

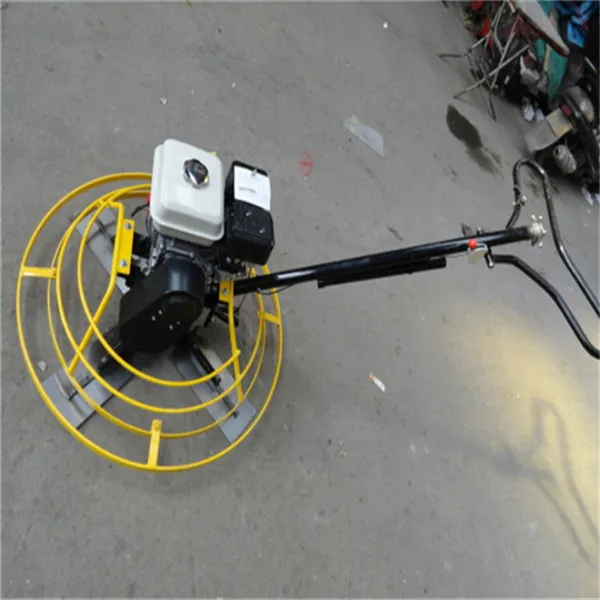

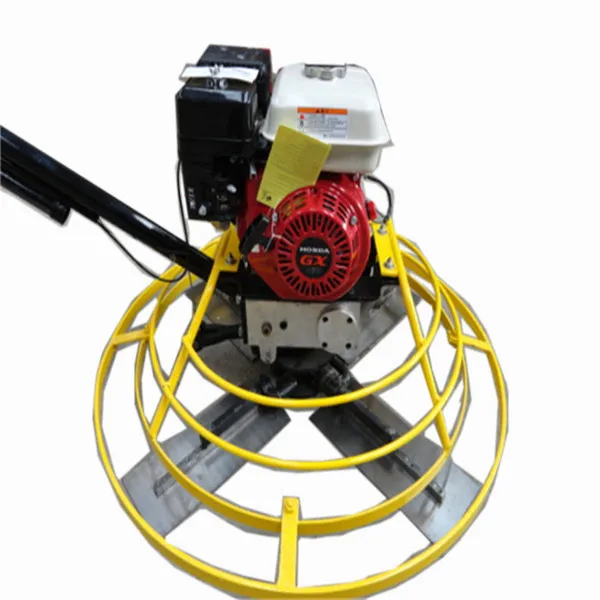

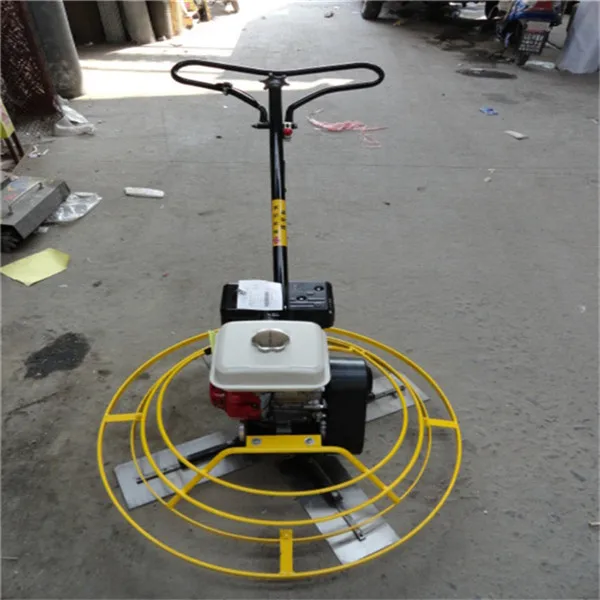

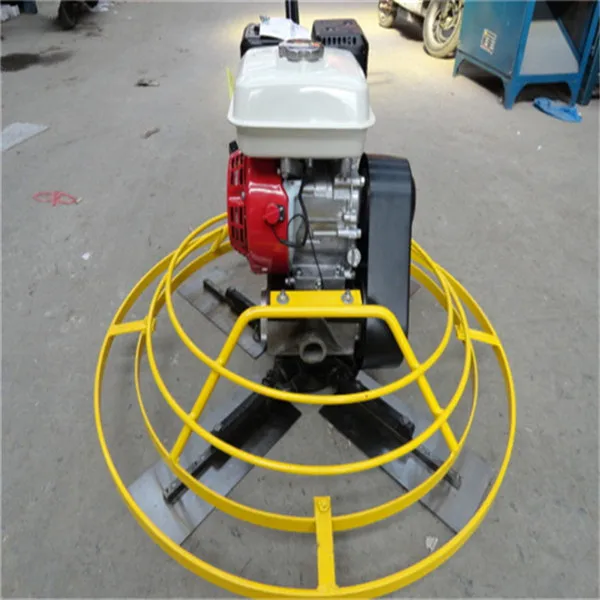

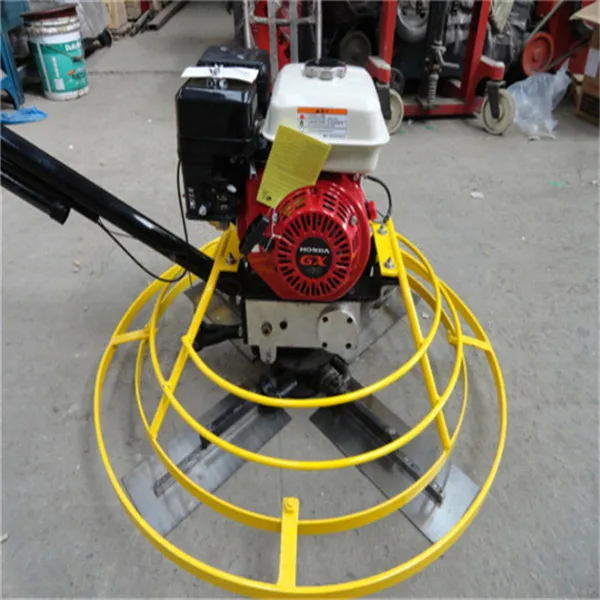

 Product Real Photos
