19 дюймов 24/48 порты щит Патч-панель
- Категория: Патч-панель >>>
- Поставщик: Shenzhen,Z-Crown,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 55.34 $* | 58.15 $* |
| Aug-19-2025 | 54.33 $* | 57.37 $* |
| Jul-19-2025 | 46.58 $* | 48.50 $* |
| Jun-19-2025 | 53.97 $* | 56.36 $* |
| May-19-2025 | 46.42 $* | 48.26 $* |
| Apr-19-2025 | 52.3 $* | 55.31 $* |
| Mar-19-2025 | 52.54 $* | 55.18 $* |
| Feb-19-2025 | 52.57 $* | 55.75 $* |
| Jan-19-2025 | 51.36 $* | 54.6 $* |
Характеристики

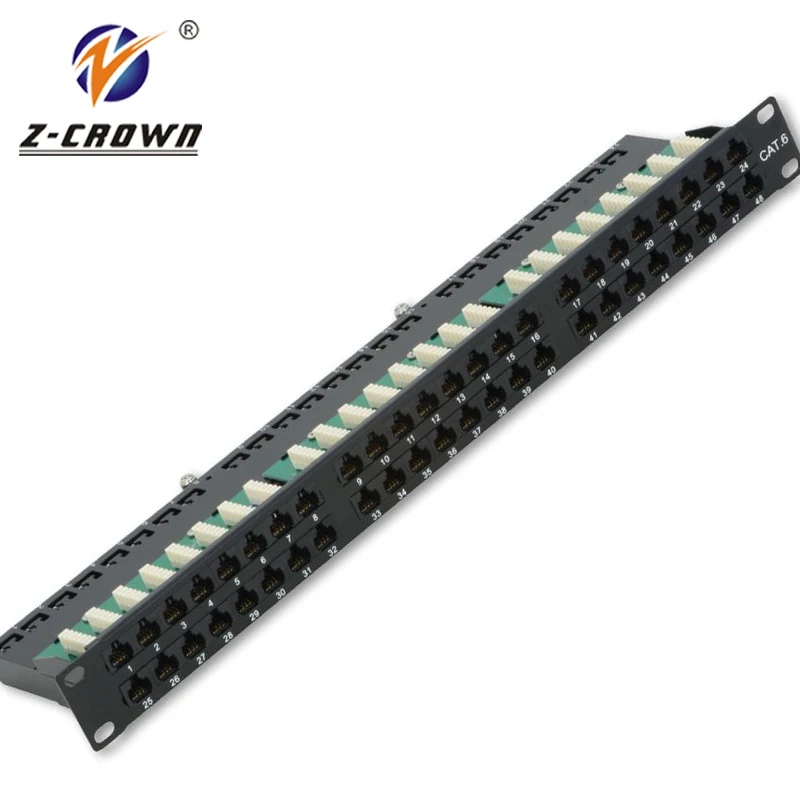

19inch 24/48 ports shield patch panel cat6a
-Space saving high-density
-Fire self-extinguish high impact plastic
-For 19inch rack
-ISO CCC RoHS
Product Description
Features and advantages of cat6a 24 /48 ports patch panel:
Design to mount to any standard 19" rack or cabinet
24 -port Cat 6 unshielded Patch panel
Space saving, high-density 1U
Black Electrostatic Powder-Coated Steel: phosphor bronze with tin
plating over nickel . Meet or exceed the requirement of ANSI /TIA/EIA
568B.2Use keystone jacks and keystone inserts to configure your panel to
accommodate a variety of schemesSturdy Aluminum Plate around RJ 45 Jacks
Phosphor bronze with 6-50 micro inches gold plated
Available with T568 A. T568 B wiring pattern and meeting the
requirement of Cat 6 standardColor Coded TIA/EIA 568A (international) and 568B (AT&T Standard)
Wiring For Easy InstallationTermination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires
Metal sheet: Corrosion resistant steel
Plastic: fire self -extinguish high impact plastic
Electronic | Voltage Rating :125 VAC RMS |
Current Rating : 1.5AMP | |
Contact Resistance:110 Milliohs MAX. | |
Insulation Resistance:1 000 megohms MIN 500 VDC | |
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | |
Environment | Storge: -40~ 85°c |
Operation: 0~70°c | |
Mechanical | Housing Material: PBT-UL90V-0 |
Panel Fram: Carbon Steel, Powder Coating in black color | |
Contact Material: PC-UL90V-0 | |
Contact: Phosphor Bronze with Nickel Plating | |
RJ45 Jack:IFE:750 times MIN. | |
IDC Life :200 times MIN. | |
Wire: AWG 24-26 | |
Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB | |
Retentiveness of insertion structure:50N 60±5s |
Part number | Description | standard color | Inner box | Carton | Carton measurement | Carton weight |
PN24-C6 | 24-port Cat6 unshielded patch panels (RJ45) | Black | 1PCS5 | 10PCS | L 53.5cm× W 31.3cm × H 23.4cm | 17KG |
Hot Sell Cables
You may like or need :
If need , you also can ask us for more details ,welcome to order .
More details
Share more details woth you as follows:
Introduction Factory
large footprint , professional workers and technology
Certifications
Show the Certifications to you , you can salfely make orders with us
FAQ Solution
Provide our answer to solve your questions :
Contact us
Give you our card ,easier to connect :
