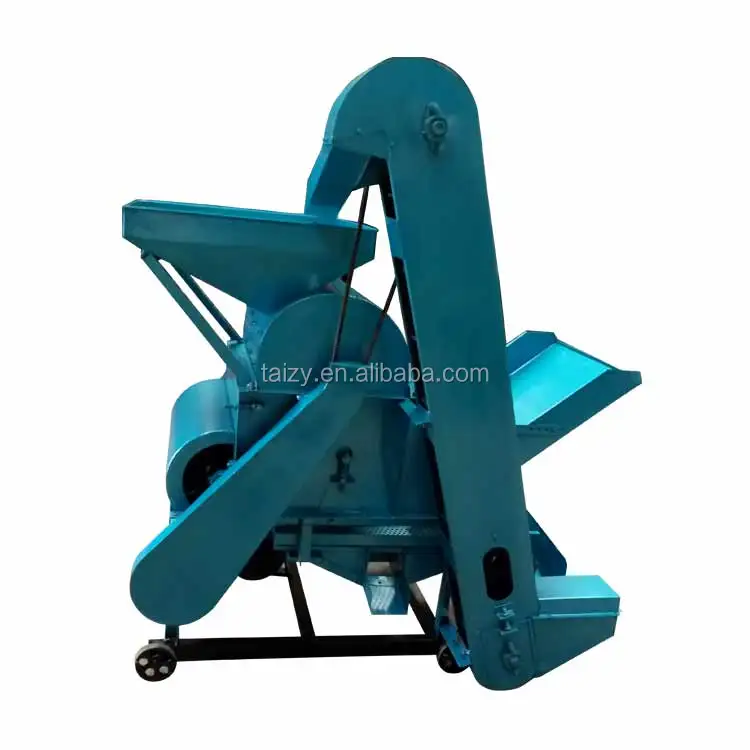

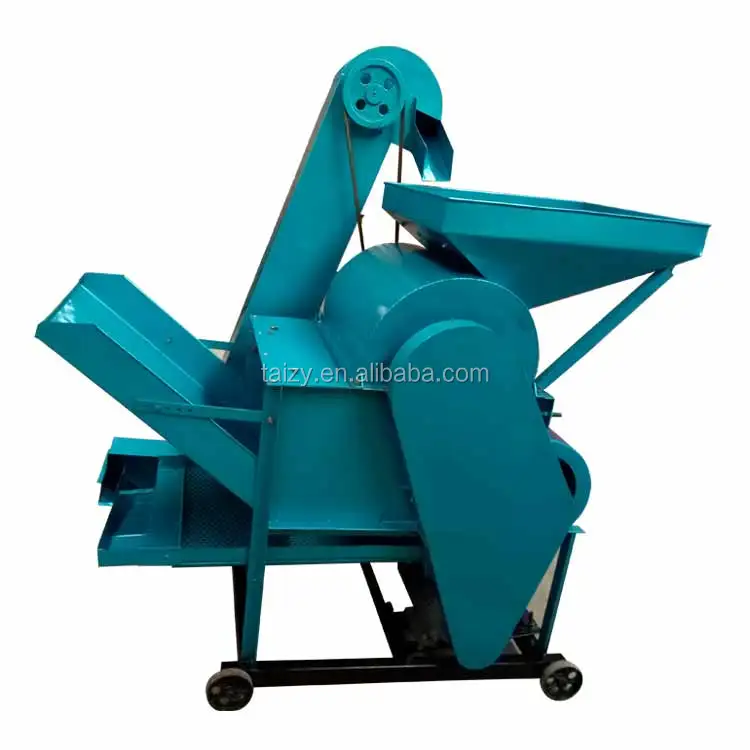

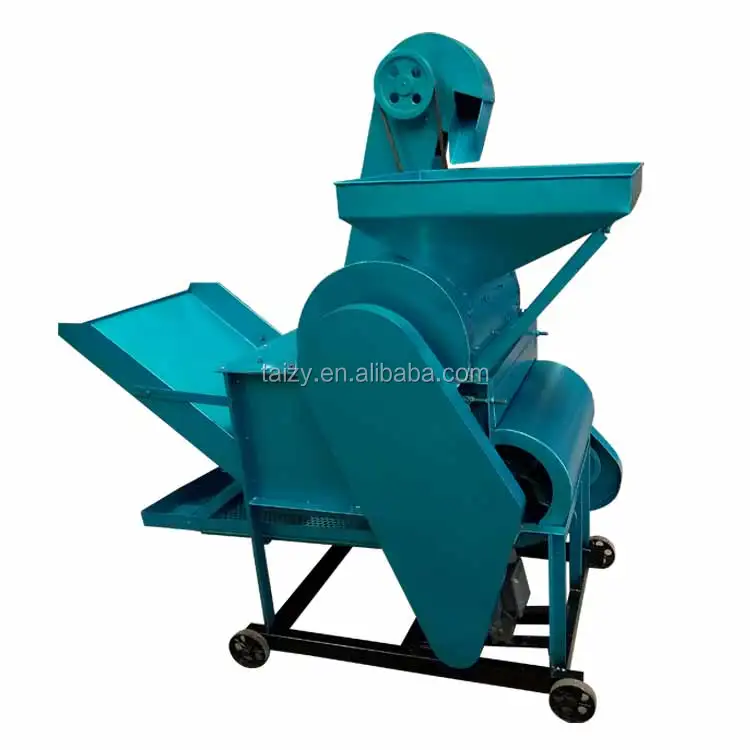

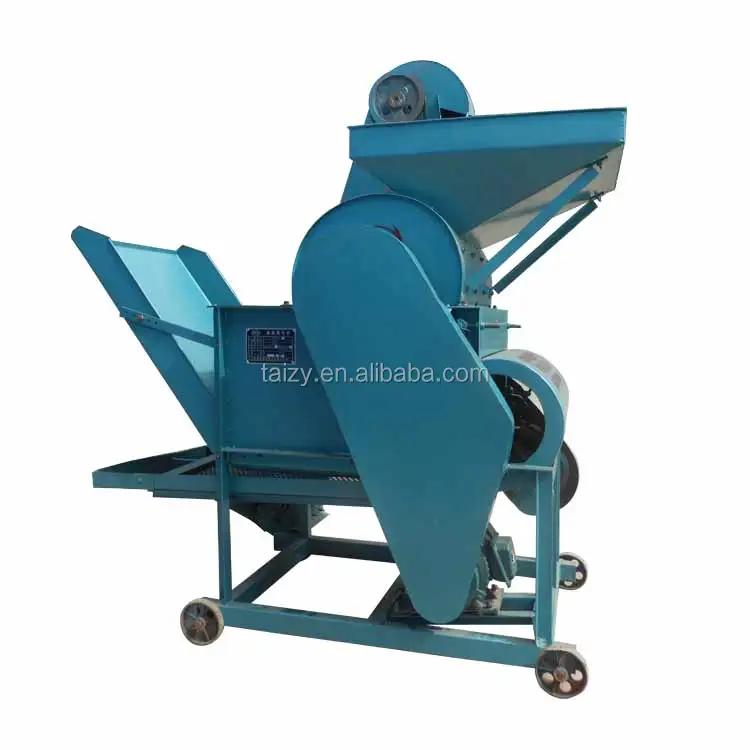

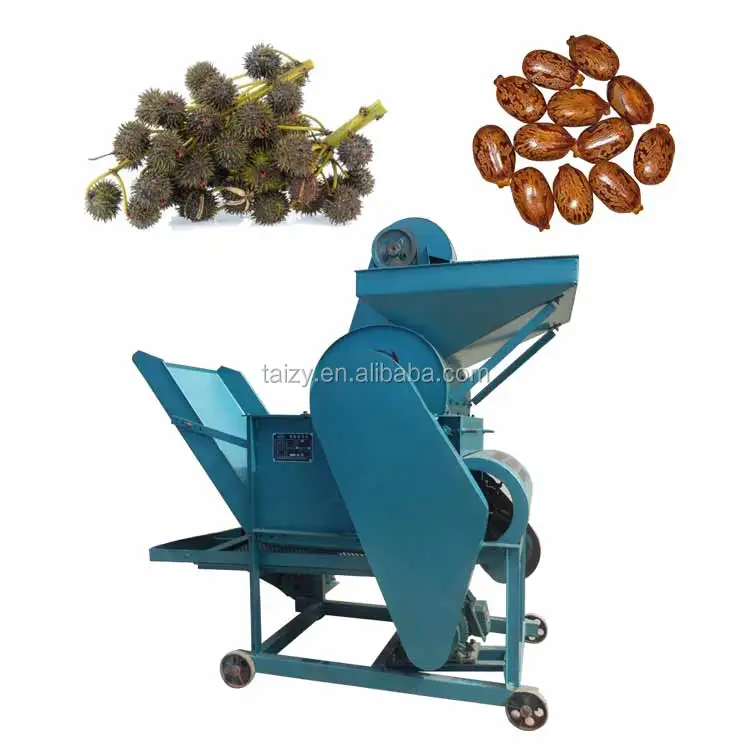

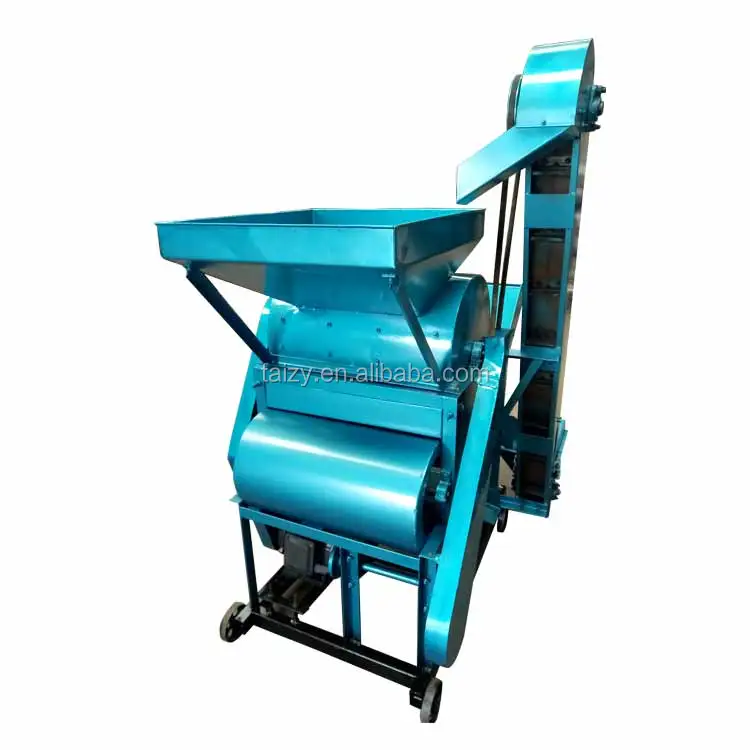

Big capacity castor seed shell removal machine seeds peeler with elevator

Working principle of castor seed shell removal machine seeds peeler:

1,castor seed shell removal machine seeds peeler for sale warehouse rack fixed installation, through the threshing warehouse of spindle bearing connection on the rack, threshing warehouse are installed on the lining set teeth;
2, the main shaft within the threshing warehouse is installed on a threshing roller, are installed on threshing roller teeth, on the threshing warehouse have feeding mouth and slag notch, the main shaft is installed in one side of the eccentric, eccentric swinging rod connected by the vibrating screen;
3, vibrating screen is positioned below the discharging mouth of the threshing warehouse bottom, the spindle at the other end of the spindle driven wheel, through the interface and the drive shaft connected to the power input, the spindle driven wheel connected with fan driven wheel, fan, fan driven wheel to drive the fan blowing port at the discharging port and the vibrating screen.

Feature of castor seed shell removal machine seeds peeler:

1.castor seed shell removal machine seeds peeler for sale is the front machine of castor oil production.

2.castor seed shell removal machine seeds peeler Can remove the impurity of in the castor,shell and separate

3. Not hulled grain can be automatically returned to the sheller for shell again,Greatly improve the degree of automation

4.low energy consumption, compact structure, small footprint, seed kernel loss of small, high degree of automation, easy operation and maintenance etc

Parameter of castor seed shell removal machine seeds peeler:

Model	SL-220A	SL-600	SL-700	SL-1000
power	2.2KW	4kw or 10hp diesel engine	5.5kw or 12hp engine	7.5kw or 15hp diesel engine
Capacity	250-350kg/h	1000kg/h	1200kg/h	1800-2000kg/h
Peeling rate	Above 95%	Above 95%	Above 95%	Above 95%
Break rate	Below 3%	Below 3%	Below 3%	Below 3%
Machine size	1.5*0.5*1.2m	2.1*1.0*1.5m	1.7*1.1*1.8m	Machine size2.6*0.45*0.45m Conveyor size:2.0*1.7*1.8m
Weight	130kg	350kg	400kg	450kg
