Маленький пылесборник циклонного типа фильтрующий

Маленький пылесборник циклонного типа фильтрующий

Категория: Dust Collector >>>
Поставщик: Shandong,DOM,Machinery,Equipment,Co.,Limited

Цена:320,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	381.46 $*	400.77 $*
Aug-19-2025	378.38 $*	397.56 $*
Jul-19-2025	317.87 $*	333.73 $*
Jun-19-2025	371.40 $*	390.68 $*
May-19-2025	323.84 $*	339.88 $*
Apr-19-2025	365.7 $*	383.50 $*
Mar-19-2025	362.61 $*	380.56 $*
Feb-19-2025	358.52 $*	376.10 $*
Jan-19-2025	355.81 $*	373.12 $*

Характеристики

small cyclone dust collector bag type dust collector filter cartridge dust collector

Technical Parameters

Product model	SV-V2	SV-J1
Filtration area	22 m2	22 m2
Wind capacity	1500m3/h	1500m3/h
Filtration efficiency	99.9%
Noise	less 85dB	less 75dB
Cleaning method	Vibration cleaning intermittent working way	Pulse air-jet cleaning continuous working
Compressed air	no	4-6 bar
Control panel power	380V/50Hz	220V/50Hz
Structure	Stainless steel
Connecting way	Flange connection

Type

Two type dust collcetor

Air-jet type: SV-J1

Vibrating type is used on top silo. Dust separated from the air flow by filter elements and drops back into the silo after vibration.

Parameter

Model	Filtration Are	The Maximum Air volume	Filtration Efficiency	Cleaning System	System Commection Mode	weight
SV-V2	22 m2	1500m3/h	99.90%	Vibrated	Flange Connection	110kg

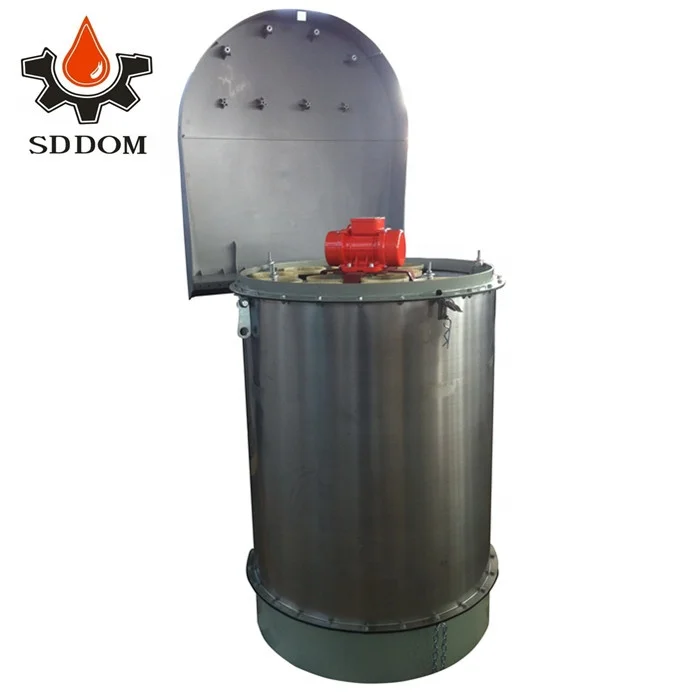

Vibrating type: SV-V2

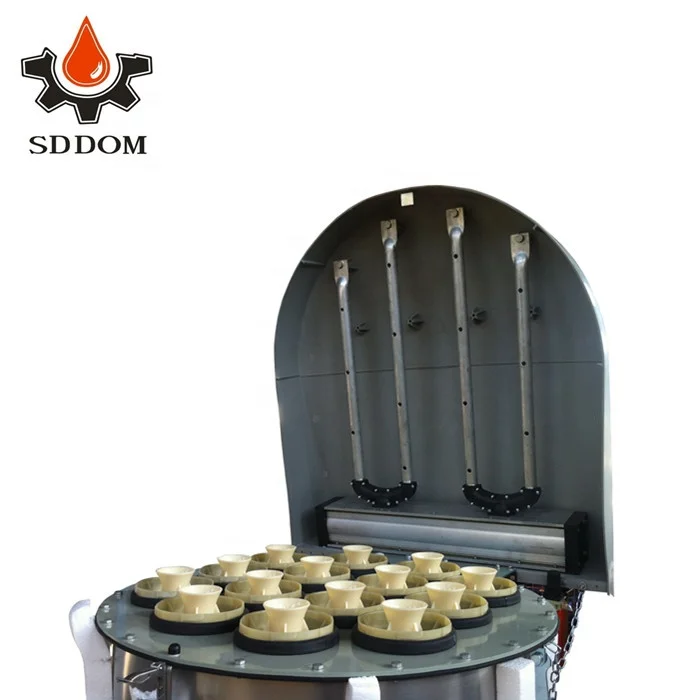

Dust separated from the air flow by filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.

parameter

Model	Filtration Are	The Maximum Air volume	Filtration Efficiency	Cleaning System	System Commection Mode	weight
SV-J2	22 m2	1500m3/h	99.90%	Pulse air-jet cleaning	Flange Connection	110kg
