Хорошее качество 12nm близко контур 2-фазный шаговый мотор для станков с чпу свасм
- Категория: Двигатели >>>
- Поставщик: Shenzhen,Xinlichuan,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.91 $* | 0.91 $* |
| Aug-18-2025 | 0.8 $* | 0.88 $* |
| Jul-18-2025 | 0.87 $* | 0.64 $* |
| Jun-18-2025 | 0.48 $* | 0.90 $* |
| May-18-2025 | 0.70 $* | 0.87 $* |
| Apr-18-2025 | 0.61 $* | 0.18 $* |
| Mar-18-2025 | 0.72 $* | 0.17 $* |
| Feb-18-2025 | 0.28 $* | 0.49 $* |
| Jan-18-2025 | 0.78 $* | 0.43 $* |
Характеристики
good quality 12nm Close loop 2 phase stepper motor for cnc machine neam 34
Product Description

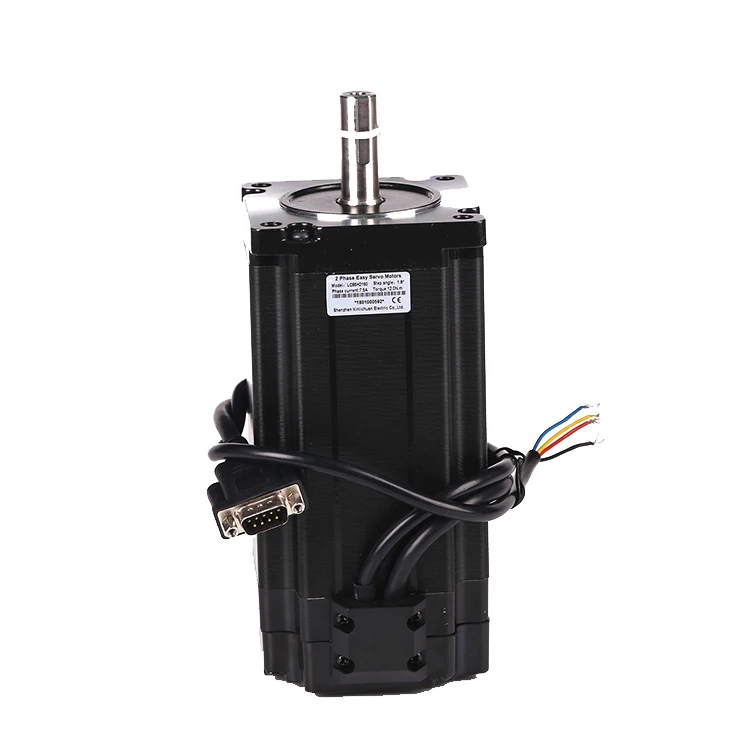

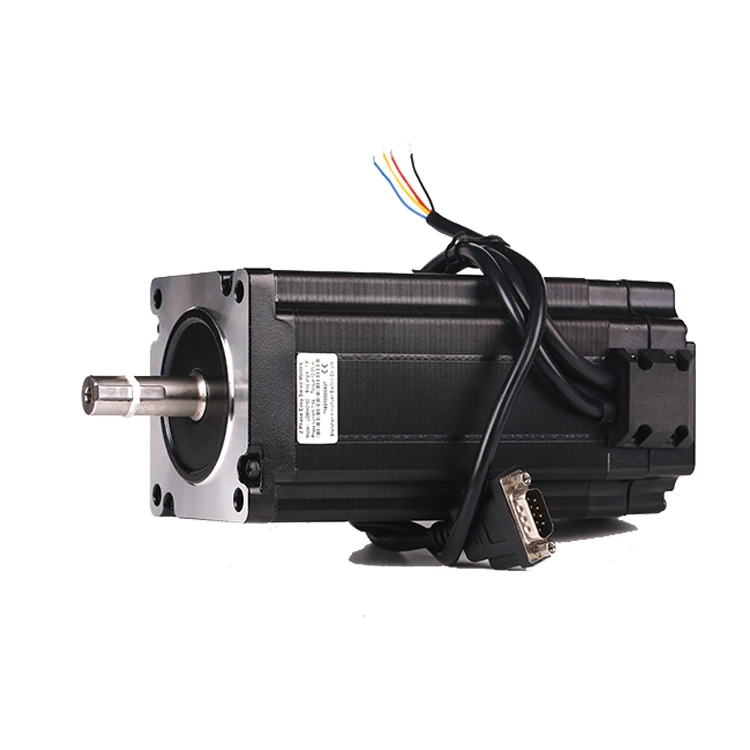

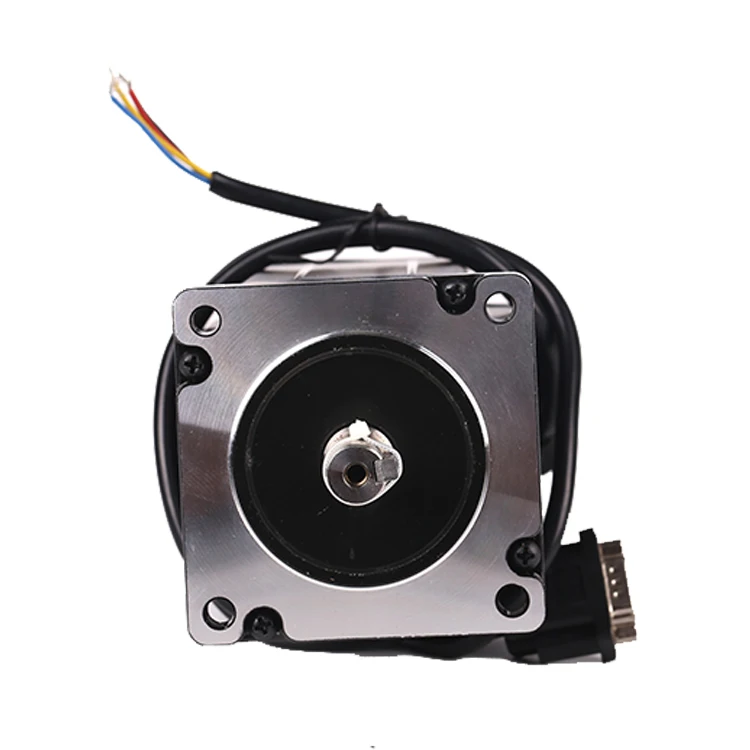

Product Name: 86 Nema34 closed loop hybrid motor
Two-phase 86 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper stepping machine problems, while significantly enhance the motor high-speed performance ,To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 82mm ~ 178mm between the torque range: 3N.m ~ 12N.m, motor shaft diameter 14mm.
Motor model | Step/angle | Length | Holding torque | Current | Rotor inertia | Encoder line | Lead wire | Weight |
° | mm | N.M | A | g.cm2 | PPR | NO. | Kg | |
1.8 | 60+22 | 3 | 6 | 1100 | 1000 | 4 | 2.0 | |
1.8 | 68+22 | 3.5 | 6 | 1400 | 1000 | 4 | 2.2 | |
1.8 | 80+22 | 4.5 | 6 | 1800 | 1000 | 4 | 2.5 | |
1.8 | 98+22 | 6.5 | 6 | 2800 | 1000 | 4 | 3.3 | |
1.8 | 120+22 | 8.2 | 6 | 3600 | 1000 | 4 | 4.0 | |
1.8 | 130+22 | 10 | 7.5 | 4200 | 1000 | 4 | 4.5 | |
1.8 | 156+22 | 12 | 7.5 | 5400 | 1000 | 4 | 5.4 |
Notes: The above is only for representative products, We can according to customer requirements to remake.
Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice
More products
Company Information
Voice from customers
FAQ
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems in time.
8. What are payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept
Click here for more information
