30ton HSZ-C ручной цепной блок ручные цепные тали

Категория: Цепная таль >>>
Поставщик: Dalian,Shuhui,Mechanical,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.49 $*	0.29 $*
Aug-16-2025	0.77 $*	0.26 $*
Jul-16-2025	0.67 $*	0.98 $*
Jun-16-2025	0.65 $*	0.50 $*
May-16-2025	0.16 $*	0.52 $*
Apr-16-2025	0.6 $*	0.68 $*
Mar-16-2025	0.1 $*	0.25 $*
Feb-16-2025	0.85 $*	0.44 $*
Jan-16-2025	0.38 $*	0.44 $*

Характеристики

Product Description

Specification parameters:

Model		HSZ-C0.5	HSZ-C1	HSZ-C1.5	HSZ-C2	HSZ-C3	HSZ-C5	HSZ-C10	HSZ-C20	HSZ-C30	HSZ-C50
Capacity(t)		0.5	1	1.5	2	3	5	10	20	30	50
Standard Lift(m)		2.5	2.5	2.5	3	3	3	3	3	3	3
Test Load(KN)		7.5	15	22.5	30	45	62.5	125	250	375	625
Chain to liftfull load/effort required N(kg)		200(20.5)	320(32.5)	360(36.5)	365(37)	385(39)	435(44.3)	435(44.3)	435x2(44.3x2)	435x2(44.3x2)	435x2(44.3x2)
Load chain diameter(mm)Xchain number		6.0x1	6.0x1	8.0x1	8.0x1	8.0x2	10.0x2	10.0x4	10.0x8	10.0x12	10.0x22
MAIN DIMENSION(MM )	A	131	140	161	161	161	186	207	215	350	406
	B	127	158	187	187	210	253	398	650	680	962
	C	270	317	399	414	465	636	798	890	1380	2578
	D	35	40	45	50	58	64	85	110	110	170
	K	30	34	38	41	48	52	64	85	85	130
Net weight(kg)		8.4	11	16.2	18.5	25.6	42.8	79.5	193	220	1092
packing size(cm)		22x15x19.5	23x18x19.5	28x21x24	28x21x24	32x21x26	40x21x26	50x21x21	64x38x64	72x50x68	110x100x130
Extra weight per meter of extra lift(kg)		1.7	1.7	2.3	2.3	3.7	5.6	9.7	19.4	26.4	48.4

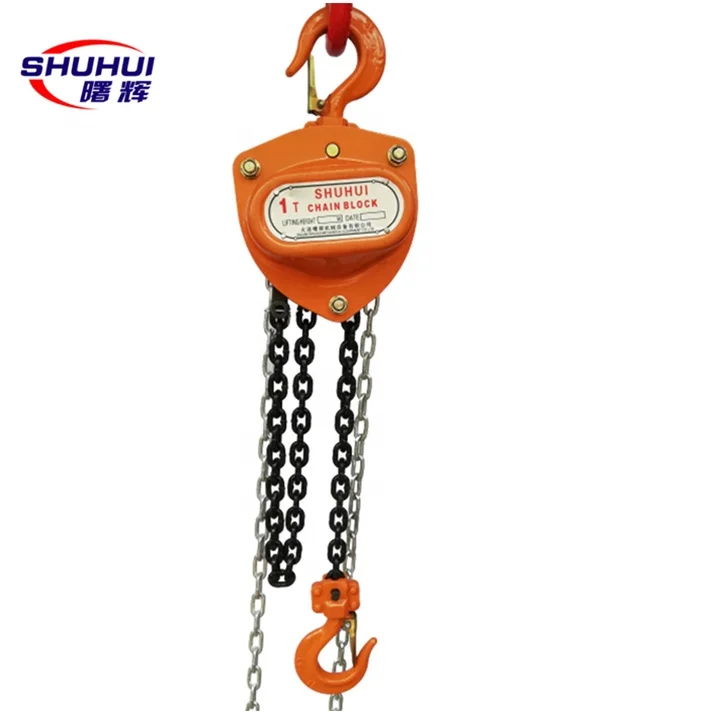

HSZ-C type manual hand chain block chain hoist 0.5ton to 50 ton manufacturer direct

Description Of Chain Block:

Chain Block is suitable for small equipment and goods of short distance lifting, lifting weight is generally not more than 50T. The material of the hand gourd is high quality alloy steel, strong wear resistance, high safety performance.
The HSZ series chain block is a portable lifting device easily operated by hand chain, it is applicable for use in factory, mines, farms, construction sites, wharves, docks and warehouses for installation of equipment, as well as for loading and unloading goods. It is have special advantage for lifting work in open air grounds and places where no electric power supply is available.
The chain block can be attached to a trolley of any type as traveling chain block. It is suitable to monorail overhead conveying system, hand traveling crane and jib cranes.

Features Of Hand Chain Hoist:
1.Super small size, light weight and easy to carry
2.Material in low alloy steel plate, safe and durable
3.With G80 high strength lifting chain
4.Steady rotation, light hand pulling force
5.Double pawl
6.With CE approved
7.The overhead device is available

Remark: special customized products are available
