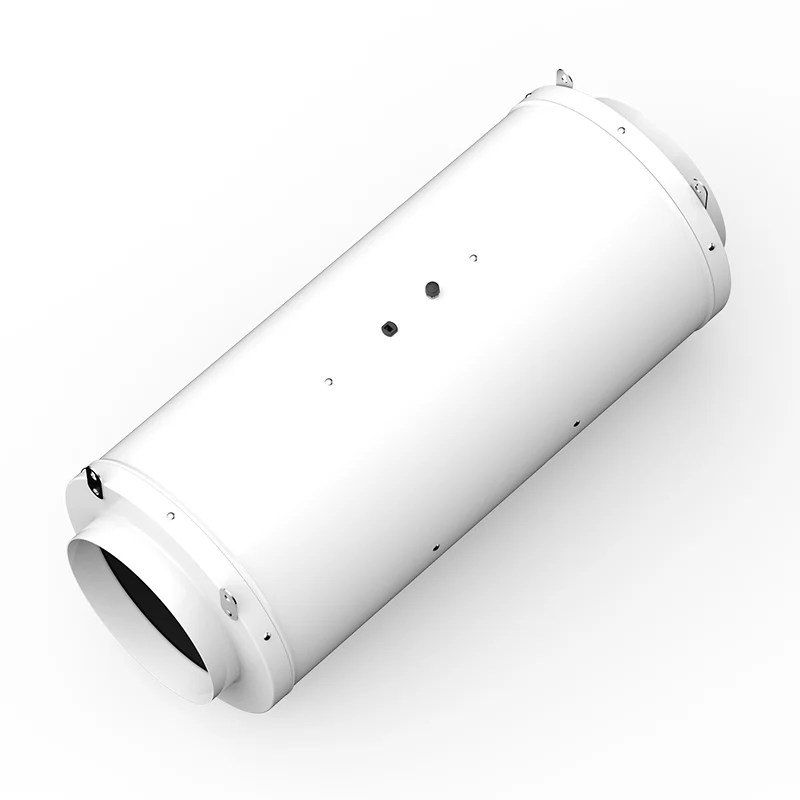

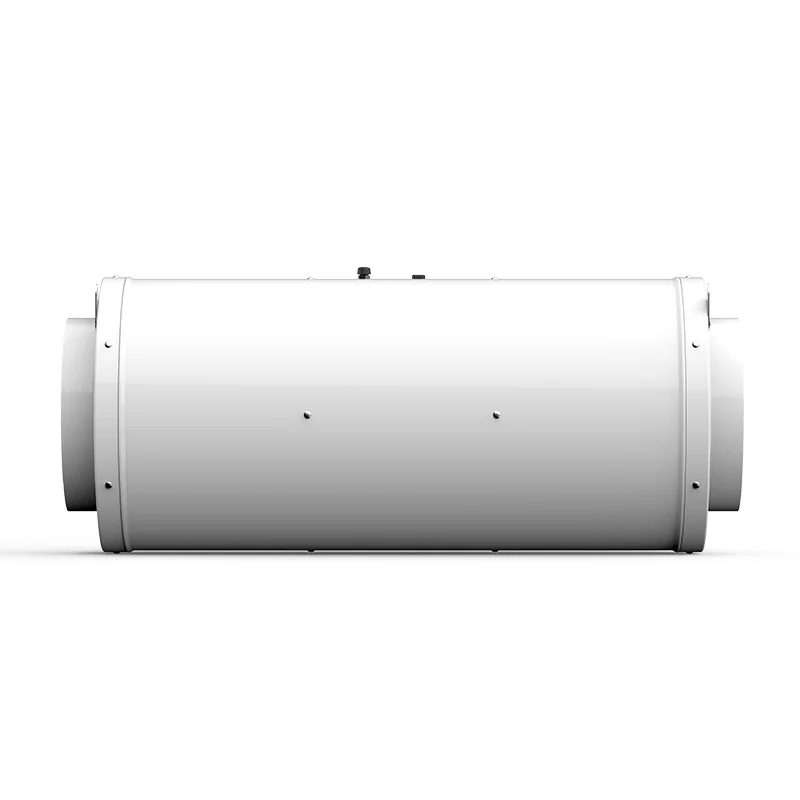

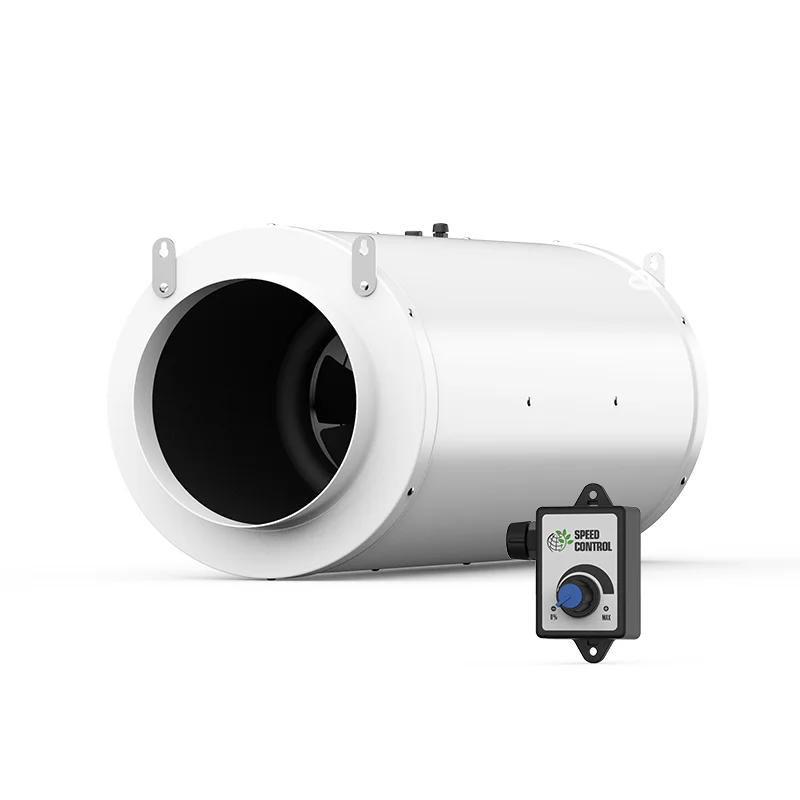

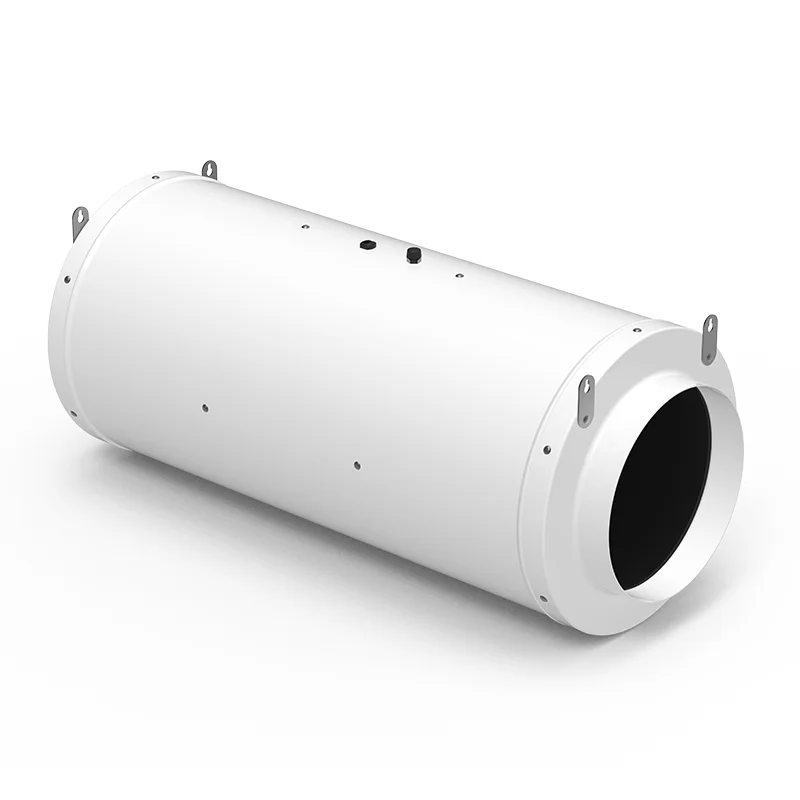

6/8/10 дюймов 200 мм 250 бесшумный встроенный воздуховод с встроенным контроллером переменной скорости для
- Категория: Осевые вентиляторы >>>
- Поставщик: Shenzhen,Shengshida,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 151.59 $* | 154.37 $* |
| Jul-17-2025 | 123.61 $* | 125.88 $* |
| Jun-17-2025 | 149.3 $* | 152.18 $* |
| May-17-2025 | 148.73 $* | 151.11 $* |
| Apr-17-2025 | 118.29 $* | 120.28 $* |
| Mar-17-2025 | 145.74 $* | 148.29 $* |
| Feb-17-2025 | 144.34 $* | 147.70 $* |
| Jan-17-2025 | 143.48 $* | 146.46 $* |
Характеристики
Product Description
Specifications
Model | SE-A150J | SE-A200J | SE-A250J |
Dimension | 547mm(L)X243mm(H) | 699mm(L)X307mm(H) | 859mm(L)X353mm(H) |
Duct Size | 6 inch / 150mm | 8 inch / 200mm | 10 inch / 250mm |
Rated Voltage | 110V-240V AC | 110V-240V AC | 110V-240V AC |
Max.Power C. | 40 W | 75 W | 150 W |
Frenquency | 50 Hz / 60 Hz | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
Max. Speed | 5000 RPM | 3800 RPM | 3200 RPM |
Max. Airflow | 350CFM / 594M³H | 710CFM / 1205M³H | 1065CFM / 1808M³H |
Static Pressure | 51mmH²O / 500Pa | 53mmH²O / 520Pa | 52mmH²O / 510Pa |
Noise Level | 50dBA | 51dBA | 55dBA |
Housing Material | Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel |
Impeller Design | Mixed Flow | Mixed Flow | Mixed Flow |
Motor Type | EC Motor | EC Motor | EC Motor |
IP Rating | IPX4 | IPX4 | IPX4 |
Related Products
Our Company
About SENSDAR
SENSDAR established in 1999 as a manufacturer of ventilation fan. Until now , factory cover more than 10,000 square meter .
SENSDAR well managed under ISO09001 certified in 2012 and built to meet the high quality standard of UL / ETL / OCC & CE.
SENSDAR has been dedicated to the development and manufacturing of all kinds of industrial fans and supplying to a diverse national and international OEM/ODM client base, empowering green ventilation systems around the globe.
Certification
Packing & Delivery
Packing Details : 1pcs/carton, also support customerized packing.
Delivery Details : about 20 days after received the payments
Applications
Residential & Commercial & Industry
SENSDAR manufactures an extensive range of ventilation products, beginning with our industry first EC mixed flow fan to a wide range of industrial fans. Our products are second to none in quality, reliability and length of service life and can be installed in a variety of applications, especially popular in the residential, commercial and industrial locations, such as the following places:
Residential Garages, Bathroom , Hydroponics , Hotel, Hot pot restaurant, Factory, Gym Center & Sports Hall, Public Smoking Sites, Changing Room, Toilet & Public Washing Room, Commercial & Industrial Buiding, Convertion Center & Enclosed Room
FAQ
Q: How to ship the goods ?
A: DHL, UPS, Fedex, EMS, By Air, By Sea, customer forwarder are acceptable
Q: What's the term of payment ?
A: T/T , L / C , Wester Union, Paypal, MoneyGram, Escrow etc are negotiable
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need extra and do not pay the cost of freight.
Q: How to control our products' quality?How to control our products' quality?
A: We are ISO9001:2008 certificated manufacturer.All products will go through five checks in the whole process.
--Raw Material Inspection
--Plastic Injection Inspection
--Motor production Inspection
--Assembling Line Inspection
--AQL Sampling
Q: What can I do if we can not find the suitable fan model in the fan list? And we'd like to print our LOGO, can you make it?
A: Please contact us and we are welcome for customized fans , We can provide OEM service which including logo printing, gift box design and carton design.
