4000 Вт 60 Гц 50 промышленный инвертор мощности для домашнего использования преобразователь частоты
- Категория: Inverters & Converters >>>
- Поставщик: Shenzhen,Ingotta,Trading,Co.,Ltd.,[Guangdong,China]Shenzhen
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 32148.29 $* | 32791.71 $* |
| Jul-19-2025 | 26072.0 $* | 26593.52 $* |
| Jun-19-2025 | 31641.84 $* | 32274.58 $* |
| May-19-2025 | 31388.85 $* | 32016.6 $* |
| Apr-19-2025 | 25060.36 $* | 25561.79 $* |
| Mar-19-2025 | 30882.99 $* | 31500.34 $* |
| Feb-19-2025 | 30629.76 $* | 31242.92 $* |
| Jan-19-2025 | 30376.21 $* | 30984.97 $* |
Характеристики

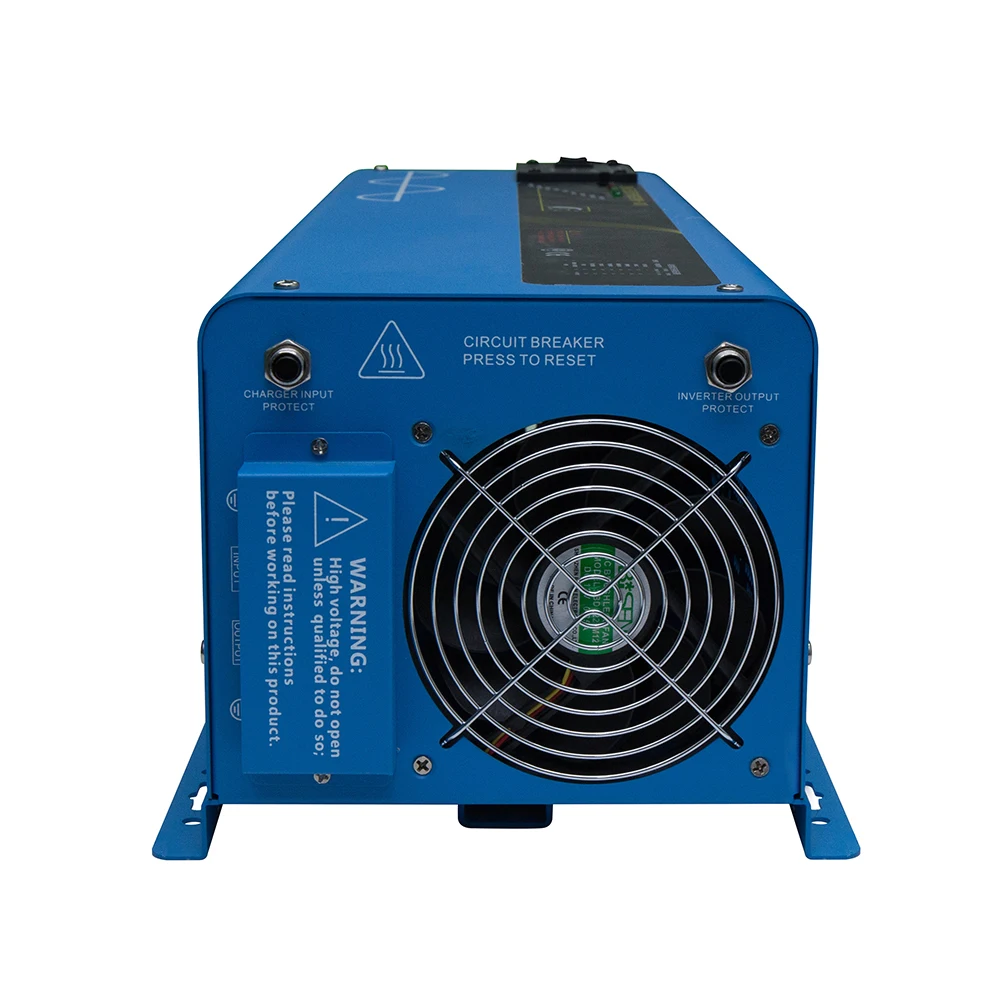

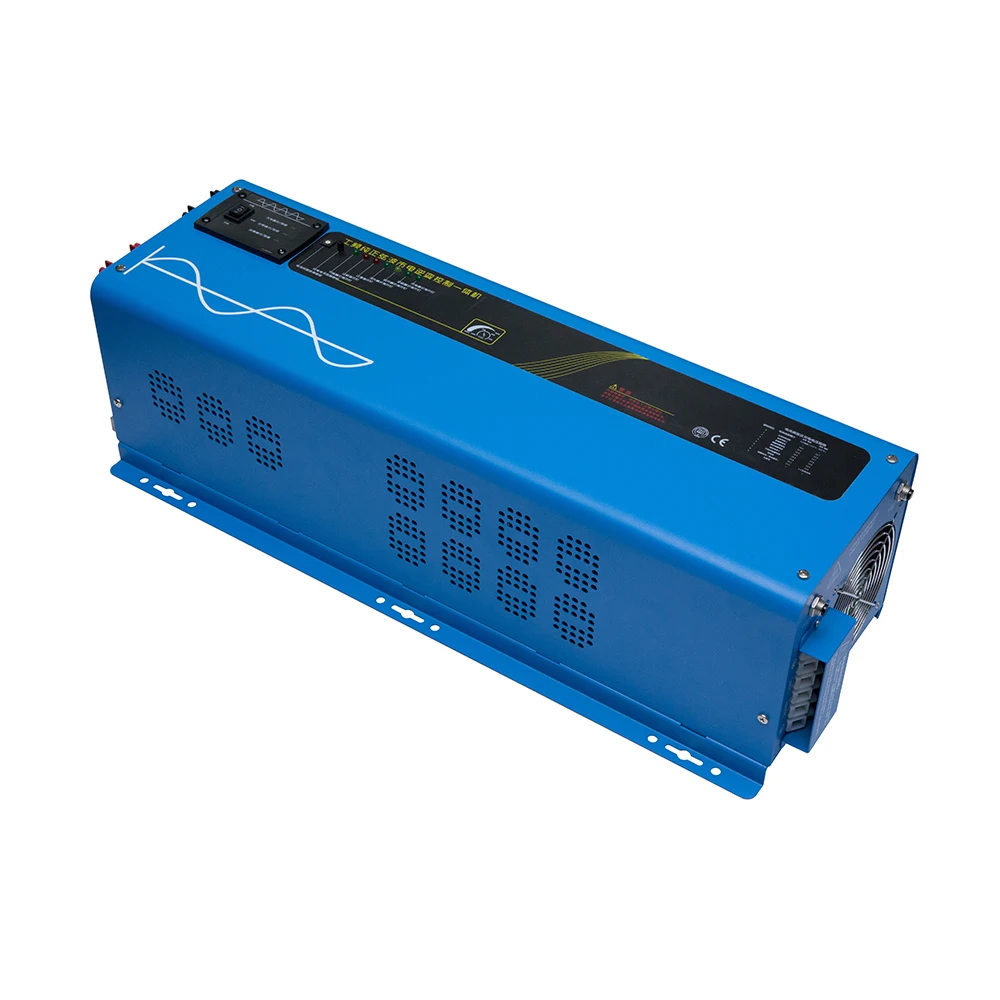

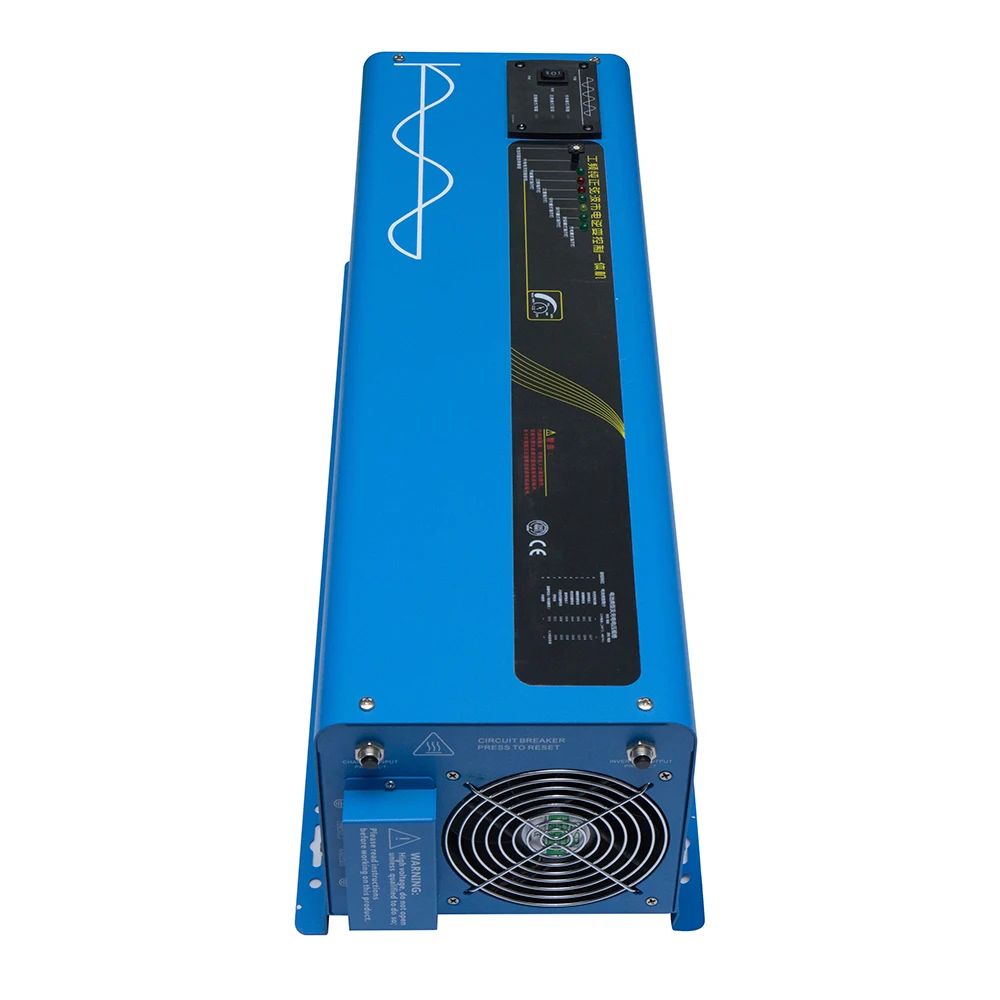

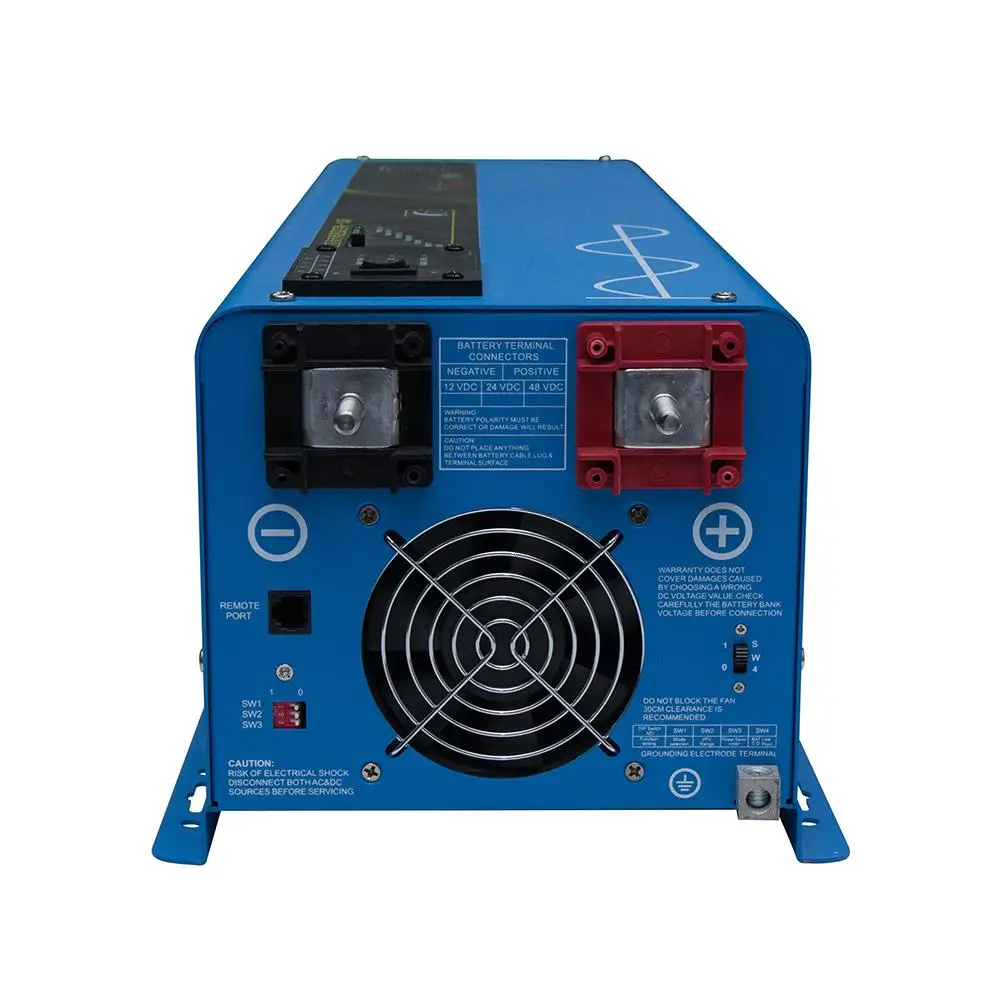

HC pure sine wave inverter is the latest model,developed on the base of our previous PSW 7 series, the HC charger has achieved significant improvements on battery charging, AC transfer, etc. By adopting DIP(dual in-line package) switch, and provides more smart options for users to customize the performance of the device. |
Product Description
Feature
1. High overload ability, up to 300% rated power(20 sec.).
2. adopts low quiescent current, and power saver mode to reduce power consumption
3. Uses PFC(power factor correction) for charger, less power consumption .
4. It has 15s delay before transfer when it resumes, and overload protection when inverter equips with generator.
5. 10ms typical transfer time between battery and AC, which guarantees power continuity of HC charger.
6. Allows start up and through power with depleted batteries.charge rate up to 90Amp
7. It can offer 3-step intelligent battery charging, and equipped with 8 preset battery type selector for totally flat batteries.

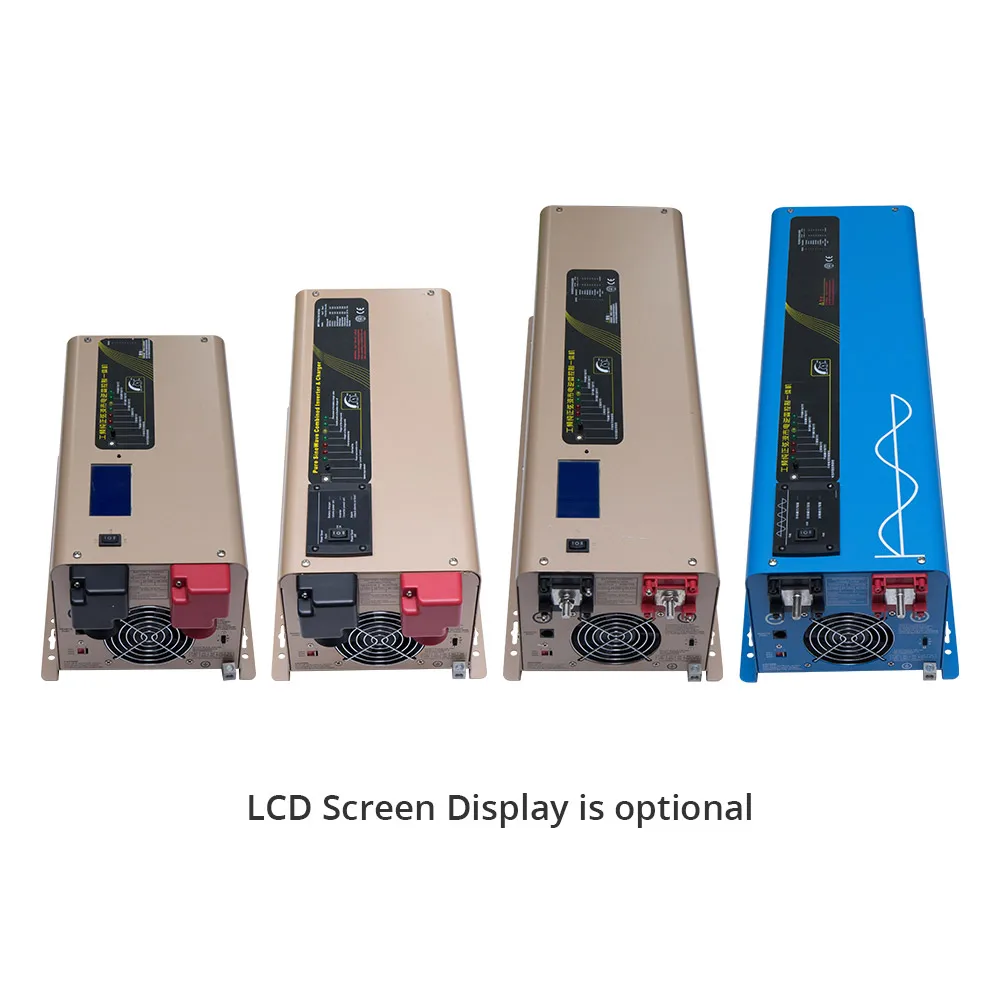

8. LCD status display, battery/AC priority switch, USB communication port.(Optional)
9. Auto voltage rugulation optional(HS)
| Model(HC) | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Inverte Output | Continuous Output Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Surge Rating(20s) | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | |
| Cpable of Starting Electric Motor | 1HP | 1.5HP | 2HP | 3HP | 4HP | 5HP | 6HP | |
| Output Waveform | pure sine wave/same as input(Bypass mode) | |||||||
| Nominal Efficiency | >88%(Peak) | |||||||
| Line Mode Efficiency | >95% | |||||||
| Power Factor | 0.9-1.0 | |||||||
| Nominal Output Voltage THD | 100-110-120Vac/220-230-240Vac <10% | |||||||
| DC Input | Nominal Input Voltage | 12.0Vdc 24Vdc,48Vdc | ||||||
| Minimum Start Voltage | 10.0Vdc | |||||||
| Idle Consumption-Search Mode | < 25 W when Power Saver On | |||||||
| Charge | Input Voltage Range | Wide:90~135Vac/164~243Vac; Narraw:100-135Vac/194~243Vac; | ||||||
| Output Voltage | Depends on battery type | |||||||
| Max Charge Rate | 35A/70-90A Max (Charger Current Control) | |||||||
| Remote Control | Yes.Optional | |||||||
| Bypass & Protection | Input Voltage Waveform | Sine Wave(Grid or Generator) | ||||||
| Nominal Voltage | 120Vac | 230Vac | ||||||
| Low Voltage Trip | 80V/90V±4% | 184V/154V±4% | ||||||
| High Voltage Trip | 140V±4% | 253V±4% | ||||||
| Max Input AC Voltage | 150VAC | 270VAC | ||||||
| Nominal Input Frequency | 50Hz or 60Hz(Auto detect) | |||||||
| Mechanical Specification | Mounting | Wall mount | ||||||
| Inverter Dimensions(L*W*H) | 382*218*179mm | 442*218*179mm | 598*218*179mm | |||||
| Inverter Weight | 14KG | 16KG | 19KG | 24KG | 32KG | 34KG | 36KG | |
| Shipping Dimensions(L*W*H) | 520*315*300mm | 580*315*300mm | 740*315*300mm | |||||
| Shipping Weight | 16KG | 18KG | 21KG | 26KG | 35KG | 37KG | 39KG | |
| Display(Optional) | Status LEDs/Status LEDs+LCD | |||||||
