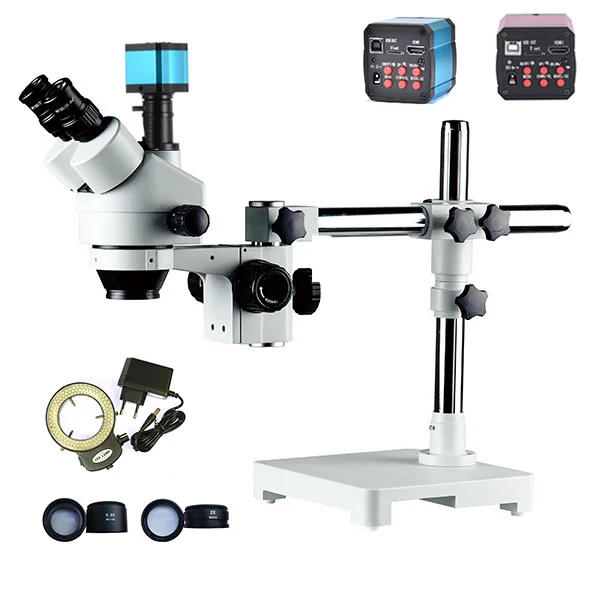

3.5X -90X Тринокулярный зум стерео микроскоп для PCB
- Категория: Optical Instruments >>>
- Поставщик: Nanynag,Srate,Optical,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.42 $* | 0.39 $* |
| Aug-15-2025 | 0.20 $* | 0.46 $* |
| Jul-15-2025 | 0.27 $* | 0.91 $* |
| Jun-15-2025 | 0.18 $* | 0.80 $* |
| May-15-2025 | 0.61 $* | 0.76 $* |
| Apr-15-2025 | 0.11 $* | 0.59 $* |
| Mar-15-2025 | 0.93 $* | 0.99 $* |
| Feb-15-2025 | 0.60 $* | 0.98 $* |
| Jan-15-2025 | 0.62 $* | 0.17 $* |
Характеристики

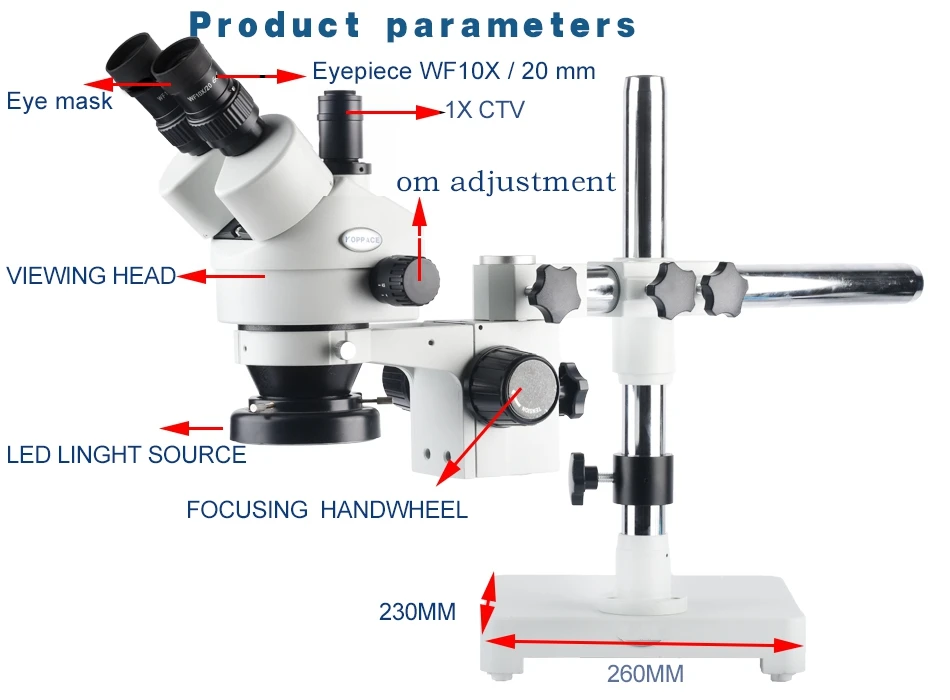

| TXB2-D9 ZOOM stereo microscope | |
| Optical Enlargement | 7X-45X/ 3.5X-90X |

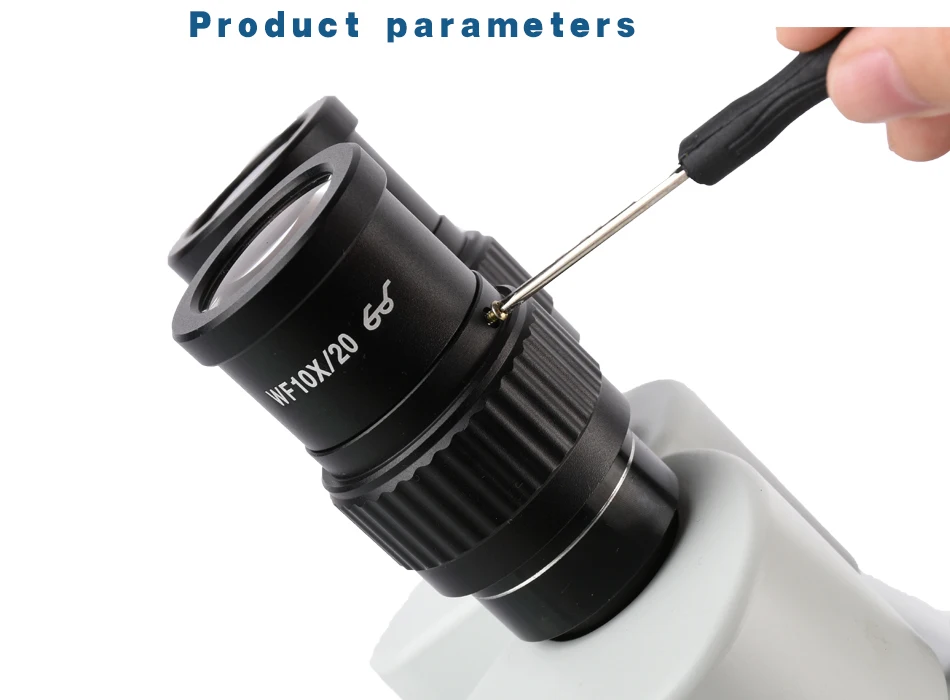

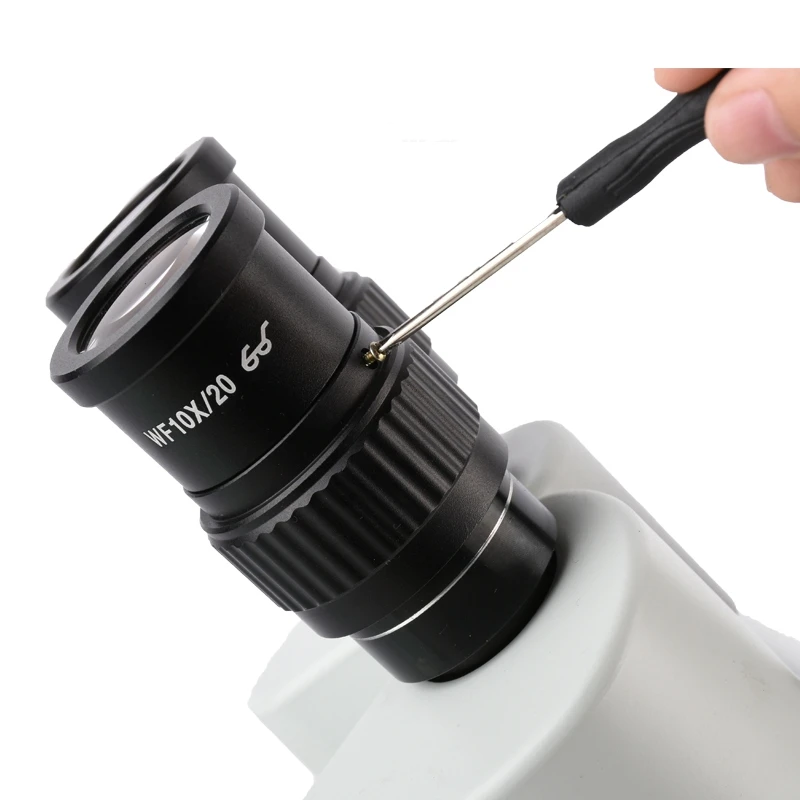

| Eyepiece | High eyespots wide-field eyepiece WF10X / 20 mm |
| Zoom Objective | 0.7X-4.5X |
| Viewing Head | Binocular view head inclined at 45°.The pupil distance adjusting range 54mm-76mm,Bilateral visibility adjustable ± 5 diopter |
| Working Distance | 100mm |
| Focusing bracket | Focusing handwheel tightness is adjustable, lifting range 50 mm |
| Base Plate size | 230*260*40mm |
| LED linght source | Inside diameter size 60mm,The input voltage AC90—240V,The output power 4.5w, Light color white,Lamp bead 56 |

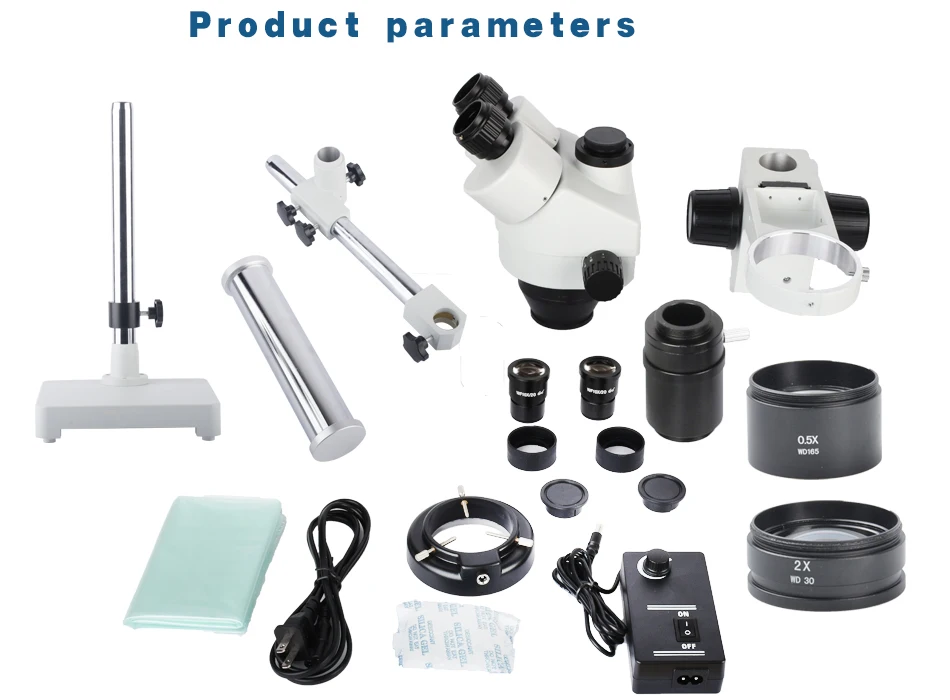

| Optional Accessories | |

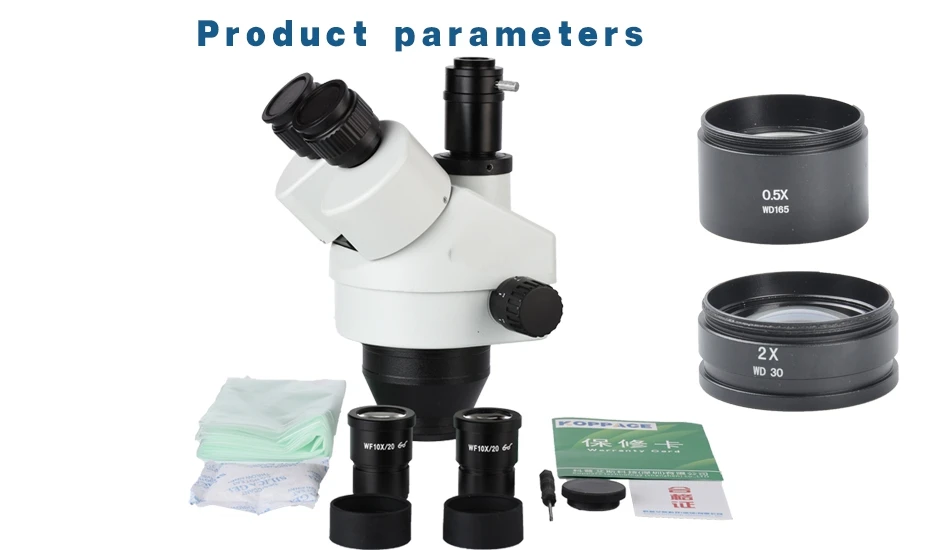

| Auxiliary lens | 0.5X/165mm, 2X/30mm |
| LED linght source | Inside diameter size 60mm,The input voltage AC90—240V,The output power 4.5w, Light color white,Lamp bead 56 |
Packaging & Shipping
Packing:Body Packings: 52.5*46.5*21.5 cm
GW:18KGS NW:16KGS
Head packing:48*31.5*44cm 4pcs/ctn
GW:7.2KGS NW:5.6KGS
Packing Type:Inner package with foamed plastic+outer carton
