Product Description

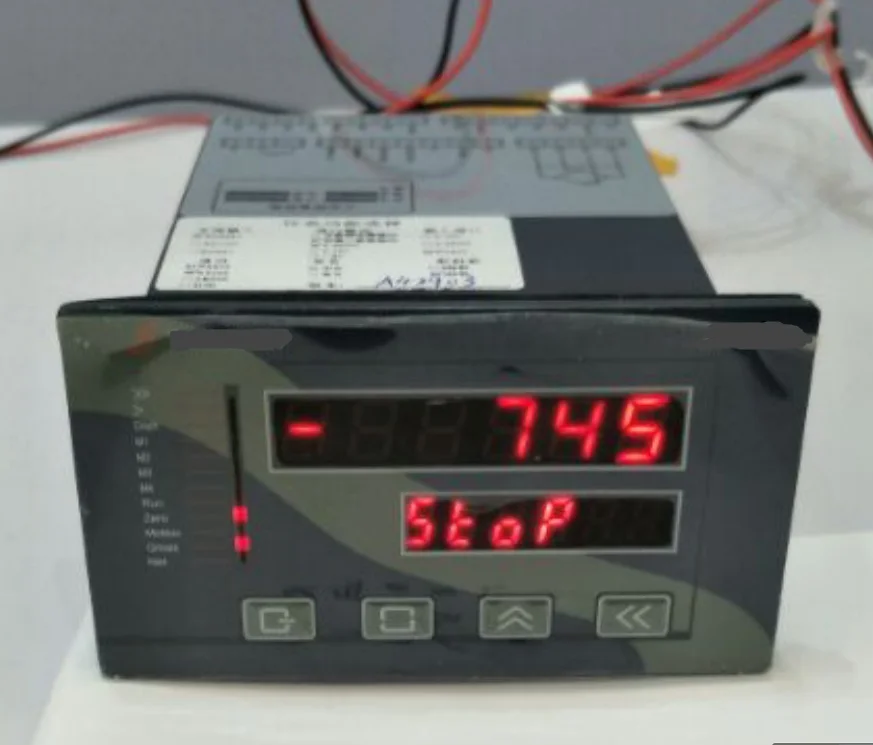

MEP500A4/A6 Batching scale weighing controller, weight transmitter

* Pocket-size case, compact panel, two rows of LED display, four keys, easy to use and learn.
* Can control 6 different material proportioning.
* Can inch material during feeding.
* Power-off protection, it can continue to batch after restart the instrument.
* May set batch number. it can automatically stop when finishing the set batch number.
* Various communication interfaces and protocols.
* Internal integrated switch power can work normally when voltage fluctuation is below 40%.

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Basic parameters		2±0.003mv/v
Display window	six 12.7mm and six 7.62mm LEDs display
Scale interval	1、2、5、10、20、50
Maximum display	59999
Decimal place	0、0.0、0.00、0.000、0.0000
Unit of weight	g, kg, t (gram, kilogram and ton)

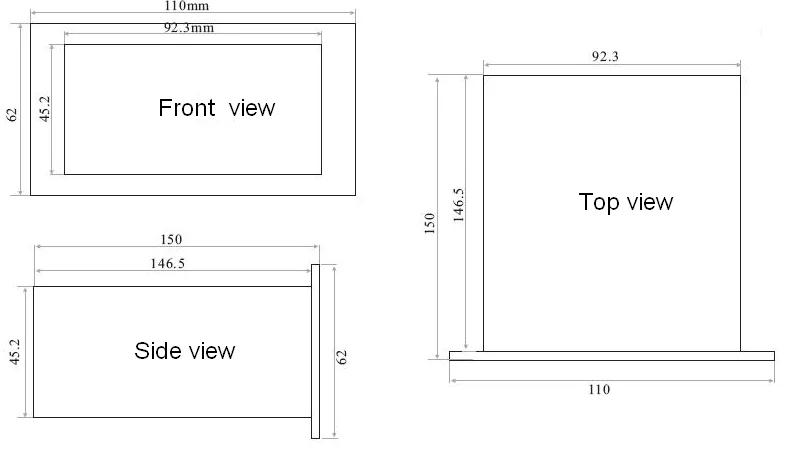

Overall dimensions	110（W）x 150（D）x 62（H）mm
Product weight	About 0.6 kg
Performance index
Static accuracy class	Up to the requirement of three-level weighing instrument
Maximum signal input range	0.1mV ~ 20 mV
Maximum sensitivity	2.5μV/d
Input impedance at sensor interface	≥20MΩ
Non-linear error	≤0.002%FS
A/D conversion speed	50 SPS (Samples Per Second)
Working parameters
Type of load cell	resistor strain type weighing sensor
Excitation voltage of load cell	DC 8V,100mA,up to 4 350Ω analog load cells.
On-off output (contact) capacity	DC 24V / 0.1A
On-off input	DC24V/4--6mA
Working condition
Power supply range	AC 220V （AC175-265V），50Hz/60Hz
Power Consumption	≤10W
Operating temperature	-10°C~40°C
Humidity range	≤90% relative humidity (non-condensing)
Humidity range	≤90% relative humidity (non-condensing)

Product Process

for the load cell product process, include total 26 word step, take about 20days.

Product Application

this load cell can apply to pricing scale, packing scale, platform scale.

Delivery and Shipment

this load cell can apply to pricing scale, packing scale, platform scale.
