Лидер продаж встроенный ультразвуковой расходомер воды

Цена:405,00 $ - 505,00 $*

Количество:

Performance specifications
Flow range	0.03 ~ 16 ft/s ( 0.01 ~ 5.0 m/s )
Accuracy	± 1.0 %
Pipe size	Clamp-on: 1” ~ 48” ( 25mm ~ 1200mm )

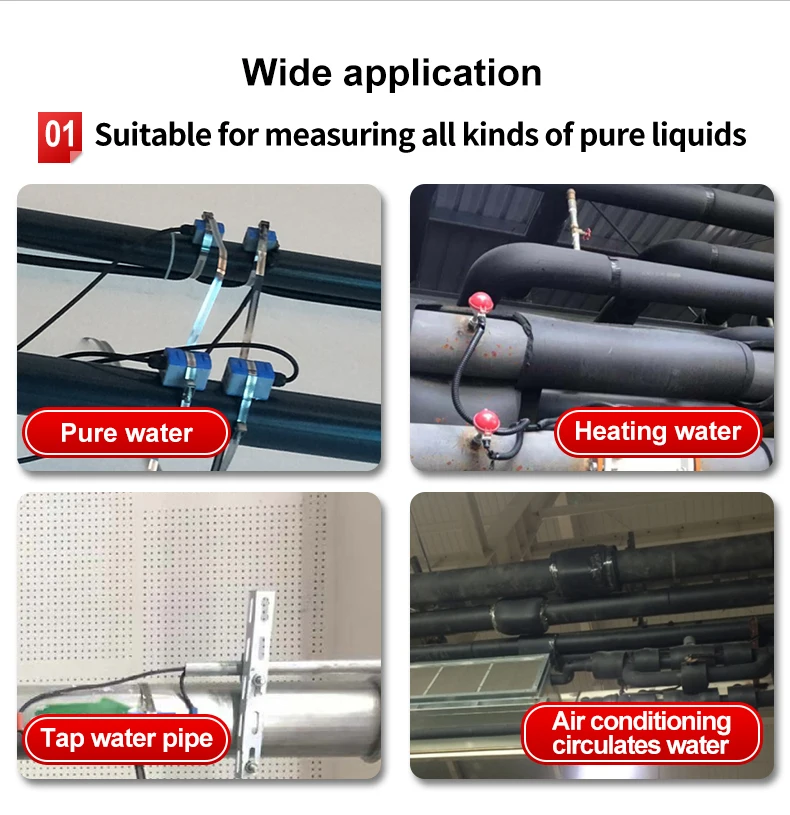

Fluid ater.	Pure liquid
Function specifications
Outputs	OCT Pulse output: 0-5000Hz
Outputs		Analog output : 4 ~ 20mA, max load 750Ω
Communication interface	RS485MODBUS
Power supply	10 ~ 36VDC/1A.
Keypad	16 ( 4×4 ) key with tactile action
Display	20×2 lattice alphanumeric, back lit LCD
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ )
Temperature		Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ )
Humidity	Up to 99% RH, non-condensing
Physical specifications
Transmitter	PC/ABS, IP65
Transducer	Encapsulated design, IP68
Transducer cable	Standard cable length: 30 ft (9m)
Weight	Transmitter: approximately 0.7kg; Transducer:approximately 0.4kg
