Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Дизельный бетононасос HBTS40R самый популярный строительный гидравлическая двуцилиндровая поршневая система
- Категория: Concrete Pumps >>>
- Поставщик: Zhengzhou,Zhenheng,Construction,Equipment,Co.,Ltd.Zhengzhou,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 463173.13 $* | 472436.10 $* |
| Jul-18-2025 | 375644.83 $* | 383157.4 $* |
| Jun-18-2025 | 455879.26 $* | 464997.62 $* |
| May-18-2025 | 452232.55 $* | 461277.9 $* |
| Apr-18-2025 | 361056.55 $* | 368277.36 $* |
| Mar-18-2025 | 444938.13 $* | 453837.37 $* |
| Feb-18-2025 | 441291.67 $* | 450117.84 $* |
| Jan-18-2025 | 437644.85 $* | 446397.13 $* |
Характеристики
Product Description

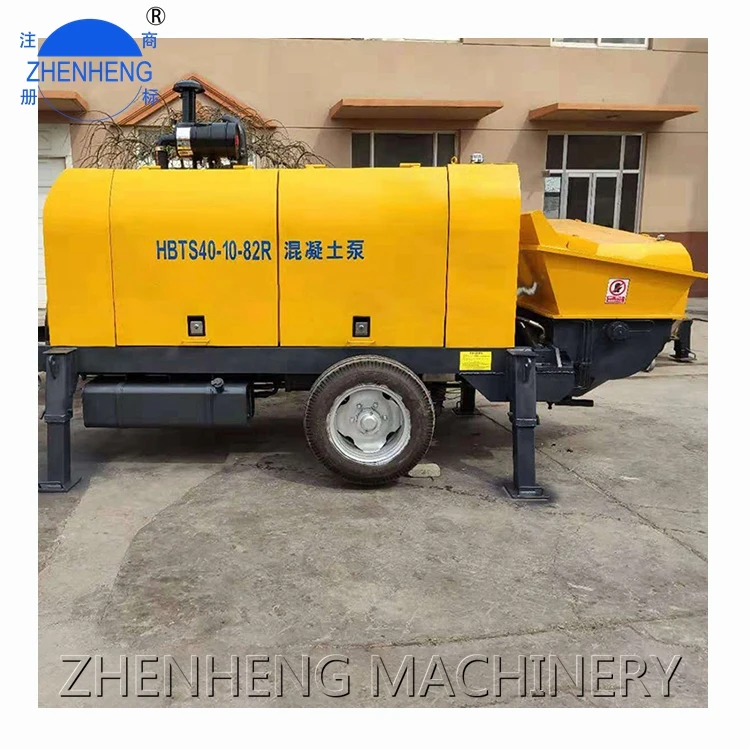

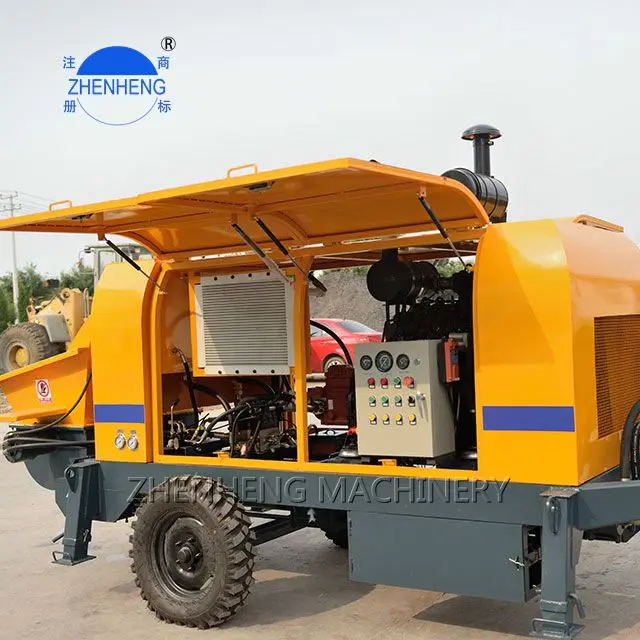

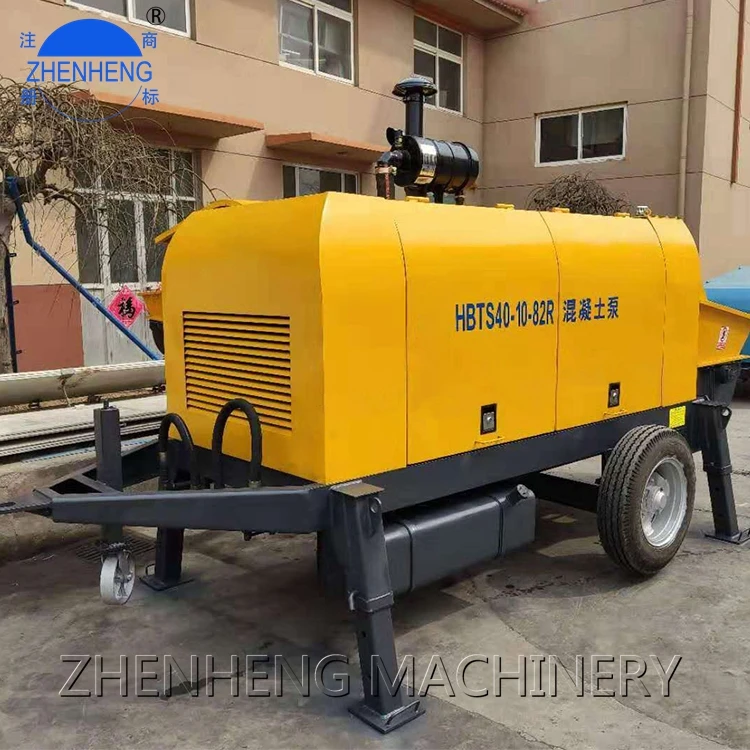

HBTS40R diesel concrete pump most popular construction Concrete Pump machine
Brief Introduction of Concrete Pump Trailer:
Concrete Mixer pump electric have been widely used in many construction areas such as Water conservancy, Electricity,Railway, Highway, Tunnel, Mine, National Defense, etc. They have also been exported to many countries and got an excellent reputation . Our products have passed BV and ISO9001 International Quality System Certification and the mining concrete pumps have passed the Safety Certificate of Approval for Mining Products.
Specification
Items | HBTS40R | HBTS60-13-129R | HBTS80-16-140R | HBTS90-18-176R |
Max. theo. pumping capacity (L/H) | 40/26 m³/h | 61/37 m³/h | 84/45 m³/h | 95/55 m³/h |
Max. concrete pumping pressure (H/L) | 10/7.6 Mpa | 12/7 Mpa | 16/7.6 Mpa | 18/9.3 Mpa |
Distribution valve type | S Valve | S Valve | S Valve | S Valve |
Concrete cylinder (diameter*stroke) | Ф180*1,300 mm | 200*1,300 mm | Ф200*1,650 mm | Ф200*1,800 mm |
Hopper capacity | 400 L | 600 L | 600 L | 700 L |
Feeding height | 1,100 mm | 1,400 mm | 1,400 mm | 1,400 mm |
Outlet diameter | Ф150 mm | Ф180 mm | Ф180 mm | Ф180 mm |
Diesel engine brand | Weichai | Weichai | Weichai | Weichai |
Diesel engine power | 82 kw | 129 kw | 140 kw | 176 kw |
Rated speed | 1,800 r/min | 2,200 r/min | 2,200 r/min | 2,200 r/min |
Circuit type | Open circuit | Open circuit | Open circuit | Open circuit |
Pumping system pressure | 28 Mpa | 32 Mpa | 32 Mpa | 32 Mpa |
Mixing system pressure | 6-8 Mpa | 6-8 Mpa | 6-8 Mpa | 6-8 Mpa |
Oil tank capacity | 370 L | 560 L | 560 L | 560 L |
Max. conveying distance (vertical/level) | 120/500 m | 120/500 m | 160/800 m | 360/1200 m |
Max. aggregate diameter | 40 mm | 40 mm | 40 mm | 40 mm |
Inside diameter of delivering pipe | Ф125 mm | Ф125 mm | Ф125 mm | Ф125 mm |
Pipe | 100 m | 150 m | 150 m | 150 m |
Overall dimensions (L*W*H) | 5,000*1,850*1,700 mm | 4,820*1,750*1,770 mm | 5,800*2,000*1,750 mm | 6,000*2,200*2,250 mm |
Total weight | 5,500 kg | 7,200 kg | 7,700 kg | 8,200 kg |
Details Images
1. High quality concrete pump trailer equipped with high efficiency concrete pumping system.
2. Hydraulic double-cylinder piston system, more stable flow, more uniform and stable spraying.
3. Dual-piston alternately working, manual and automatic hydraulic synchronous lubrication system, longer mortar piston life.
4. Further optimized pumping flow path to reduce the pumping resistance and the probability of tube block. Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.

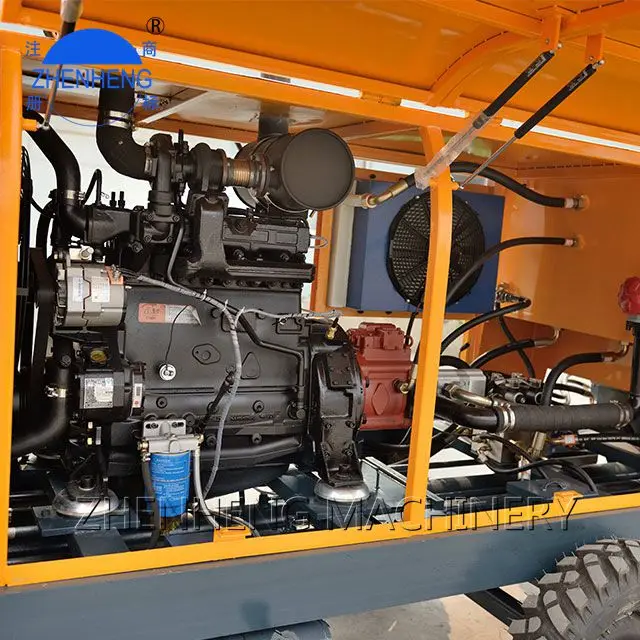

5. Advanced hydraulic system.
Usage scenarios
Packing & Delivery
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Product Recommend
Company Profile
our team
Exhibitions&Projects
Why Choose Us
1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
