300W 750 об/мин постоянный магнит генератор 12V 24V Мини PMG для ветровой

300W 750 об/мин постоянный магнит генератор 12V 24V Мини PMG для ветровой

Категория: Альтернативные генераторы электроэнергии >>>
Поставщик: Nantong,R&x,Energy,Technology,Co.,Ltd.

Цена:80,00 $ - 90,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	95.30 $*	100.71 $*
Aug-20-2025	94.24 $*	99.44 $*
Jul-20-2025	79.48 $*	83.67 $*
Jun-20-2025	93.64 $*	98.59 $*
May-20-2025	81.54 $*	85.68 $*
Apr-20-2025	91.3 $*	96.67 $*
Mar-20-2025	90.86 $*	95.81 $*
Feb-20-2025	90.57 $*	95.90 $*
Jan-20-2025	89.83 $*	93.64 $*

Характеристики

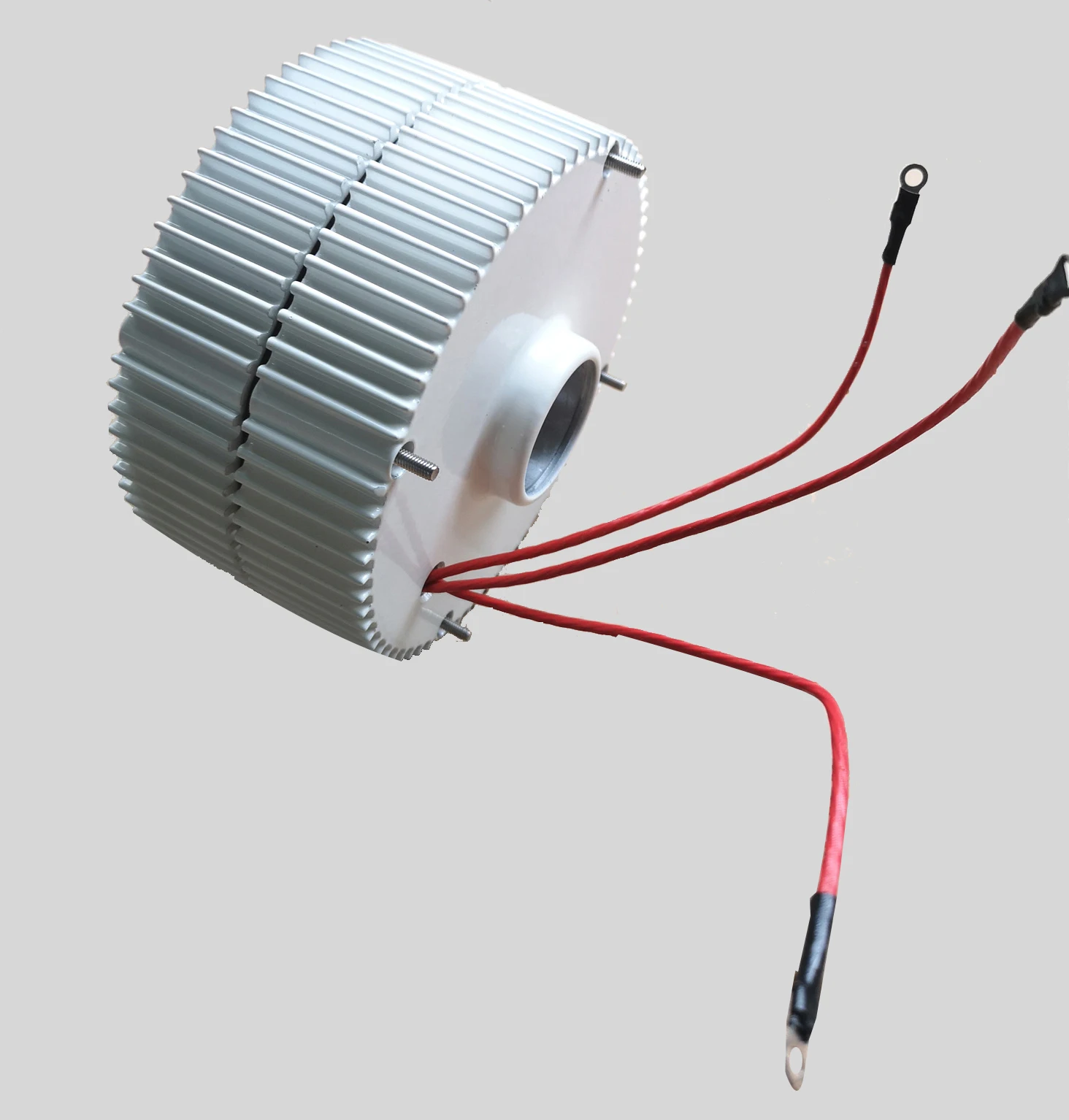

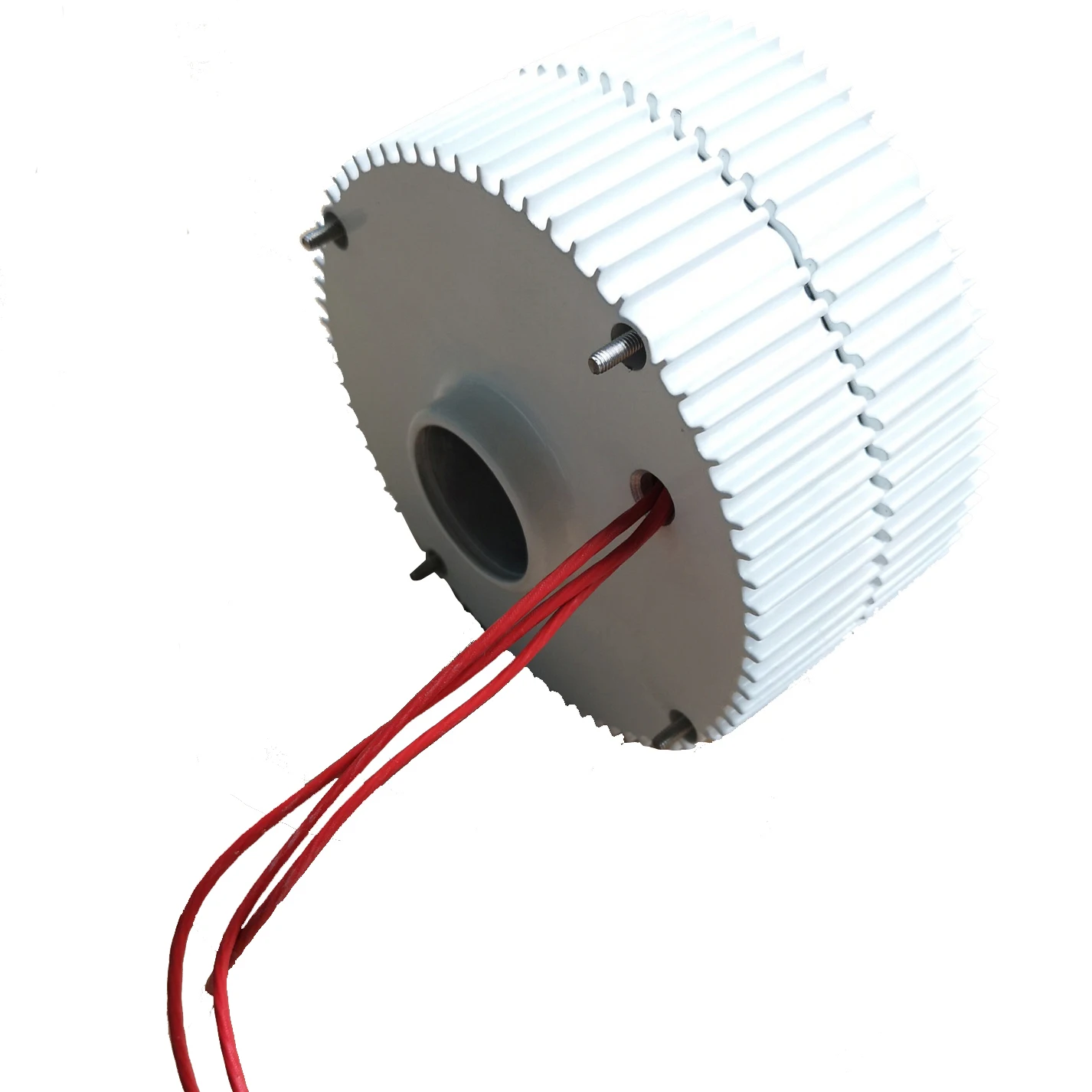

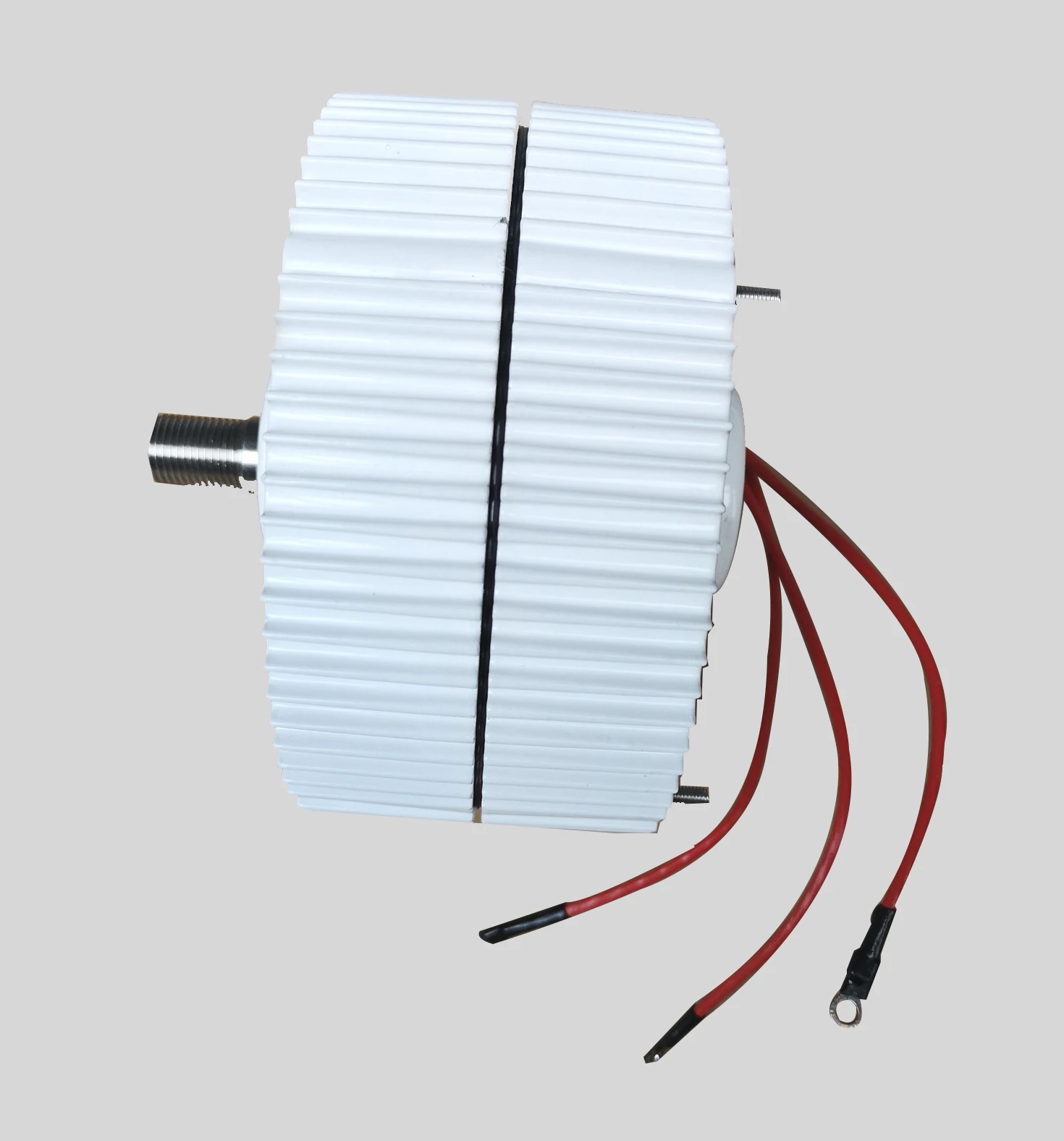

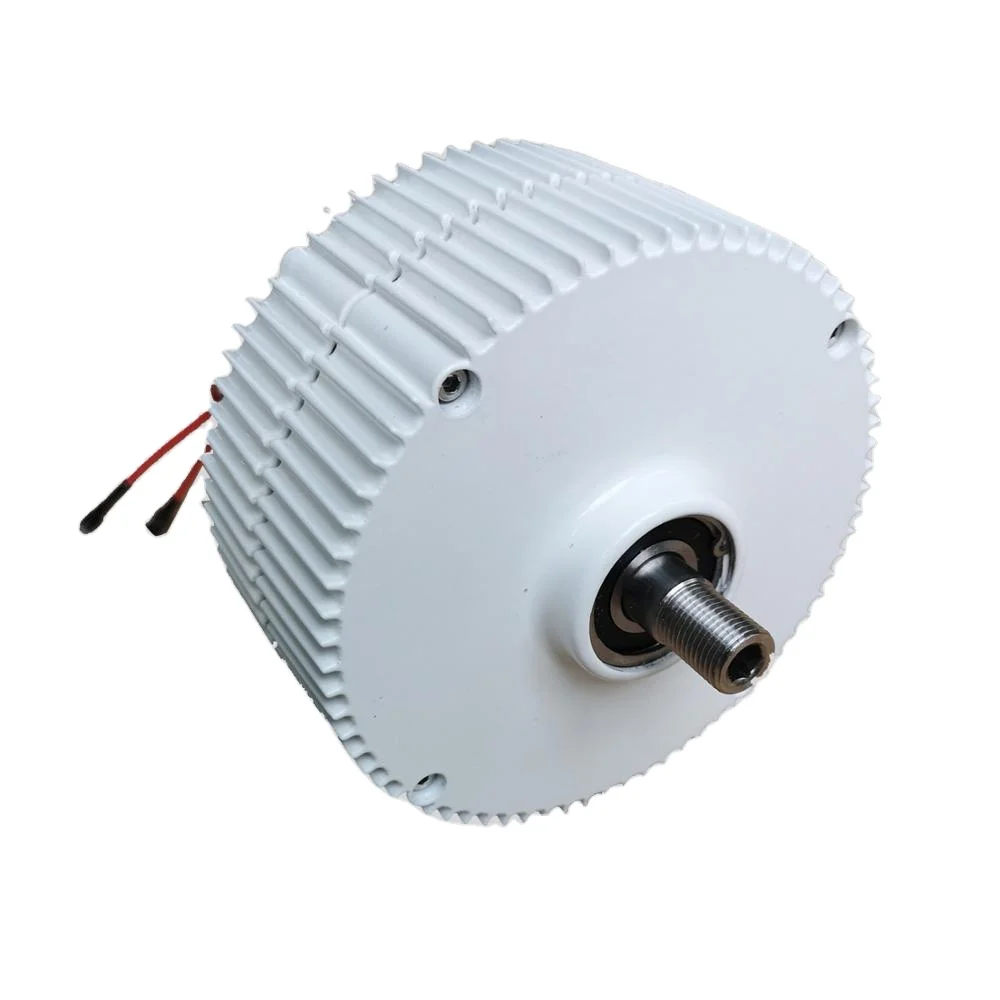

300W 750RPM Permanent Magnet Generator 12V 24V Small

PMG For Wind Turbine

Product Description

1). Effective to reduce the resistance of the generator torque, while the wind turbine and generator has a better matching
characteristics, the reliability of unit operation

2). Smoother and more stable choice

3). With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high
efficiency.

4). Specially-designed rotor and rotator, low resistance moment in start-up, good at cooling.

5). Gear-less, direct -drive, and low rev rare earth Permanent Magnet Generator, easy and safe for operating and maintain.

6). Rare earth Nd-Fe-B permanent magnet generator. energy save energy more than 15% than ordinary generators.

Specification

Rated Power(W):	300W
Rated Speed(RPM):	750R/M
Rated Voltage(V):	12/24V
Insulation Class:	F
Efficiency (%)	93
Generator type	3 -Phase Permanent Magnet AC Synchronous Generator
Service Life:	over 20 years
Working Environment	-35º C-60º C
Mechanical specifications
Mounting Means	Horizontal/ Vertical
Approx Gross Weight(Kg)	4.5
Rated Toque(N*M)	3.82NM
Start Torque(N/M)	0.5NM
Poles	12
Material specifications
Shaft Material	Iron with quenching and tempering Treatment
Bearing	HRB or as your request
Lubrication	Lubrication Grease
Shell Material	Carbon Steel
Winding Temperature Class	150 Centigrade
Permanent Magnet Material	Rare Earth NdFeB
Permanent Magnet Material Temperature Class	150 Centigrade
Core	High Grade Cold Rolling Silicon Sheet 50WW470
Protection Grade	IP54
