Гелевое наполнение 3 провода U контакты 3M 314 Scotchlok самозачистки электрический
- Категория: Разъемы >>>
- Поставщик: Zhejiang,Jiahui,Wire,And,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12.59 $* | 13.70 $* |
| Aug-19-2025 | 12.35 $* | 13.99 $* |
| Jul-19-2025 | 10.61 $* | 11.71 $* |
| Jun-19-2025 | 12.91 $* | 13.23 $* |
| May-19-2025 | 10.39 $* | 11.80 $* |
| Apr-19-2025 | 11.93 $* | 12.42 $* |
| Mar-19-2025 | 11.4 $* | 12.19 $* |
| Feb-19-2025 | 11.76 $* | 12.39 $* |
| Jan-19-2025 | 11.90 $* | 12.22 $* |
Характеристики

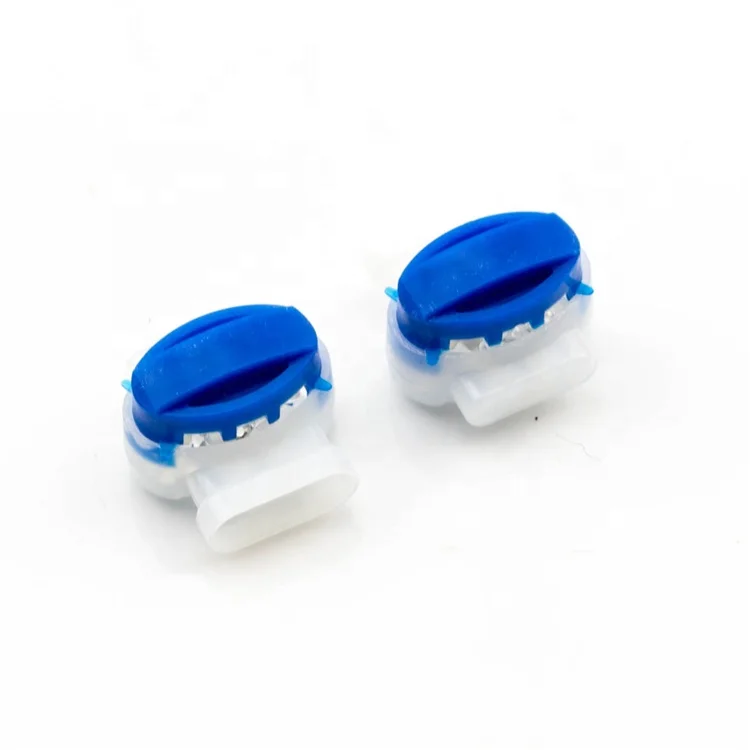

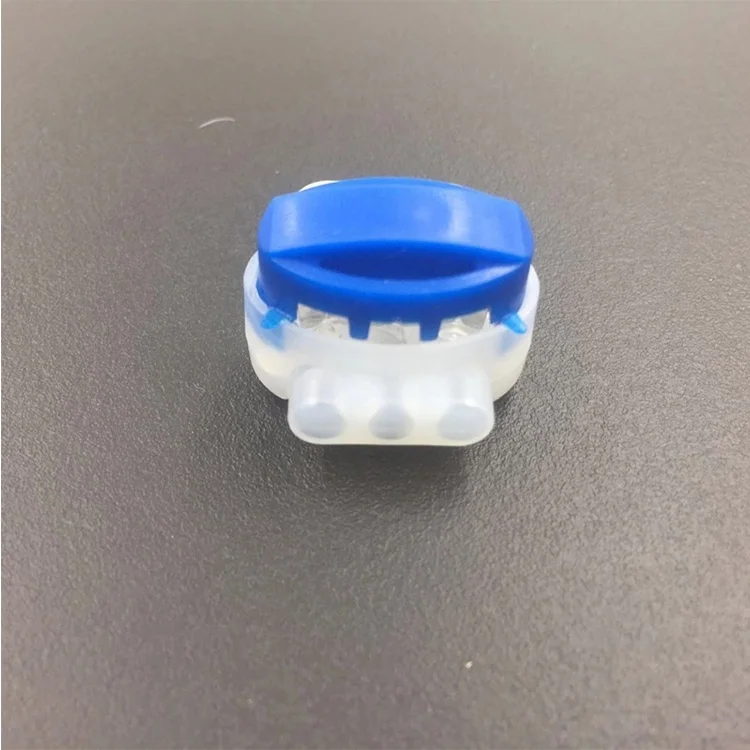

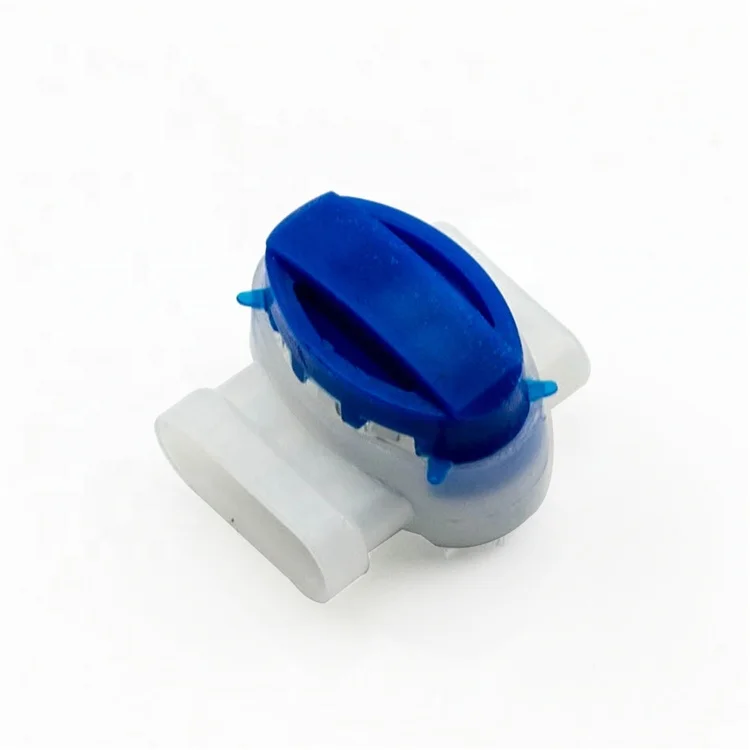

3M SCOTCHLOK 3 Wire 314 Electrical Communication Connector
Product Description
Features:
| Material: | Plastic Housing: PC(UL 94V-0) |
| Contacts: Phosphor Bronze |
| Electrical: | Insulation Resistance: ≥1000MΩ |
| Dielectric Strength:1.5KV RMS 60Hz | |
| Constant Current: 5KA 8/20u Sec | |
| Surge Current: 10KA 8/20u Sec |
| Environmental: | Storage Temperature:-40℃ to +70℃ |
| Operating Temperature:-10℃ to +60℃ | |
| Maximun Operating Humidity:%95 Relative Humidity |
| Mechanical: | Max Insulation Dimeter:3.5mm |
| Conductor Dimeter:AWG18-AWG12 | |
| Wire Insertion Force:45N Typical | |
| Wire Pull out Force:40N Typical | |
| Use Times:>100 |
2.7mm 2.8mm 3.4mm Robots Lawn Mower Wire Cable Field Mower Cable
| Type | Specification | Conductor | Insulation | Picture | Packing |
| Original | 2.45mm | TCCA | PE |  | 50/100/250/300/500/800M On Plastic/Paper Reel |
| Normal | 2.7mm | TCCA | PE |  | 50/100/250/300/500/800M On Plastic/Paper Reel |
| Strong | 3.4mm | TC | PE |  | 50/100/250/300/500/800M On Plastic/Paper Reel |
| Strong+ | 3.8mm | TC | PE |  | 50/100/250/300/500/800M On Plastic/Paper Reel |
| Metal Mesh | 3.8mm/4.2mm | TC | PE |  | 50/100/250/300/500/800M On Plastic/Paper Reel |
OEM Specification are also welcomed!
Application: Lawn Mower
