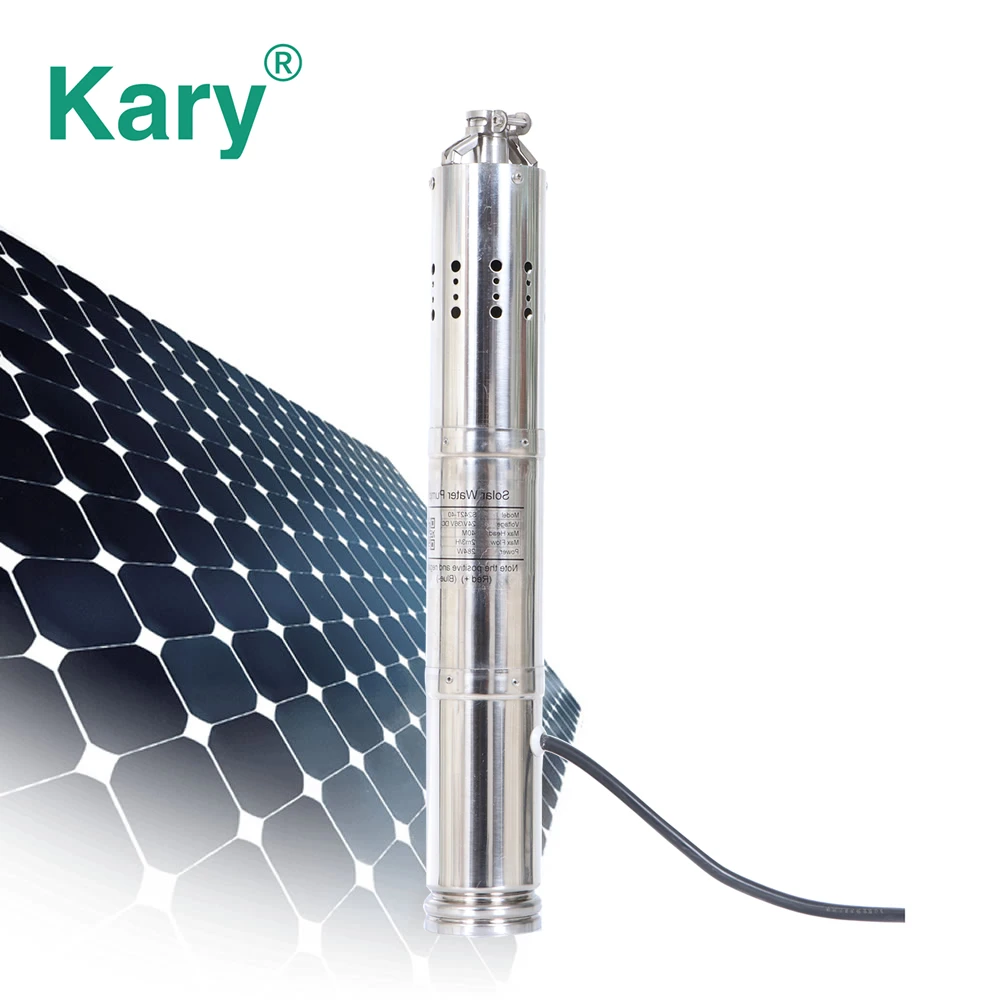

DC Brushless Solar Submersible Water Pump with Internal MPPT Controller

DC solar submersible pump is an environmentally-friendly water supply solution. DC solar submersible pump are fitted with a permanent magnet motor which enables the efficient use of energy from nature. It can connect to solar panels or batteries to get water. It offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.



Product Benefits

1. Stainless steel pump body.
2. 100% copper wire Permanent magnet brushless DC motor for long life time
3. Advanced controller with MPPT technology for maximum solar power.

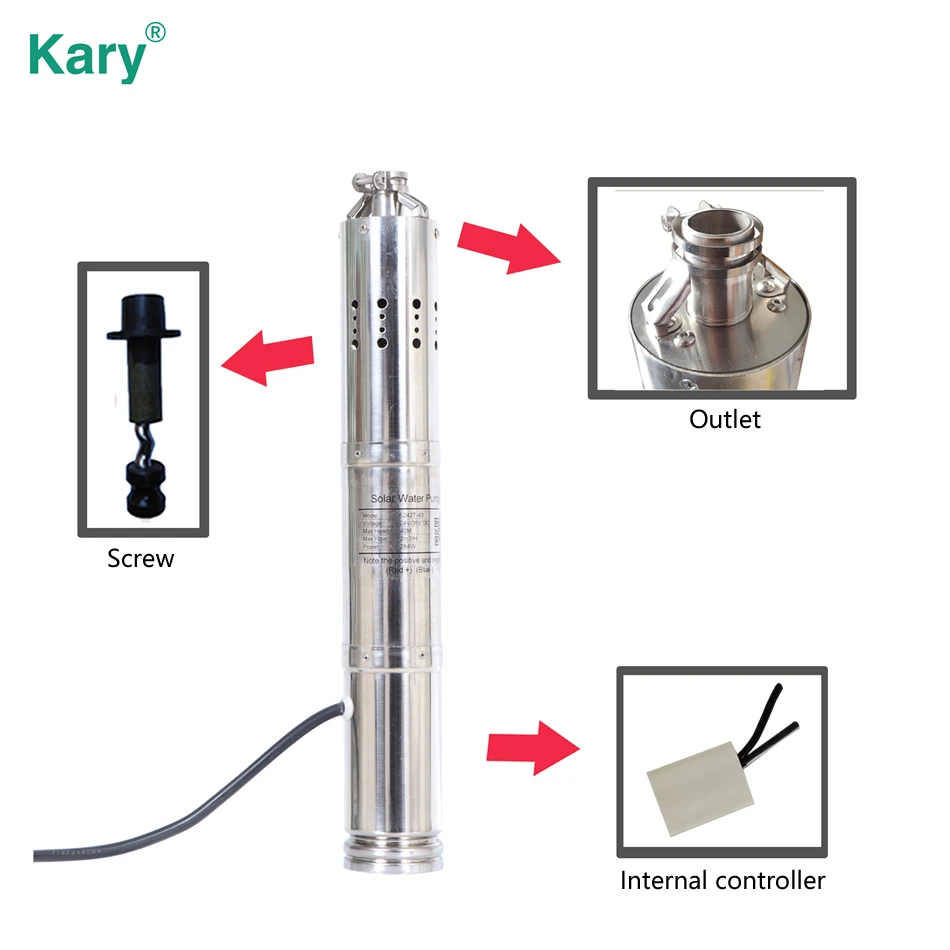

4. The controller is internal which means the pump can be directly connected to solar panels or batteries.
5. DC input, wide working voltage range:
The wide operating voltage range of the 12v pump is 10v-22v, and the recommended operating voltage is around 18v;
the wide voltage range of the 24v pump is 18v-45v, and the recommended operating voltage is around 36v;
the wide voltage range of the 48v pump is 38v-90v, The recommended working voltage is about 60v.
6. The pump include Over-voltage protection / Under-voltage protection. When the input voltage exceeds the working voltage range of the pump, the pump will automatically stop working. Then the pump will detect the input voltage every 5 minutes. When the voltage is within the working voltage range of the pump, the pump will automatically restart.
7. Without manual operation, the pump can work at sunrise and stop at sunset.



Application

1. Drinking and living water supply
2. Livestock water supply
3. Garden irrigation
4. Agricultural irrigation
5. Fountains



Pump Installation and Warm Tips

Warm Tips

1.Do not mix the positive(+) and negative(-) connection.

2.Do not operate long time while there is no water in the pump.

3.The pump is submersible which means it must be full submerged in the water.

4. Clean the pump's intake and outlet port when you think the flow rate is not as high as before.

5. Make a Strainer for the pump if you want use it in impure water.



Packing

1.All the pumps packed in carton case. bulk order may packed in wooden case.

2. The whole package does not include solar panels. you have to buy the solar panels separately.



Customers Feedback

How to Choose a Right Solar Pump Model?

1. Tell me the data of H1, H2 and L.  The total head = H1 + H2 + L/10. If no tank, you just need to tell me H1 and the horizonal pipe length.

2. Tell me how many liters water do you need the pump to get per hour.

3. Tell me your borehole diameter.

Then we can help you choose a right model and quote for you.

Selecting the Solar Panels of the Pumping Systerm

a. Solar PV panel (solar panel) selection

power of PV panels (watts) =Rated  power of pump (watts) x( 1. 5 ~ 2)

voltage of solar panel = Rated  voltage of pump (volt) x 1.5

 b. You may need combinations of panels, especially for the larger pumps. During connection of solar panels, you have to get the solar panels in series to reach the rated voltage of the pump, then in parallel to reach the rated current of the pump

Panels in parallel double the current and the wattage of the panels

Panels in series double the voltage and the wattage of the panels

e.g. 2 x 12V/ 100 W panels in parallel →    12 V/200W system

      2 x 12V/ 100 W  panels in series   →    24V/200W system

Caution:
