Yixin технологии банок Автоматический
- Категория: Аппарат для шовной сварки >>>
- Поставщик: Jiujiang,Yixin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 47600.65 $* | 49980.1 $* |
| Aug-19-2025 | 47200.55 $* | 49560.60 $* |
| Jul-19-2025 | 39600.52 $* | 41580.36 $* |
| Jun-19-2025 | 46400.90 $* | 48720.99 $* |
| May-19-2025 | 40400.71 $* | 42420.59 $* |
| Apr-19-2025 | 45600.1 $* | 47880.82 $* |
| Mar-19-2025 | 45200.11 $* | 47460.86 $* |
| Feb-19-2025 | 44800.40 $* | 47040.71 $* |
| Jan-19-2025 | 44400.77 $* | 46620.1 $* |
Характеристики

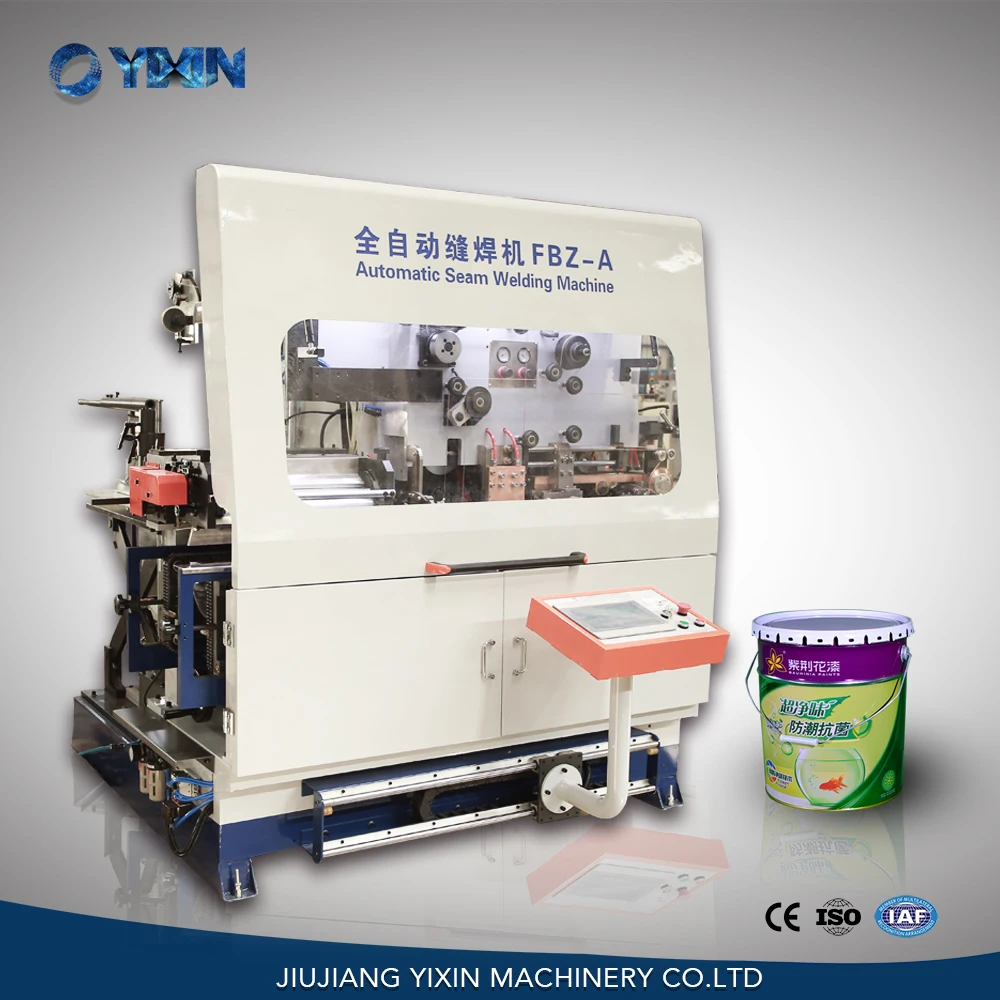

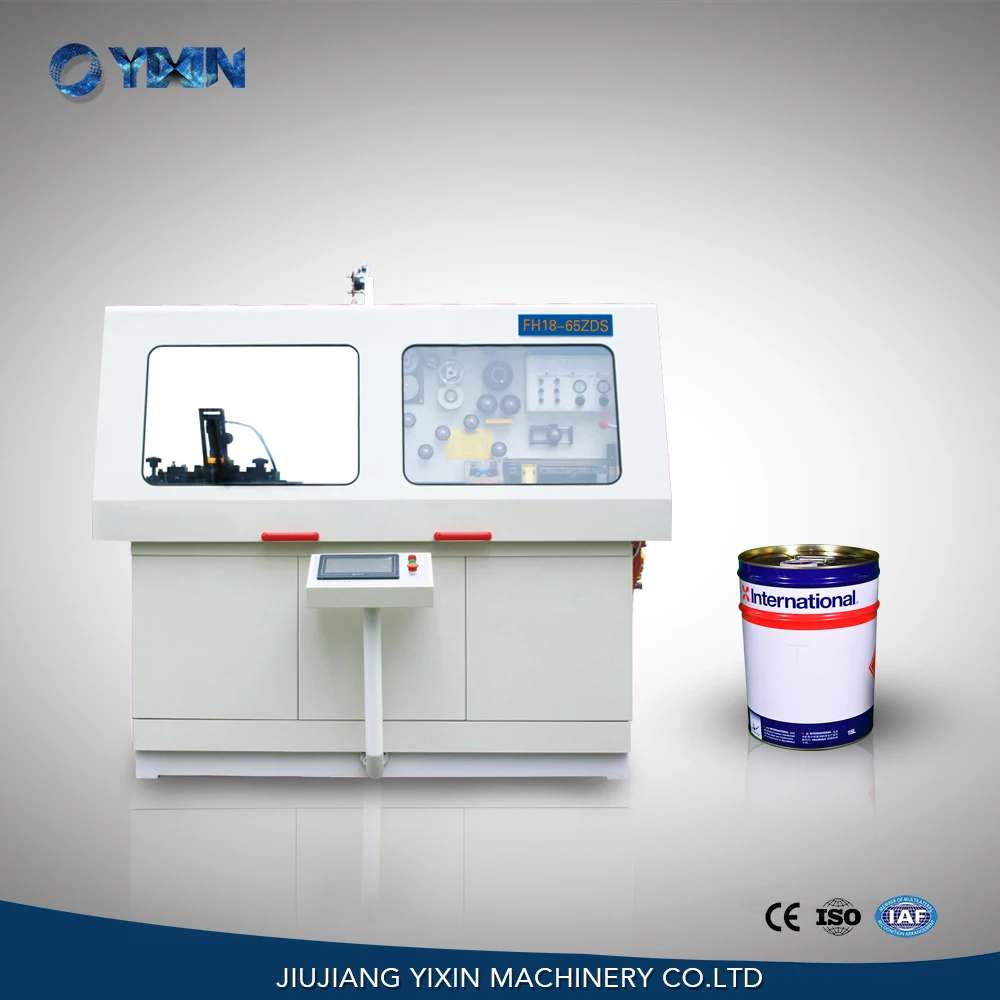

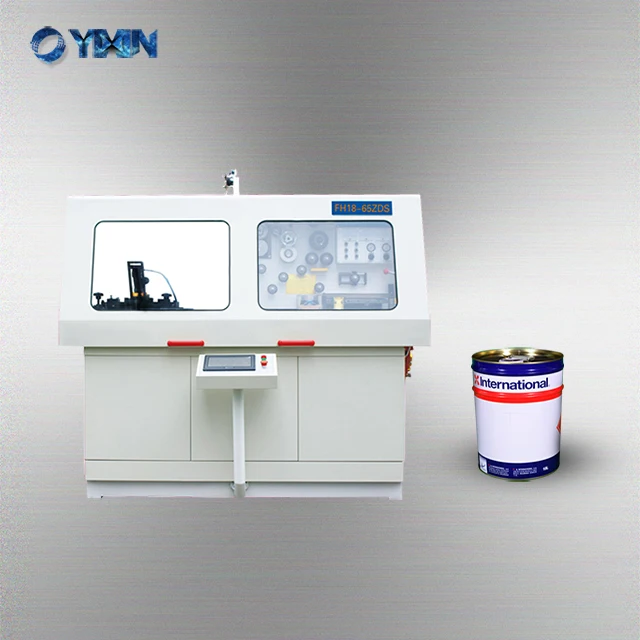

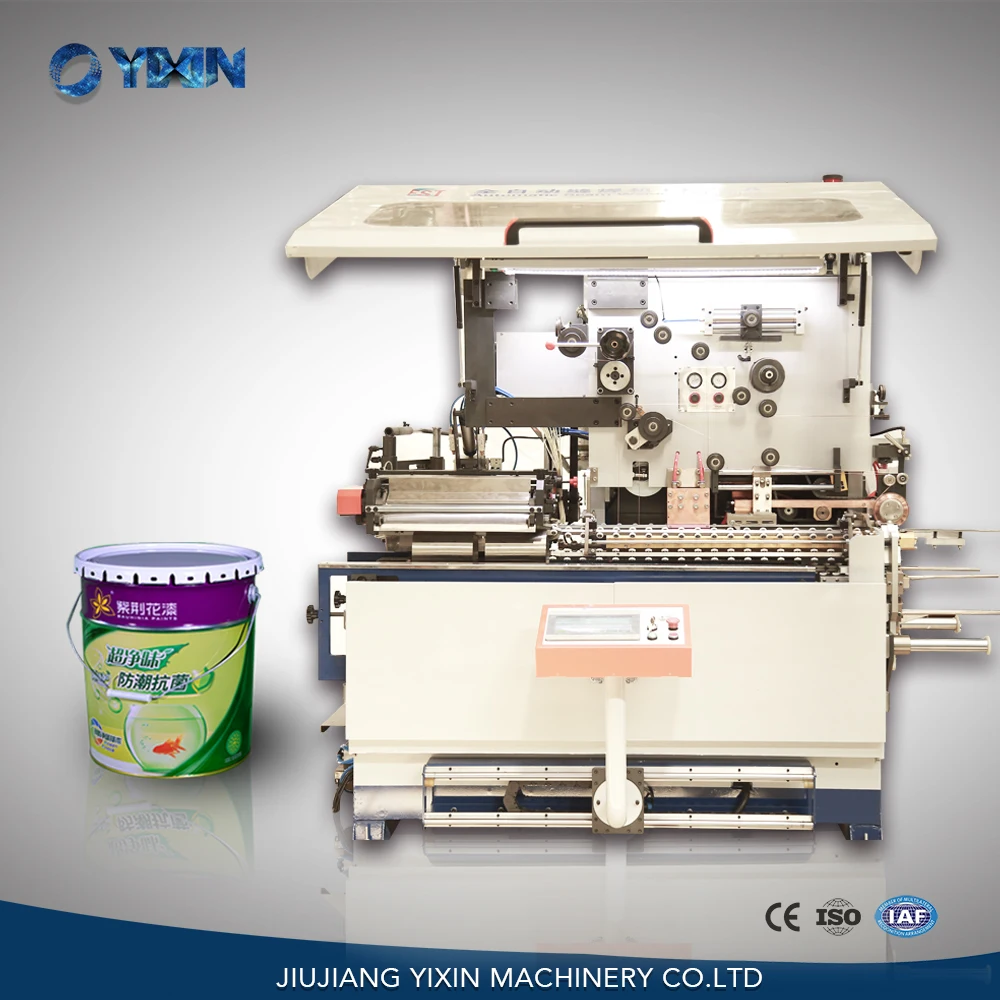

Yixin Technology cans automatic welder
Yixin Technology cans automatic welder
Click The Picture To See Video
| Ⅰ.Function | |
| Apply to the welding of various can, such as food cans, chemical cans, and square bucket. Can body internal and external pre-painting machine and can body drier are optional to be added. According to customers’ demonds to accelerate the speed. | |
| Ⅱ.The major parameters | |
| Linear rate of welding | 6-21m/min |
| Production capability | 15~38Cans/min |
| Applicable can diameter | Φ220~Φ300mm |
| Applicable can height | 250~450mm |
| Applicable material | Tinplate steel-based |
| Applicable material thickness | 0.25~0.42mm |
| Seam welding landing | 0.8mm 1.0mm 1.2mm |
| Seam point distance | 0.5-0.8mm |
| Applicable copper wire diameter | 1.5mm 1.7mm |
| Cooling water | Temperature 12~18°CPressure:0.4-0.5Mpa Discharge 12L/min |
| Compressed air consumption | 400 L/min |
| Pressure of compressed air | 0.5Mpa-0.7Mpa |
| Power | 380V±5% 50HZ |
| Total power | 63KVA |
| Packed Dimension | 2300x1800x2000mm |
| Packed Weight | 2500Kg |
Automatic Tin Can Making Machine 0.1L-26L round tin making machine production line
0.2-7 Liter round can production line, 2-6 Liter Rectangular can production line, 9-22 Liter Round Drum can line, 10-20 Liter Square Can Line, 18-25 Liter Conical Can Line etc.
1) For oil can, paint can, food can, glue cans
2) 30-65 cans/min
3) Use Schneider, Siemens, Mitsubishi and Chint electric parts

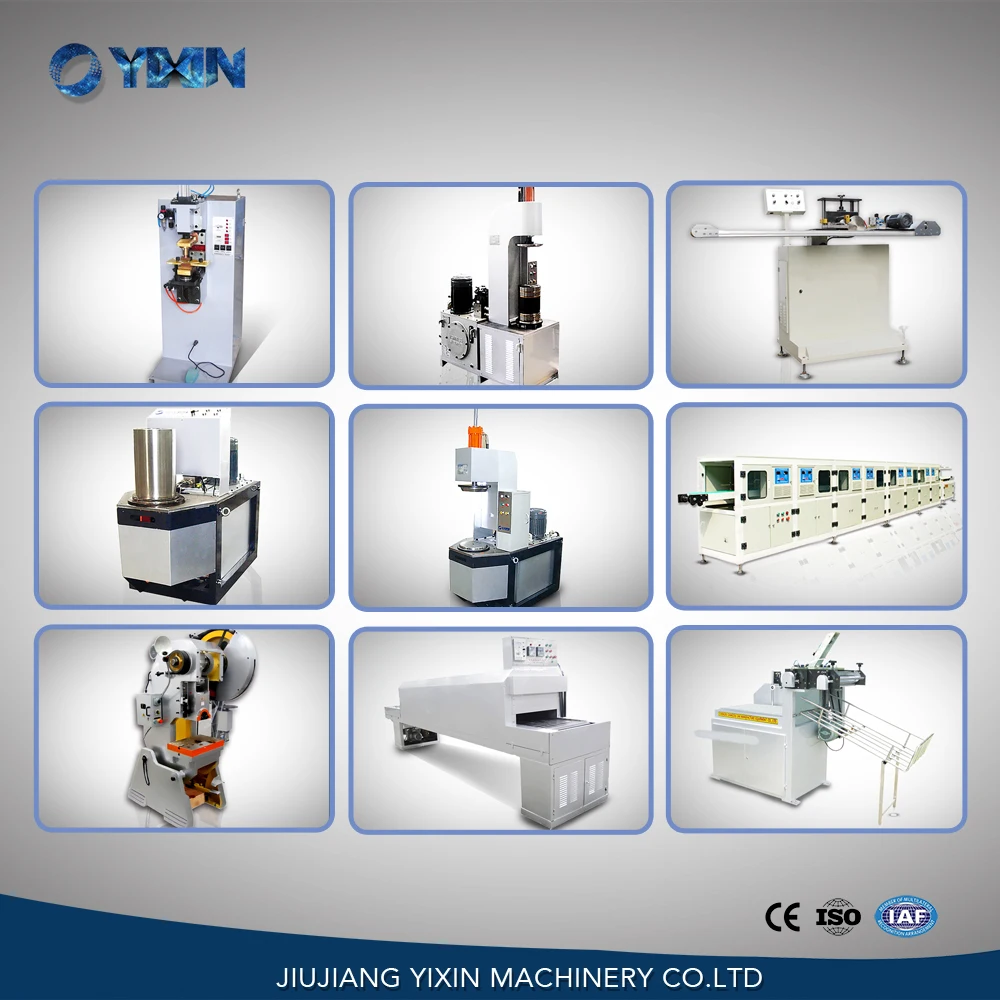

Fully Automatic Tin Can Making Line of Conical Round Tin Can Making Machinery
Can types: 18-26L Conical Round Cans, 18-25L Round Drum Cans
Can dimensions: Diameters 200-300mm; Heights 300-490mm
Production capacity: 30 cans/minute, 1800 cans/hour, 20000 cans/day
FULLY AUTOMATIC TIN CAN LINE of Conical Round Tin Can Making Machinery Including below items:
Can inside powder coating machine, Auto Rounding & Welding Machine, Can outside Lacquering & Drying Machine
Can body stander, Can expender, Can bottom Flanging & top pre-curling, Can top Curling, Can beading, can body reverser, Can bottom lid feeding & seaming,
Material of Seaming roller: Cr12Mn
Automatically parts brand:AirTAC
Servo motor:Made in Taiwan
color:sliver
Operator Manual & Instruction PDF / Printed paper provided
