Китайский 14 летним заводом OEM ODM ручная пресс-форма для ZC35-EN2807DL промышленного класса 2 RJ45 6 COM безвентиляторный мини 3 5 дюймов SBC материнская
- Категория: Motherboards >>>
- Поставщик: Shenzhen,Zechuang,Weiye,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.61 $* | 0.62 $* |
| Aug-18-2025 | 0.36 $* | 0.47 $* |
| Jul-18-2025 | 0.62 $* | 0.8 $* |
| Jun-18-2025 | 0.65 $* | 0.26 $* |
| May-18-2025 | 0.42 $* | 0.34 $* |
| Apr-18-2025 | 0.59 $* | 0.27 $* |
| Mar-18-2025 | 0.36 $* | 0.45 $* |
| Feb-18-2025 | 0.66 $* | 0.93 $* |
| Jan-18-2025 | 0.78 $* | 0.29 $* |
Характеристики
Chinese 14 Years Factory OEM ODM ZC35-EN2807DL Industrial Grade 2 RJ45 6 COM Fanless 3.5 inch SBC Motherboard
ZC35-EN2807DL 3.5inch Mini Fanless Industrial Motherboard, With VGA, HD MI, LVDS,
Support 6 COM, 2*Gigabit Network Card, With Intel Bay Trail N2807 CPU,
TDP only 4.3W. Can be used in Industrial, monitoring, medical,instrument and apparatus,etc.
All BAY Trail CPU can be customized.
Product Description
Main Features:
1)Onboard Dual-core N2807 CPU, TDP only 4.3W, 1.58GHz-2.16GHz
2)3.5 inch, Size only 146*104mm, Height only 20mm
3)Fanless design, no noise,Suitable for a unattended workplace for a long time.
4)Abundant Display ports,VGA /VGA pin,HD MI, 24bit LVDS,Support dual screen display output
5)CPU and memory part adopts switching power supply design, strong anti-jamming, more stable.
6)Rich interfaces,2*Gigabit network card, 6*COM, 6*USB 2.0, LPT,GPIO etc.
7)Onboard 1*Mini SATA,1*Mini PCI-E,1*SIM slot,Support SSD,WIFI,3G/4G
8)DC 12V power supply, Suitable for car, camera, etc
9)Support watchdog support Hardware Reset
10)Support Diskless Booting,Wake On LAN,Resume By Alarm.

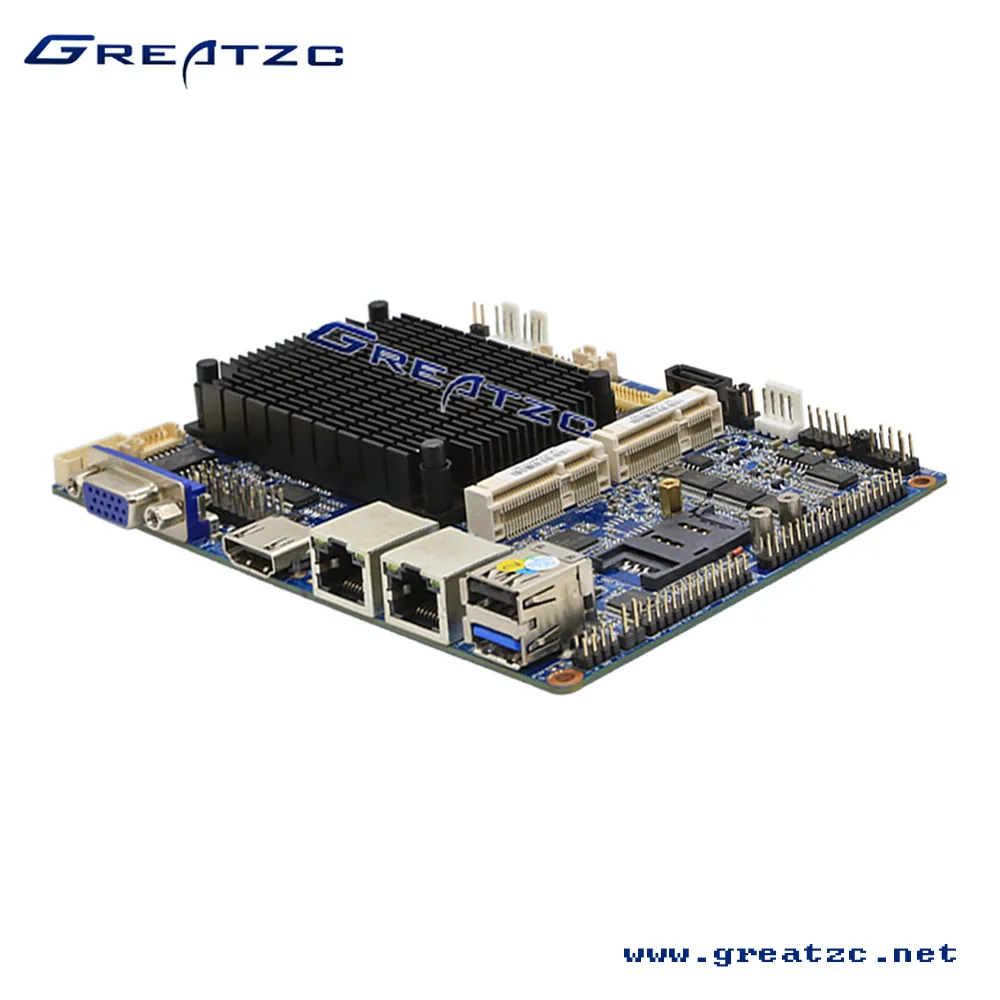

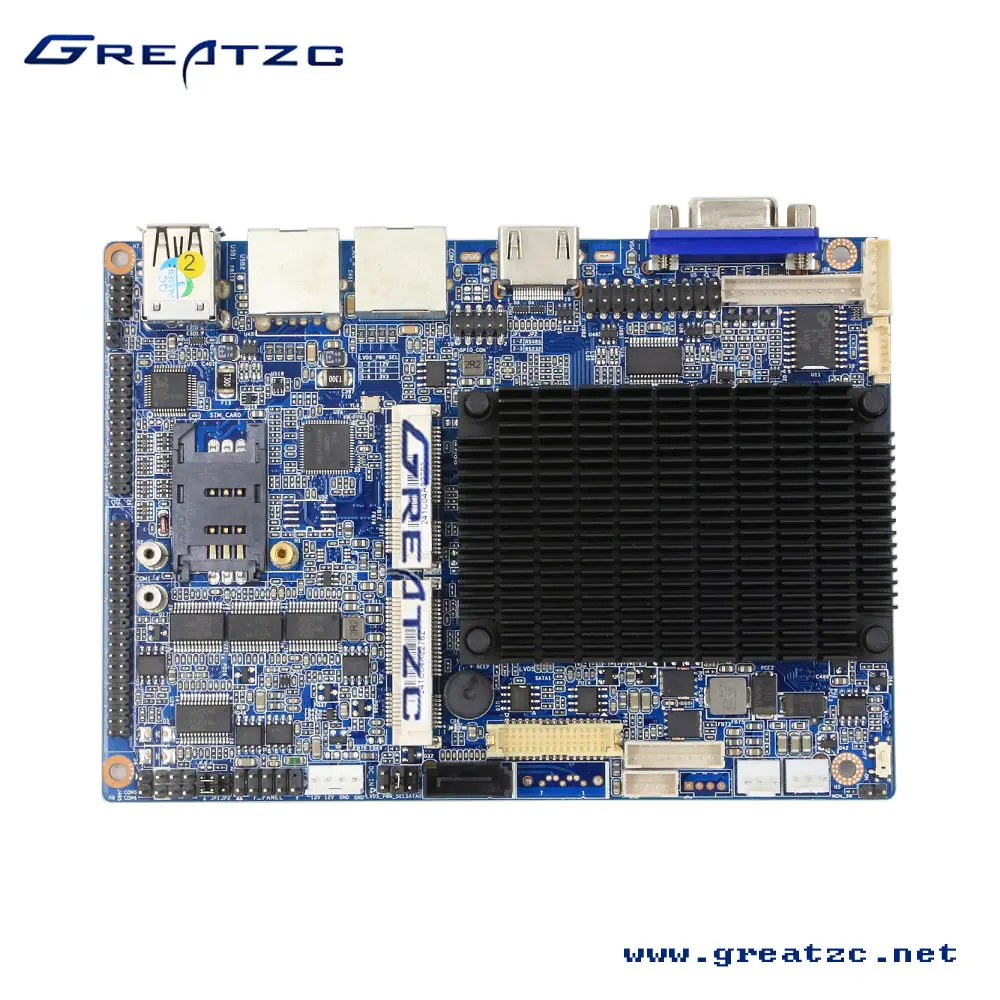

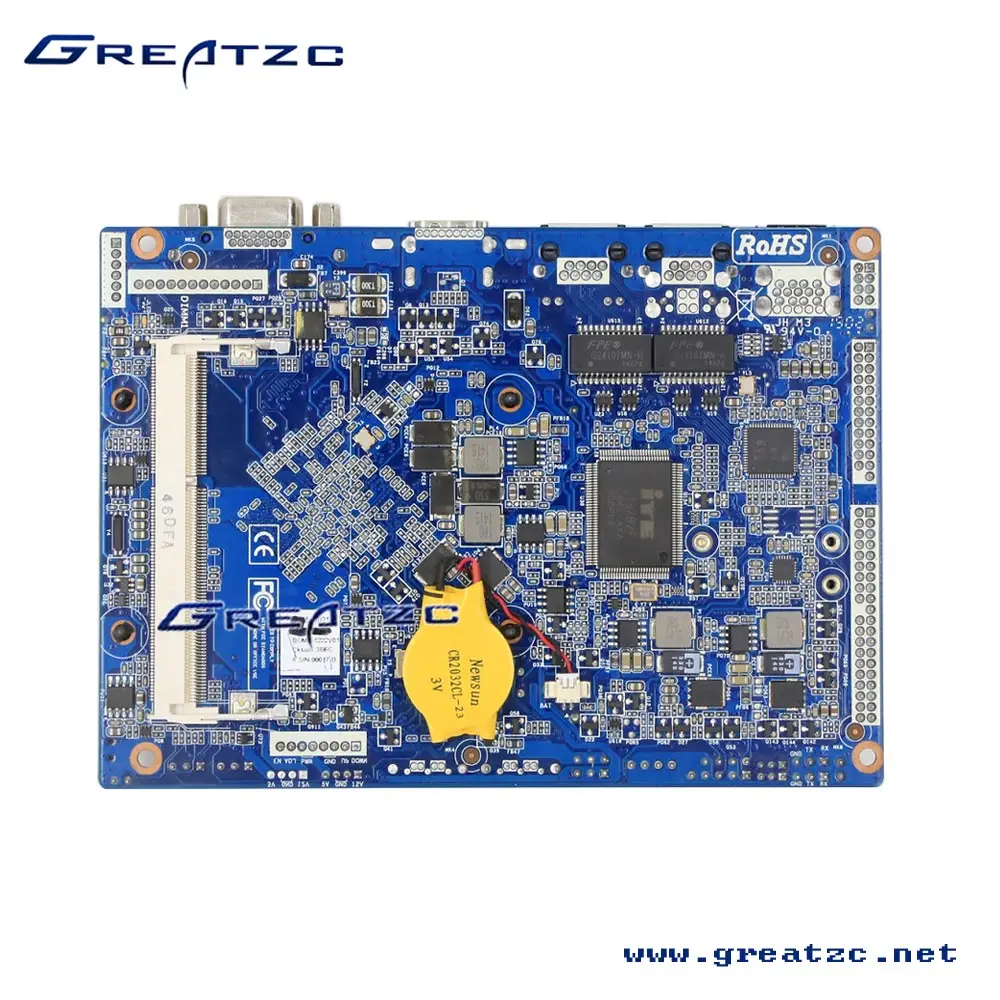

ZC35-EN2807DL 3.5 inch Fanless Motherboard
CPU | Intel Bay Trail N2807 (1M Cache, dual-core 1.58 GHz, Turbo to 2.16G) 22nm, TDP only 4.3W |
RAM | 1*SO-DIMM DDR3L 1600MHz Memory,Max 4 GB |
Chipset | CPU integrated |
Graphics Card | INTEL HD,Support 1080 HD playing. |
Storage | 1*SATA Slot,1*MSATA SSD |
Audio card | Realtek ALC662 |
Network Card | 2*Gigabit Network Card |
Expansion Slot | 1*MINI PCI-E Support WIFI or 3G /4G module 1*MINI SATA Support SSD |
Rear Panel I/O | 1*VGA 1*HD MI 2*RJ-45 2*USB |
Internal I/O | DC 12V 4PIN 1*12pin built-in VGA 1*KB/MS pin 2*Fan pin 1*SIM Slot 1*SATA-PW supply LVDS-CL Backlight power supply 24bit LVDS(30PIN) F-Pannel pin 1*SATA COM1-4, 4*RS232 COM 6 support RS485 or TTL COM5 support TTL 2*F-USB pin, support 4*USB 2.0 1*GPIO pin 1*LPT pin 1*F-AUDIO 1*AUTO PW ON 1*Mini PCI-E 1*Mini SATA Full-size,support SSD |
Display Function | Support VGA,HD MI,LVDS Support 1080P Playing |
Watchdog | Support Hardware Reset |
Power Supply | 12V DC-In |
Size | 3.5inch 146*104*20mm |
