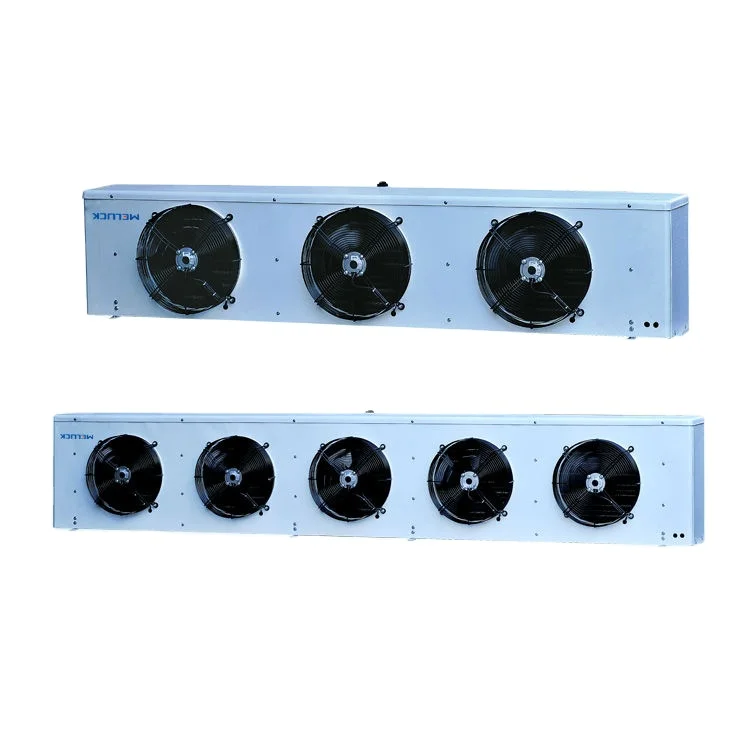

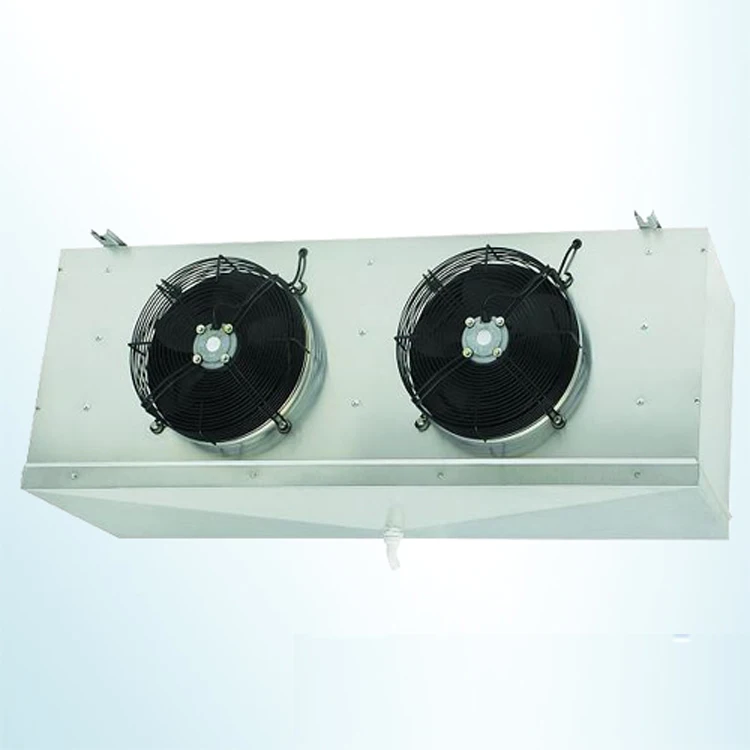

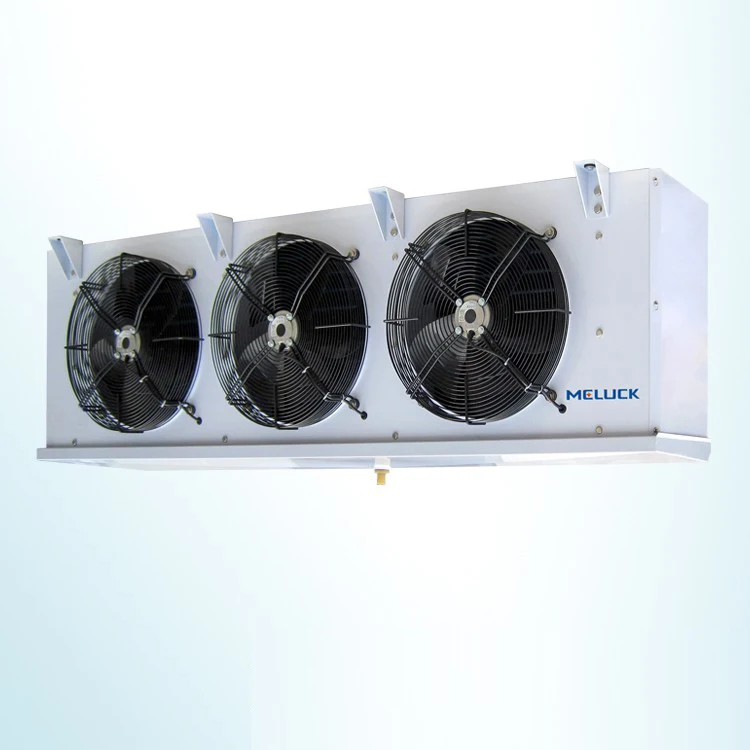

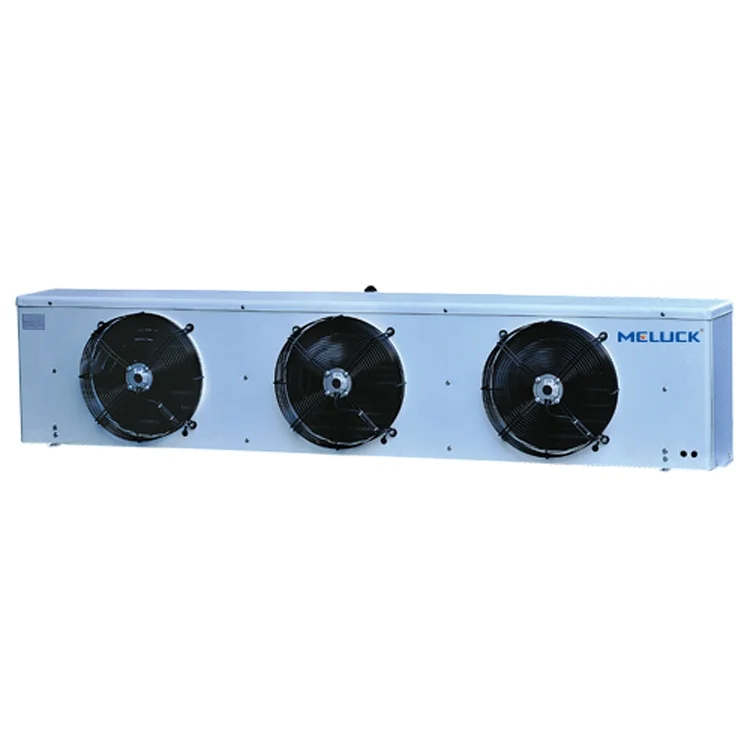

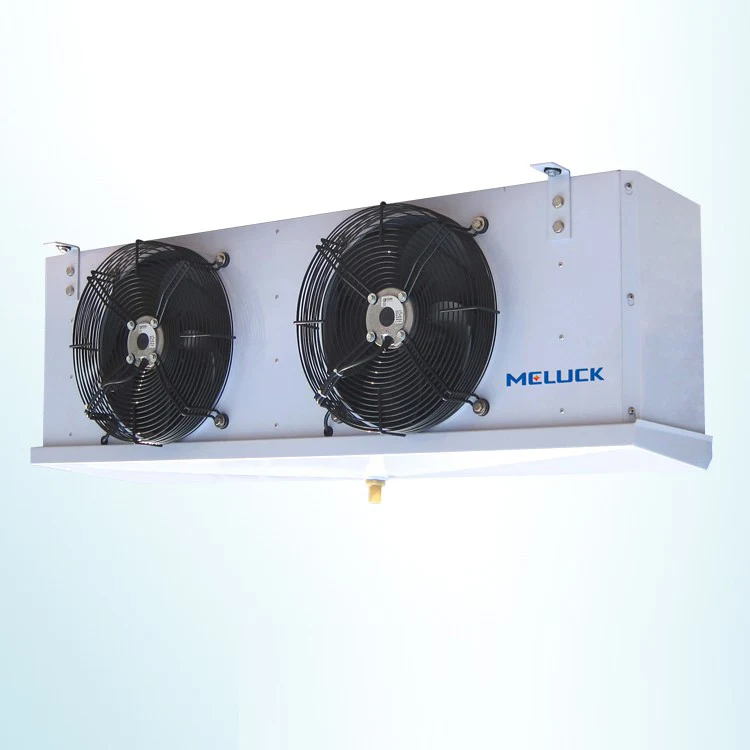

Потолочный тип низкая мощность автоматический промышленный охладитель воздуха для холодного испарителя
- Категория: Кондиционеры >>>
- Поставщик: Anhui,Meluck,Refrigeration,Air-Condition,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.45 $* | 0.42 $* |
| Aug-18-2025 | 0.29 $* | 0.61 $* |
| Jul-18-2025 | 0.80 $* | 0.48 $* |
| Jun-18-2025 | 0.40 $* | 0.26 $* |
| May-18-2025 | 0.87 $* | 0.76 $* |
| Apr-18-2025 | 0.48 $* | 0.98 $* |
| Mar-18-2025 | 0.16 $* | 0.78 $* |
| Feb-18-2025 | 0.24 $* | 0.19 $* |
| Jan-18-2025 | 0.13 $* | 0.96 $* |
Характеристики
Product Description
Automatic Industrial Air Cooler
Modle | Capacity (KW) DT=7K t0=-7℃ | Air flow m3/h | Air throw m | Fan power W | Defrosting kW | Overall size (mm) Pipe dia( mm) | Pipe dia (mm) | Drainage | Weight | ||||||||||
| R22 |
|
|
| Coil | Water receiver | A | B | C | D | E | E1 | E2 | E3 | F | liquid | gas |
|
|
DL2.2/311A | 2.2 | 1500 | 9 | 90 | 1 | 0.5 | 642 | 445 | 465 | 364 | 440 | - | - | - | 105 | φ12.7 | φ12.7 | 1″ | 23.7 |
DL3.5/311A | 3.5 | 1500 | 9 | 90 | 1.5 | 0.5 | 642 | 445 | 465 | 364 | 440 | - | - | - | 105 | φ12.7 | φ19 | 1″ | 26.5 |
DL4.7/312A | 4.7 | 3000 | 9 | 180 | 2.7 | 0.9 | 1092 | 445 | 465 | 364 | 860 | - | - | - | 120 | φ12.7 | φ22 | 1″ | 41 |
DL6/312A | 6 | 3000 | 9 | 180 | 3.6 | 0.9 | 1108 | 455 | 465 | 384 | 860 | - | - | - | 120 | φ12.7 | φ22 | 1″ | 44 |
DL9/352A | 9 | 4500 | 10 | 280 | 3.6 | 1.2 | 1408 | 455 | 465 | 384 | 1160 | - | - | - | 135 | φ16 | φ22 | 1″ | 52 |
DL12.5/402A | 12.5 | 7000 | 12 | 390 | 4.8 | 1.2 | 1488 | 555 | 565 | 484 | 1240 | - | - | - | 135 | φ16 | φ22 | 1″ | 72 |
DL14.5/402A | 14.5 | 7000 | 12 | 390 | 6 | 1.2 | 1488 | 555 | 665 | 484 | 1240 | - | - | - | 135 | φ16 | φ28 | 1″ | 81 |
DL17/402A-1 | 17 | 7000 | 12 | 390 | 6 | 1.2 | 1680 | 555 | 665 | 484 | 1360 | - | - | - | 160 | φ16 | φ28 | 1.5″ | 84 |
DL25/502A-1 | 25 | 12000 | 15 | 1000 | 10 | 4 | 2121 | 595 | 665 | 502 | 1801 | 920.5 | - |
| 160 | φ22 | φ35 | 1.5″ | 113 |
DL29/453A-1 | 29 | 13500 | 14 | 840 | 10 | 4 | 2695 | 595 | 665 | 502 | 2374 | 818 | 778 | - | 160 | φ22 | φ35 | 2″ | 141 |
DL36.5/503A-1 | 36.5 | 18000 | 15 | 1500 | 10 | 4 | 2695 | 595 | 765 | 502 | 2374 | 818 | 778 | - | 160 | φ22 | φ42 | 2″ | 159 |
DL42/503A-1 | 42 | 18000 | 15 | 1500 | 12 | 4 | 2890 | 595 | 765 | 502 | 2560 | 880 | 840 | - | 160 | φ22 | φ42 | 2″ | 176 |
DL49/503A-1 | 49 | 18000 | 15 | 1500 | 12 | 4 | 2890 | 675 | 765 | 582 | 2560 | 880 | 840 | - | 160 | φ22 | φ54 | 2″ | 190 |
DL59/504A-1 | 59 | 24000 | 15 | 2000 | 15.6 | 5.2 | 3778 | 685 | 865 | 582 | 3440 | 890 | 850 | 850 | 170 | φ22 | φ54 | 2-2″ | 277 |
DL70/554A-1 | 70 | 30000 | 18 | 3000 | 15.6 | 5.2 | 3778 | 685 | 975 | 582 | 3440 | 890 | 850 | 850 | 170 | φ22 | φ54 | 2-2″ | 312 |
3,Main components:
1.compressor 2.suction and discharge valves 3.oil heating belt 4. condenser 5.liquid receiver
6.Drier and filter 7.sight glasses 8.solenoid valve 9.diaphragm type pressure switch 10.H/L pressure gauge
11.in/out pipe connection valve 12 liquid injection valve 13 enhanced gas injection 14 mechanical type low voltage control 15 mechanical type high voltage control 16 discharge temperature protector 17vibration eliminator 18oil separator 19gas separator
XJQ02H-XJQ05H:item 1,4,5,6,7,8,9,10,11,16;optional:14,15
XJQ08H-XJQ15H:item1,3,4,5,6,7,8,9,10,16;optional:14,15,18,19
XJQ02M-XJQ07M:item1,4,5,6,7,8,9,10,11,16;optional:14,15
XJQ08M-XJQ15M:item1.2.3.4.5.6.8.8.9.10,16;optional:14,15,18,19
XJQ20M-XJQ25M:item1.2.3.4.5.6.7.8.9.10,15,16,17,18;optional: 19
XJQ02L-XJQ07L:item1.2.3.4.5.6.7.8.9.10.11,12,14;optional:15
XJQ08L-XJQ15L:item1.2.3.4.5.6.7.8.10,13,15;optional: 18
PRODUCT DISPLAY
FEATURE DESCRIPTION
COOLING SYSTEM
Company Information
FAQ
Q1: Are you a factory or a trading company?
A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2: Where is your factory located?
A2: Our factory was located in Fenggong Rd,North Xuanzhou Economic Development Zone,Xuancheng City,Anhui,China.
Q3: Is Anhui Meluck be the same with Shanghai Meluck?
A3: Yes, Anhui Meluck, Shanghai Meluck and Zhengjiang Bingfeng are belong in Meluck group.
Q4: Can the product be customized according to specifications?
A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q5: What are the payment terms?
A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
