Промышленный коммутатор с 2 слотами GE SFP + 4 10/100/1000 м POE cctv Реверсивный
- Категория: Network Switches >>>
- Поставщик: Shenzhen,3C-Link,Opto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.14 $* | 0.1 $* |
| Aug-17-2025 | 0.52 $* | 0.77 $* |
| Jul-17-2025 | 0.12 $* | 0.42 $* |
| Jun-17-2025 | 0.49 $* | 0.12 $* |
| May-17-2025 | 0.35 $* | 0.11 $* |
| Apr-17-2025 | 0.51 $* | 0.54 $* |
| Mar-17-2025 | 0.59 $* | 0.52 $* |
| Feb-17-2025 | 0.89 $* | 0.97 $* |
| Jan-17-2025 | 0.43 $* | 0.4 $* |
Характеристики
2 GE SFP Slot Industrial Switch + 4 10/100/1000M POE cctv reverse poe switch
-------------------------------Industrial Converter---------------------------
Certifications
Product Description

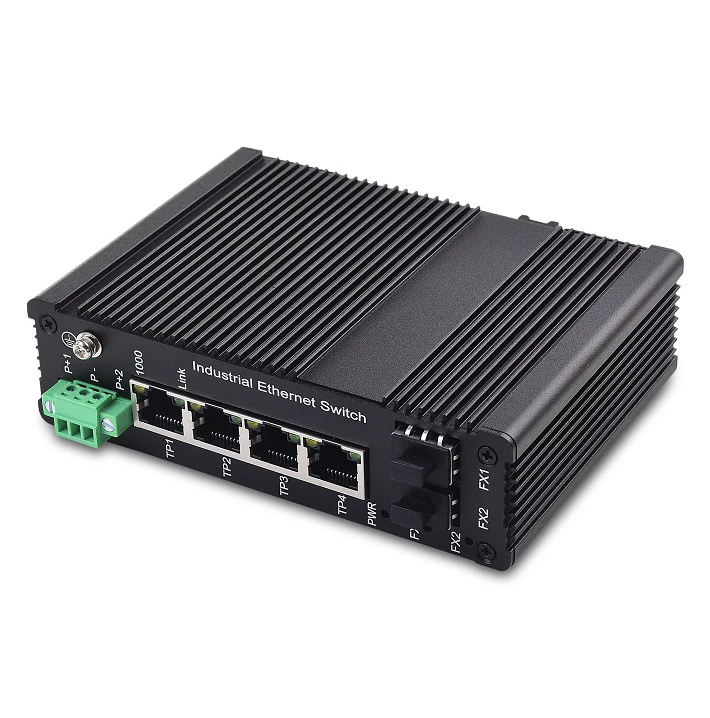

Industrial design, 4x 10/100/1000M POE Ethernet RJ45 ports and 2x Gigbit SFP Slot optical port.( 3CI-PSE0204PG) for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP, wireless AP and other PoE supported devices. Optical fiber SC interface extends network transmission distance limit from 100m to above 120KM (Multi-mode 0.55KM, single-mode 20/40/60/80/100/120KM), it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.
3CI-PSE0204PG product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power, to get more powerful suitability to environment.
| Model | 3CI-PSE0204PG |
| Interface | 4x 10/100/1000M copper RJ-45 ports, 2x 1000M SFP Slot |
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) 4 PoE ports, auto detect AF/AT devices PoE Port Output Voltage: DC48-57V Power Pin Assignment:1/2+;3/6- |
| Switch Processing Scheme | Store-and-Forward |
| Bandwidth | 12Gps |
| Optical Fiber Feature | Support all 1.25G SFP industry Transceiver |
| MTBF | 300,000 hours |
| Standards Compliance | IEEE802.3: CSMA/CD; IEEE802.3i: 10Base-T; IEEE802.3u: 100Base-T; IEEE802.3ab: 1000Base-T; IEEE802.3z: 1000Base-LX/ZX |
| LED Indicators | Power: PWR; Link; PoE, L/A |
| Power | Removable industrial 3-pin terminal block (Power adapter is not includedin the package,need to order it separately) |
| Product Size | W×D×H:128x100x47mm |
| Working Environment | Working Temperature: -40~75℃; Storage Temperature: -40~75℃; Working Humidity: 5%~95%(non-condensing); Storage Humidity: 5%~95%(non-condensing); Working high: Altitude of 3000 m(10,000ft); Storage high: Altitude of 3000 m(10,000ft |
| Warranty | 5 years warranty |
Packaging & Shipping
Packing
List
| 2x 10/100M POE Ethernet RJ45 ports and 1x 100M SC optical port poe network switch |
User Guide | |
Warranty Card |
Our Services
MOQ
Although we expect you to place bigger order to benefit a good discount, we undertand that you may like to test the quality and market first. Our MOQ for industrial ethernet switch is 1-10 pcs.
Lead Time
Normally our lead time is 5-7 days, but sometimes we can provide priority production for urgent case.
Payment
For samples: Paypal and western union are accepted, as they are fast to receive payment;
For bulk order: Below $5000, we accept full payment; Above $5000, we could accept 30% deposit in advance, the balance to arranged before shipment.
Warranty
5Yeas starts from the date of delivery. The technical service is free of charge under warranty period.
Technical service: Includes E-mail support, phone support, on-site support and repairation / replacement service.
Order Information
-------------------------------Order Information----------------------------
| Modle | Description |
3CI-PSE0204PG | 4x 10/100/1000M POE Ethernet RJ45 ports, 21000M SFP Slot. |
Support SFP module:
3CP-RJ45-GE: Gigabit SFP optical ports transfers to RJ45 TX port modules
3CP-485L2MD-SX: Gigabit SFP multi-mode(500m,850nm,LC,DDM)
3CP-413L2SD-LX: Gigabit SFP single mode (10Km,1310nm,LC,DDM)
3CP-413L2SD-LH: Gigabit SFP single mode (20Km,1310nm,LC,DDM)
3CP-413L2SD-XD: Gigabit SFP single mode (40Km,1310nm,LC,DDM)
3CP-413L2SD-ZX: Gigabit SFP single mode (80Km,1550nm,LC,DDM)
3CP-435L2SD-LX:Gigabit SFP single mode, single-core bidirectional (10Km,TX1310/RX1550,LC,DDM)
3CP-453L2SD-LX: Gigabit SFP single mode, single-core bidirectional (10Km,TX1550/RX1310,LC,DDM)
3CP-435L2SD-XD:Gigabit SFP single mode, single-core bidirectional (40Km,TX1310/RX1550,LC,DDM)
3CP-453L2SD-XD: Gigabit SFP single mode, single-core bidirectional (40Km,TX1550/RX1310,LC,DDM)
3CP-445L2SD-ZX:Gigabit SFP single mode, single-core bidirectional (70Km,TX1490/RX1550,LC,DDM)
3CP-454L2SD-ZX: Gigabit SFP single mode, single-core bidirectional (70Km,TX1550/RX1490,LC,DDM)
3CC-4XXL2SD-ZX:Gigabit SFP single mode, 1270-1610nm CWDM (70Km,CWDM,LC,DDM)
3CD-4XXL2SD-ZX:Gigabit SFP single mode, ITU C-BAND DWDM (70Km,DWDM,LC,DDM)
Company Information
100% STRICT PERFORMANCE TESTING
COMPTIBILITY TEST
